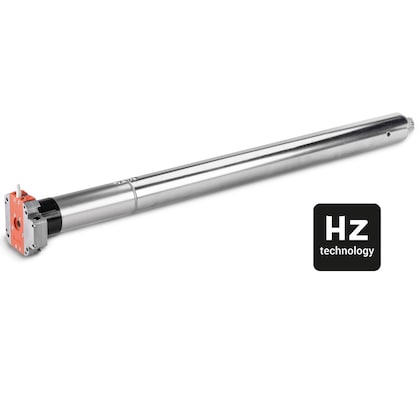

Somfy Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug (2007146)
Somfy Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug (2007146)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug -- Simu Hz radio, manual crank override and a plug-in cord
The Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug (2007146) combines a built-in Simu Hz radio with a CMO manual override head. It delivers 80 Nm at 14 rpm on 120V/60Hz power and ships with a 19.69 ft SJTW cord ending in a NEMA plug. Pick it for awnings and rolling shutters that need wireless control plus a crank backup during outages.
Benefits
- 80 Nm at 14 rpm for large awnings and rolling shutters
- Built-in Simu Hz radio on 433.42 MHz with a 492 ft open-field range
- CMO head with manual override for crank operation during outages
- 19.69 ft SJTW cord with a NEMA plug for plug-in installs
- Mechanical limits with a 28-turn capacity
- IP 44 rated and backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 80 Nm / 14 rpm |
| Overall length | 34.57 in (878 mm) |
| Voltage | 120V / 60Hz AC |
| Rated current | 3.4 A |
| Operating power | 390 W |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft (open field) |
| Manual override | Yes (CMO head) |
| Limit switches | Mechanical, 28-turn capacity |
| Cable | 19.69 ft SJTW, 3-wire, white, NEMA plug |
| Standby consumption | 0.34 W |
| Protection | IP 44, Class I |
| Operating temperature | -4°F to 140°F |
| Applications | Awnings, rolling shutters |
| Warranty | 5 years |
Compatible with: Simu T6 class tubes with T5/T6 crowns and drives (60mm round aluminum drive 9012950, 70mm octagonal aluminum drive 9011878, 85mm Simbac tube crown 9690085), DMI brackets (9420647, 9706034, 2005701), the 7mm hex CMO extension shaft (9420659) and Simu Hz transmitters on 433.42 MHz.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What makes the Simu 2007146 different from a standard DMI6?
The 2007146 adds a built-in Simu Hz radio receiver on 433.42 MHz to the DMI6 manual override motor. It also ships with a 19.69 ft SJTW cord and a NEMA plug, so it plugs into a standard outlet instead of hard-wiring to a wall switch.
Can I crank the 2007146 by hand?
Yes. The 2007146 has a CMO head that accepts a 7mm hex crank shaft. Somfy lists the 7mm hex extension shaft (9420659) and DMI brackets such as 9420647 and 9706034 as accessories, so you can operate the awning or shutter during a power outage.
What torque and speed does the 2007146 deliver?
The Simu DMI6Hz 2007146 delivers 80 Nm at 14 rpm on 120V/60Hz power. Standby draw is 0.34 W. It runs within -4°F to 140°F and carries an IP 44 rating, which suits exterior awning and rolling shutter installs.
How are the limits set on the 2007146?
The 2007146 uses mechanical limit switches with a 28-turn capacity. The motor stops at the same up and down points on every cycle, while the built-in Simu Hz radio takes commands from paired Simu Hz transmitters. Somfy backs it with a 5-year warranty.
Couldn't load pickup availability
Replace a Simu T6, DMI6 or T8 motor, or build a new shutter, screen or awning.
Replacing? Your roller stays built. Building new? Every part below is Somfy-matched to part 2007146.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power and support
Turn off the circuit and support the roller or curtain before you remove the motor.
-
2
Pull the old motor
Unbolt the head from its bracket and slide the motor out of the tube.
-
3
Fit crown and drive
Fit the crown and drive for your tube, slide the new motor in and bolt the head to its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shutter, screen or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug needs to run
Somfy lists every part below as compatible with part 2007146. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu DMI6Hz 80Nm 14rpm 120V with NEMA Plug for 5 years. We handle the claim.
