T6 85mm Round (Simbac Tube) Crown -- eccentric crown for Simu T6 motors in 85mm Simbac tube
This black Simu crown fits T6 tubular motors installed in 85mm Simbac tube with a groove. Somfy specifies a 3mm eccentricity, a 120 Nm maximum torque and 13 compatible T6, T6Hz, DMI6 and DMI6Hz motors. Pair it with drive 9420300 to finish the motor end of an awning tube.
Benefits
- Sized for 85mm Simbac tube with a groove
- 3mm eccentricity to suit the tube profile
- Rated to 120 Nm maximum torque
- Fits 13 Simu T6 family motors on Somfy's list
- Pairs with the 85mm Simbac drive 9420300
Specifications
| Tube | 85mm round Simbac tube |
| Eccentricity | 3mm |
| Maximum torque | 120 Nm |
| Color | Black |
| Thickness | 3.35 in |
| Application | Awning |
| Warranty | 5 years |
Compatible with: Simu T6 60, 80 and 100 Nm 14 rpm (wired, Hz and DMI6 versions) and T6 25 Nm 54 rpm, all 120V; DMI6Hz 60, 80 and 100 Nm with NEMA plug. Pairs with the T5/T6 85mm Simbac drive 9420300.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
Which motors fit crown 9690085?
Somfy lists 13 Simu T6 motors: T6 and T6Hz at 60, 80 and 100 Nm, DMI6 and DMI6Hz at 60, 80 and 100 Nm, and the T6 25 Nm 54 rpm. All are 120V units.
What tube is the crown made for?
Somfy designs crown 9690085 for 85mm Simbac tube with a groove and builds in a 3mm eccentricity. Confirm your tube profile before ordering, since other 85mm tubes may need a different crown. Somfy rates the crown to 120 Nm.
Which drive should I pair with it?
Somfy pairs crown 9690085 with drive 9420300, the T5/T6 85mm Round Simbac Tube drive. ShadeMotorsDirect stocks both, so one order covers the crown and the drive for a T6 motor. Somfy rates the crown to 120 Nm.
What torque and warranty apply?
Somfy rates crown 9690085 for a 120 Nm maximum torque and backs it with a 5-year warranty. The crown comes in black and Somfy lists awnings as its application. Pair it with drive 9420300 for 85mm Simbac tube.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.

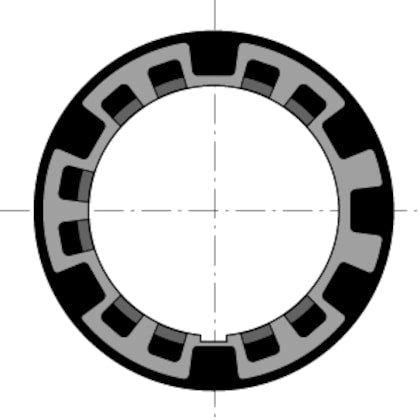

12- 1Outer edge Fits the 85mm round Simbac tube.
- 2Center opening Slides over the motor.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the Simu T6 85mm Round.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Simu T6 85mm Round works with
Somfy lists these motors as compatible with part 9690085.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Simu T6 85mm Round for 5 years. We handle the claim.
Somfy warranty on the Simu T6 85mm Round, part 9690085.
