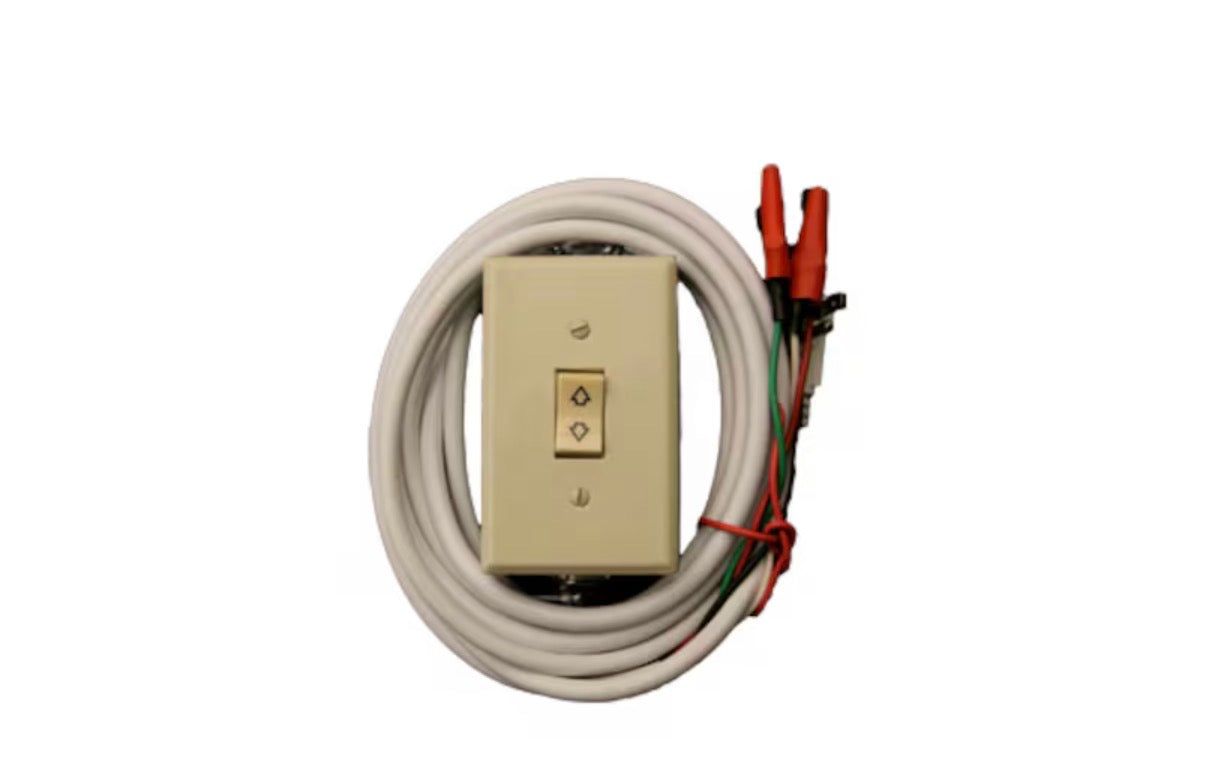

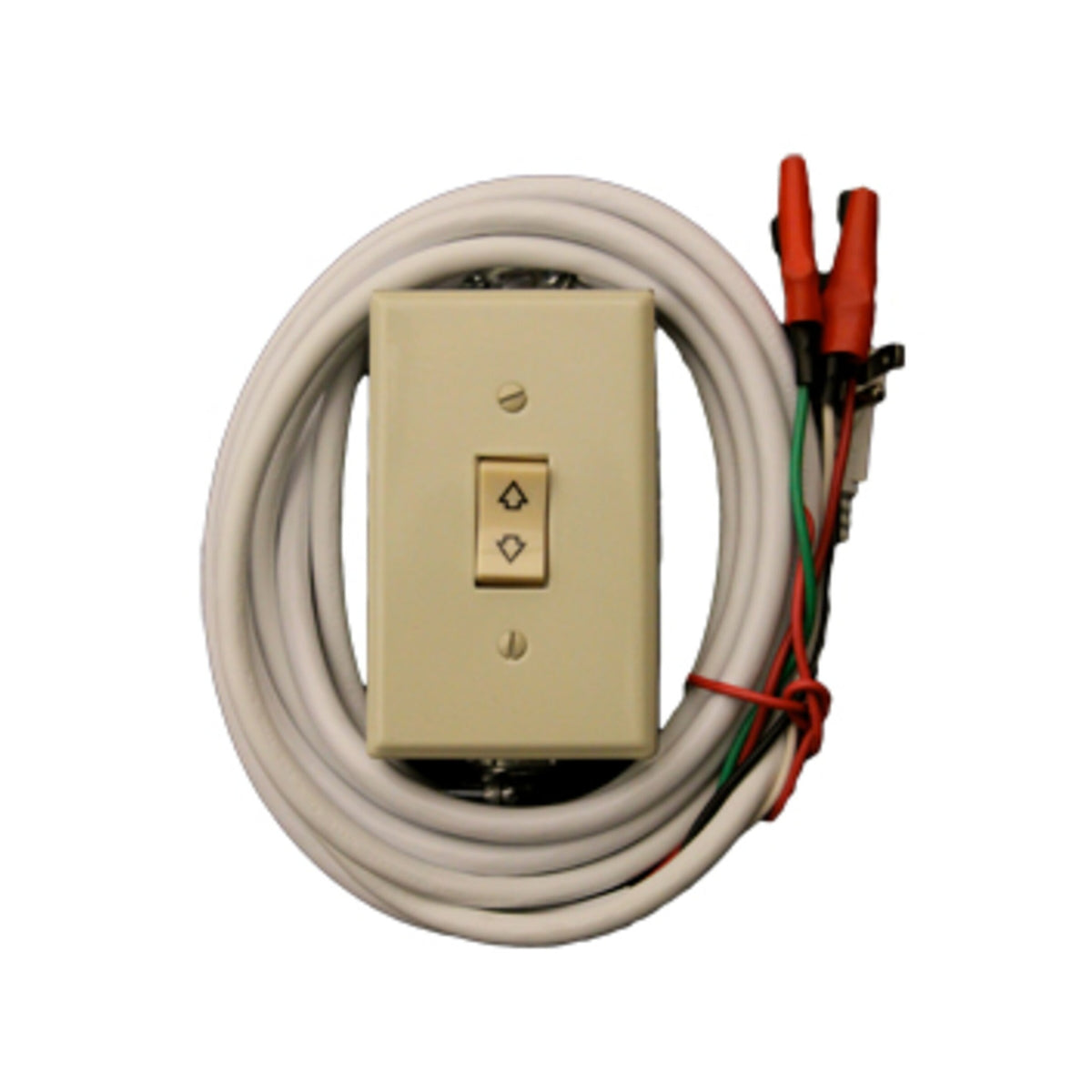

Standard Motor Tester Cable, 4-Wire -- bench and field test lead for 4-wire Somfy motors

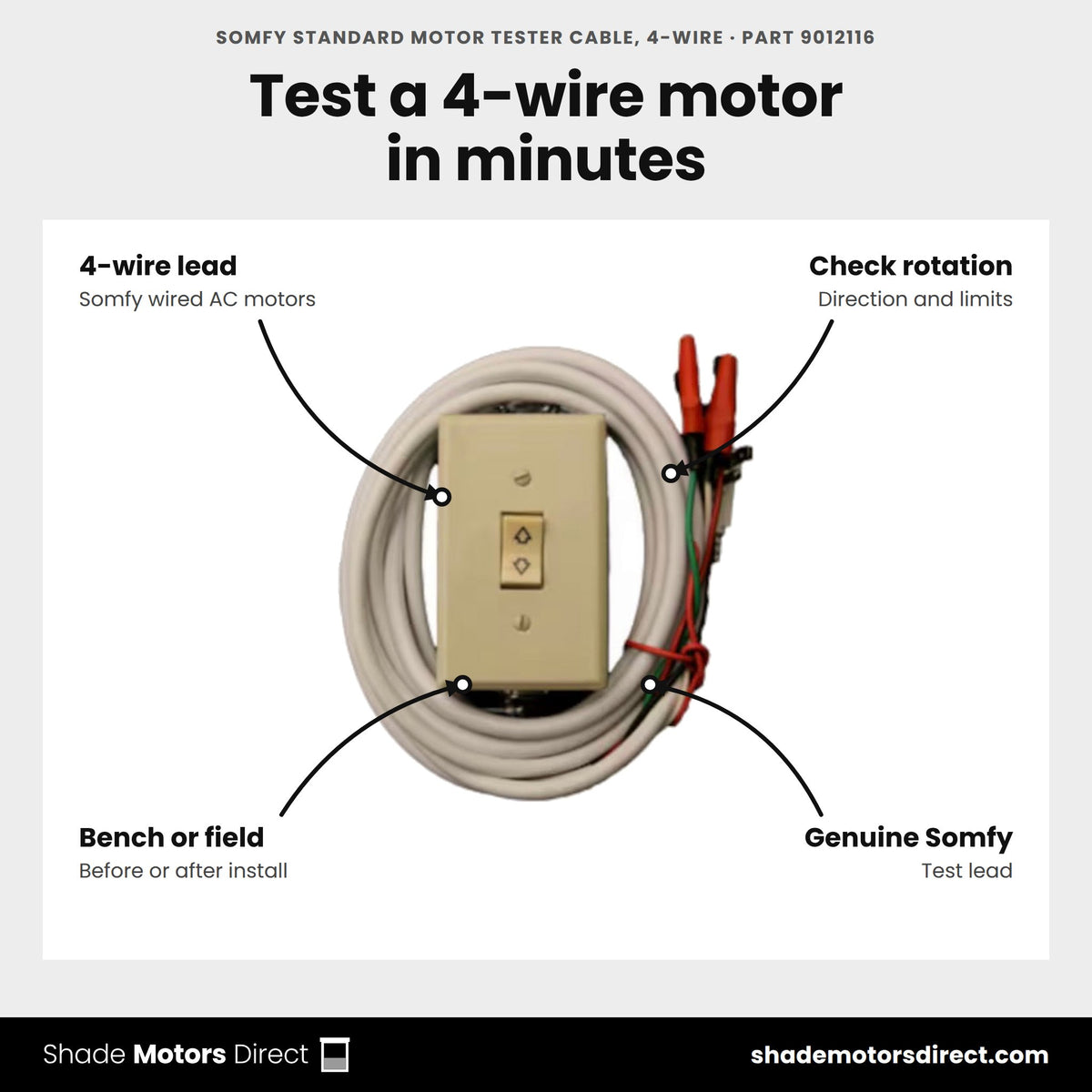

This 4-wire tester cable connects a Somfy wired motor to a test switch or power source for bench checks and field diagnostics, letting installers verify rotation, limits, and function before or after installation.
Benefits
- Quickly verify motor function, direction, and limits
- Correct 4-wire configuration for Somfy wired AC motors
- Saves time on service calls and pre-install bench checks
- Genuine Somfy test lead
Specifications
| Wires | 4 |
| Use | Motor testing and diagnostics |
Compatible with: Somfy 4-wire AC motors including LT50, LT60, and DMI ranges
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Standard Motor Tester Cable used for?
It tests the function of a standard 4-wire Somfy motor. Somfy notes that it makes it easy to set the limit switches on LT motors before you connect the motor to its controller.
Which motors does it work with?
Somfy lists more than 140 compatible models, including Sonesse 506S2 and 510S2, T5, T6 and T8, and DMI5 and DMI6 motors. In this store that covers the Sonesse 506S2 Standard 120V 4-Wire Motor (1001814) and the DMI5 50Nm 12rpm 120V (2000776).
What voltage does it run on?
The cable operates at 120V, the North American standard. It suits the 120V 4-wire motors Somfy sells in the US, such as the LT60 660R2 Standard 120V 4-Wire Motor (1162272).
Why test a motor before installation?
A bench test confirms the motor runs and turns in the right direction before it goes into the tube or headrail. Setting limits first on LT motors saves time once the shutter or shade is in place.
What applications is it meant for?
Somfy lists rolling shutters as the application. Installers keep the cable in the service kit for bench checks before installation and for field diagnostics on 4-wire motors.
What warranty does it carry?
Somfy backs the Standard Motor Tester Cable, 4-Wire, part 9012116, with a 5-year warranty. It is a genuine Somfy test lead built for the company's wired motor range.
Couldn't load pickup availability
Replace a damaged data cable or set up new networked motors.
12- 1Up and down Run the motor to test it.
- 2Alligator clips Clip onto the motor's wires.
Replacing one
-
1
Unplug
Disconnect the damaged cable at both ends.
-
2
Swap it
Connect the Standard Motor Tester Cable, 4-Wire in its place.
-
3
Test
Run each motor on the line and check it responds.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Match the connectors
Check the plug ends your motor and device use.
-
2
Run the cable
Connect the motor to the network or setting tool.
-
3
Configure
Address the motor and set its limits.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

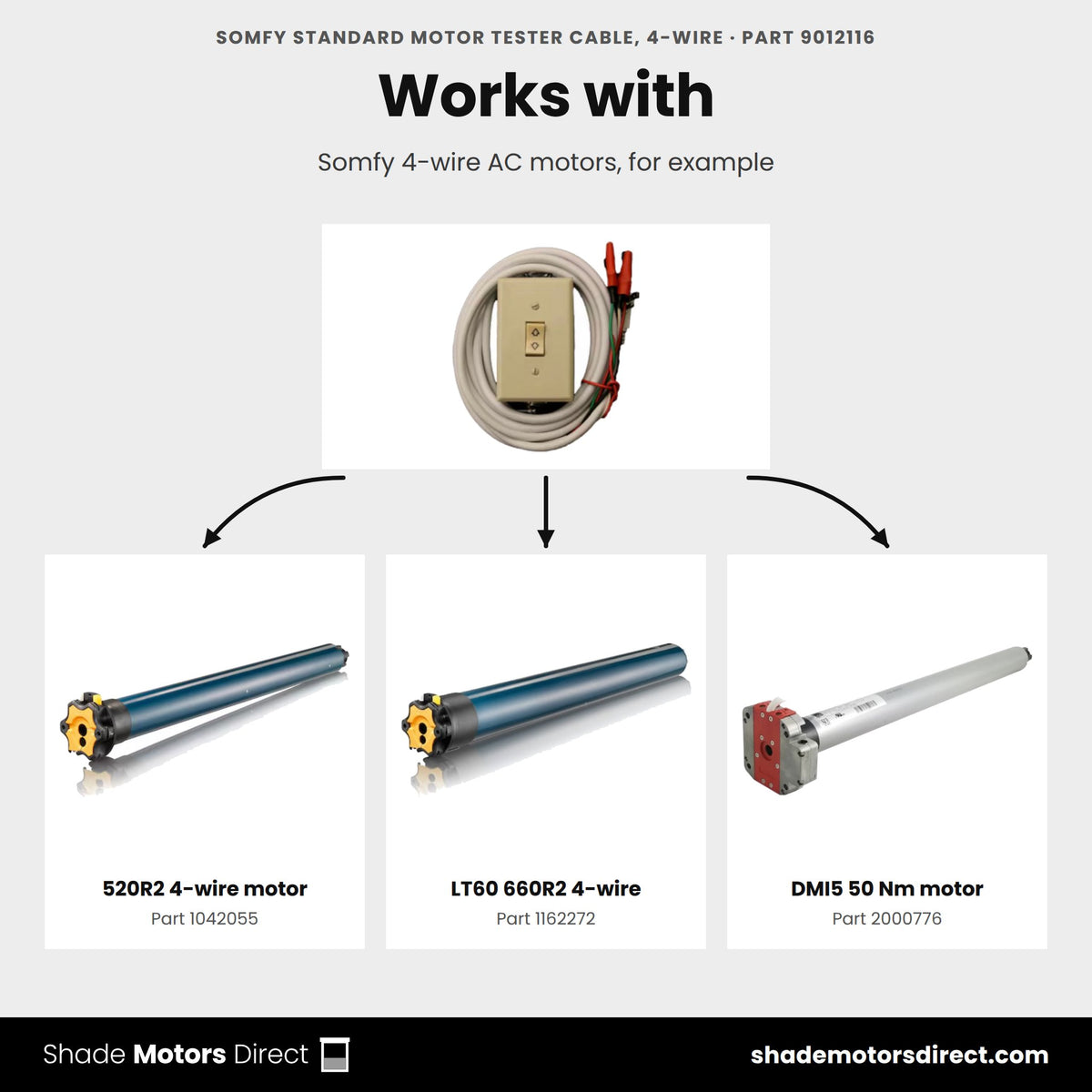

Motors the Standard Motor Tester Cable, 4-Wire works with
Somfy lists these motors as compatible with part 9012116.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Standard Motor Tester Cable, 4-Wire for 5 years. We handle the claim.
Somfy warranty on the Standard Motor Tester Cable, 4-Wire, part 9012116.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
