Somfy LT50/60 Octagonal 70MM Drive (9761002)

SKU: 9761002

$4.50

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

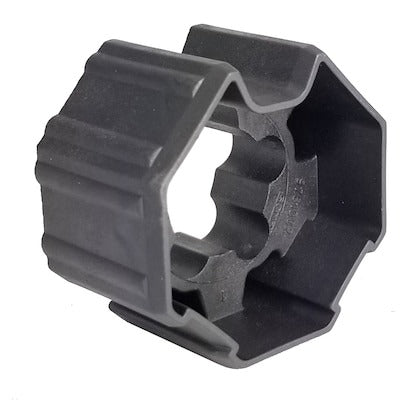

LT50/60 Octagonal 70mm Drive -- drive wheel for 70mm octagonal tube

This genuine Somfy drive wheel mounts on the motor's output shaft and locks into 70mm octagonal tube, transferring the motor's torque to the roller. Pair it with the matching crown for a complete, concentric motor-to-tube connection.

Benefits

Drive wheel engages 70mm octagonal tube for slip-free torque transfer
Keeps travel smooth and hembar level across the full drop
Pairs with the matching Somfy crown
Genuine Somfy geometry for quiet running

Specifications

Tube	70mm octagonal
Type	Drive wheel

Compatible with: Somfy 50mm-class (500 Series / LT50) motors including LT50, LT50 CMO, Altus RTS, Sonesse 50, and DMI5 ranges and Somfy 60mm-class (LT60) motors including DMI6 and T6 ranges

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What does the LT50/60 Octagonal 70mm Drive do?

It is the drive wheel that fits on a Somfy motor's output shaft and locks into 70mm octagonal tube. It carries the motor's torque into the roller, so the tube turns with the motor.

Which motors does it fit?

Part 9761002 fits Somfy LT50 and LT60 tubular motors. Somfy pairs it with the 70mm Octagonal LT60 Crown (9705340) in its 70mm Octagonal LT60 Set (9012247) for motors such as the Altus RTS 660R2 (1162271) and Altus RTS 680R2 (1164261).

What tube does it need?

It needs 70mm octagonal tube, which measures 2.75 in. Match the drive to both the size and the profile of your tube, since round and DS tubes take their own drive wheels.

What else do I need to mount the motor?

You need a crown for the same tube on the motor head. On an LT60 motor, use the 70mm Octagonal LT60 Crown (9705340). For an LT50 motor, the Octagonal LT50 70mm Crown and Drive Set (9012234) supplies both parts.

Is there a version with a drive stop?

Yes. The 70mm Octagonal LT50/LT60 Aluminum Drive With Stop (9012227) fits the same 70mm octagonal tube and the same LT50 and LT60 motor classes, and Somfy builds it in aluminum with a drive stop.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a worn crown or drive, or order the right set for a new roller.

Match the set to your motor head and your tube size.

LT50/60 Octagonal 70MM Drive, part 9761002.

Replacing one

1
Take the shade down
Cut power and lift the roller out of its brackets.
2
Pull the motor
Slide the motor out of the tube.
3
Swap the part
Pull off the worn crown or drive and fit the LT50/60 Octagonal 70MM Drive.
4
Slide it back
Insert the motor drive end first and rehang the shade.

Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us

Starting new

1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
3
Fit the drive
Push the drive onto the output shaft until it locks.
4
Slide the motor in
Insert the motor into the tube, drive end first.

Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

Motors the LT50/60 Octagonal 70MM Drive works with

Somfy lists these motors as compatible with part 9761002.

530R2 CMO 120V 4-Wire Motor Part 1045017 $485.96

$485.96

LT60 660R2 CMO 120V 4-Wire Motor Part 1162014 $599.99

$599.99

Simu DMI5 10Nm 12rpm 120V Part 2000772 $393.52

$393.52

Simu DMI5 15Nm 18rpm 120V Part 2000769 $415.33

$415.33

Simu DMI5 20Nm 12rpm 120V Part 2000773 $422.13

$422.13

Simu DMI5 25Nm 18rpm 120V Part 2000770 $392.59

$392.59

More Somfy motors work with it too. Ask us if yours isn't listed.

Somfy backs the LT50/60 Octagonal 70MM Drive for 5 years. We handle the claim.

5years

Somfy warranty on the LT50/60 Octagonal 70MM Drive, part 9761002.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.
Somfy documents: LT50 / 500 Series Databook (PDF)
