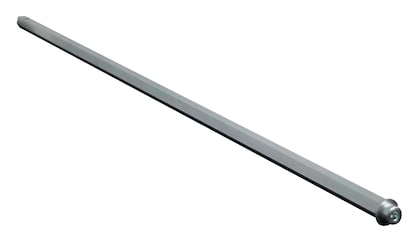

Somfy Simu Extension Shaft 7mm Hex L=330mm with Screw (9420659)
Somfy Simu Extension Shaft 7mm Hex L=330mm with Screw (9420659)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Extension Shaft 7mm Hex L=330mm with Screw -- 330mm crank extension for manual override motors
This 7mm hex extension shaft adds 330mm (13 in) of reach to a manual override crank line and ships with its screw. Somfy lists 32 compatible manual override motors, including Simu DMI5, DMI5Hz, DMI6 and DMI6Hz plus Somfy LT50 and LT60 CMO models. Installers use it when the crank point sits far from the motor head.
Benefits
- Adds 330mm (13 in) of 7mm hex shaft
- Includes the fixing screw
- Fits 32 Simu DMI and Somfy CMO override motors on Somfy's list
- Rated to 120 Nm on the LT60 CSI
- Backed by Somfy's 5-year warranty
Specifications
| Profile | 7mm hex |
| Length | 330mm (13 in) |
| Includes | Screw |
| Maximum torque | 120 Nm (LT60 CSI) |
| Thickness | 0.28 in |
| Application | Rolling shutter |
| Warranty | 5 years |
Compatible with: Simu DMI5, DMI5Hz, DMI6 and DMI6Hz override motors; Somfy LT50 525A2, 530R2, 535A2, 540R2 and 550R2 CMO and RTS CMO motors; Sunea RTS CMO motors; LT60 660R2, 680R2 and 6100R2 CMO motors. Joins other 7mm hex hardware such as the Simu universal joint 2005415.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
How long is the 9420659 extension shaft?
Somfy lists the 9420659 as the Extension Shaft 7mm Hex L=330mm with Screw. That works out to about 13 in of 7mm hex shaft, and the screw that fixes it comes in the package. Somfy rates it to 120 Nm on the LT60 CSI.
Which motors use this shaft?
Somfy lists 32 compatible motors for part 9420659, including Simu DMI5, DMI5Hz, DMI6 and DMI6Hz override motors and Somfy LT50 and LT60 CMO models such as the 550R2 CMO and 6100R2 CMO. Somfy covers the shaft with a 5-year warranty.
What torque can it carry?
Somfy gives a 120 Nm maximum torque for the 9420659 shaft on the LT60 CSI. Stay within that rating when you crank a heavy shutter by hand through the override. Somfy lists rolling shutters as the application and covers the shaft with a 5-year warranty.
Can I angle the crank line?
The 9420659 uses a 7mm hex profile, which matches the Simu universal joint 2005415 with 7mm hex on both ends. Pair the two when the crank has to turn a corner to reach the motor.
Couldn't load pickup availability
Replace worn exterior hardware or build a new exterior system.
12- 17mm hex shaft Extends the drive 330mm.
- 2Screw end Fixes the shaft in place.
Replacing one
-
1
Support the system
Cut power and support the awning or shutter.
-
2
Swap the part
Remove the worn part and fit the Simu Extension Shaft 7mm Hex L=330mm with Screw.
-
3
Test
Run the system through a full cycle.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the fit
Match the size and fitting to your motor and gear.
-
2
Install it
Fit the Simu Extension Shaft 7mm Hex L=330mm with Screw as the system guide shows.
-
3
Test it
Run the system through a full cycle.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Simu Extension Shaft 7mm Hex L=330mm with Screw works with
Somfy lists these motors as compatible with part 9420659.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Simu Extension Shaft 7mm Hex L=330mm with Screw for 5 years. We handle the claim.
Somfy warranty on the Simu Extension Shaft 7mm Hex L=330mm with Screw, part 9420659.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
