T6 Differential 60mm Round -- steel differential kit for Simu T6 motors in 60mm round tubes
This Simu differential kit fits T6 tubular motors in 60mm round tubes. Somfy builds it from steel under the designation DIFFERENTIAL KIT NT6 D59.5/10 and lists 13 compatible T6, T6Hz, DMI6 and DMI6Hz motors. It suits rolling shutter installers who service Simu T6 drives.
Benefits
- Made for Simu T6 motors in 60mm round tubes
- Steel construction
- Fits 13 T6-family motors on Somfy's list, wired, Hz and DMI
- Covers T6 motors from 25 Nm to 100 Nm
- Backed by Somfy's 5-year warranty
Specifications
| Fits | Simu T6, T6Hz, DMI6 and DMI6Hz motors |
| Tube | 60mm round |
| Factory designation | DIFFERENTIAL KIT NT6 D59.5/10 |
| Material | Steel |
| Application | Rolling shutter |
| Warranty | 5 years |
Compatible with: Simu T6 60, 80 and 100 Nm 14 rpm (wired, Hz and DMI6 versions) and T6 25 Nm 54 rpm, all 120V; DMI6Hz 60, 80 and 100 Nm with NEMA plug.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
Which motors use the 9001407 differential?
Somfy lists 13 Simu T6 motors: T6 and T6Hz at 60, 80 and 100 Nm, DMI6 and DMI6Hz at 60, 80 and 100 Nm, and the T6 25 Nm 54 rpm. All are 120V, and all fit 60mm round tube applications.
What tube size does it fit?
Somfy names part 9001407 the T6 Differential 60mm round, with the factory designation DIFFERENTIAL KIT NT6 D59.5/10. Confirm your tube is 60mm round before ordering, since octagonal tubes need different hardware. Somfy lists rolling shutters as the application.
What is the differential made of?
Somfy lists steel as the material for the 9001407 differential kit. It belongs to Simu's rolling shutter hardware for the T6 range and works with wired, Hz radio and DMI override versions. Somfy covers it with a 5-year warranty.
What warranty covers it?
Somfy backs the T6 differential 9001407 with a 5-year warranty. ShadeMotorsDirect also carries Simu T6 operator motors and the T6 operator bracket 9530018 for complete T6 repairs. Somfy lists 13 compatible T6 motors for this part, from 25 Nm to 100 Nm.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.

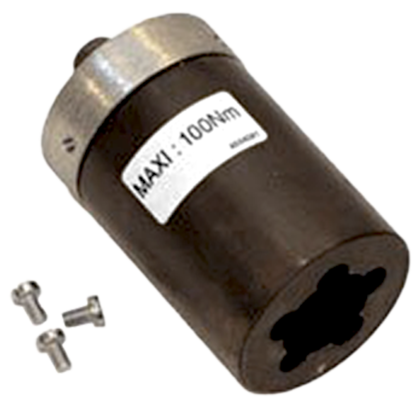

12- 1Rating label Rated MAXI 100Nm.
- 2Screws included Hardware comes with the part.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the Simu T6 Differential 60mm Round.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Simu T6 Differential 60mm Round works with
Somfy lists these motors as compatible with part 9001407.
More Somfy motors work with it too. Ask us if yours isn't listed.
