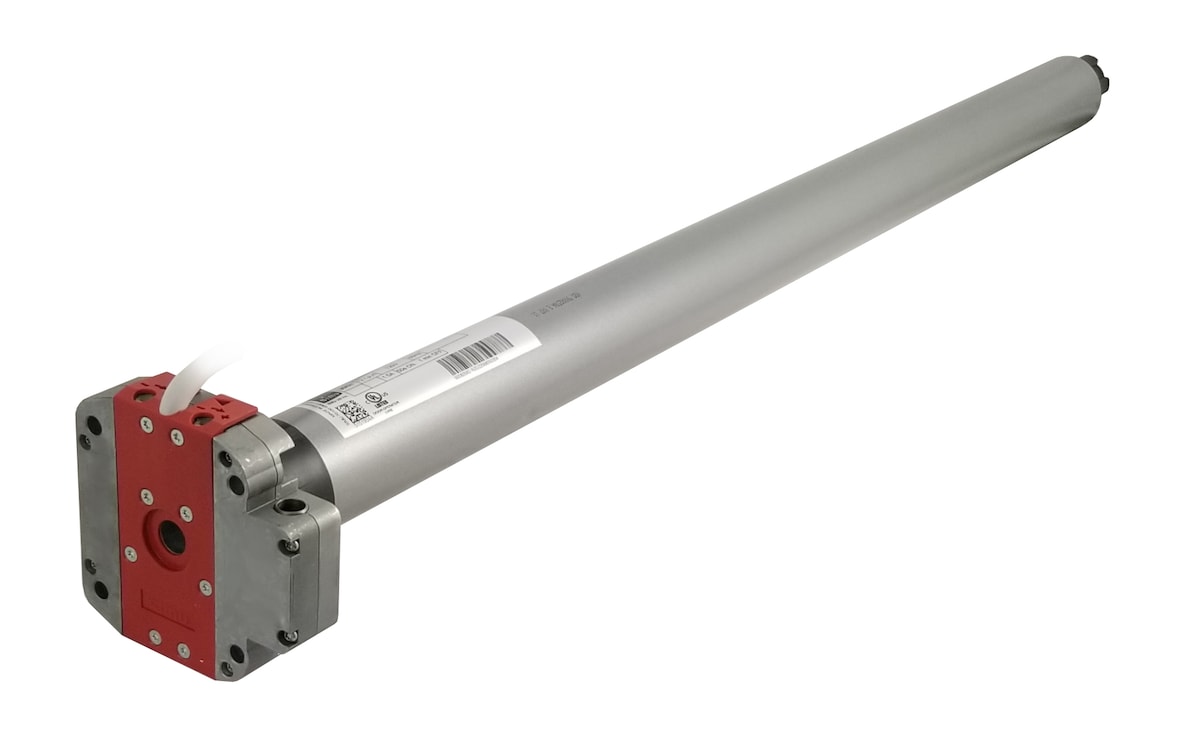

Somfy Simu DMI5Hz 30Nm 12rpm 120V (2004673)
Somfy Simu DMI5Hz 30Nm 12rpm 120V (2004673)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu DMI5Hz 30Nm 12rpm 120V -- 30 Nm Hz radio motor with manual override
The Simu DMI5Hz 2004673 is a 120V T5 tubular motor that pairs a built-in Simu Hz radio receiver with a manual override. It turns 30 Nm at 12 rpm. Simu builds the DMI5 Hz so the shutter or awning can still be raised or lowered by crank during a power failure. The CMO head accepts Somfy DMI brackets and a 7 mm hex override shaft.
Benefits
- 30 Nm of torque at 12 rpm
- Manual override lets you crank the shade or awning during a power outage
- Built-in Simu Hz radio receiver on 433.42 MHz with a 492 ft open-field range
- Mechanical limit switches with a 28-turn capacity
- UL-approved, IP 44 rated, with a 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm / 12 rpm |
| Overall length | 31.38 in (797.1 mm) |
| Power supply | 120V AC, 60 Hz |
| Rated current | 1.5 A |
| Power consumption | 170 W operating |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft open field |
| Manual override | Yes (DMI) |
| Limit switches | Mechanical, 28 turns |
| Head type | CMO |
| Cable | 19.69 ft SJTW, 3-wire, white |
| Motor diameter | 1.77 in (head 1.97 in) |
| Minimum tube inside diameter | 1.85 in |
| Protection | IP 44, Class I insulation |
| Operating temperature | -4°F to 140°F |
| Approval | UL |
| Warranty | 5 years |
Compatible with: Simu T5 50 mm motor class for tubes with a 1.85 in minimum inside diameter. Somfy lists DMI brackets (1-piece round cast plate, 100 x 100 mm plate, 2-piece inside mount U, 3-piece outside mount), 7 mm hex extension shafts and connectors, T5/T6 aluminum drives, and LT50 crowns and drives as accessories. Pairs with Simu Hz transmitters.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does DMI mean on the Simu DMI5Hz 2004673?
DMI marks the manual override version of the Simu T5 motor. The 2004673 has a CMO head that accepts a 7 mm hex override shaft, so you can crank a rolling shutter or awning up or down by hand if the power fails.
How strong and fast is the 2004673?
Somfy rates the Simu DMI5Hz 2004673 at 30 Nm of torque and 12 rpm. It runs on 120V AC at 60 Hz, draws 1.5 A, and uses 170 W while operating. The limit switches are mechanical with a 28-turn capacity.
What controls this motor?
The 2004673 has a built-in Simu Hz radio receiver on 433.42 MHz. You program and run it with Simu Hz transmitters, and Somfy rates the open-field range at 492 ft. No separate receiver or wall relay is needed for radio control.
Which brackets fit the DMI5Hz?
Somfy lists DMI brackets for the 2004673, including the 1-piece round adjustable cast plate (9420647), the 100 x 100 mm DMI plate (9706034) and the 2-piece inside mount adjustable U (2005701). Pick the bracket that matches your awning or shutter frame.
What cable and protection rating does it have?
The 2004673 ships with a 19.69 ft, 3-wire white SJTW cable. Somfy rates it IP 44 with Class I insulation, an operating range of -4°F to 140°F and a storage range of -4°F to 176°F. It carries a 5-year Somfy warranty.
Couldn't load pickup availability
Replace a Simu T5 or DMI5 motor, or build a new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2004673.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit crown and drive
Fit the T5 crown and drive for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu DMI5Hz 30Nm 12rpm 120V needs to run
Somfy lists every part below as compatible with part 2004673. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
4Also fits
Other parts Somfy lists with this product.
