Somfy DS78MM Drive, part 9761001, features: drive wheel for DS 78mm tube, slip-free torque, pairs with the matching crown, LT50-class motors

Somfy DS78mm drive 9761001 uses: LT50-class motors on DS 78mm roller tube

Parts that work with the Somfy DS78mm drive 9761001: DS78 round crown 9707027, DS78 crown/drive set 9012239, 525A2 Altus RTS 1043423

Somfy DS78mm drive 9761001 compared: DS78 round crown 9707027, DS78 crown/drive set 9012239

Buy the Somfy DS78MM Drive, part 9761001, genuine new, from ShadeMotorsDirect

Somfy DS78MM Drive (9761001)

SKU: 9761001

$7.50

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

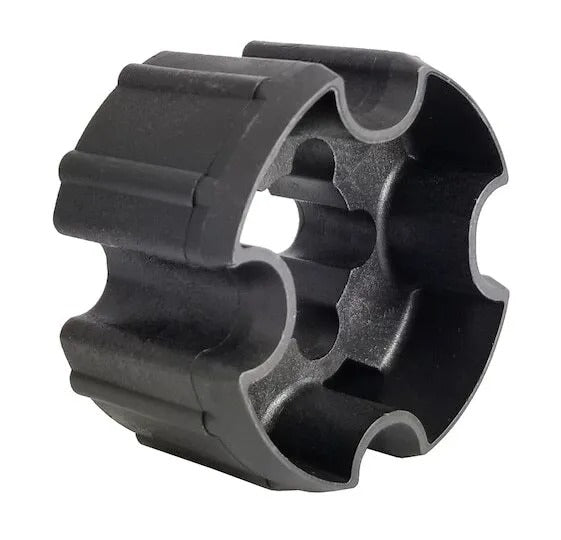

DS 78mm Drive -- drive wheel for DS 78mm tube

This genuine Somfy drive wheel mounts on the motor's output shaft and locks into DS 78mm tube, transferring the motor's torque to the roller. Pair it with the matching crown for a complete, concentric motor-to-tube connection.

Benefits

Drive wheel engages DS 78mm tube for slip-free torque transfer
Keeps travel smooth and hembar level across the full drop
Pairs with the matching Somfy crown
Genuine Somfy geometry for quiet running

Specifications

Tube	DS 78mm
Type	Drive wheel

Compatible with: Somfy 50mm-class (500 Series / LT50) motors including LT50, LT50 CMO, Altus RTS, Sonesse 50, and DMI5 ranges

Official Somfy documentation

DS 78mm Drive – Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What does the DS 78mm drive do?

Part 9761001 is the Somfy drive wheel for a 78mm round DS tube. It fits on the output end of the motor and locks into the tube, so the motor turns the roller without slipping.

Which motors does it fit?

Somfy lists more than 100 compatible motors across the LT50 and LT60 ranges, including Sonesse, Altus RTS, Oximo RTS, Maestria RTS, Orea RTS and Sunea motors, plus Somfy T5 and DMI5 operators.

What application is it built for?

Somfy lists this drive for rolling shutters that use a 78mm round tube. It has a black finish and carries a 5 year Somfy warranty.

What else do I need with the drive?

Pair it with the matching DS 78mm round crown (9707027) at the motor head. The DS 78 LT50 Set (9012239) bundles this drive and that crown under one part number.

What if my tube is a different size?

The store carries LT50 crown and drive sets for 60mm octagonal (9012233), 70mm octagonal (9012234) and 2.5 in round (9012231) tube, along with the LT50 2.5 in Hard Clip Drive (9206019). Match the drive to your tube profile.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a worn crown or drive, or order the right set for a new roller.

Match the set to your motor head and your tube size.

Replacing one

1
Take the shade down
Cut power and lift the roller out of its brackets.
2
Pull the motor
Slide the motor out of the tube.
3
Swap the part
Pull off the worn crown or drive and fit the DS78MM Drive.
4
Slide it back
Insert the motor drive end first and rehang the shade.

Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us

Starting new

1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
3
Fit the drive
Push the drive onto the output shaft until it locks.
4
Slide the motor in
Insert the motor into the tube, drive end first.

Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

Motors the DS78MM Drive works with

Somfy lists these motors as compatible with part 9761001.

LT60 660R2 CMO 120V 4-Wire Motor Part 1162014 $599.99

$599.99

Simu DMI5 10Nm 12rpm 120V Part 2000772 $393.52

$393.52

Simu DMI5 15Nm 18rpm 120V Part 2000769 $415.33

$415.33

Simu DMI5 20Nm 12rpm 120V Part 2000773 $422.13

$422.13

Simu DMI5 25Nm 18rpm 120V Part 2000770 $392.59

$392.59

Simu DMI5 30Nm 12rpm 120V Part 2000774 $495.67

$495.67

More Somfy motors work with it too. Ask us if yours isn't listed.

Somfy backs the DS78MM Drive for 5 years. We handle the claim.

5years

Somfy warranty on the DS78MM Drive, part 9761001.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.

Somfy DS78MM Drive (9761001)
