Somfy LT50 2" Soft Clip Drive (9206089)
Somfy LT50 2" Soft Clip Drive (9206089)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

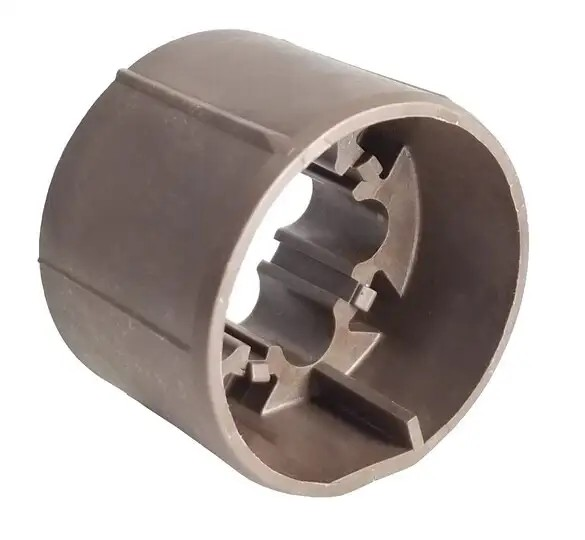

LT50 2" Soft Clip Drive -- drive wheel for 2" round tube
This genuine Somfy drive wheel mounts on the motor's output shaft and locks into 2" round tube, transferring the motor's torque to the roller. Pair it with the matching crown for a complete, concentric motor-to-tube connection.
Benefits
- Drive wheel engages 2" round tube for slip-free torque transfer
- Soft clip retention eases assembly while gripping the tube profile
- Keeps travel smooth and hembar level across the full drop
- Pairs with the matching Somfy crown
- Genuine Somfy geometry for quiet running
Specifications
| Tube | 2" round |
| Type | Drive wheel |
Compatible with: Somfy 50mm-class (500 Series / LT50) motors including LT50, LT50 CMO, Altus RTS, Sonesse 50, and DMI5 ranges
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the 2" (47mm) Round Drive Soft Clip do?
Part 9206089 is the drive wheel that fits on a Somfy 50mm-class motor and locks into a 2 in (47mm) round roller tube. It carries the motor's turning force into the tube, so the shade or shutter moves with the motor.
Which motors does it fit?
Somfy lists it for 500 Series motors, including Sonesse 506S2 and 510S2, Altus RTS, Oximo RTS and Maestria RTS models, plus Simu T5 and DMI5 motors. Examples here include the Sonesse 506S2 RTS 120V Motor (1001809) and the DMI5 50Nm 12rpm 120V (2000776).
What torque can this drive handle?
Somfy rates this drive wheel at a 50 Nm limit, with a 50 x 1.5 wheel profile. Match it to motors at or below that torque, and check the 500 Series Databook on this page for tube and motor pairings.
What is the difference between the soft clip and hard clip versions?
The soft clip version uses a lighter retaining clip, which Somfy's description calls a weak clip. For a firmer hold on the same 2 in round tube, Somfy offers the LT50 2" Hard Clip Drive (9206088).
What else do I need to finish the motor-to-tube connection?
Pair the drive with the crown that matches your tube, plus a motor bracket for the motor head, such as the LT50 Star Head Motor Bracket (9410651). The crown centers the motor inside the tube while this drive transfers the torque.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.
12- 1Drive Turns the tube.
- 2Center socket Slides onto the motor.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the LT50 2" Soft Clip Drive.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the LT50 2" Soft Clip Drive works with
Somfy lists these motors as compatible with part 9206089.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the LT50 2" Soft Clip Drive for 5 years. We handle the claim.
Somfy warranty on the LT50 2" Soft Clip Drive, part 9206089.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- LT50 / 500 Series Databook (PDF)
