Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

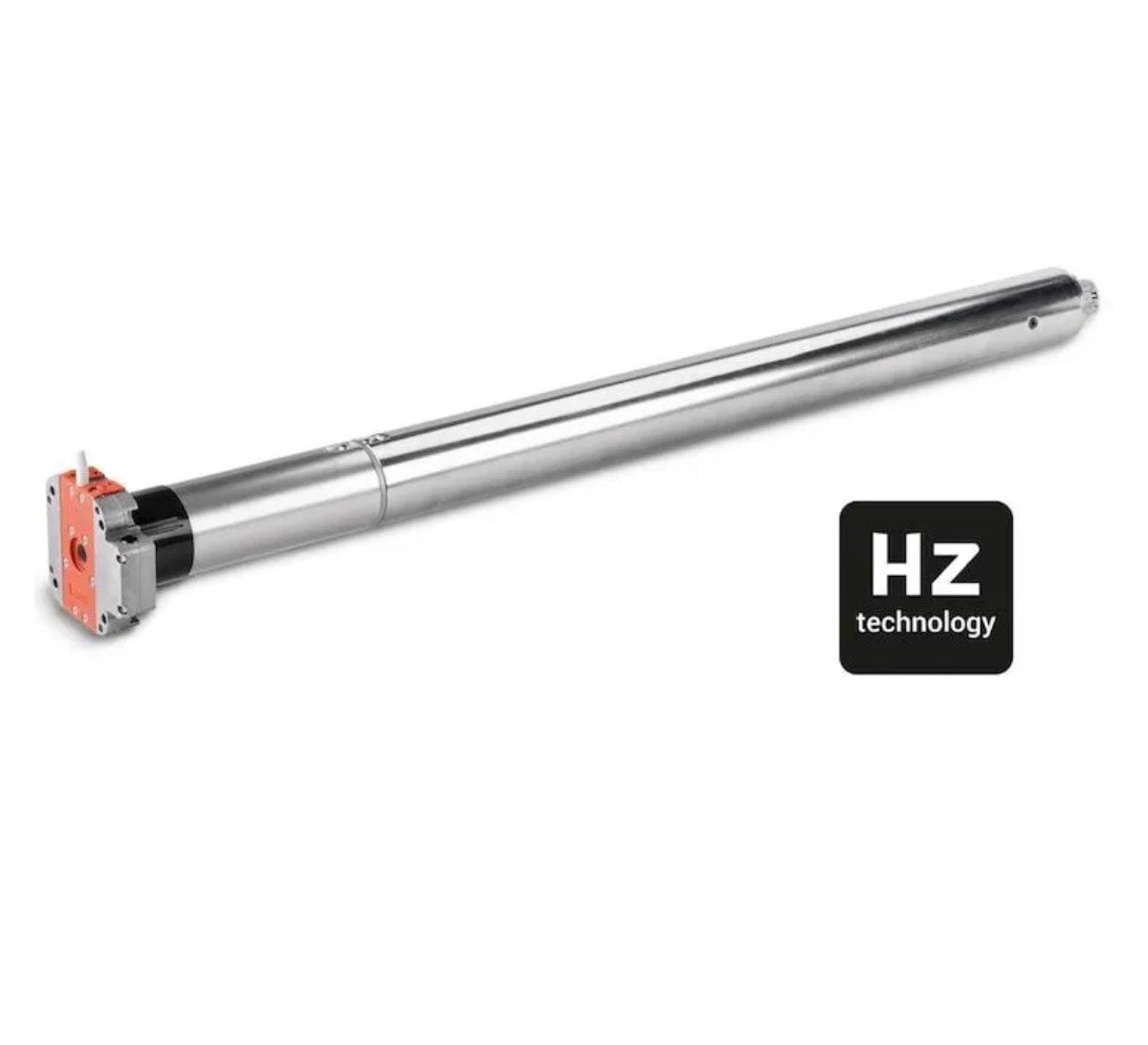

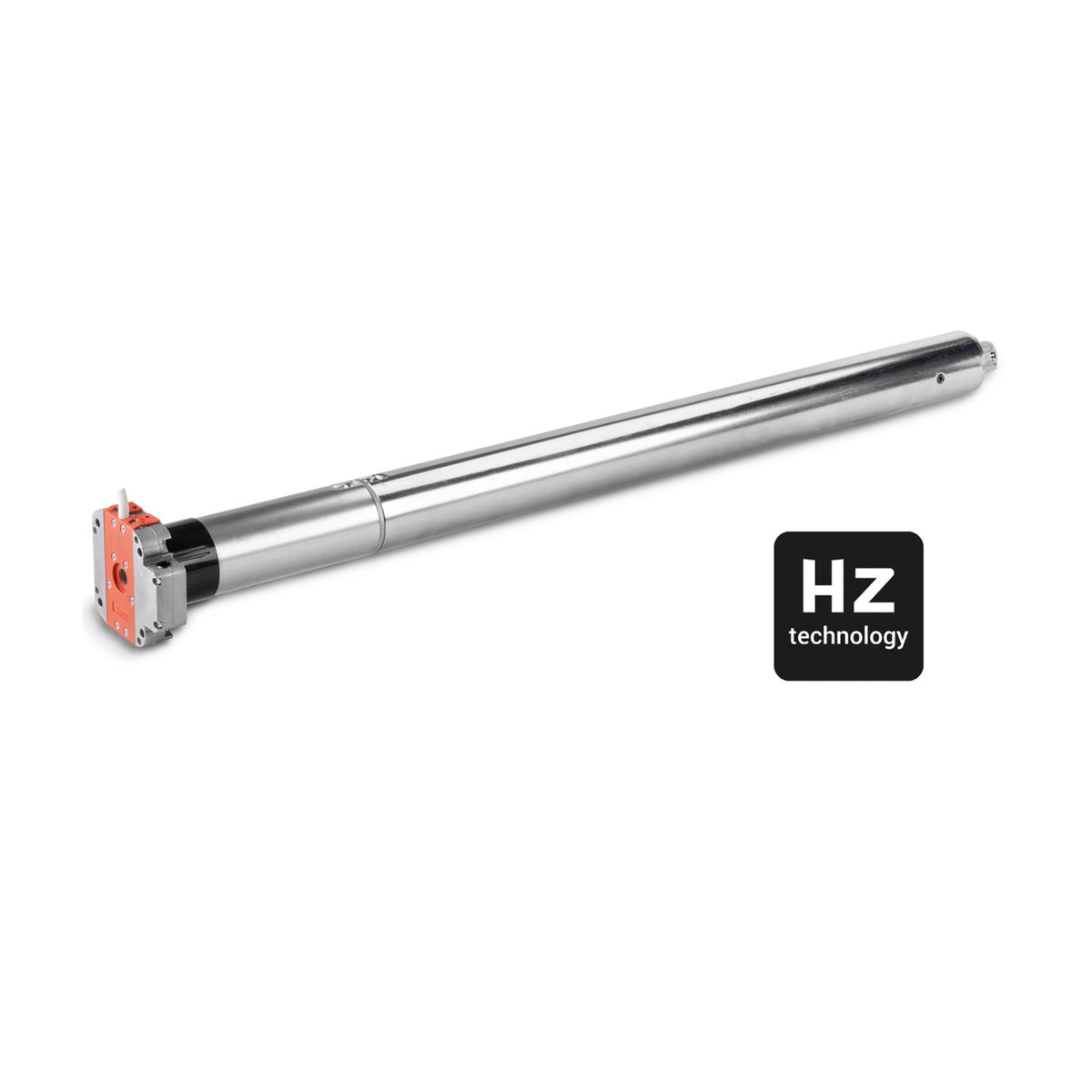

DMI6Hz 100Nm 14rpm 120V (NEMA plug) -- maximum-torque Hz radio motor for the largest applications

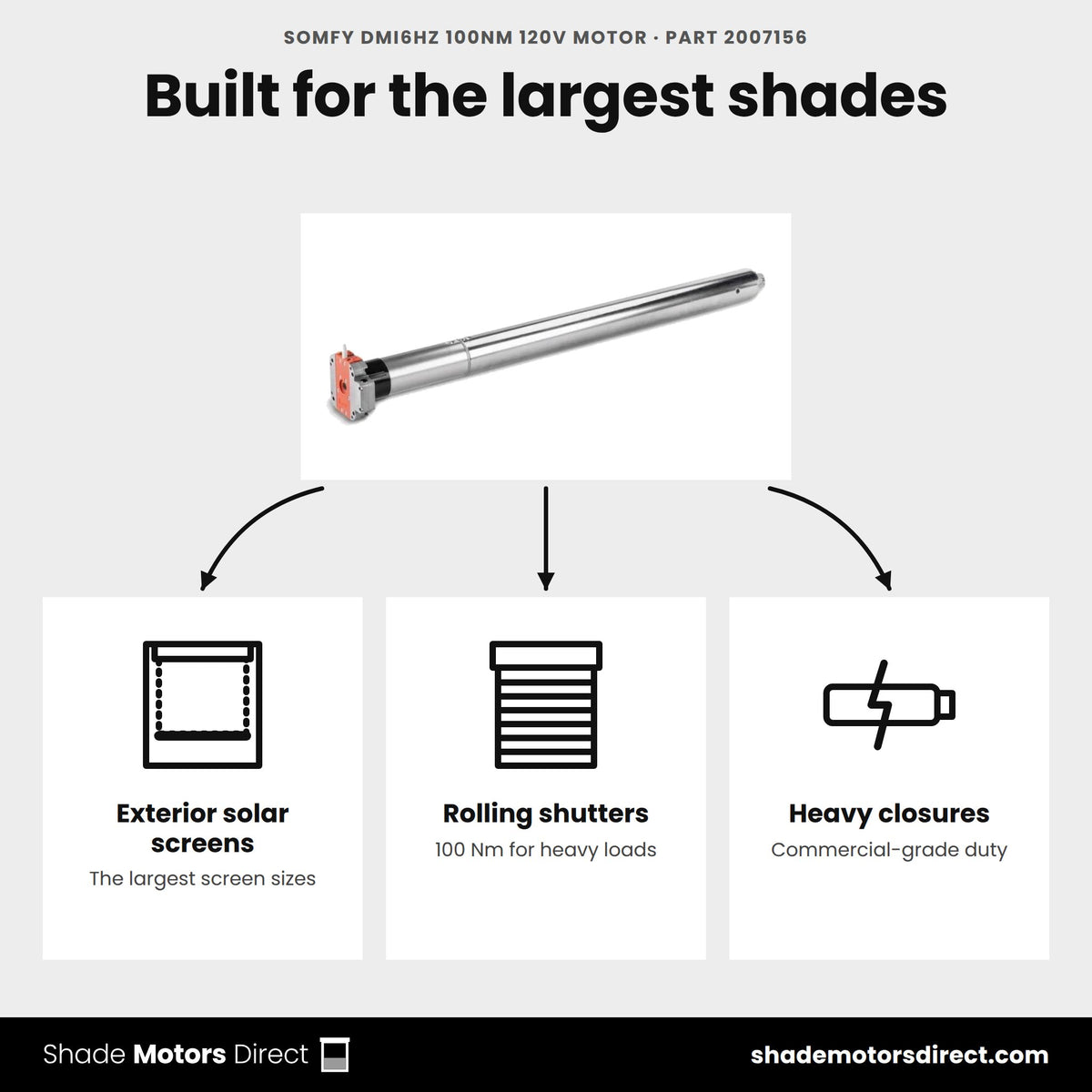

The DMI6Hz 100 Nm is among the most powerful motors in Somfy's DMI range, moving the largest exterior solar screens, rolling shutters, and heavy closures at 14 rpm. The integrated Hz radio receiver eliminates control wiring and the factory NEMA plug makes 120V hookup as simple as plugging in.

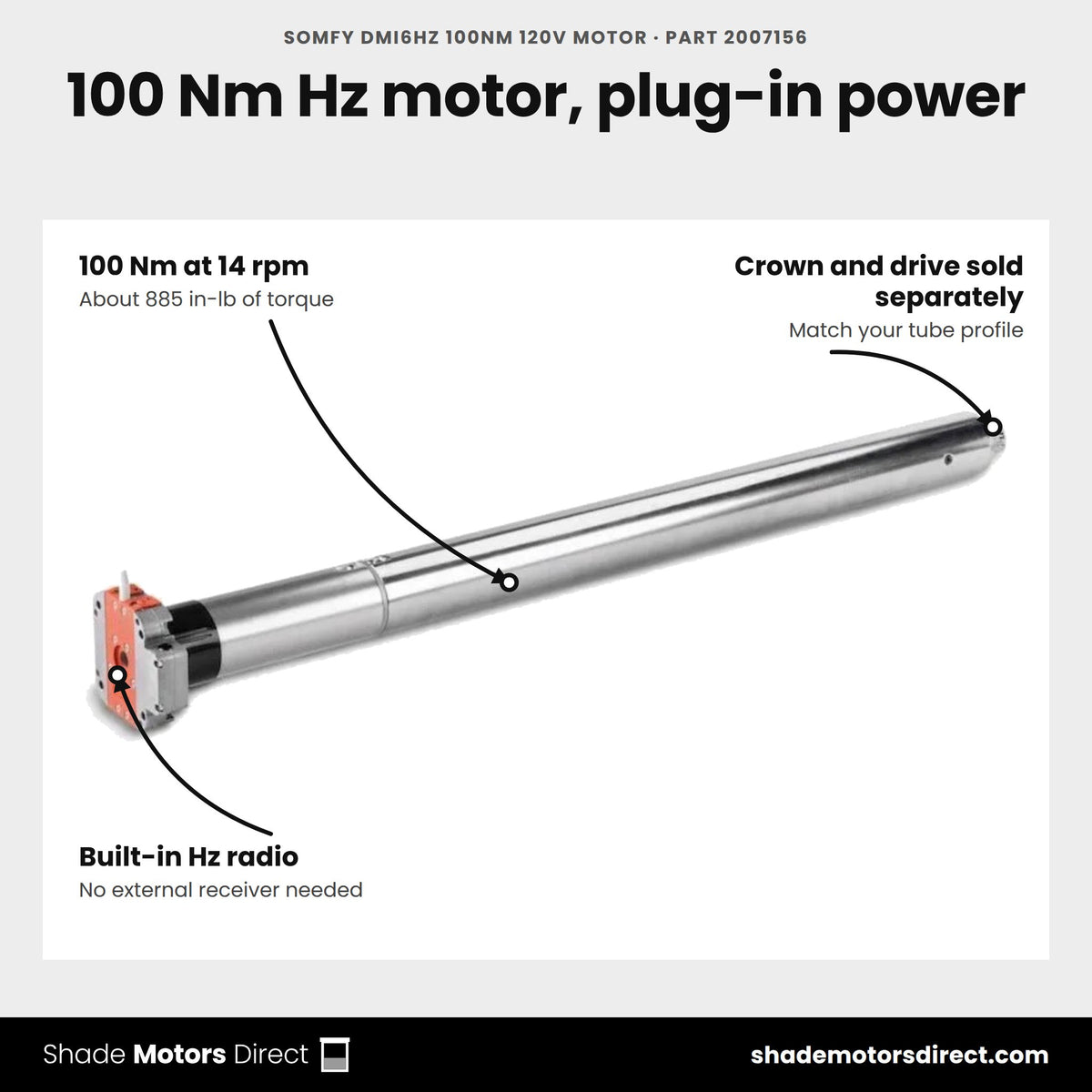

Benefits
- 100 Nm (approx. 885 in-lb) of torque for the heaviest applications
- Built-in Hz radio receiver -- control with Somfy/Simu Hz transmitters, no external receiver
- Factory NEMA plug for simple plug-in 120V power
- DMI6 60mm-class construction for commercial-grade duty
- Crown and drive sold separately to match your tube profile
Specifications
| Torque / Speed | 100 Nm / 14 rpm |
| Voltage | 120V AC, 60 Hz, NEMA plug |
| Radio | Integrated Hz receiver |
| Series | DMI6Hz |
Compatible with: Somfy/Simu Hz transmitters, DMI brackets (e.g. 9706034), DMI6-series crowns and drives, safety brake 2005627 where required
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the DMI6Hz 100Nm motor built for?
Somfy part 2007156 is a 120V heavy-duty motor that delivers 100 Nm of torque at 14 rpm. Somfy lists it for awnings and rolling shutters, and it ranks among the most powerful motors in the DMI range for large, heavy exterior jobs.
How is it powered?
It runs on 120V AC at 60 Hz and ships with a NEMA plug on an SJTW18 cable, so it plugs into a standard outlet. Somfy rates it at 430 W while running and 0.34 W on standby.
Which remotes work with it?
A built-in Hz radio receiver means no external receiver or control wiring. Use Hz transmitters such as the Somfy Hz Transmitter 4 channel key chain sequencing (2008329). Somfy lists the radio at 433.420 MHz with a range of 492.15 ft.
Is it rated for outdoor use?
Somfy rates the DMI6Hz at IP 44 and lists UL approval for awning and rolling shutter applications. The motor carries a 5-year Somfy warranty. Where a job calls for one, the Somfy Simu Safety Brake 404Nm Torque (2005627) is listed as compatible.

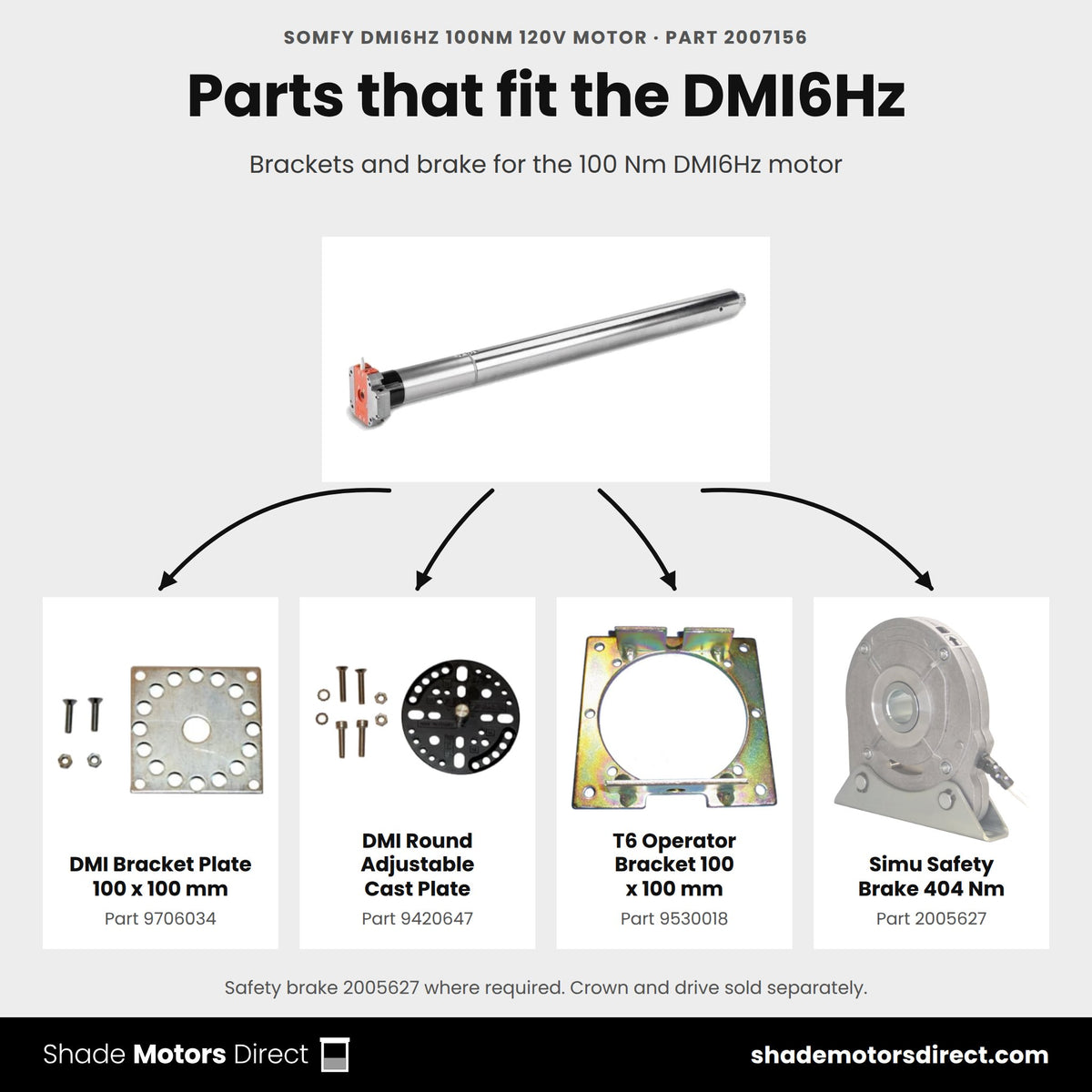

Which brackets and drive parts do I need?
Crowns and drives are sold on their own to match your tube profile. For mounting, this page lists the Somfy Simu DMI Motor Bracket Plate 100mm x 100mm (9706034) and the DMI Bracket 1-Piece Round Adjustable Cast Plate (9420647).
How does it compare with the DMI5Hz?
The DMI6Hz doubles the torque of the DMI5Hz (2004675), at 100 Nm and 14 rpm against 50 Nm and 12 rpm. Both use Hz radio. Choose the DMI5Hz for smaller awnings and shutters that need less lifting power.
Couldn't load pickup availability

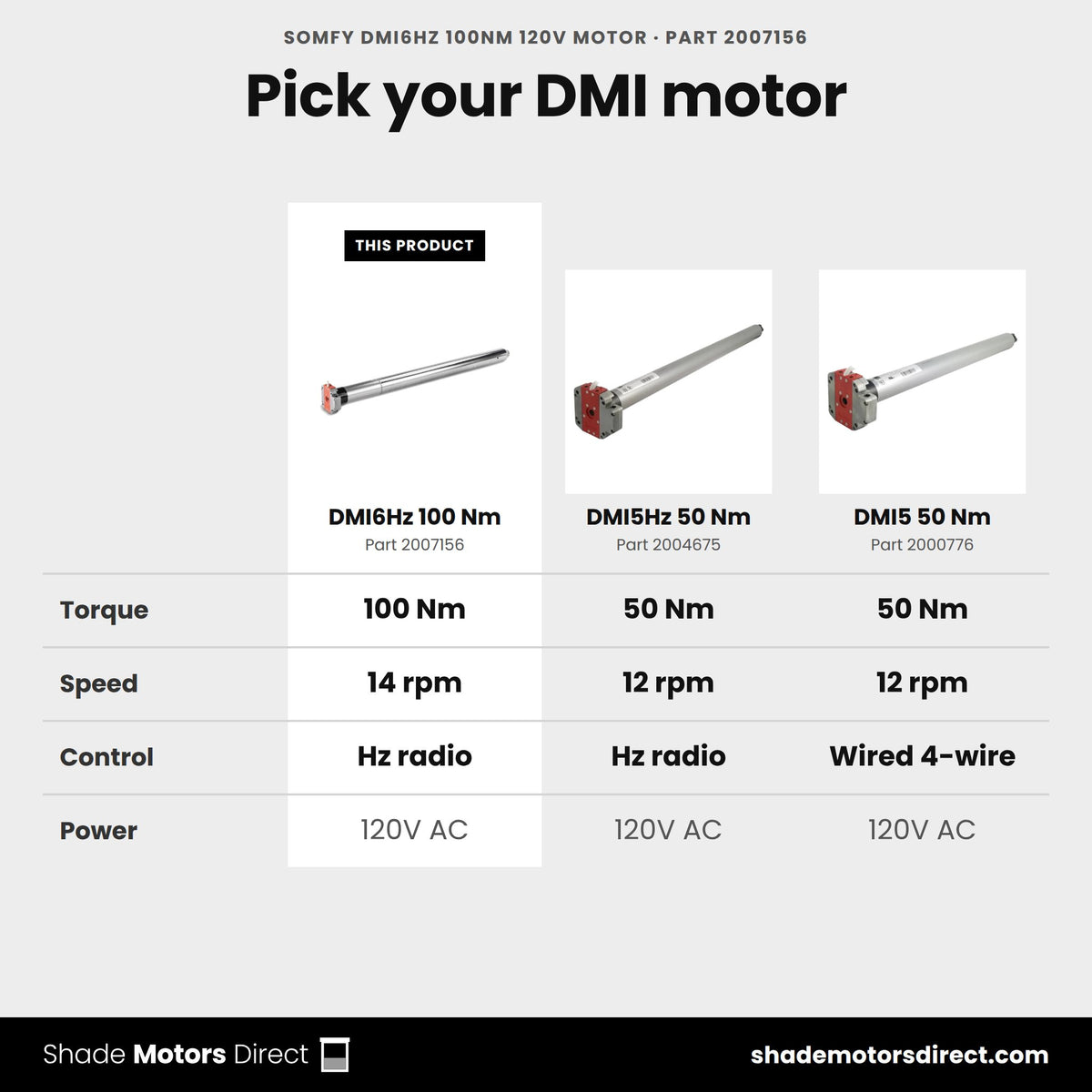

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
|

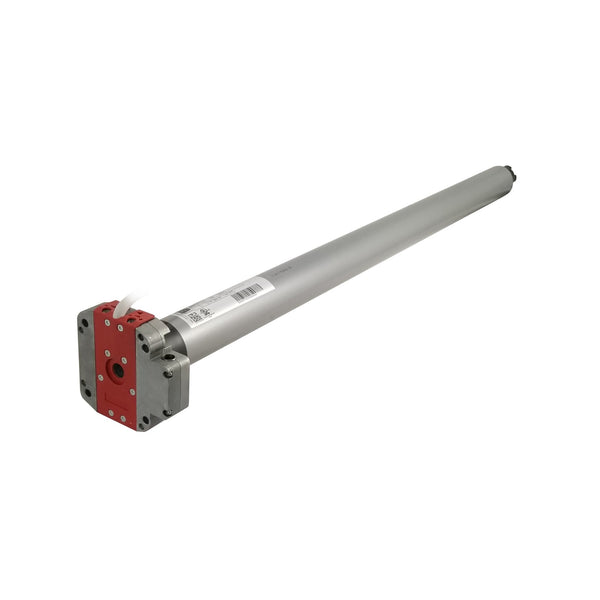

Somfy DMI5Hz 50Nm 12rpm 120V (2004675)
|

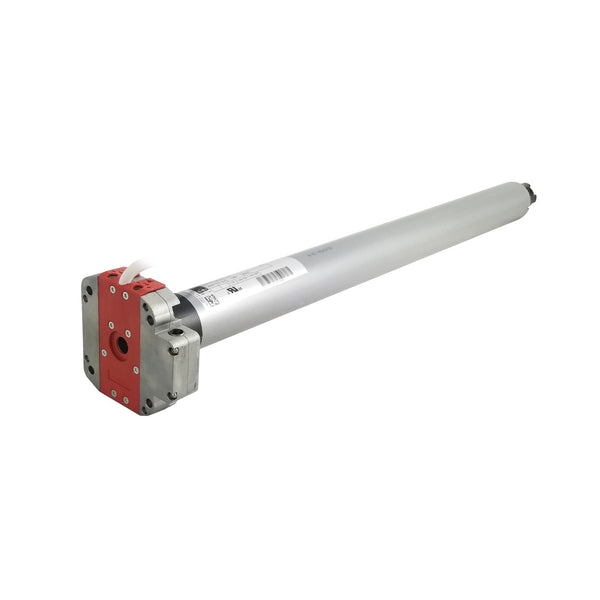

Somfy DMI5 50Nm 12rpm 120V (2000776)
|

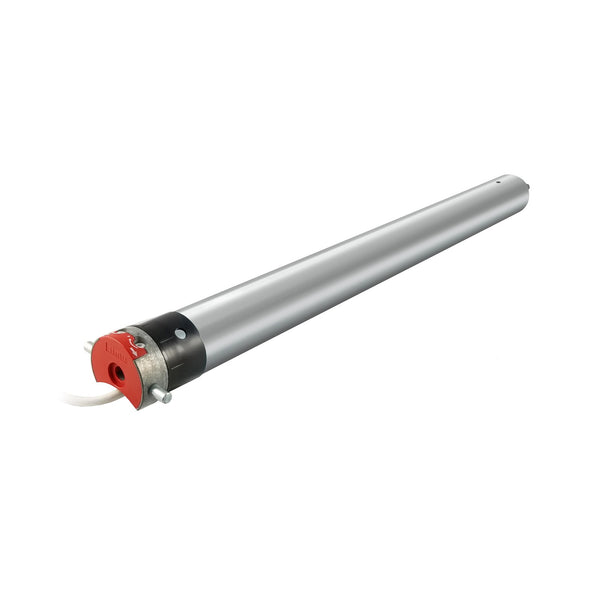

Somfy Simu T6 625 Standard Operator Motor (2004339)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 100.0 | 50.0 | 50.0 | 25.0 |
| Speed (rpm) | 14 | 12 | 12 | 52 |
| Control | Hz radio | Hz radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC, NEMA plug | 120V AC | 120V AC | 120V AC |
| Motor family | Simu DMI6 | Simu DMI5 | Simu DMI5 | Simu T6 |
| What's different | The product on this page | 50.0 Nm instead of 100.0 | 50.0 Nm instead of 100.0, Wired 4-wire | 25.0 Nm instead of 100.0, Wired 4-wire |
| Buy | Currently viewing | View details | View details | View details |
