Simu T6 625 High Speed Operator Motor -- 25 Nm at 52 rpm for fast-moving exterior applications

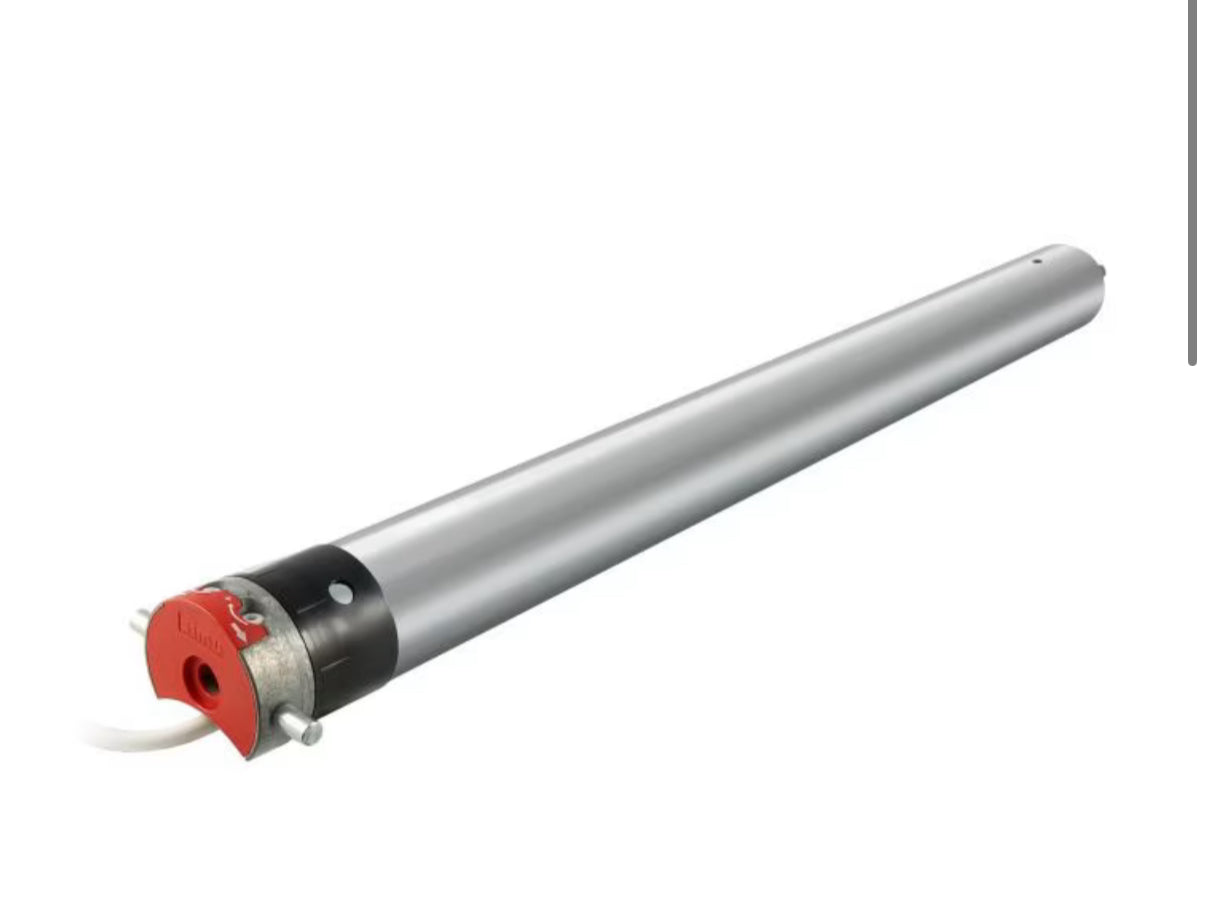

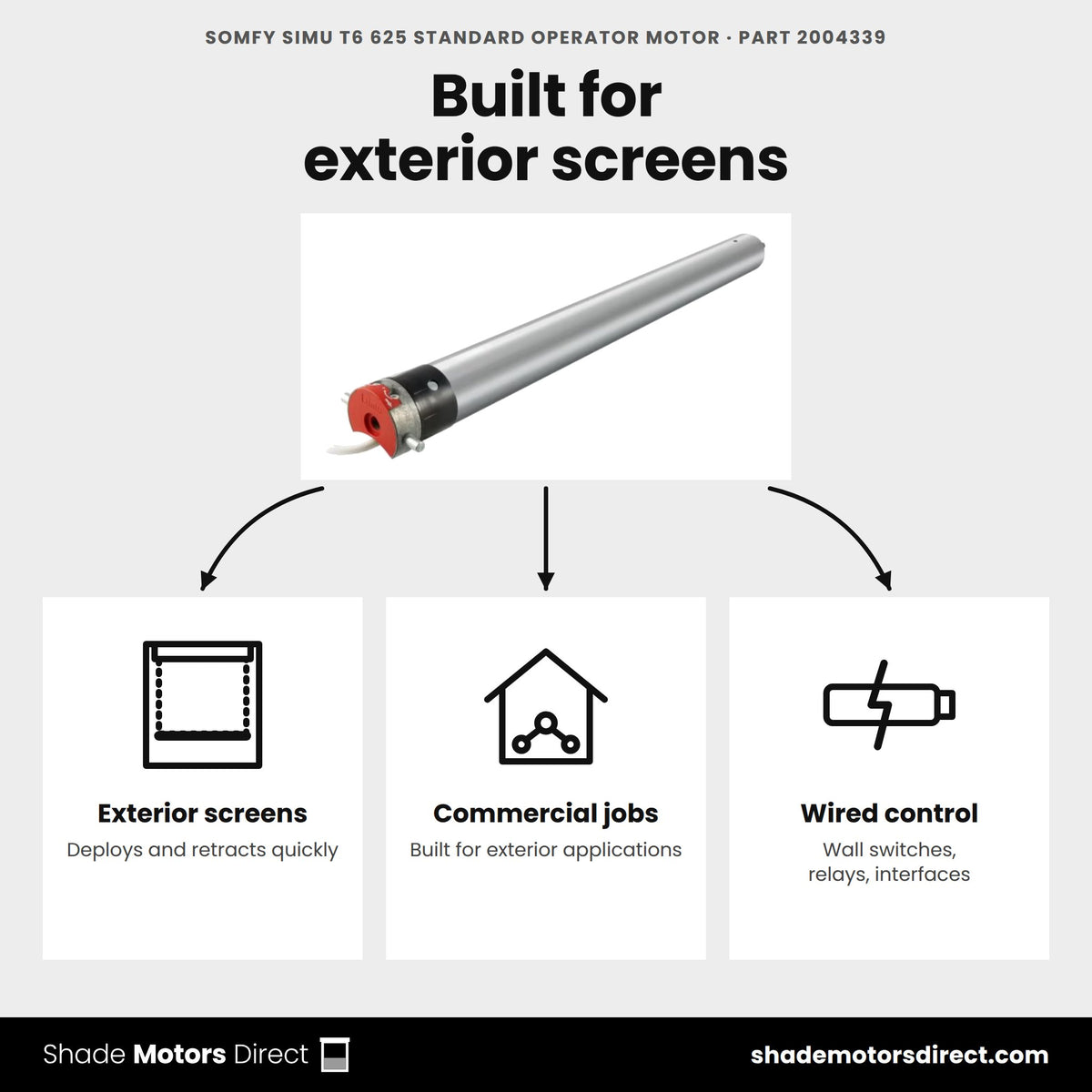

The Simu T6 625 (T6 625.52HU) is a high-speed 120V 4-wire operator motor delivering 25 Nm of torque at 52 rpm -- roughly four times the speed of standard tubular motors. It is built for exterior solar screens, retractable awnings, rolling shutters, and retractable outdoor screens where fast deployment matters.

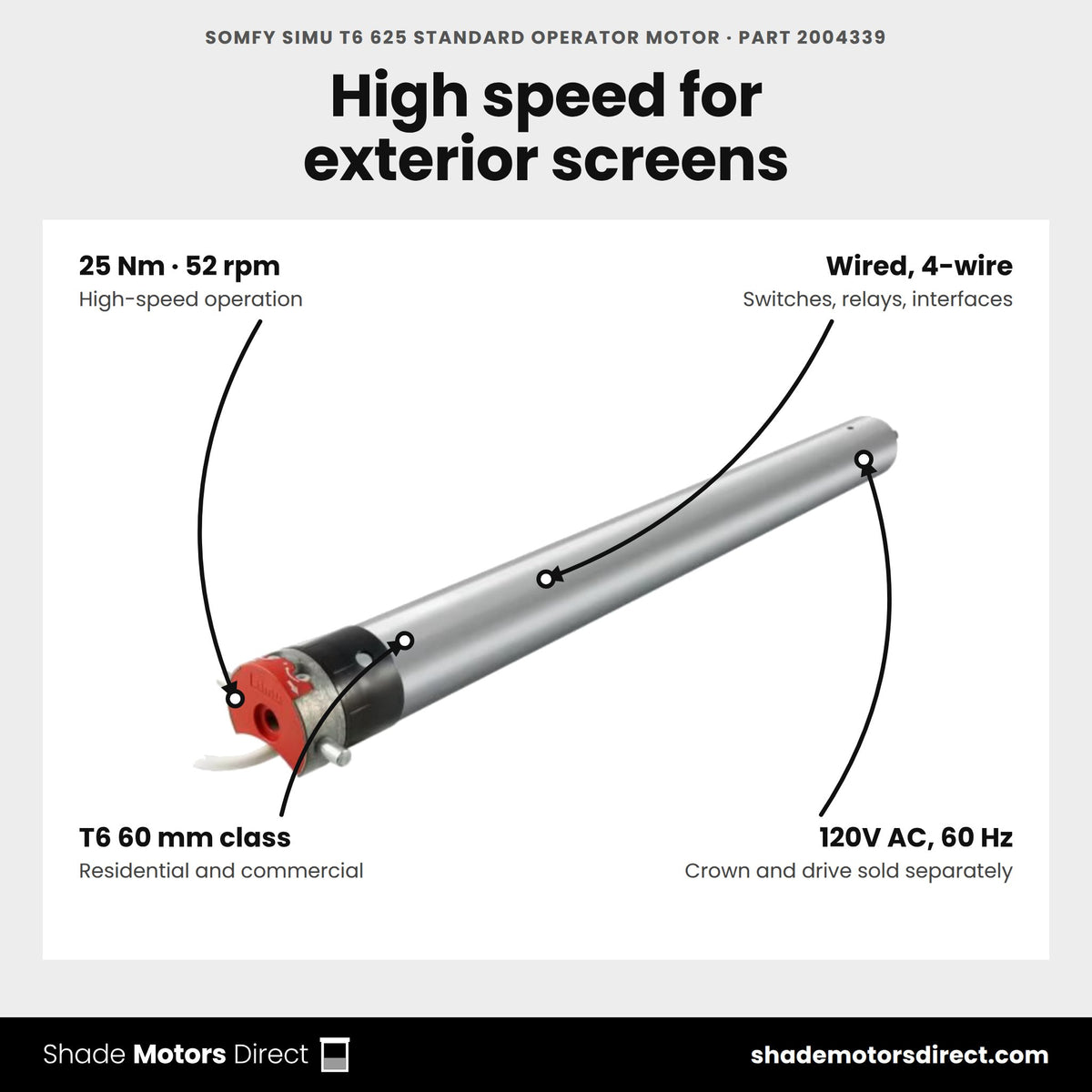

Benefits
- High-speed 52 rpm operation deploys and retracts screens quickly
- 25 Nm (approx. 220 in-lb) of torque in the T6 60mm-class frame
- Wired 4-wire control -- pairs with wall switches, relays, and control interfaces
- Built for exterior residential and commercial applications
- Crown and drive sold separately to match your tube profile
Specifications
| Torque / Speed | 25 Nm / 52 rpm (high speed) |
| Voltage | 120V AC, 60 Hz |
| Control | Wired, 4-wire |
| Series | Simu T6 (60mm class) |

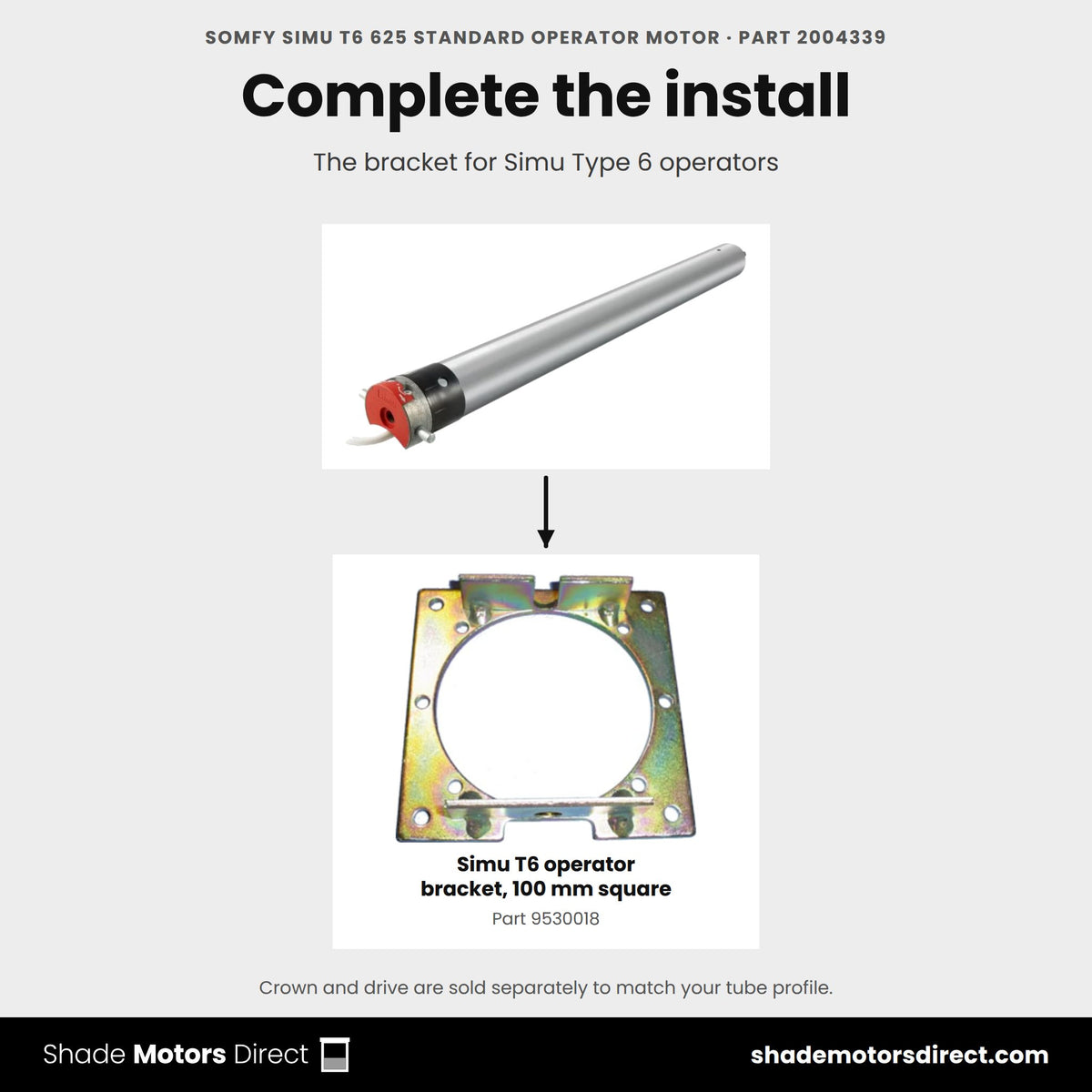

Compatible with: Wired switches and control interfaces, T6/DMI6-class crowns, drives, and brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Simu T6 625 operator motor built for?
It is a wired 120V operator motor, part 2004339, that Somfy lists for exterior solar screens and retractable insect screens. Somfy names it the T6 25Nm 54rpm 120V and backs it with a 5-year warranty.
What torque and speed does it deliver?
Somfy rates it at 25 Nm of torque and 54 rpm, with 430 W of consumption in operation. It works from -4 °F to 140 °F.
What tube does it fit?
Somfy lists a minimum tube diameter of 2.36 in and a round head with pins. Order a crown and drive that match your tube profile, since the motor ships without them.
How is it powered and controlled?
It runs on 120V AC, rated from 108 V to 126 V, and has no radio receiver. A wired switch or control interface runs it through an 8.2 ft, 4-wire VVF cable with stripped ends.
What kind of limits does it use?
It uses mechanical limits with a 23-turn capacity. You set the end stops at the motor during installation, with no radio pairing or programming involved.
Couldn't load pickup availability

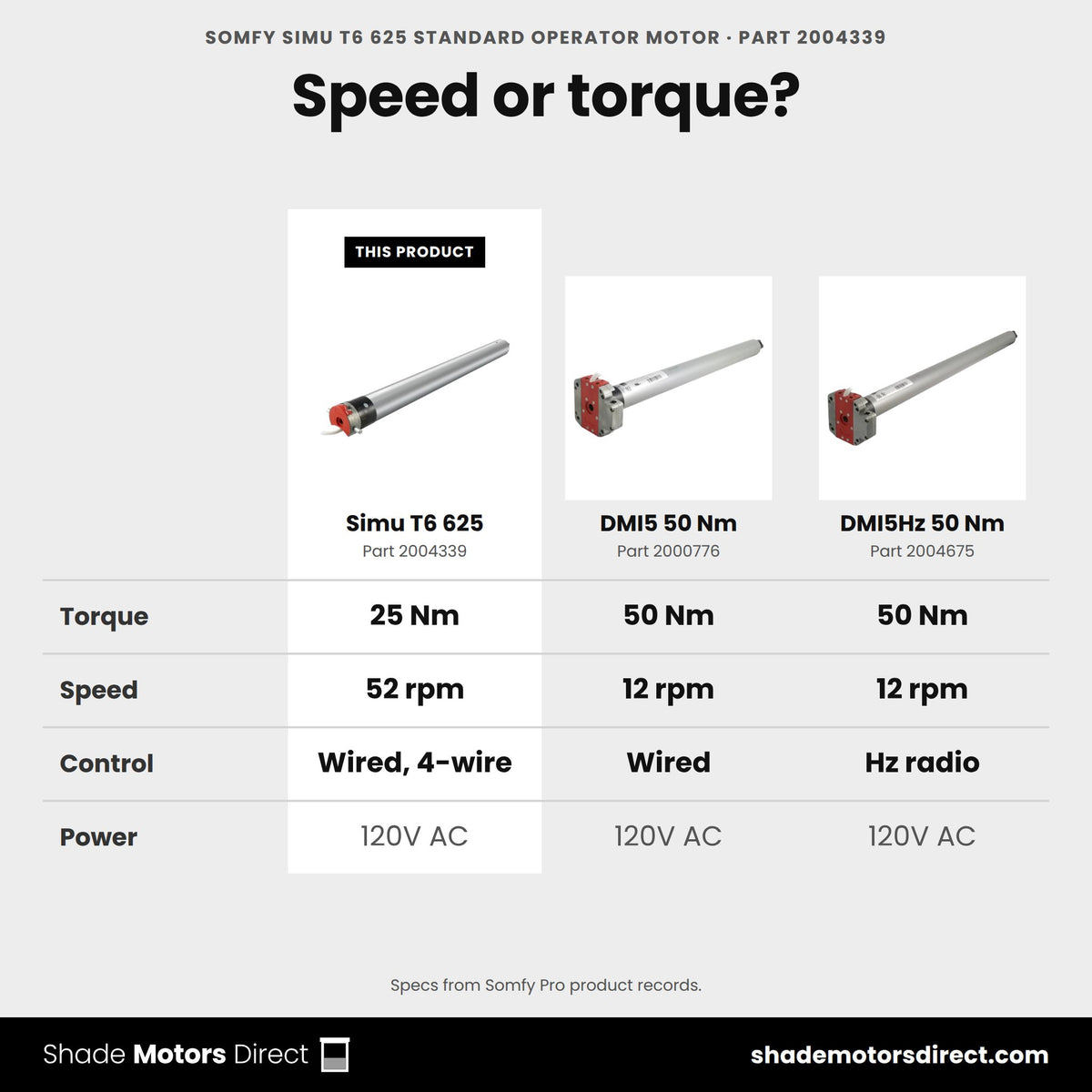

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Simu T6 625 Standard Operator Motor (2004339)
|
Somfy DMI5 50Nm 12rpm 120V (2000776)
|
Somfy DMI5Hz 50Nm 12rpm 120V (2004675)
|
Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 25.0 | 50.0 | 50.0 | 100.0 |
| Speed (rpm) | 52 | 12 | 12 | 14 |
| Control | Wired 4-wire | Wired 4-wire | Hz radio | Hz radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC, NEMA plug |
| Motor family | Simu T6 | Simu DMI5 | Simu DMI5 | Simu DMI6 |
| What's different | The product on this page | 50.0 Nm instead of 25.0 | 50.0 Nm instead of 25.0, Hz radio | 100.0 Nm instead of 25.0, Hz radio |
| Buy | Currently viewing | View details | View details | View details |
