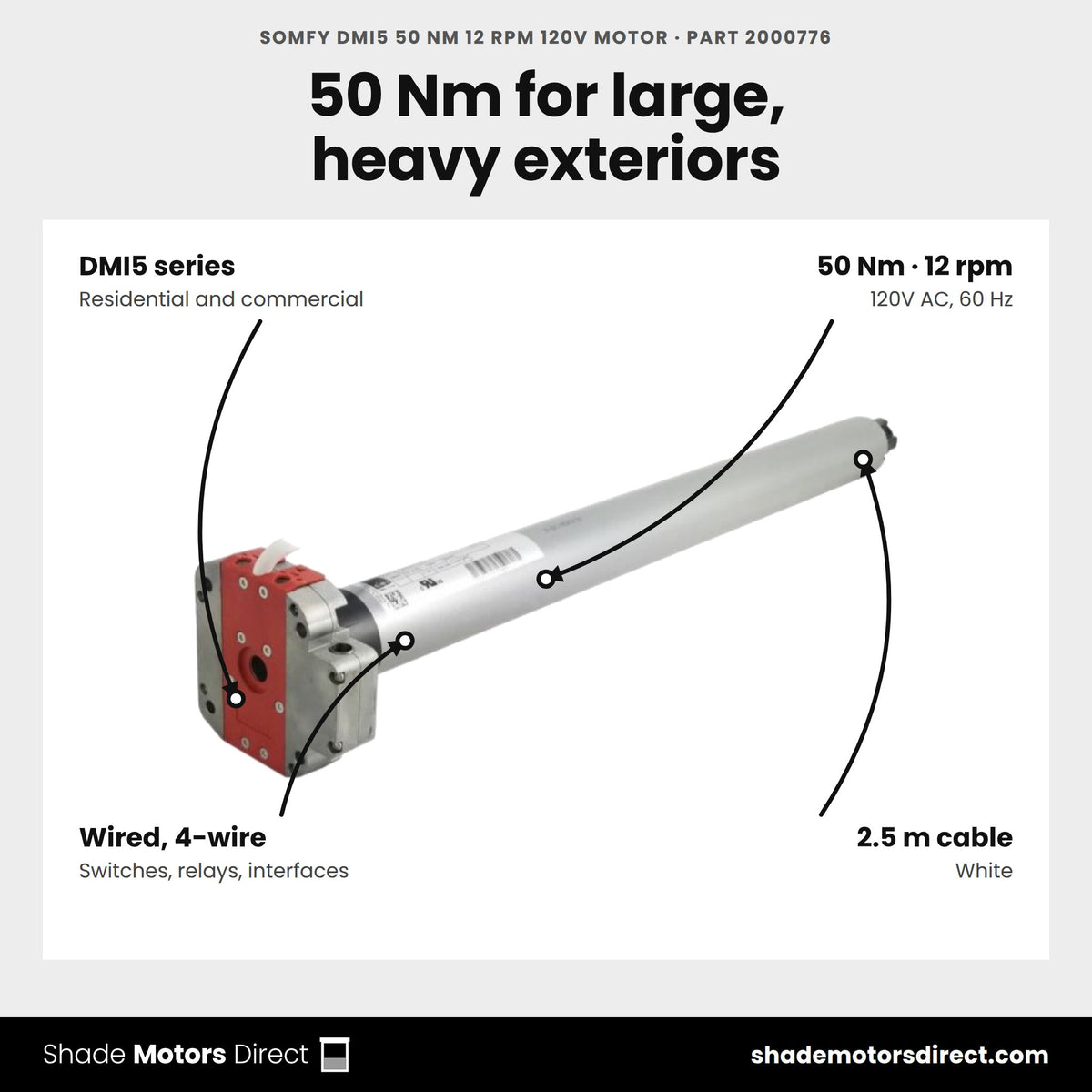

Somfy DMI5 50 Nm 12 rpm 120V Motor, part 2000776, features: 50 Nm, 12 rpm, DMI5 series, wired 4-wire control, 2.5 m cable

Somfy DMI5 50 Nm motor 2000776 uses: large heavy exterior applications, residential and commercial duty, wired switch control

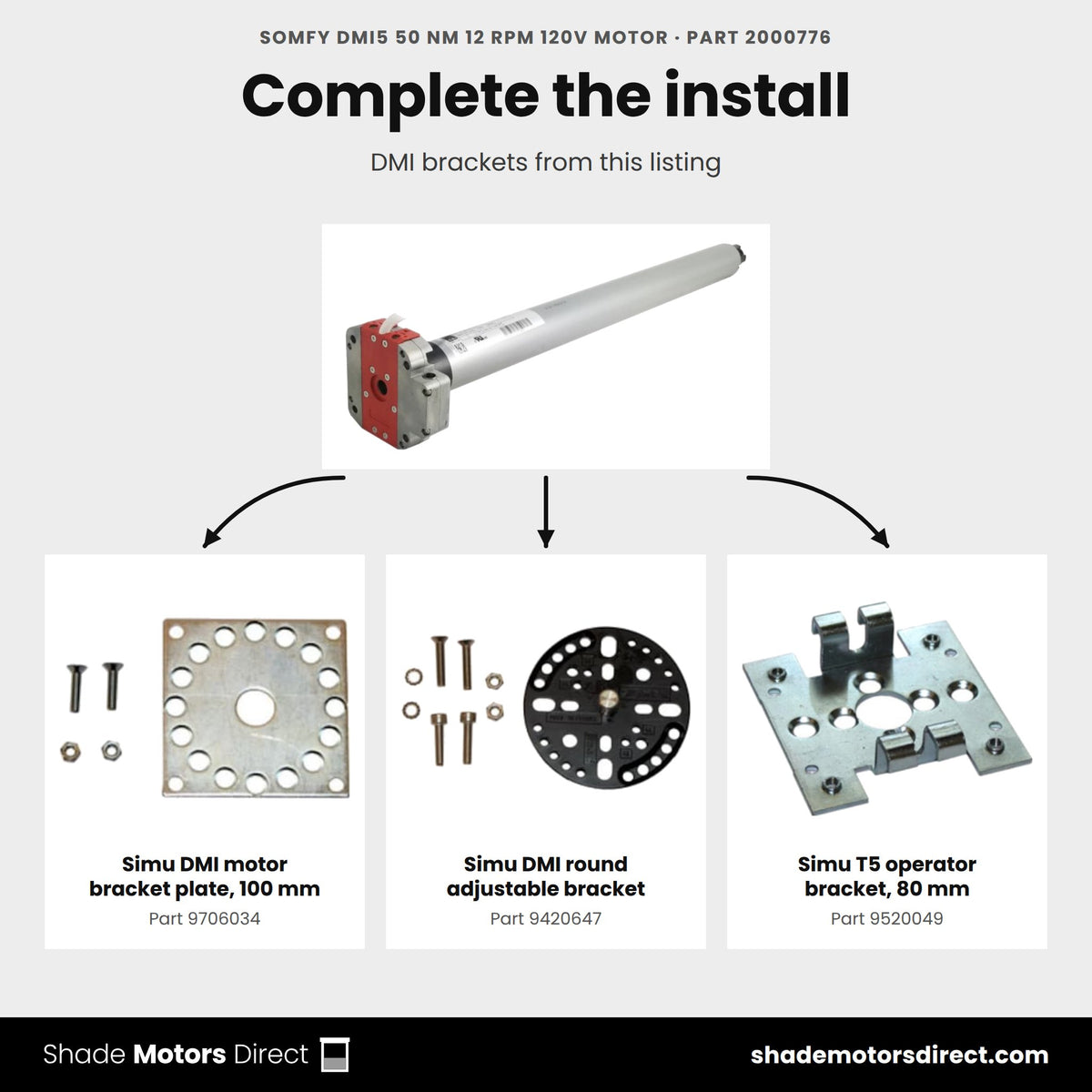

Parts that work with the Somfy DMI5 50 Nm motor 2000776: Simu DMI motor bracket plate, 100 mm 9706034, Simu DMI round adjustable bracket 9420647, Simu T5 operator bracket, 80 mm 9520049

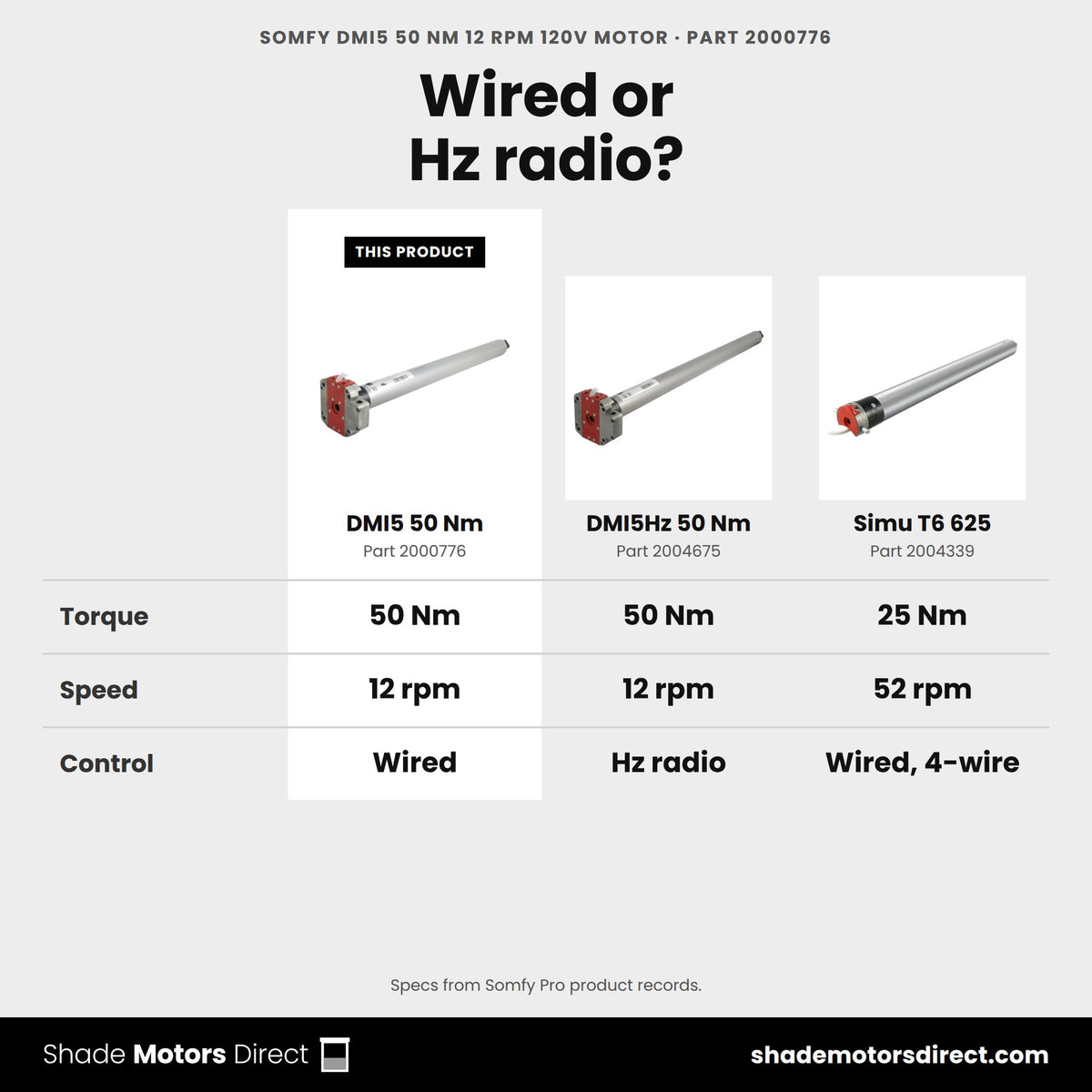

Somfy DMI5 50 Nm motor 2000776 compared: DMI5Hz 50 Nm 2004675, Simu T6 625 2004339

Buy the Somfy DMI5 50 Nm 12 rpm 120V Motor, part 2000776, genuine new, from ShadeMotorsDirect

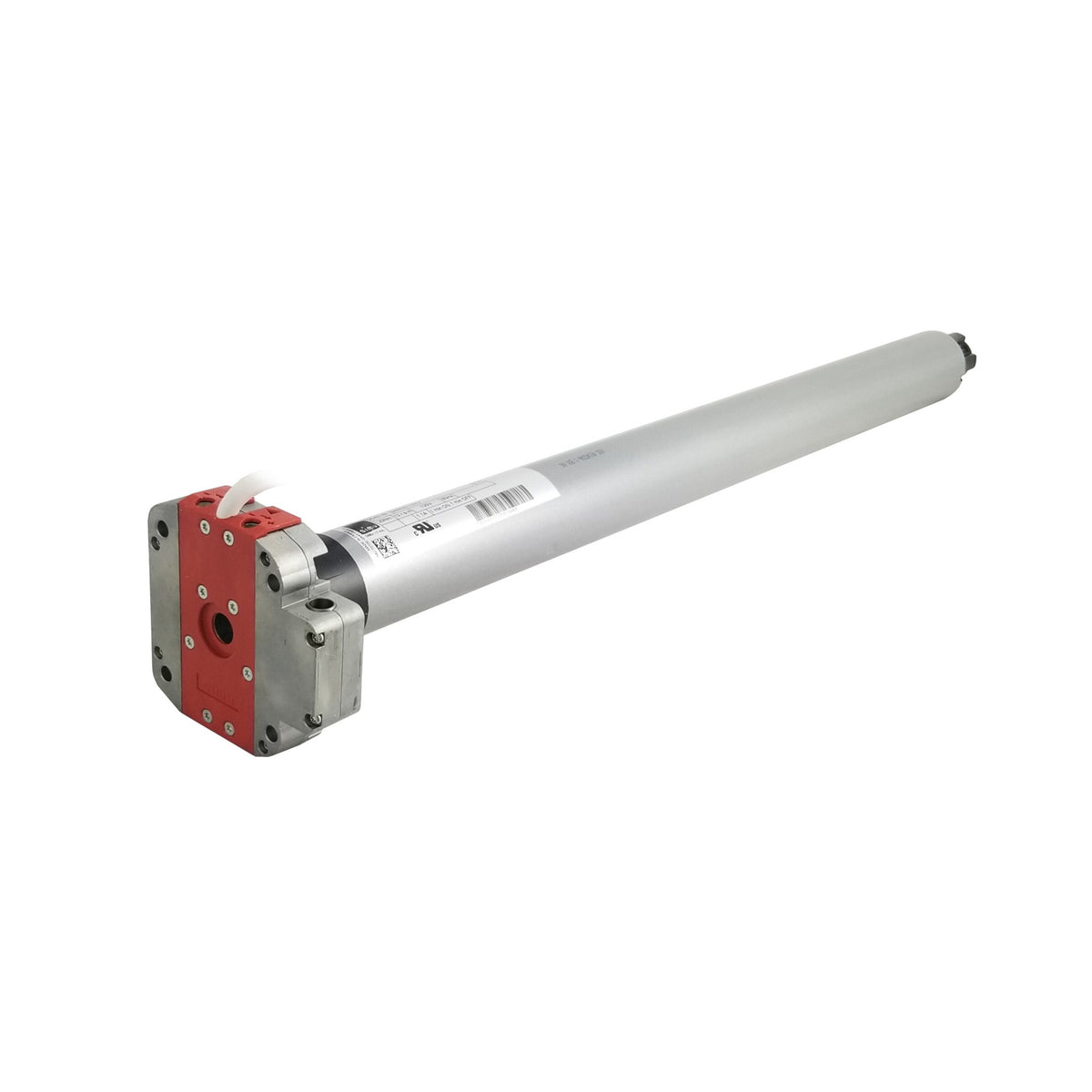

Somfy DMI5 50Nm 12rpm 120V (2000776)

SKU: 2000776

$554.95

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

DMI5 50Nm 12rpm 120V -- heavy-duty wired motor for exterior screens, shutters, and awnings

The Somfy DMI5 is a heavy-duty 120V tubular motor delivering 50 Nm of torque at 12 rpm for exterior solar screens, rolling shutters, and awning applications. This wired 4-wire model pairs with external Somfy controls and switches for reliable commercial-grade operation, with mechanical crown and drive sold separately to match your tube.

Benefits

50 Nm (approx. 440 in-lb) of torque for large, heavy exterior applications
DMI-series construction built for demanding residential and commercial duty
Wired 4-wire control -- pairs with Somfy wall switches, relays, and control interfaces
Crown and drive sold separately to match your tube profile
120V/60Hz operation with 2.5m cable

Specifications

Torque / Speed	50 Nm / 12 rpm
Voltage	120V AC, 60 Hz
Series	DMI5
Cable	2.5 m, white
Control	Wired (external switch or controller)

Compatible with: Somfy wired switches and controllers, DMI brackets (e.g. 9706034), DMI-series crowns and drives

Official Somfy documentation

DMI5 50Nm 12rpm 120V – Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the DMI5 50Nm 12rpm 120V motor used for?

Part 2000776 is a heavy-duty 120V wired tubular motor that Somfy lists for awnings and rolling shutters. It suits large, heavy exterior applications in homes and commercial buildings.

What are its torque, speed and power ratings?

Somfy rates the DMI5 at 50 Nm of torque and 12 rpm. It runs on 120V/60Hz AC, draws 80 W in operation and 0 W on standby, and has a noise level of 57 dB.

Is it rated for outdoor use?

Somfy rates the DMI5 at IP 44, a protection level suited to exterior awnings and rolling shutters that face rain and weather. The motor carries Somfy's 5-year warranty.

How is it controlled?

The DMI5 is a wired motor with no built-in radio, so it runs from an external switch or controller. A Somfy Maintained Rocker Switch Kit (1800342) or Maintained Toggle Switch (1800380) gives local up and down control.

Can I control it with an RTS remote?

Yes, with a receiver. The Somfy Universal RTS Receiver for 110V AC motors (1810627) sits between power and the motor, and then Telis or Situo RTS remotes, DecoFlex RTS switches and a TaHoma Switch hub (1871037) can operate it.

Which brackets fit the DMI5?

This site carries DMI mounting hardware, including the Simu DMI Bracket 1-Piece Round Adjustable Cast Plate (9420647), the Simu DMI Motor Bracket Plate 100mm x 100mm (9706034) and the Simu T5 Operator Bracket 80mm x 80mm Square (9520049). Order a crown and drive adapter that matches your tube.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy DMI5 50Nm 12rpm 120V (2000776)	Somfy DMI5Hz 50Nm 12rpm 120V (2004675)	Somfy Simu T6 625 Standard Operator Motor (2004339)	Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
Price	$554.95	$646.48	$510.95	$879.95
Torque (Nm)	50.0	50.0	25.0	100.0
Speed (rpm)	12	12	52	14
Control	Wired 4-wire	Hz radio	Wired 4-wire	Hz radio
Power	120V AC	120V AC	120V AC	120V AC, NEMA plug
Motor family	Simu DMI5	Simu DMI5	Simu T6	Simu DMI6
What's different	The product on this page	Same size, Hz radio control	25.0 Nm instead of 50.0	100.0 Nm instead of 50.0, Hz radio
Buy	Currently viewing	View details	View details	View details
