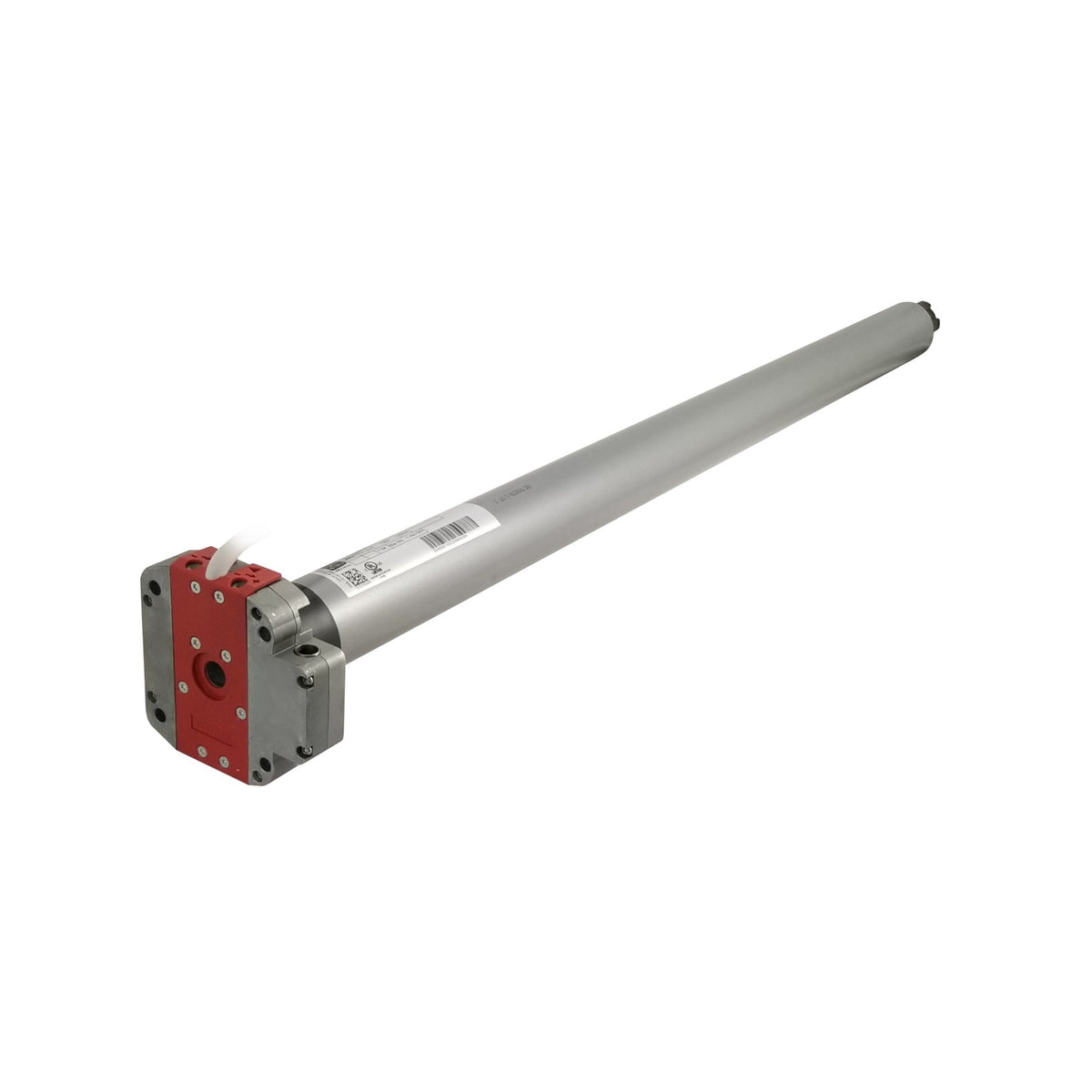

Somfy DMI5Hz 50Nm 12rpm 120V (2004675)
Somfy DMI5Hz 50Nm 12rpm 120V (2004675)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

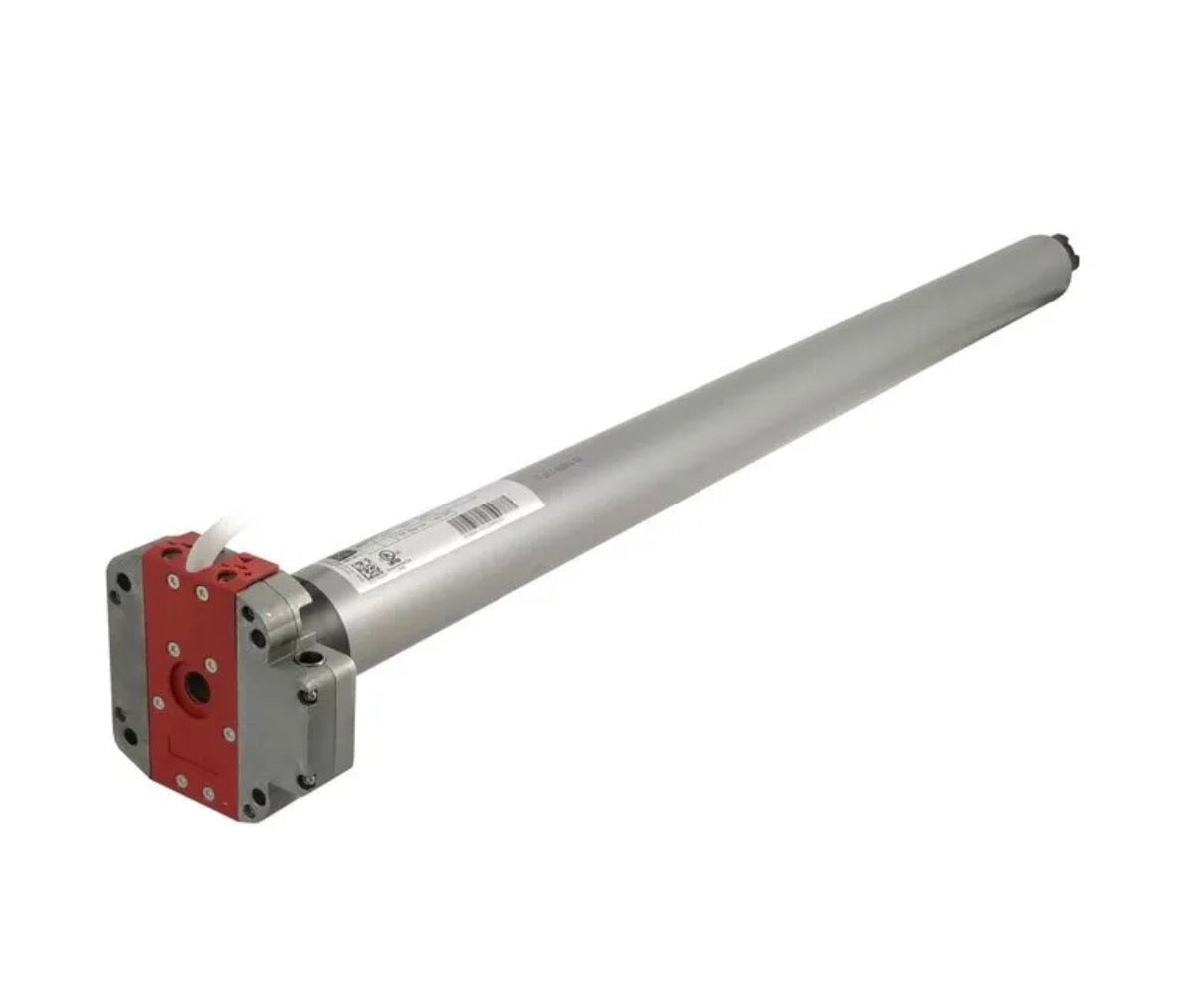

DMI5Hz 50Nm 12rpm 120V -- heavy-duty motor with built-in Hz radio receiver
The DMI5Hz combines the DMI5's 50 Nm of heavy-duty torque with an integrated Hz radio receiver, so exterior solar screens, rolling shutters, and awnings can be controlled by Hz transmitters with no external receiver or control wiring. Supplied with a 6m cable for flexible installation.
Benefits

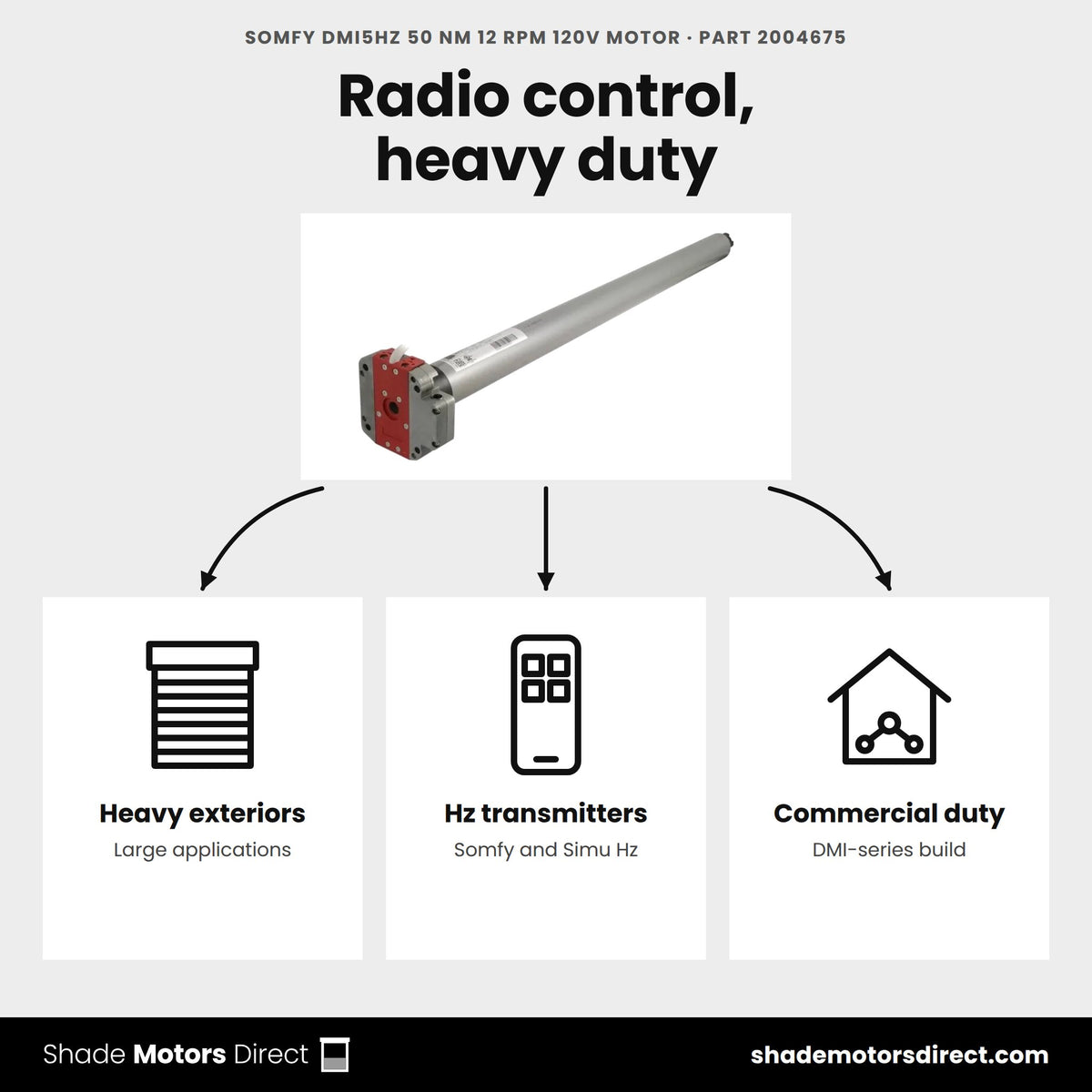

- 50 Nm of torque at 12 rpm for large exterior applications
- Built-in Hz radio receiver -- no external receiver or control wiring needed
- Pairs with Somfy/Simu Hz transmitters including the 4-channel keychain transmitter (2008329)
- DMI-series construction for demanding residential and commercial duty
- 120V/60Hz operation with long 6m cable
- Crown and drive sold separately to match your tube profile

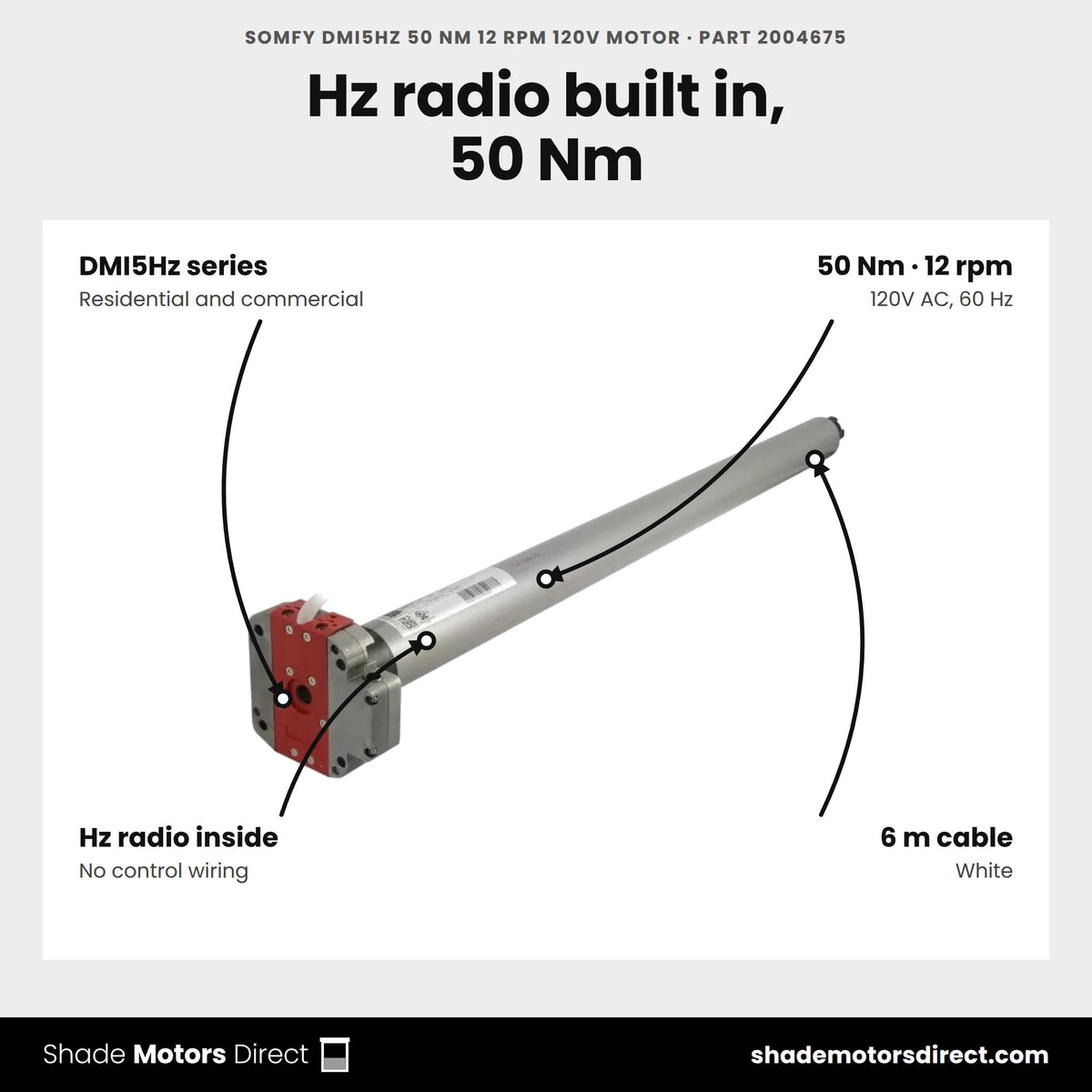

Specifications
| Torque / Speed | 50 Nm / 12 rpm |
| Voltage | 120V AC, 60 Hz |
| Radio | Integrated Hz receiver |
| Cable | 6 m, white |
| Series | DMI5Hz |
Compatible with: Somfy/Simu Hz transmitters, DMI brackets (e.g. 9706034), DMI-series crowns and drives
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the DMI5Hz 50Nm 12rpm 120V motor?
The DMI5Hz (2004675) is a heavy-duty Somfy tubular motor with a built-in Hz radio receiver. It delivers 50 Nm of torque at 12 rpm. Somfy lists it for awnings and rolling shutters, and it suits large exterior solar screens as well.
What power does the DMI5Hz need?
It runs on 120V AC at 60 Hz. Somfy rates it at 250 W while running and 0.34 W in standby. The motor ships with a 6 m cable, and Somfy recommends professional installation.
Which transmitters work with it?
Hz transmitters pair with the built-in receiver, so you need no external receiver or control wiring. Options in this store include the Somfy Hz 4 channel key chain transmitter (2008329), the Simu Hz 16 channel handheld (2007350) and the Simu Hz mobile transmitters (2008805, 2008806).
Can the DMI5Hz go on an exterior installation?
Yes. Somfy gives it an IP 44 protection rating and lists it for awning and rolling shutter applications. The motor carries UL approval and a 5-year Somfy warranty.
What mounting hardware do I need?

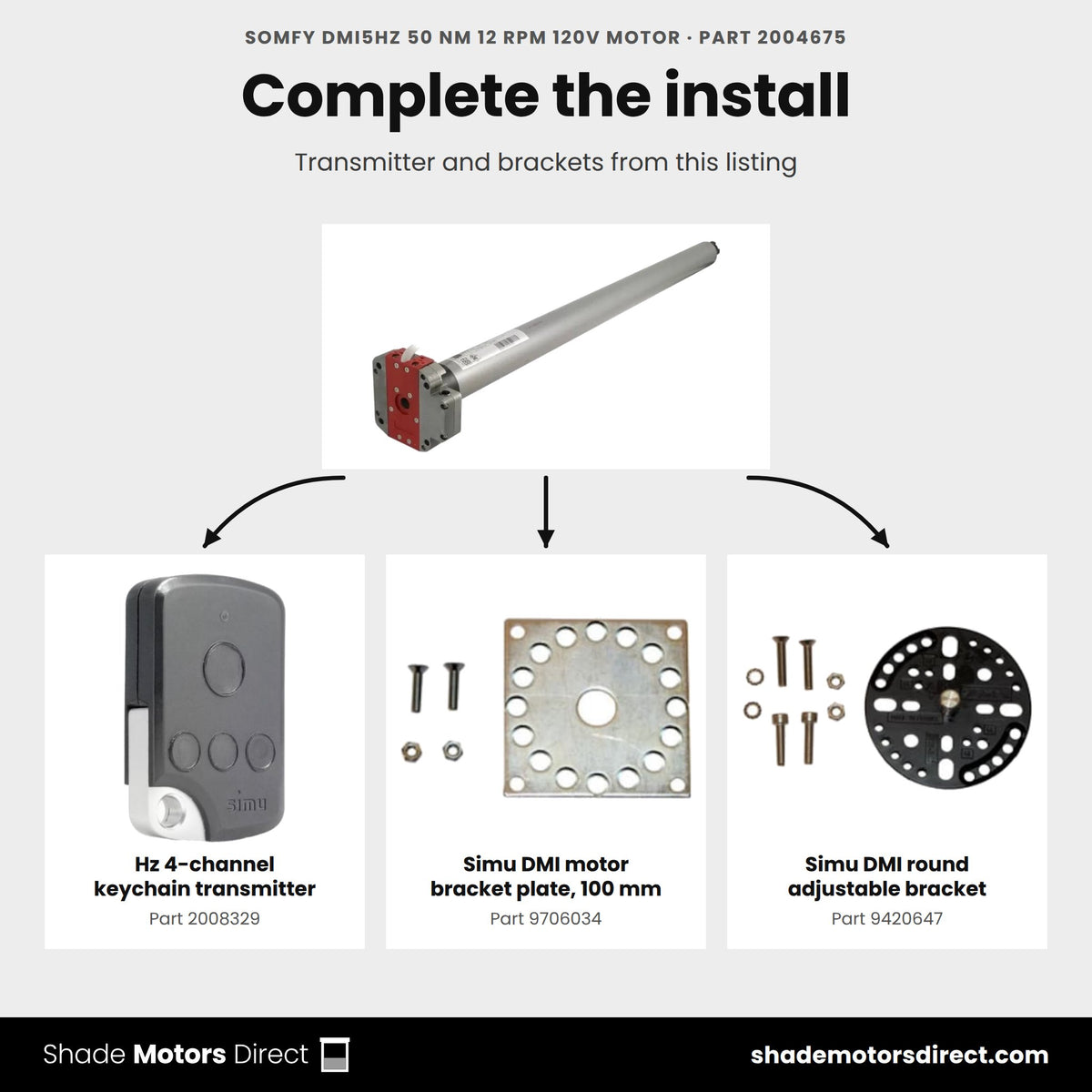

Crowns and drives come as separate parts so you can match your tube profile. For brackets, this store carries the Simu DMI 1-piece round adjustable cast plate (9420647) and the Simu DMI motor bracket plate, 100mm x 100mm (9706034).
Is there a version without the radio receiver?
Yes. The DMI5 50Nm 12rpm 120V (2000776) shares the 50 Nm and 12 rpm rating in a wired version for systems run from wall switches. Choose the DMI5Hz when you want Hz transmitter control with no extra receiver.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy DMI5Hz 50Nm 12rpm 120V (2004675)
|
Somfy DMI5 50Nm 12rpm 120V (2000776)
|
Somfy DMI6Hz 100Nm 14rpm 120V With NEMA plug (2007156)
|
Somfy Simu T6 625 Standard Operator Motor (2004339)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 50.0 | 50.0 | 100.0 | 25.0 |
| Speed (rpm) | 12 | 12 | 14 | 52 |
| Control | Hz radio | Wired 4-wire | Hz radio | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC, NEMA plug | 120V AC |
| Motor family | Simu DMI5 | Simu DMI5 | Simu DMI6 | Simu T6 |
| What's different | The product on this page | Same size, Wired 4-wire control | 100.0 Nm instead of 50.0 | 25.0 Nm instead of 50.0, Wired 4-wire |
| Buy | Currently viewing | View details | View details | View details |
