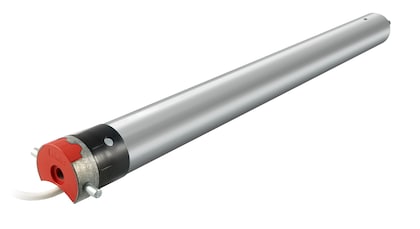

Somfy Simu T6Hz 80Nm 14rpm 120V (2006061)
Somfy Simu T6Hz 80Nm 14rpm 120V (2006061)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu T6Hz 80Nm 14rpm 120V -- a 120V Simu Hz radio operator with electronic limits
The Simu T6Hz 80Nm 14rpm 120V (2006061) puts a Simu Hz radio receiver inside a T6 tubular operator. It turns 80 Nm at 14 rpm on 120V/60Hz power and listens on 433.42 MHz with a 492 ft open-field range. Electronic limits with a 42-turn capacity and a 3-wire cable suit awning and rolling shutter projects that need wireless control without a separate receiver.
Benefits
- 80 Nm at 14 rpm for large awnings and rolling shutters
- Built-in Simu Hz radio on 433.42 MHz removes the need for an external receiver
- Electronic limits with a 42-turn capacity, set from the transmitter
- 3-wire power cable: no control wiring back to a wall switch
- Low 0.38 W standby draw
- IP 44 rated and backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 80 Nm / 14 rpm |
| Overall length | 29.84 in (757.9 mm) |
| Minimum tube inside diameter | 2.36 in |
| Voltage | 120V / 60Hz AC |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft (open field) |
| Standby consumption | 0.38 W |
| Limit switches | Electronic, 42-turn capacity |
| Head type | Round with pins |
| Cable | 8.2 ft VVF, 3-wire, white, stripped ends |
| Protection | IP 44, Class I |
| Applications | Awnings, rolling shutters |
| Warranty | 5 years |
Compatible with: Simu T6 class tubes with T5/T6 crowns and drives (60mm round aluminum drive 9012950, 70mm octagonal aluminum drive 9011878, 85mm Simbac tube crown 9690085), the T6 operator bracket 100mm x 100mm (9530018) and Simu Hz transmitters on 433.42 MHz.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What radio does the Simu T6Hz 2006061 use?
The 2006061 has a built-in Simu Hz radio receiver on 433.42 MHz with a 492 ft open-field range. Pair it with Simu Hz transmitters. It uses the Simu Hz protocol, so plan your remotes around Simu Hz controls when you specify this motor.
What torque and speed does the 2006061 deliver?
The Simu T6Hz 2006061 delivers 80 Nm at 14 rpm on 120V/60Hz power. That output drives large awnings and rolling shutters. In standby the radio draws 0.38 W, so the motor adds almost nothing to the idle power bill.
How are the limits set on the 2006061?
The 2006061 uses electronic limits with a 42-turn capacity. Electronic limits store the upper and lower stop points in the motor, and the built-in Simu Hz receiver takes commands from paired Simu Hz transmitters. That setup suits motors hidden inside closed cassettes and shutter boxes.
How is the T6Hz 2006061 wired?
Somfy ships the 2006061 with an 8.2 ft white VVF cable with three stripped wires. The radio handles up, down and stop commands, so you only run constant 120V power to the motor. Somfy backs it with a 5-year warranty.
Couldn't load pickup availability
Replace a Simu T6, DMI6 or T8 motor, or build a new shutter, screen or awning.
Replacing? Your roller stays built. Building new? Every part below is Somfy-matched to part 2006061.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power and support
Turn off the circuit and support the roller or curtain before you remove the motor.
-
2
Pull the old motor
Unbolt the head from its bracket and slide the motor out of the tube.
-
3
Fit crown and drive
Fit the crown and drive for your tube, slide the new motor in and bolt the head to its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shutter, screen or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T6Hz 80Nm 14rpm 120V needs to run
Somfy lists every part below as compatible with part 2006061. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
