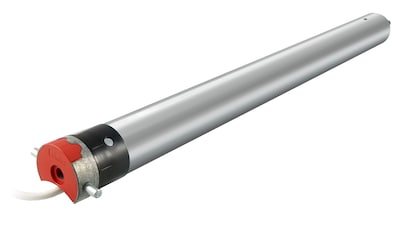

Somfy Simu T6Hz 100Nm 14rpm 120V (2006062)
Somfy Simu T6Hz 100Nm 14rpm 120V (2006062)
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu T6Hz 100Nm 14rpm 120V -- a 120V Simu Hz radio operator with electronic limits
The Simu T6Hz 100Nm 14rpm 120V (2006062) puts a Simu Hz radio receiver inside a T6 tubular operator. It turns 100 Nm at 14 rpm on 120V/60Hz power and listens on 433.42 MHz with a 492 ft open-field range. Electronic limits with a 42-turn capacity and a 3-wire cable suit awning and rolling shutter projects that need wireless control without a separate receiver.
Benefits
- 100 Nm at 14 rpm for large awnings and rolling shutters
- Built-in Simu Hz radio on 433.42 MHz removes the need for an external receiver
- Electronic limits with a 42-turn capacity, set from the transmitter
- 3-wire power cable: no control wiring back to a wall switch
- Low 0.38 W standby draw
- IP 44 rated and backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 100 Nm / 14 rpm |
| Voltage | 120V / 60Hz AC |
| Rated current | 3.8 A |
| Operating power | 430 W |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft (open field) |
| Standby consumption | 0.38 W |
| Limit switches | Electronic, 42-turn capacity |
| Head type | Round with pins |
| Cable | 8.2 ft VVF, 3-wire, white, stripped ends |
| Protection | IP 44, Class I |
| Applications | Awnings, rolling shutters |
| Warranty | 5 years |
Compatible with: Simu T6 class tubes with T5/T6 crowns and drives (60mm round aluminum drive 9012950, 70mm octagonal aluminum drive 9011878, 85mm Simbac tube crown 9690085), the T6 operator bracket 100mm x 100mm (9530018) and Simu Hz transmitters on 433.42 MHz.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What radio does the Simu T6Hz 2006062 use?
The 2006062 has a built-in Simu Hz radio receiver on 433.42 MHz with a 492 ft open-field range. Pair it with Simu Hz transmitters. It uses the Simu Hz protocol, so plan your remotes around Simu Hz controls when you specify this motor.
What torque and speed does the 2006062 deliver?
The Simu T6Hz 2006062 delivers 100 Nm at 14 rpm on 120V/60Hz power. That output drives large awnings and rolling shutters. In standby the radio draws 0.38 W, so the motor adds almost nothing to the idle power bill.
How are the limits set on the 2006062?
The 2006062 uses electronic limits with a 42-turn capacity. Electronic limits store the upper and lower stop points in the motor, and the built-in Simu Hz receiver takes commands from paired Simu Hz transmitters. That setup suits motors hidden inside closed cassettes and shutter boxes.
How is the T6Hz 2006062 wired?
Somfy ships the 2006062 with an 8.2 ft white VVF cable with three stripped wires. The radio handles up, down and stop commands, so you only run constant 120V power to the motor. Somfy backs it with a 5-year warranty.
