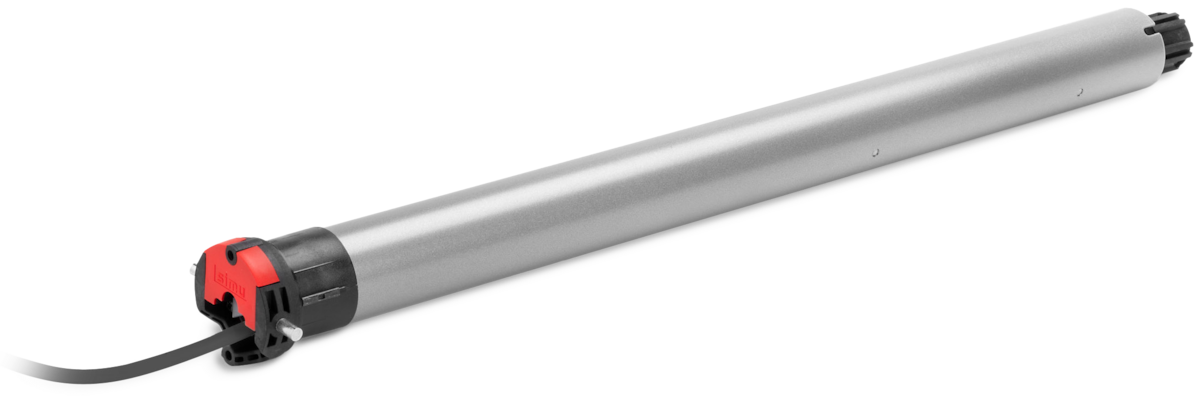

Simu T5Hz 30Nm 12rpm 120V -- 30 Nm Hz radio tubular motor
The Simu T5Hz 2005136 is a 120V tubular motor with a built-in Simu Hz radio receiver on 433.42 MHz. It delivers 30 Nm of torque at 12 rpm and sets its travel with electronic limits. Somfy lists it for exterior solar screens, interior shades, awnings and rolling shutters. Installers and dealers use it to motorize a tube with a minimum internal diameter of 1.85 in.
Benefits
- 30 Nm of torque at 12 rpm for mid-size exterior and interior shading
- Built-in Simu Hz radio receiver, so no separate receiver box is needed
- Electronic limit switches with a 36-turn capacity
- Open-field radio range of 492 ft on 433.42 MHz
- IP 44 rating and a -4°F to 140°F operating range
- 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm / 12 rpm |
| Power supply | 120V AC, 60 Hz |
| Rated current | 1.5 A |
| Power consumption | 170 W operating, 0.38 W standby |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft open field |
| Limit switches | Electronic, 36 turns |
| Head type | Round with pins |
| Cable | 6.56 ft, 3-wire, white |
| Motor diameter | 1.77 in (head 1.97 in) |
| Minimum tube inside diameter | 1.85 in |
| Protection | IP 44, Class I insulation |
| Operating temperature | -4°F to 140°F |
| Noise level | 55 dB |
| Packaged length | 27.28 in |
| Warranty | 5 years |
Compatible with: Simu T5 50 mm motor class for tubes with a 1.85 in minimum inside diameter. Somfy lists T5 operator brackets (80 x 80 mm, 100 x 100 mm, 48 mm and pin mounts), T5/T6 aluminum drives, LT50 crowns and drives from 2 in to DS 85 mm, and drive stops as accessories. Pairs with Simu Hz transmitters.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What remote controls the Simu T5Hz 2005136?
The 2005136 has a built-in Simu Hz radio receiver that works on 433.42 MHz. You pair it with Simu Hz transmitters. Somfy rates the open-field radio range at 492 ft, so one handheld can reach the motor across a typical patio or room.
How strong and fast is the 2005136?
Somfy rates the Simu T5Hz 2005136 at 30 Nm of torque and 12 rpm. It runs on 120V AC at 60 Hz, draws 1.5 A, and uses 170 W while operating. Standby draw is 0.38 W, which keeps the radio receiver ready between commands.
How are the limits set on this motor?
The 2005136 uses electronic limit switches with a 36-turn capacity. Simu designs the T5Hz.02 for quick setup by radio, and you set the upper and lower stops with a paired Simu Hz transmitter. The Simu T5Hz.02 installation guide covers the full programming sequence.
What tube and hardware does it fit?
The 2005136 is a 50 mm class T5 motor with a round head with pins. Somfy specifies a minimum tube inside diameter of 1.85 in. Its accessory list includes T5 operator brackets, T5/T6 aluminum drives, and LT50 crowns and drives sized to the tube profile.
Can it be used outdoors?
Yes. Somfy lists the 2005136 for awnings, exterior solar screens, rolling shutters and interior shades. The motor carries an IP 44 rating, Class I insulation, and an operating range of -4°F to 140°F. It comes with a 5-year Somfy warranty.
