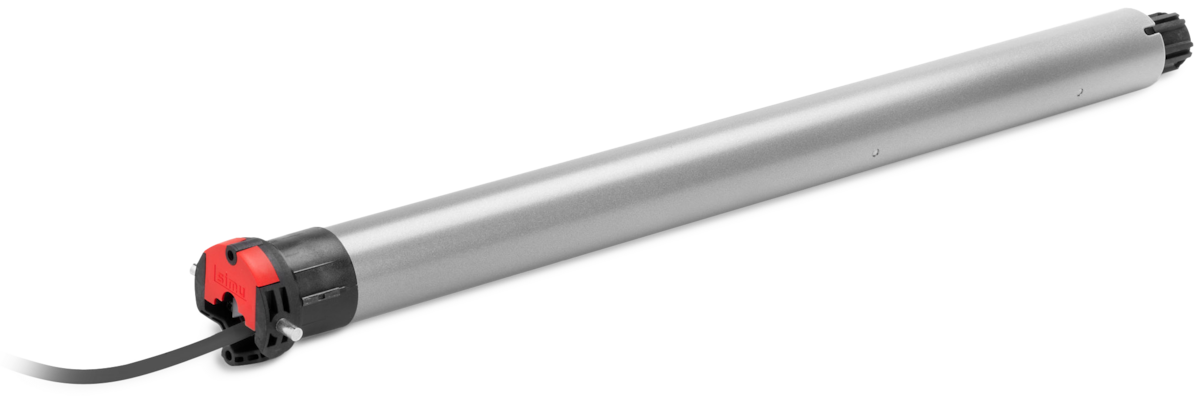

Simu T5Hz 20Nm 12rpm 120V -- 20 Nm Hz radio tubular motor
The Simu T5Hz 2006353 is a 120V tubular motor with a built-in Simu Hz radio receiver on 433.42 MHz. It delivers 20 Nm of torque at 12 rpm and sets its travel with electronic limits. Somfy lists it for exterior solar screens, interior shades, awnings and rolling shutters. Installers and dealers use it to motorize a tube with a minimum internal diameter of 1.85 in.
Benefits
- 20 Nm of torque at 12 rpm for mid-size exterior and interior shading
- Built-in Simu Hz radio receiver, so no separate receiver box is needed
- Electronic limit switches with a 36-turn capacity
- Open-field radio range of 492 ft on 433.42 MHz
- IP 44 rating and a -4°F to 140°F operating range
- 5-year Somfy warranty
Specifications
| Torque / Speed | 20 Nm / 12 rpm |
| Power supply | 120V AC, 60 Hz |
| Rated current | 1.1 A |
| Power consumption | 130 W operating, 0.38 W standby |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft open field |
| Limit switches | Electronic, 36 turns |
| Head type | Round with pins |
| Cable | 6.56 ft, 3-wire, white |
| Motor diameter | 1.77 in (head 1.97 in) |
| Minimum tube inside diameter | 1.85 in |
| Protection | IP 44, Class I insulation |
| Operating temperature | -4°F to 140°F |
| Noise level | 53 dB |
| Warranty | 5 years |
Compatible with: Simu T5 50 mm motor class for tubes with a 1.85 in minimum inside diameter. Somfy lists T5 operator brackets (80 x 80 mm, 100 x 100 mm, 48 mm and pin mounts), T5/T6 aluminum drives, LT50 crowns and drives from 2 in to DS 85 mm, and drive stops as accessories. Pairs with Simu Hz transmitters.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What remote controls the Simu T5Hz 2006353?
The 2006353 has a built-in Simu Hz radio receiver that works on 433.42 MHz. You pair it with Simu Hz transmitters. Somfy rates the open-field radio range at 492 ft, so one handheld can reach the motor across a typical patio or room.
How strong and fast is the 2006353?
Somfy rates the Simu T5Hz 2006353 at 20 Nm of torque and 12 rpm. It runs on 120V AC at 60 Hz, draws 1.1 A, and uses 130 W while operating. Standby draw is 0.38 W, which keeps the radio receiver ready between commands.
How are the limits set on this motor?
The 2006353 uses electronic limit switches with a 36-turn capacity. Simu designs the T5Hz.02 for quick setup by radio, and you set the upper and lower stops with a paired Simu Hz transmitter. The Simu T5Hz.02 installation guide covers the full programming sequence.
What tube and hardware does it fit?
The 2006353 is a 50 mm class T5 motor with a round head with pins. Somfy specifies a minimum tube inside diameter of 1.85 in. Its accessory list includes T5 operator brackets, T5/T6 aluminum drives, and LT50 crowns and drives sized to the tube profile.
Can it be used outdoors?
Yes. Somfy lists the 2006353 for awnings, exterior solar screens, rolling shutters and interior shades. The motor carries an IP 44 rating, Class I insulation, and an operating range of -4°F to 140°F. It comes with a 5-year Somfy warranty.
Couldn't load pickup availability
Replace a Simu T5 or DMI5 motor, or build a new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2006353.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit crown and drive
Fit the T5 crown and drive for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T5Hz 20Nm 12rpm 120V needs to run
Somfy lists every part below as compatible with part 2006353. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
4Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T5Hz 20Nm 12rpm 120V for 5 years. We handle the claim.
Somfy warranty on the Simu T5Hz 20Nm 12rpm 120V, part 2006353.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu T5 Hz Installation Guide (PDF)
