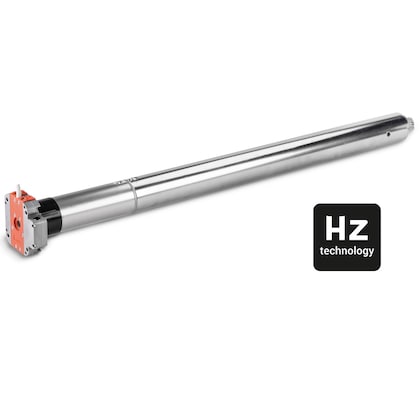

Somfy Simu DMI6 60Nm 14rpm 120V (2001040)
Somfy Simu DMI6 60Nm 14rpm 120V (2001040)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu DMI6 60Nm 14rpm 120V -- a 120V wired operator with manual crank override
The Simu DMI6 60Nm 14rpm 120V (2001040) is the manual override version of the Simu T6 operator. It drives 60 Nm at 14 rpm on 120V/60Hz power, and its CMO head accepts a crank so the awning or shutter still moves during a power outage. Mechanical limits with a 34-turn capacity and a 4-wire cable make it a direct replacement for DMI6 installs.
Benefits
- 60 Nm at 14 rpm for large awnings and rolling shutters
- CMO head with manual override lets you crank the shade during an outage
- Mechanical limit switches with a 34-turn capacity
- 4-wire VVF cable connects to standard 120V up/down switches
- IP 44 rated with Class I insulation
- Backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 60 Nm / 14 rpm |
| Overall length | 27.72 in (704.1 mm) |
| Minimum tube inside diameter | 2.37 in |
| Voltage | 120V / 60Hz AC |
| Rated current | 2.5 A |
| Operating power | 285 W |
| Control | Wired, 4-wire |
| Manual override | Yes (CMO head) |
| Limit switches | Mechanical, 34-turn capacity |
| Cable | 8.2 ft VVF, 4-wire |
| Protection | IP 44, Class I |
| Applications | Awnings, rolling shutters |
| Warranty | 5 years |
Compatible with: Simu T6 class tubes with T5/T6 crowns and drives (60mm round aluminum drive 9012950, 70mm octagonal aluminum drive 9011878, 85mm Simbac tube crown 9690085), DMI brackets (9420647, 9706034, 2005701), the 7mm hex CMO extension shaft (9420659) and any 120V up/down switch wired for 4-wire motors.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does DMI mean on the Simu 2001040?
DMI marks the manual override version of the Simu T6 operator. The 2001040 has a CMO head that accepts a 7mm hex crank shaft, so you can raise or lower the awning or shutter by hand when the power is out. Under power it runs like a standard T6.
What torque and speed does the 2001040 deliver?
The Simu DMI6 2001040 delivers 60 Nm at 14 rpm on 120V/60Hz power. It draws 2.5 A and 285 W while running. Use it on heavy awnings and rolling shutters that need a crank backup for outages or service access.
Which brackets fit the DMI6 2001040?
Somfy lists DMI brackets for the 2001040, including the 1-piece round adjustable cast plate (9420647), the DMI bracket 100mm x 100mm (9706034) and the 2-piece inside mount adjustable U bracket (2005701). The standard T6 square bracket does not appear on its accessory list.
How are the limits set on the 2001040?
The 2001040 uses mechanical limit switches with a 34-turn capacity. Once set, the motor stops at the same up and down points on every cycle. No programming tool or remote is needed, so wired awning and shutter installs stay simple to service.
How is the 2001040 wired?
Somfy ships the DMI6 2001040 with an 8.2 ft VVF cable with four wires. Wire it to a 120V up/down switch, key switch or relay rated for 4-wire motors. Somfy backs the motor with a 5-year warranty.
Couldn't load pickup availability
Replace a Simu T6, DMI6 or T8 motor, or build a new shutter, screen or awning.
Replacing? Your roller stays built. Building new? Every part below is Somfy-matched to part 2001040.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power and support
Turn off the circuit and support the roller or curtain before you remove the motor.
-
2
Pull the old motor
Unbolt the head from its bracket and slide the motor out of the tube.
-
3
Fit crown and drive
Fit the crown and drive for your tube, slide the new motor in and bolt the head to its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Planning a new shutter, screen or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu DMI6 60Nm 14rpm 120V needs to run
Somfy lists every part below as compatible with part 2001040. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Power
Cables, chargers and power made for this motor.
3Mounting
Holds the motor head and the idle end in place.
4Also fits
Other parts Somfy lists with this product.
