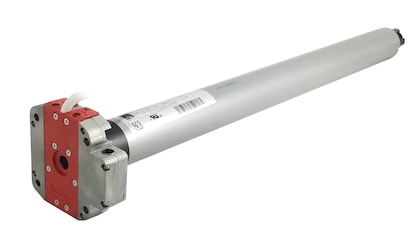

Somfy Simu DMI5 40Nm 12rpm 120V (2000775)
Somfy Simu DMI5 40Nm 12rpm 120V (2000775)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
DMI5 40Nm 12rpm 120V -- wired operator motor with built-in manual override
The Simu DMI5 40Nm 12rpm 120V (2000775) is a wired 50mm-class tubular motor with a built-in crank override. It turns rolling shutters and awnings at 12 rpm with 40 Nm of torque on 120V/60Hz AC, drawing 1.8 A. Installers pick the DMI5 when the owner needs a way to open the shutter by hand. Progressive end-limits on the compact motor head hold a 28-turn travel range.
Benefits
- 40 Nm of torque at 12 rpm on standard 120V/60Hz power
- Built-in manual override with 6mm and 7mm fittings and a 27:1 reduction for hand cranking
- Progressive end-limits adjusted on the motor head, 28-turn capacity
- Compact 24mm motor head saves space at the bracket end
- IP 44 protection and Class I insulation for exterior shutter and awning boxes
- 8.2 ft 4-wire VVF cable for direct wiring to a wired switch
Specifications
| Torque / Speed | 40 Nm / 12 rpm |
| Overall length | 27.05 in (687 mm) |
| Power supply | 120V/60Hz AC |
| Rated current | 1.8 A |
| Power consumption | 210 W running, 0 W standby |
| Control | Wired (4-wire) |
| Manual override | Built-in, 6mm and 7mm, 27:1 reduction |
| Limit switches | Progressive mechanical end-limits, 28 turns |
| Head type | CMO (manual override head) |
| Cable | 8.2 ft, 4-wire VVF, white |
| Protection | IP 44, Class I insulation |
| Operating temperature | -4°F to 158°F |
| Noise level | 55 dB |
| Weight | 3.28 kg |
| Warranty | 5 years |
| Applications | Rolling shutters, awnings |
| Part number | 2000775 |
Compatible with: Simu DMI5 manual override installations: DMI brackets including the 1-piece round adjustable cast plate (9420647), 100mm x 100mm plate (9706034) and 2-piece inside mount U (2005701); T5/T6 aluminum drives (9012950 60mm round, 9011878 70mm octagonal) and the LT50-style crowns and drives Somfy lists for the DMI5; 7mm hex extension shaft 9420659 for the crank side. Wired switch control only.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu 2000775 deliver?
The Simu DMI5 40Nm 12rpm 120V (2000775) delivers 40 Nm of torque at 12 rpm on 120V/60Hz AC power. Somfy rates it at 1.8 A and 210 W running. Size the motor to the weight of the shutter curtain or awning fabric, and step up in torque for large or heavy shutters.
How does the manual override on the 2000775 work?
The DMI5 2000775 has a built-in manual override with 6mm and 7mm fittings and a 27:1 reduction ratio. You connect a crank through a DMI ring, crank hook or invisible joint, then raise or lower the shutter or awning by hand without running the motor.
How are the limits set on the 2000775?
Simu fits the DMI5 2000775 with a progressive end-limit system. You set the up and down limits at the motor head, from either side, and the unit covers up to 28 turns of travel. Set the limits before closing the shutter box.
Which brackets fit the Simu DMI5 2000775?
Somfy lists DMI brackets for the DMI5 range, including the 1-piece round adjustable cast plate (9420647), the 100mm x 100mm plate (9706034) and the 2-piece inside mount U bracket (2005701). Pair the 2000775 with a T5/T6 crown and drive that matches your tube.
Does the 2000775 include a radio receiver?
No. Somfy lists the DMI5 2000775 as a wired motor, so it has no built-in Hz or RTS receiver. You run it from a wired up/down switch. Pick a Simu DMI5 Hz model when the job calls for radio control with a crank override.
Couldn't load pickup availability
Replace a Simu T5 or DMI5 motor, or build a new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2000775.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit crown and drive
Fit the T5 crown and drive for your tube, then slide the new motor in.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu DMI5 40Nm 12rpm 120V needs to run
Somfy lists every part below as compatible with part 2000775. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu DMI5 40Nm 12rpm 120V for 5 years. We handle the claim.
Somfy warranty on the Simu DMI5 40Nm 12rpm 120V, part 2000775.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu DMI5 Spec Sheet (PDF)Simu DMI5 Brochure (PDF)
