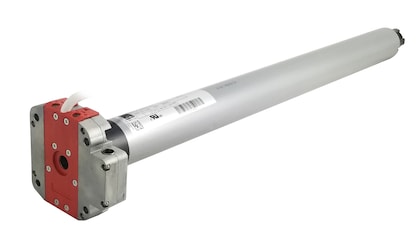

DMI5 35Nm 18rpm 120V -- wired operator motor with built-in manual override
The Simu DMI5 35Nm 18rpm 120V (2000771) is a wired 50mm-class tubular motor with a built-in crank override. It turns rolling shutters and awnings at 18 rpm with 35 Nm of torque on 120V/60Hz AC, drawing 2.1 A. Installers pick the DMI5 when the owner needs a way to open the shutter by hand. Progressive end-limits on the compact motor head hold a 28-turn travel range.
Benefits
- 35 Nm of torque at 18 rpm on standard 120V/60Hz power
- Built-in manual override with 6mm and 7mm fittings and a 27:1 reduction for hand cranking
- Progressive end-limits adjusted on the motor head, 28-turn capacity
- Compact 24mm motor head saves space at the bracket end
Specifications
| Torque / Speed | 35 Nm / 18 rpm |
| Power supply | 120V/60Hz AC |
| Rated current | 2.1 A |
| Power consumption | 250 W |
| Control | Wired |
| Manual override | Built-in, 6mm and 7mm, 27:1 reduction |
| Limit switches | Progressive mechanical end-limits, 28 turns |
| Weight | 3.28 kg |
| Applications | Rolling shutters, awnings |
| Part number | 2000771 |
Compatible with: Simu DMI5 manual override installations: DMI brackets including the 1-piece round adjustable cast plate (9420647), 100mm x 100mm plate (9706034) and 2-piece inside mount U (2005701); T5/T6 aluminum drives (9012950 60mm round, 9011878 70mm octagonal) and the LT50-style crowns and drives Somfy lists for the DMI5; 7mm hex extension shaft 9420659 for the crank side. Wired switch control only.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu 2000771 deliver?
The Simu DMI5 35Nm 18rpm 120V (2000771) delivers 35 Nm of torque at 18 rpm on 120V/60Hz AC power. Somfy rates it at 2.1 A and 250 W running. Size the motor to the weight of the shutter curtain or awning fabric, and step up in torque for large or heavy shutters.
How does the manual override on the 2000771 work?
The DMI5 2000771 has a built-in manual override with 6mm and 7mm fittings and a 27:1 reduction ratio. You connect a crank through a DMI ring, crank hook or invisible joint, then raise or lower the shutter or awning by hand without running the motor.
How are the limits set on the 2000771?
Simu fits the DMI5 2000771 with a progressive end-limit system. You set the up and down limits at the motor head, from either side, and the unit covers up to 28 turns of travel. Set the limits before closing the shutter box.
Which brackets fit the Simu DMI5 2000771?
Somfy lists DMI brackets for the DMI5 range, including the 1-piece round adjustable cast plate (9420647), the 100mm x 100mm plate (9706034) and the 2-piece inside mount U bracket (2005701). Pair the 2000771 with a T5/T6 crown and drive that matches your tube.
Does the 2000771 include a radio receiver?
No. Somfy lists the DMI5 2000771 as a wired motor, so it has no built-in Hz or RTS receiver. You run it from a wired up/down switch. Pick a Simu DMI5 Hz model when the job calls for radio control with a crank override.
