Eolis 3D WireFree RTS wind sensor -- battery-powered wind protection for awnings
The Eolis 3D WireFree RTS is a wireless, battery-powered 3D motion sensor that detects horizontal, vertical, and lateral vibration from wind and automatically retracts a motorized awning once your set threshold is exceeded -- even while you're away.
Benefits
- Completely wireless, battery operated -- fits existing or new awning installs
- Patented technology detects wind movement in 3 directions (horizontal, vertical, lateral)
- Automatically protects the awning even when no one is home
- Built-in low-battery indicator
- Compatible with all RTS-powered systems, controls, and accessories
Specifications
| Protection Index | IP 44 |
| Dimensions | 6.02" L x 1.5" W x 0.98" H |
| Radio Frequency | 433.420 MHz |
| Range (open field) | 164 ft |
| Battery | 2x LR3 (AAA), 1.5V |
| Color | Off-White |
| Operating temperature | -4°F to 140°F |
| Warranty | 5 years |
Compatible with: RTS-powered awning motors
Official Somfy documentation
- Eolis 3D Brochure (PDF)
- Eolis 3D RTS Manual (PDF)
- Eolis 3D Specification Sheet (PDF)
- Eolis 3D Quick Programming Guide (PDF)
- Eolis 3D Consumer Instructions (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Eolis 3D WireFree RTS Wind Sensor do?
Part 1816083 is a battery-powered Somfy RTS sensor that responds to the movement wind creates in an awning. When that movement grows too strong, it sends a retract command, so the awning stays protected even when no one is home.
How does it detect wind?
The Eolis 3D reads movement in three directions: horizontal, vertical and lateral. Somfy designed it to trigger automatic retraction when wind-generated movement becomes too strong for the awning.
What batteries does it use?
It runs on two LR3 (AAA) 1.5 V batteries and needs no wiring. A built-in indicator alerts you when the batteries need to be replaced.
What range and outdoor rating does it have?
Somfy rates the range at 492.15 ft in open field on 433.420 MHz. The sensor is rated IP 44 and works from -4 °F to 140 °F. It measures 6.02 in by 1.5 in by 0.98 in.
Which motors and controls does it work with?
Somfy lists it as compatible with all RTS-powered systems, controls and accessories. Pair it with an RTS awning motor such as the 540R2 RTS CMO (1051477), and keep a Telis 4 RTS Patio remote (1810645) for everyday control.
Is there another color option?

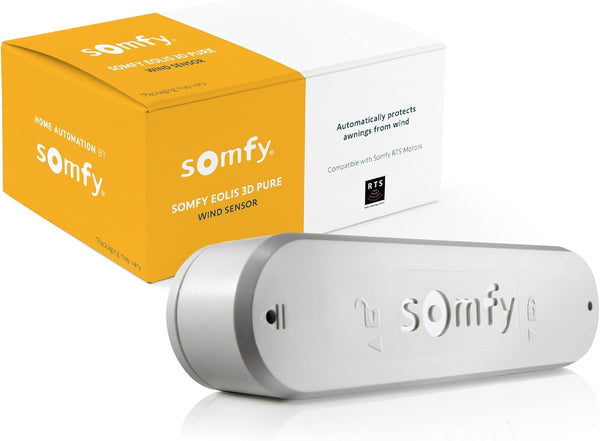

Yes. Somfy also offers the Eolis 3D WireFree RTS Wind Sensor in white (1816081), with the same wireless design, so you can pick the finish that suits the awning frame.
Couldn't load pickup availability
Replace a failed weather sensor or add weather control to your shades.
12- 1Wind sensor Senses awning movement in strong wind.
- 2Screw hole Fastens the sensor in place.
Replacing one
-
1
Remove the old sensor
Note how it was mounted and connected, then take it down.
-
2
Mount the Eolis 3D WireFree RTS Wind Sensor Off-White
Fix it in the same spot so it reads the same wind or sun.
-
3
Link it
Pair it to the motor like an RTS remote, or wire it as the old one was.
-
4
Set the trigger
Set the wind or sun level that starts the move.
Ask us which sensor works with your motor. Send the part number. Ask us
Starting new
-
1
Mount it outside
Fix it where it feels the same wind or sun as your shade.
-
2
Link it
Pair it to the motor like an RTS remote, or wire it to the control.
-
3
Set the trigger
Set the wind or sun level that starts the move.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Eolis 3D WireFree RTS Wind Sensor Off-White controls
These Somfy motors work with part 1816083.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Eolis 3D WireFree RTS Wind Sensor Off-White for 5 years. We handle the claim.
Somfy warranty on the Eolis 3D WireFree RTS Wind Sensor Off-White, part 1816083.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Eolis 3D WireFree RTS Wind Sensor Off-White (1816083)
|
Somfy Eolis 3D WireFree RTS Wind Sensor Black (1816082)
|
Somfy Eolis 3D WireFree RTS Wind Sensor White (1816081)
|

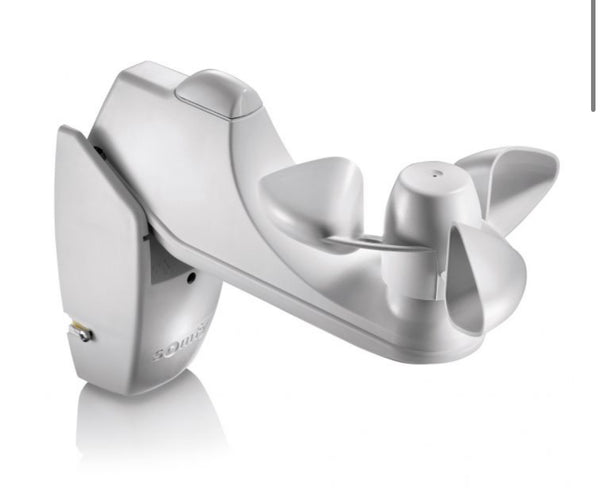

Somfy Eolis RTS 60 MPH Wind Sensor 24V DC Kit (1870709)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | Battery (2x AAA) | Battery (2x AAA) | Battery (2x AAA) | 24V DC wired |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
