Somfy 510S2 Altus RTS 120V 3-Wire Motor (1038165)
Somfy 510S2 Altus RTS 120V 3-Wire Motor (1038165)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

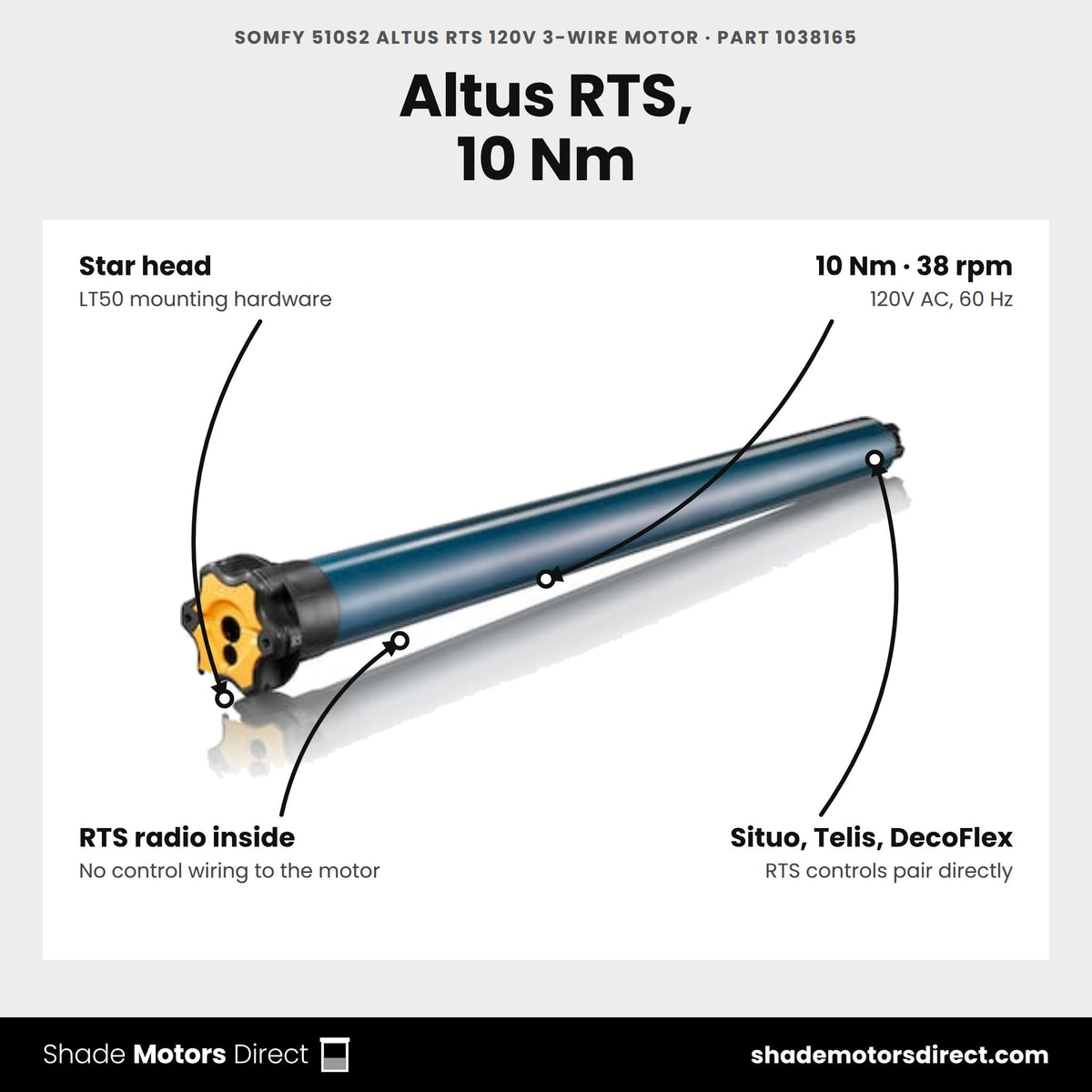

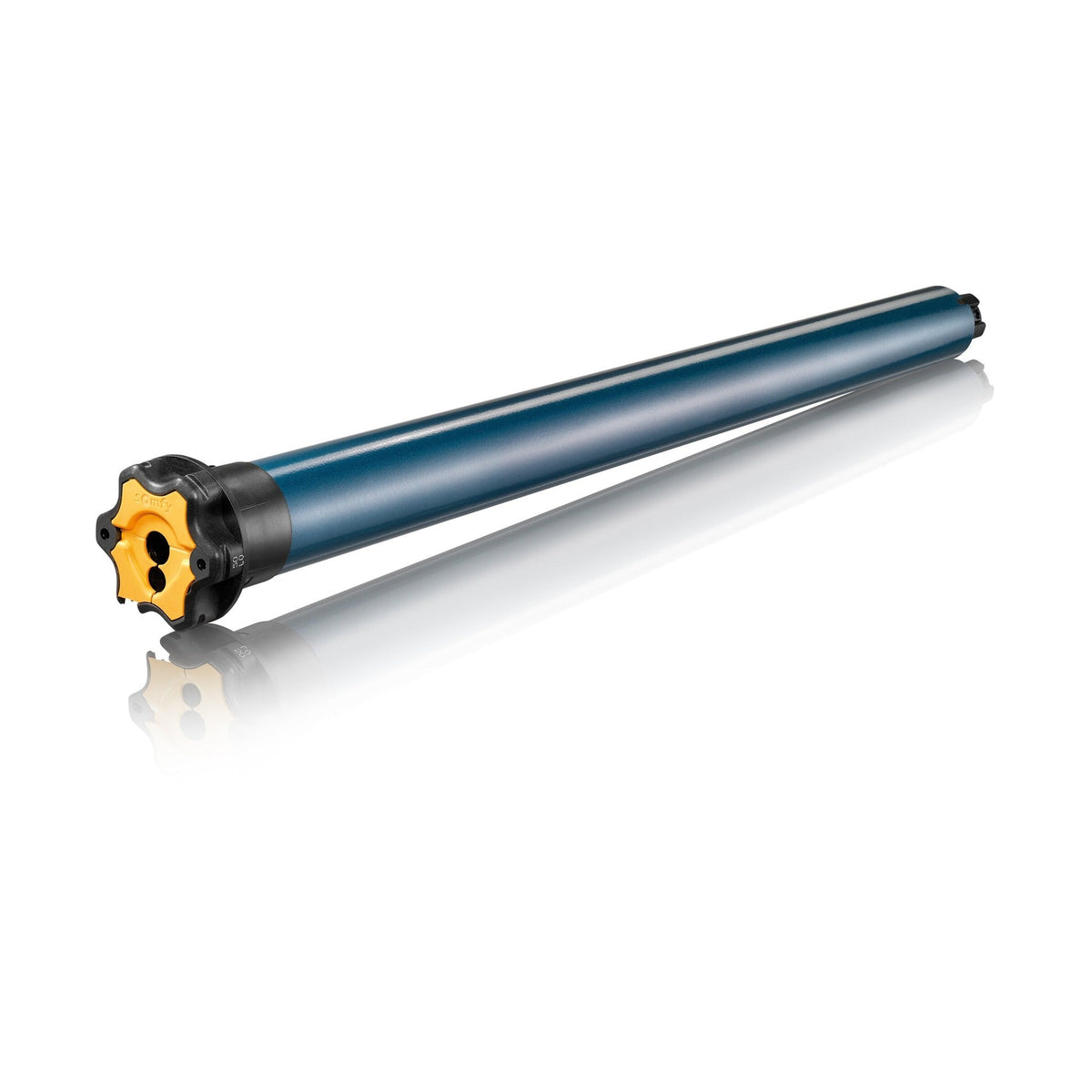

Somfy LT50 510S2 Altus RTS Motor -- wireless exterior tubular motor
The Somfy LT50 510S2 Altus RTS is a wireless, radio-controlled exterior motor delivering 10Nm (88" lb) at 38 rpm for solar screens, awnings, and rolling shutters -- no control wiring required, just an RTS remote or wall switch.
Benefits

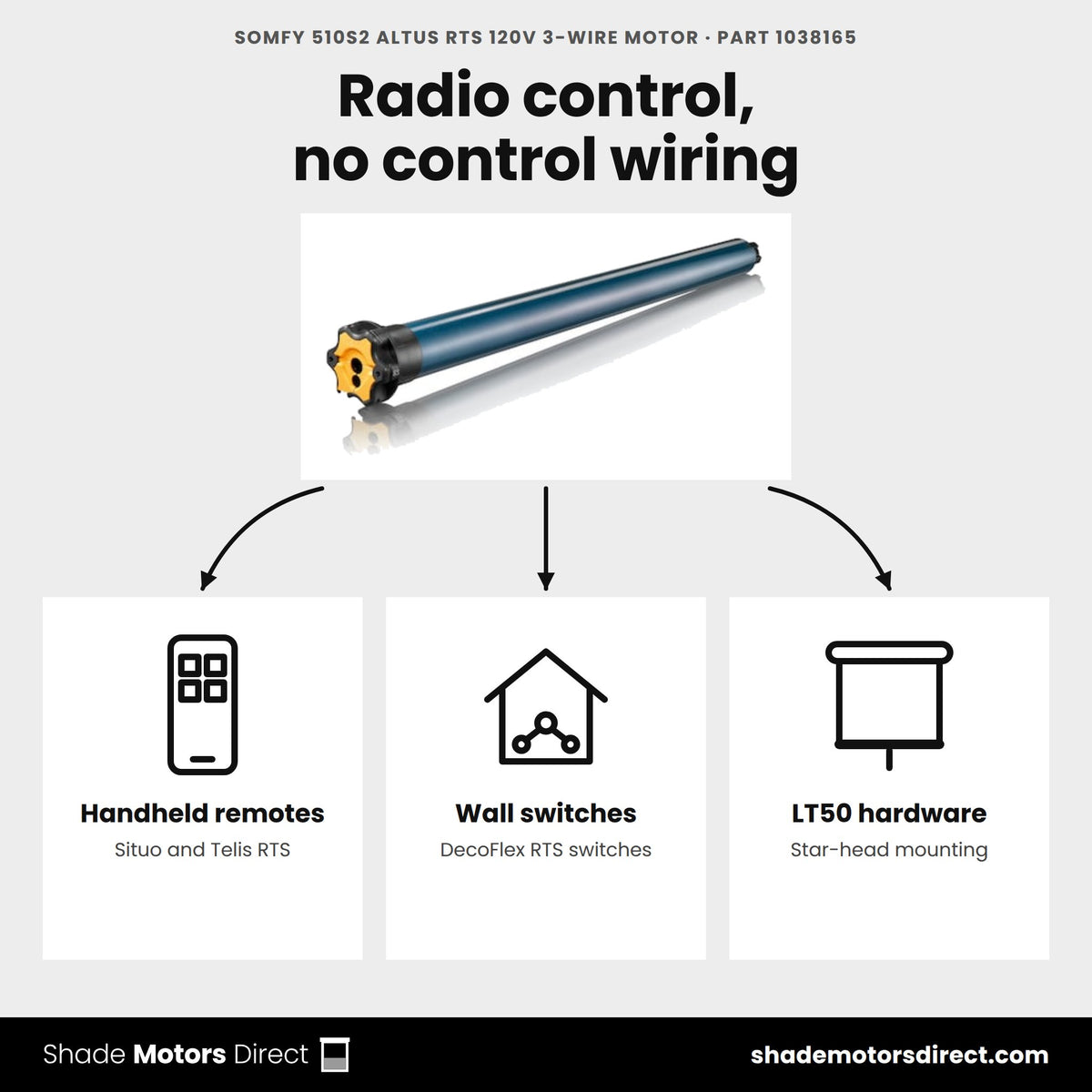

- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
- Standard star-head LT50 mounting hardware
- 5-year Somfy warranty
Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 38 rpm |
| Control | RTS (433.42 MHz radio) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Altus RTS 510S2 motor do?
Part 1038165 is a Somfy LT50 tubular motor with a built-in RTS radio receiver. Somfy lists it for exterior solar screens and retractable insect screens. Radio control means no control wiring runs back to the motor.
What torque and speed does it deliver?
Somfy rates the Altus RTS 510S2 at 10 Nm of torque and 38 rpm. It has a star head and fits roller tubes with an inside diameter of 1.85 in or larger.
What power does it need?
It runs on 120V/60Hz and draws 150 W in operation and 0.5 W on standby. Somfy supplies it with a 9.84 ft SJTW cable and rates it IP 44 for exterior screen work, from -4 °F to 158 °F.
Which remotes and switches work with it?
Any Somfy RTS transmitter works, including the Situo 1 (1870571), Situo 5 (1870575), Telis 16 (1811081), DecoFlex 5 Channel wall switch (1810813) and Telis 1 Chronis timer (1805237). The motor stores up to 12 transmitters, with an open-field range of 656.2 ft.
Can I control it from a phone or voice assistant?
Yes. Pair the motor with a Somfy TaHoma hub for app, schedule and voice control. RTS is one-way radio, so the app sends commands but does not report the screen's position.

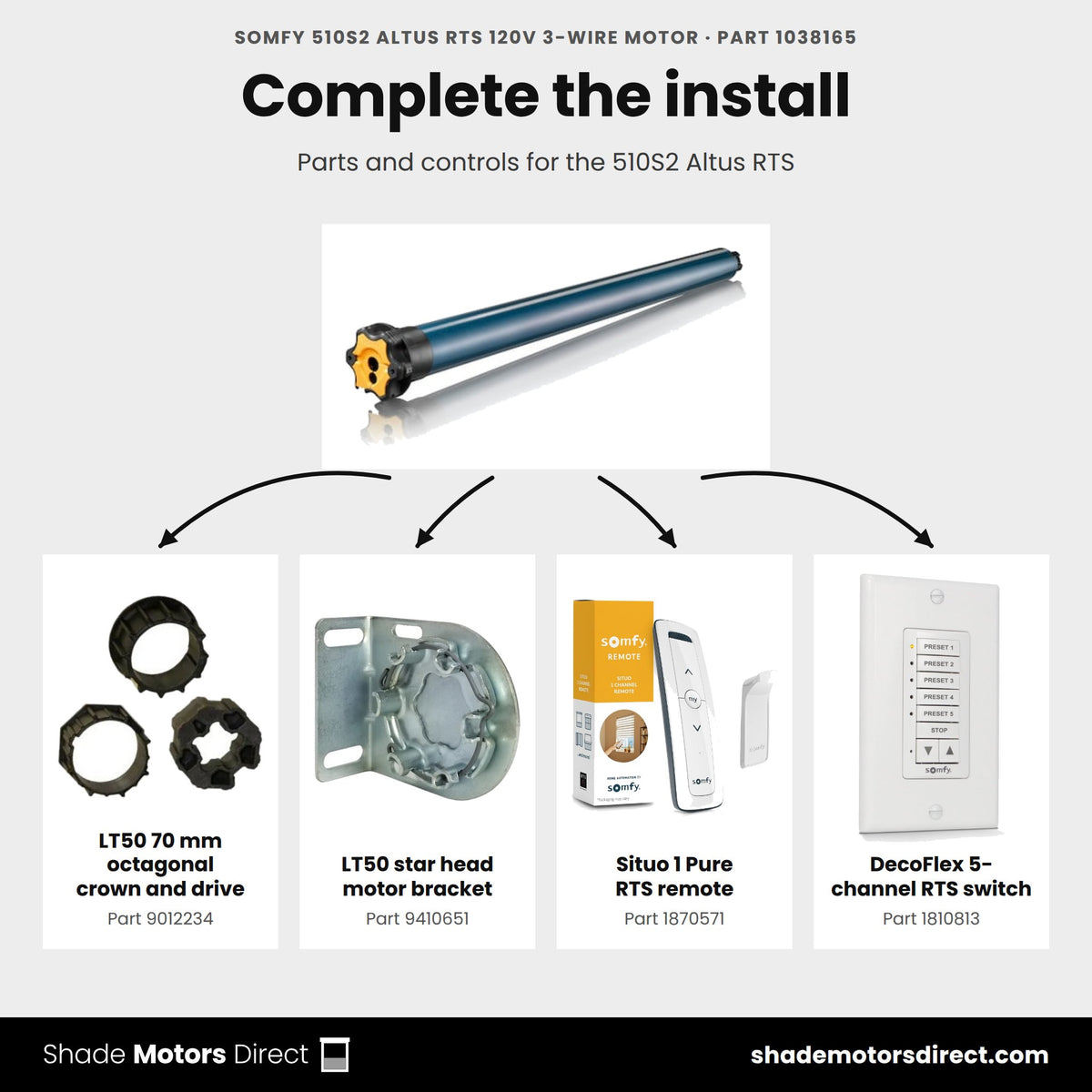

Which crowns, drives and brackets fit it?
It uses standard LT50 hardware. Matching parts on this page include the LT50 2.5 in Round Crown and Drive Set (9012231), the Octagonal LT50 70mm Crown and Drive Set (9012234) and the LT50 Star Head Motor Bracket (9410651).
Couldn't load pickup availability

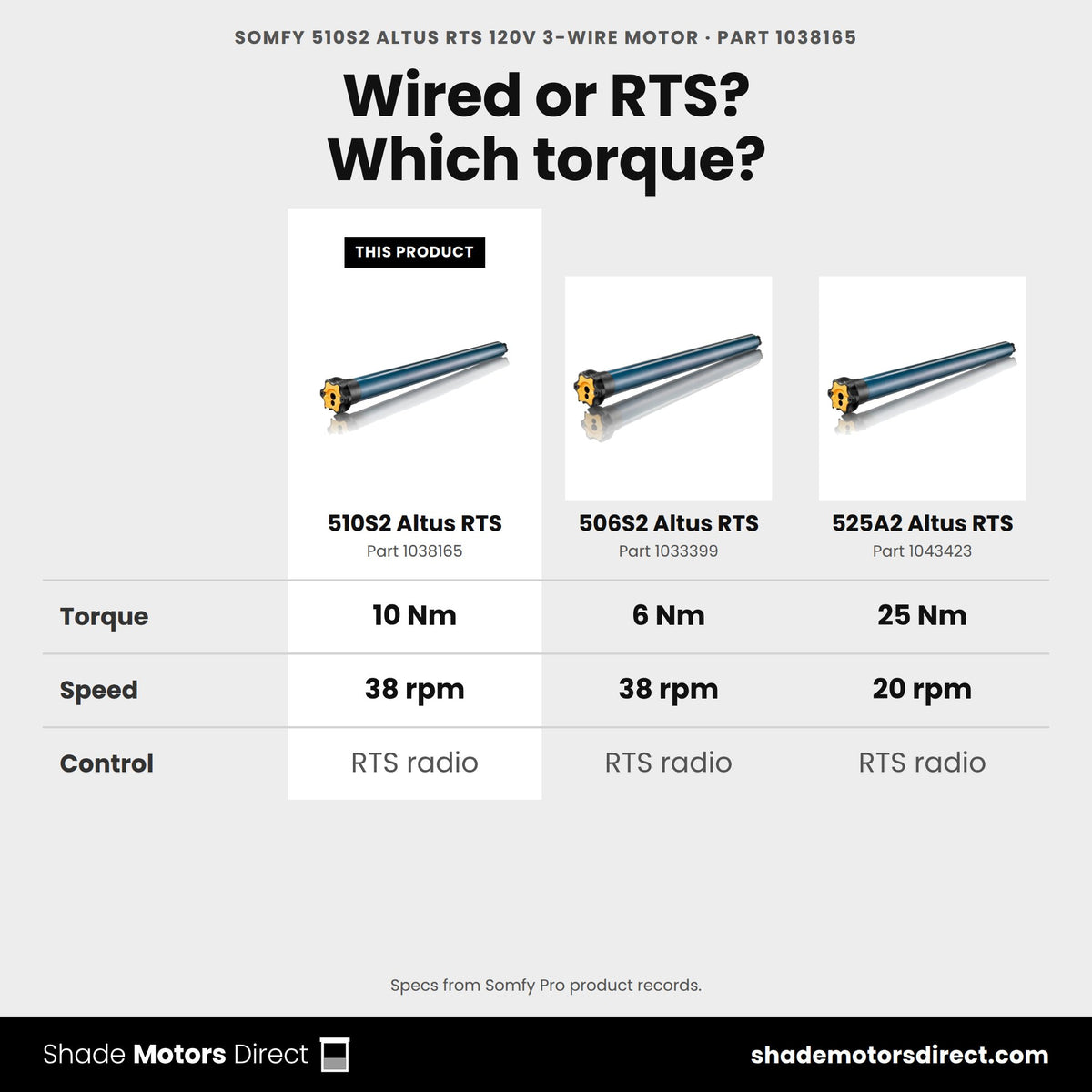

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 510S2 Altus RTS 120V 3-Wire Motor (1038165)
|
Somfy 510 R2 120V 4 Wire Motor (1038172)
|
Somfy 506S2 Altus RTS 120V 3-Wire Motor (1033399)
|
Somfy 525A2 Altus RTS 120V Motor (1043423)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 25.0 |
| Speed (rpm) | 38 | 14 | 38 | 20 |
| Control | RTS radio | Wired 4-wire | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 6.0 Nm instead of 10.0 | 25.0 Nm instead of 10.0 |
| Buy | Currently viewing | View details | View details | View details |
