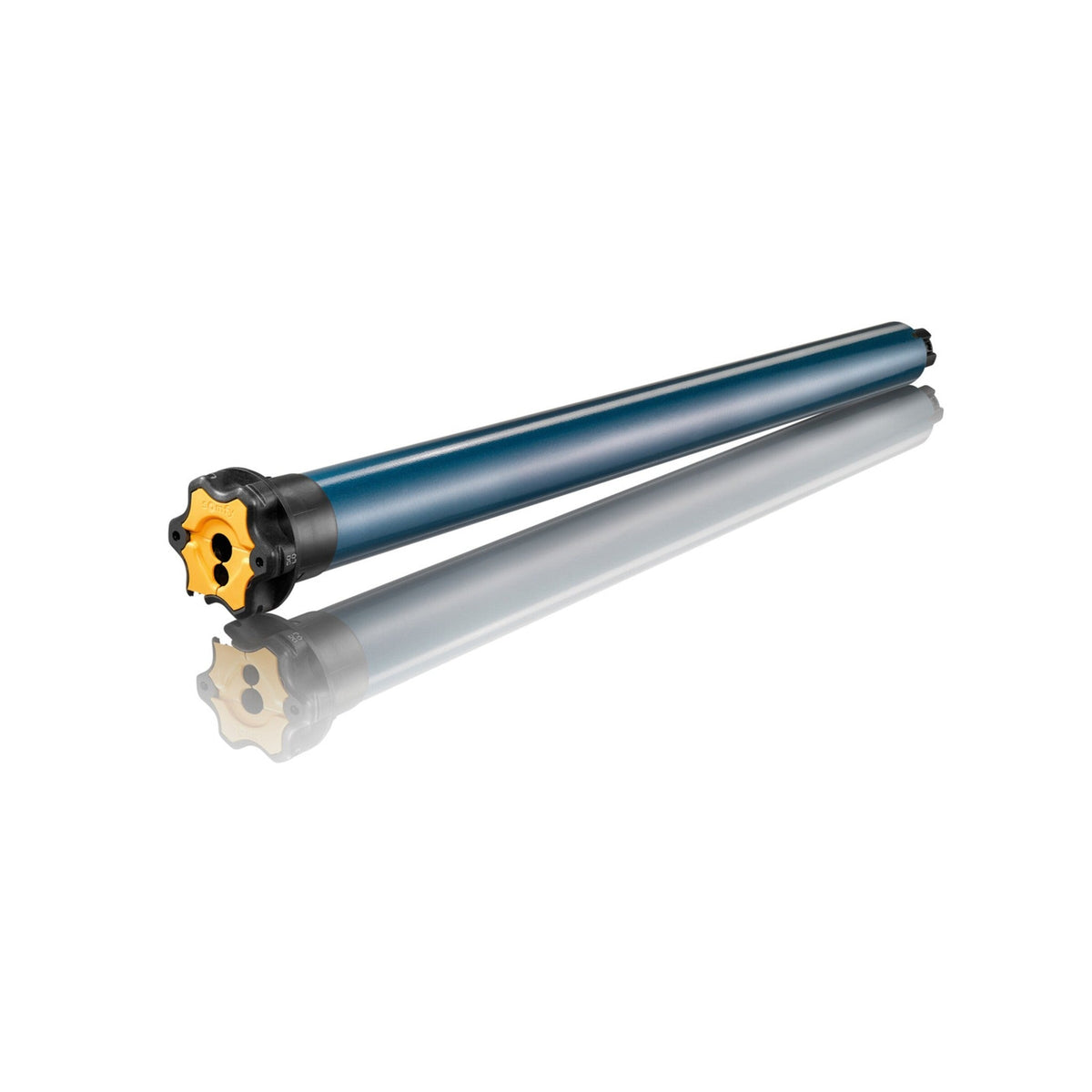

Somfy LT50 535A2 Altus RTS Motor -- wireless exterior tubular motor

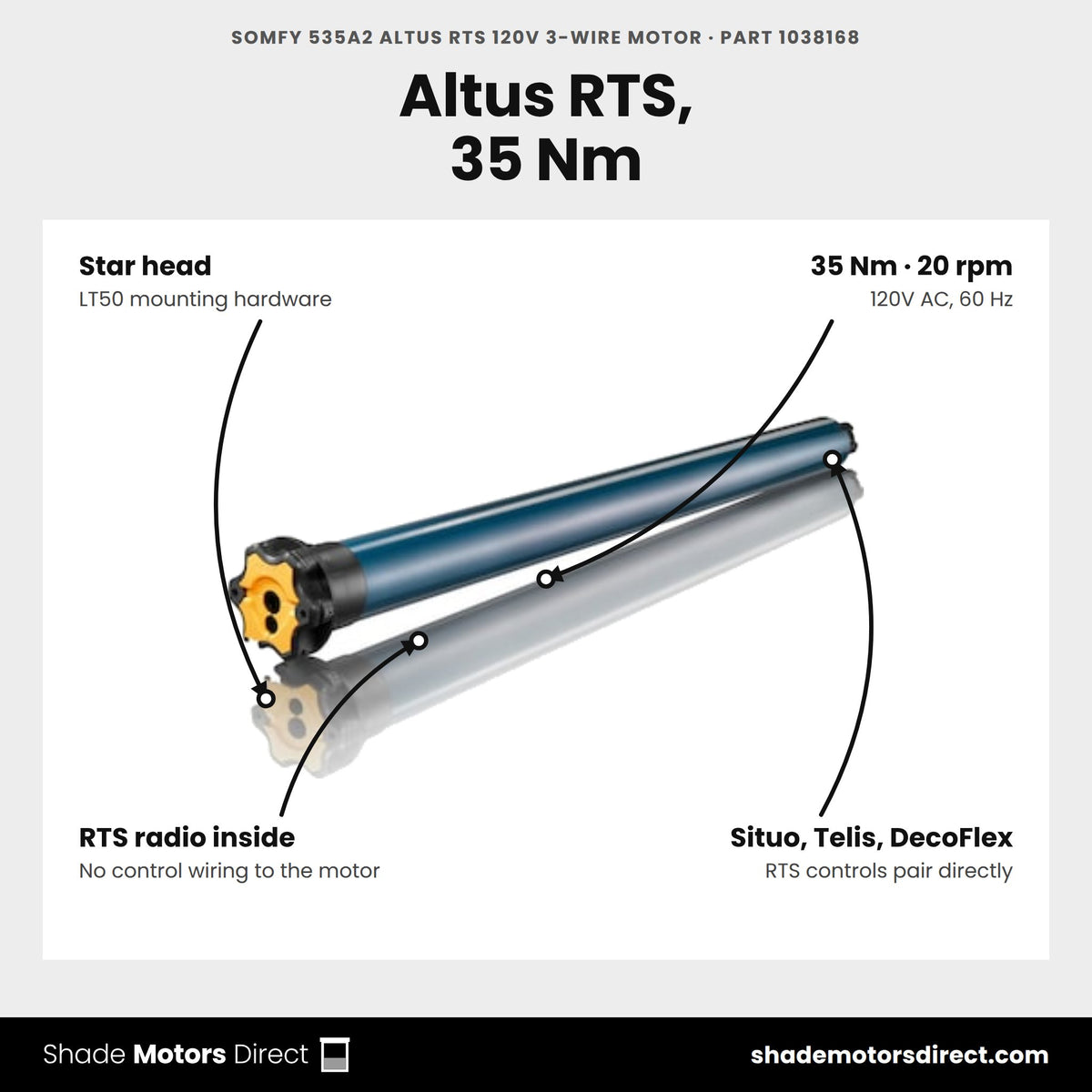

The Somfy LT50 535A2 Altus RTS is a wireless, radio-controlled exterior motor delivering 35Nm (310" lb) at 20 rpm for solar screens, awnings, and rolling shutters -- no control wiring required, just an RTS remote or wall switch.
Benefits
- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
- Standard star-head LT50 mounting hardware
- 5-year Somfy warranty
Specifications
| Torque / Speed | 35 Nm (310 in-lb) / 20 rpm |
| Control | RTS (433.42 MHz radio) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Altus RTS 535A2 built for?
Part 1038168 is a 120V tubular motor with a built-in RTS radio receiver, sized for exterior solar screens, awnings and rolling shutters. Somfy also lists interior window coverings, projection screens and retractable insect screens among its applications.
What torque and speed does it deliver?
Somfy rates the 535A2 at 35 Nm of torque and 20 rpm. It draws 250 W while running and 0 W in standby, lists a noise level of 56 dB, and fits tubes with an inside diameter of 1.85 in or larger.
How is the motor powered and wired?
It runs on 120V/60Hz through a 3-conductor SJTW cable. The RTS receiver inside the motor replaces control wiring, so the motor needs a power feed and nothing more. Somfy rates the motor IP 44.

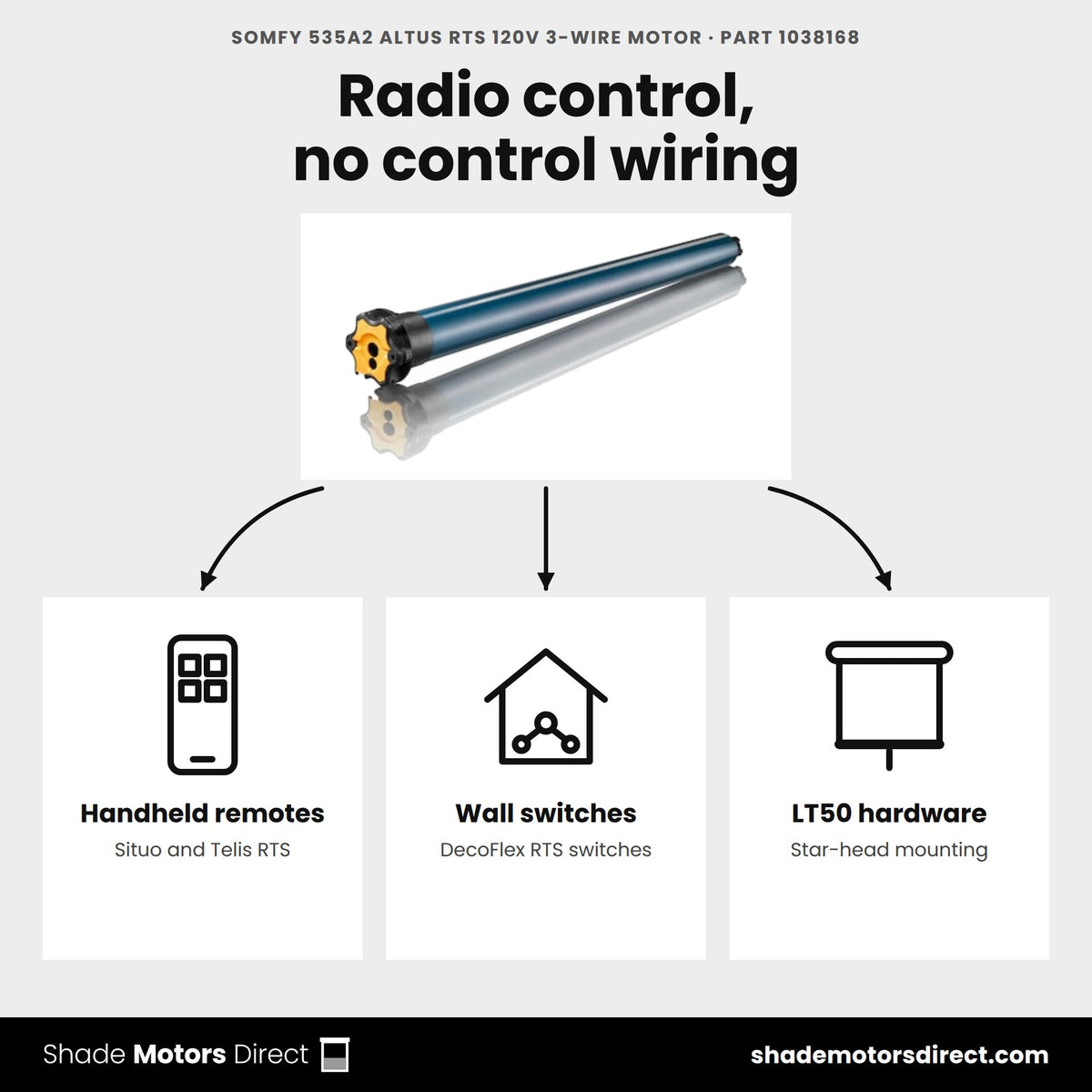

Which remotes and switches work with it?
Any Somfy RTS transmitter works, including Situo and Telis remotes, DecoFlex RTS wall switches and the Telis 1 Chronis RTS timer (1805237). Somfy lists 12 channels for this motor and rates RTS range at 656.2 ft in open field. Walls shorten that indoors.
Can I control it from my phone or a voice assistant?
Yes. Pair it with a Somfy TaHoma Switch (1871037) to run it from the app or by voice through a supported assistant. RTS is one-way radio, so the app sends commands but cannot report the screen's position.

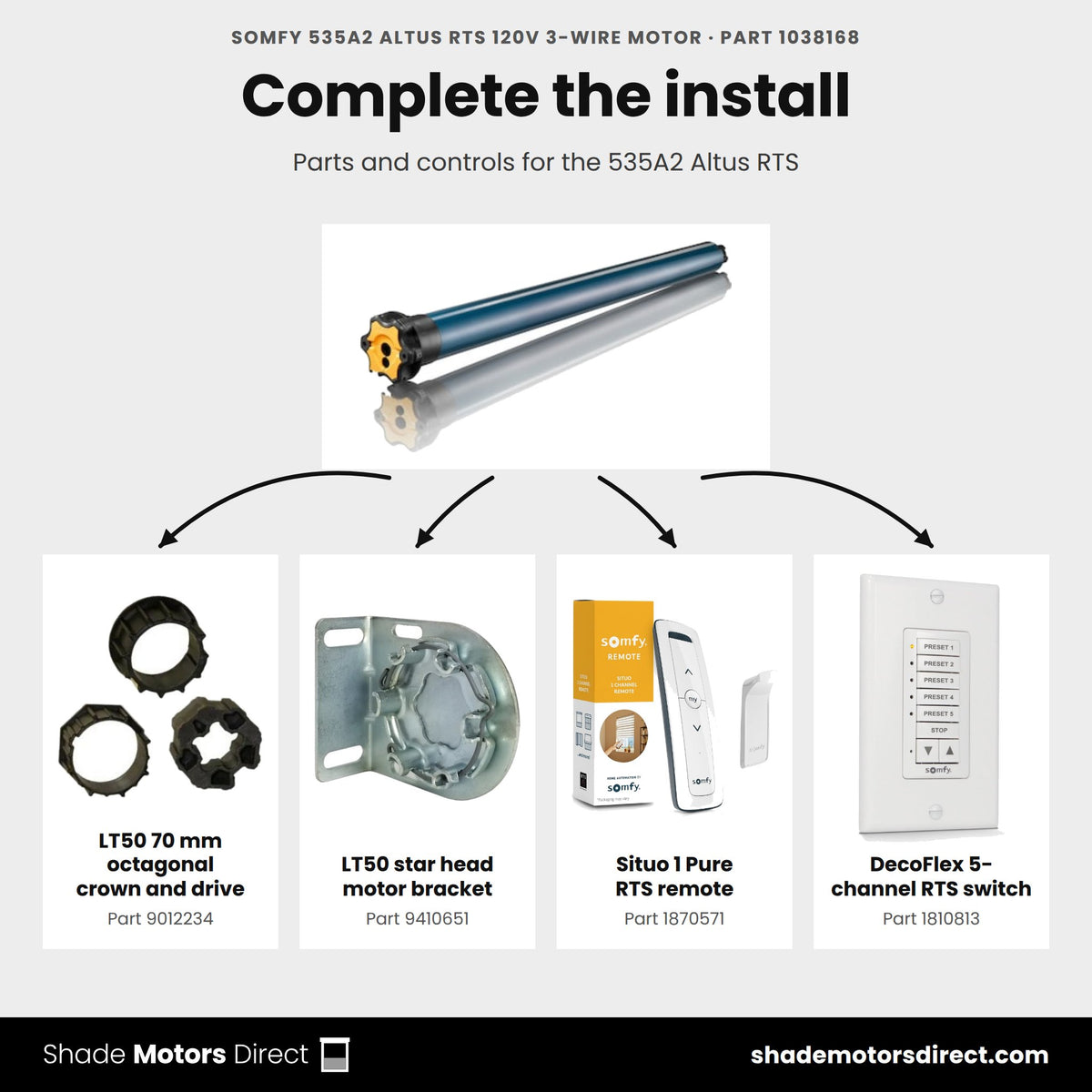

Which crowns, drives and brackets does it take?
It uses standard LT50 star-head hardware. Matching parts in this store include the LT50 2.5 in Round Crown and Drive Set (9012231), the Octagonal LT50 70mm Crown and Drive Set (9012234), and the LT50 Star Head (9410651) or Universal (9410665) motor brackets.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 535A2 Altus RTS 120V 3-Wire Motor (1038168)
|
Somfy 535A2 120V 4-Wire Motor (1047368)
|
Somfy 530R2 Altus RTS 120V 3-Wire Motor (1038169)
|
Somfy 540R2 Altus RTS 120V 3-Wire Motor (1240556)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 35.0 | 35.0 | 30.0 | 40.0 |
| Speed (rpm) | 20 | 20 | 14 | 14 |
| Control | RTS radio | Wired 4-wire | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 30.0 Nm instead of 35.0 | 40.0 Nm instead of 35.0 |
