Somfy 530R2 Altus RTS 120V 3-Wire Motor (1038169)
Somfy 530R2 Altus RTS 120V 3-Wire Motor (1038169)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

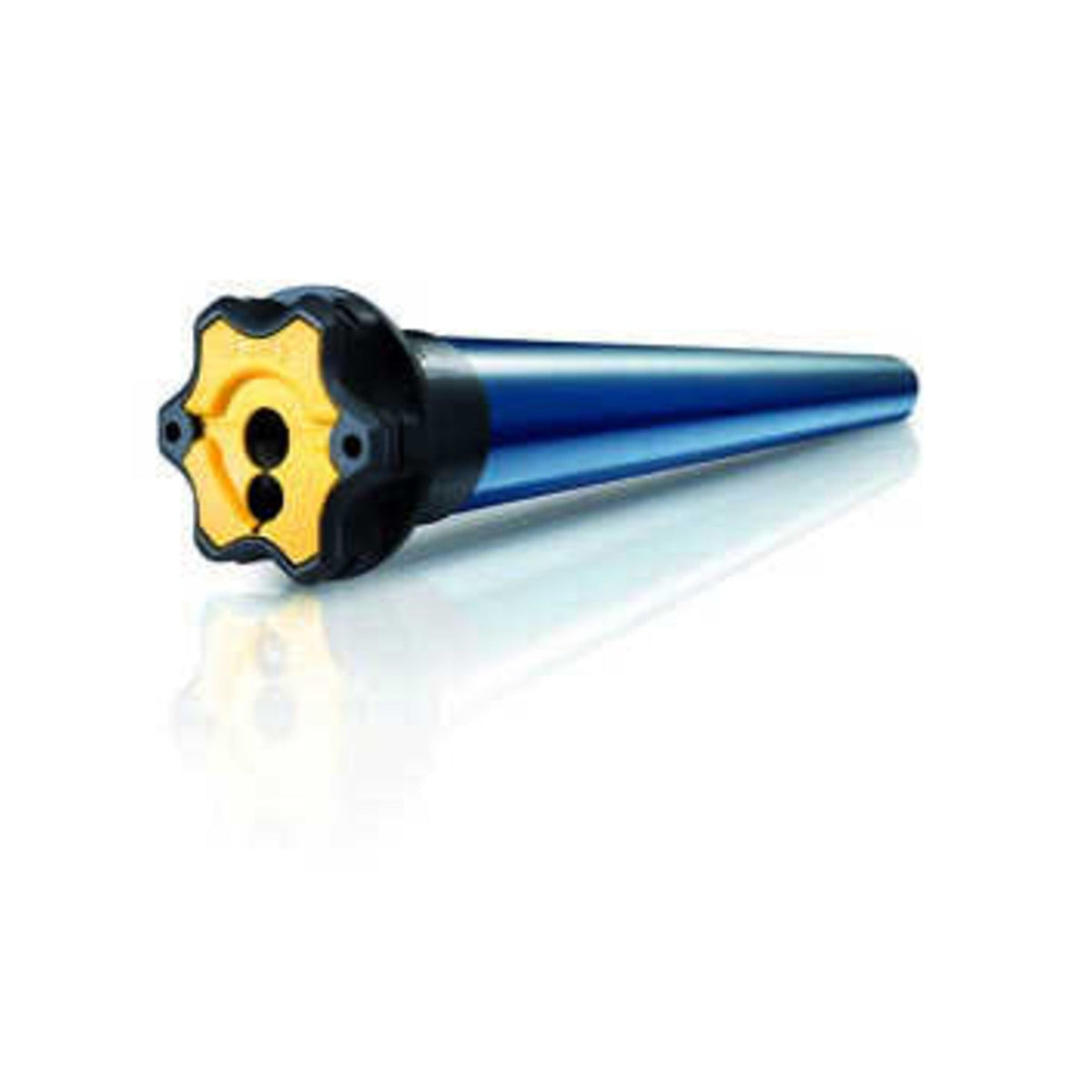

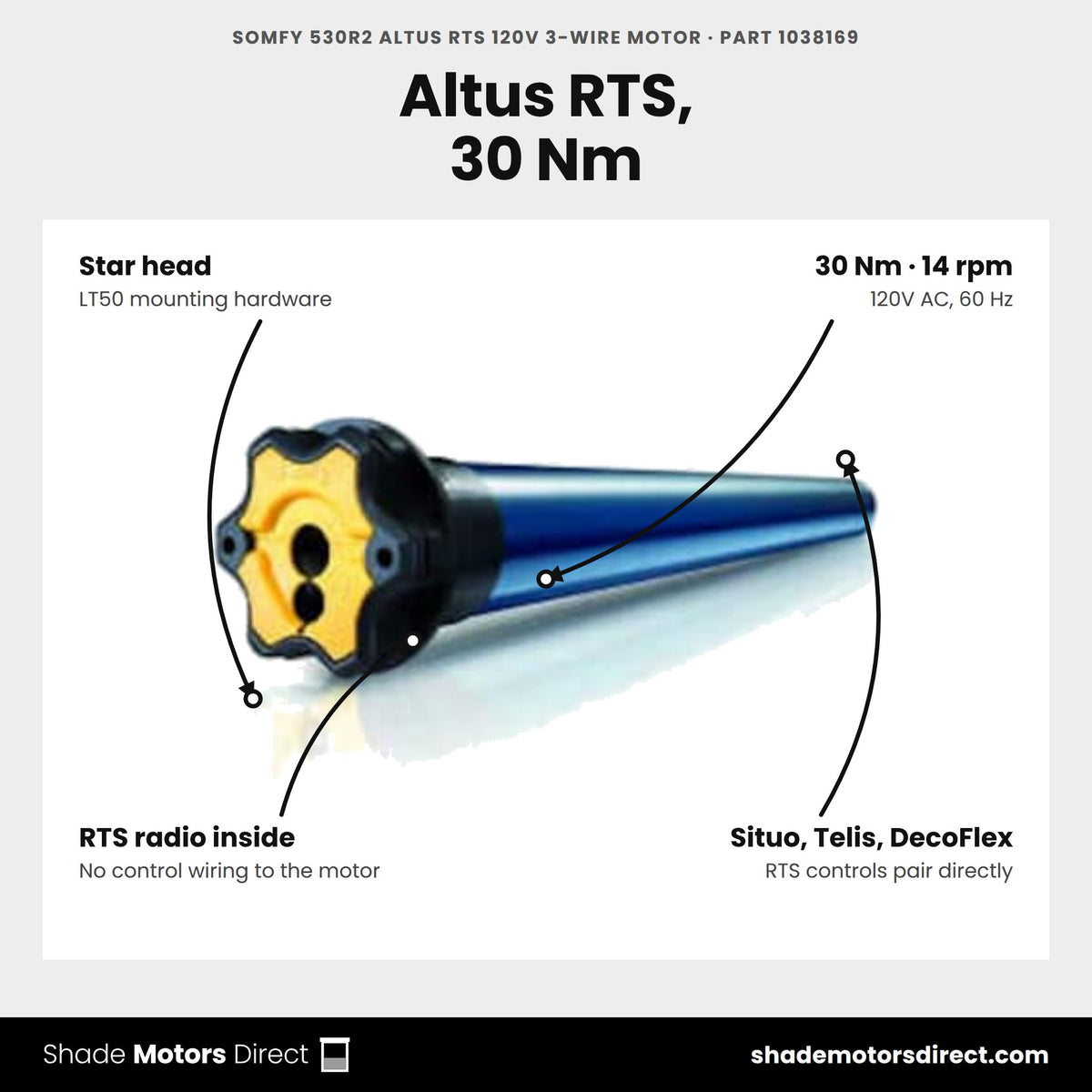

Somfy LT50 530R2 Altus RTS Motor -- wireless exterior tubular motor
The Somfy LT50 530R2 Altus RTS is a wireless, radio-controlled exterior motor delivering 30Nm (264" lb) at 14 rpm for solar screens, awnings, and rolling shutters -- no control wiring required, just an RTS remote or wall switch.
Benefits
- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
- Standard star-head LT50 mounting hardware
- 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm (264 in-lb) / 14 rpm |
| Control | RTS (433.42 MHz radio) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Altus RTS 530R2 motor used for?
Part 1038169 is a 120V LT50 tubular motor with a built-in RTS radio receiver. Somfy rates it at 30 Nm and 14 rpm and lists it for awnings, exterior solar screens, rolling shutters, retractable insect screens, projection screens and interior window coverings.
What power and wiring does it need?
It runs on 120V/60Hz, within 108 V to 132 V, with a rated current of 1.5 A and 170 W in operation. The removable 9.84 ft, 3-wire SJTW cable has stripped ends. The radio replaces the control wiring, not the power feed.

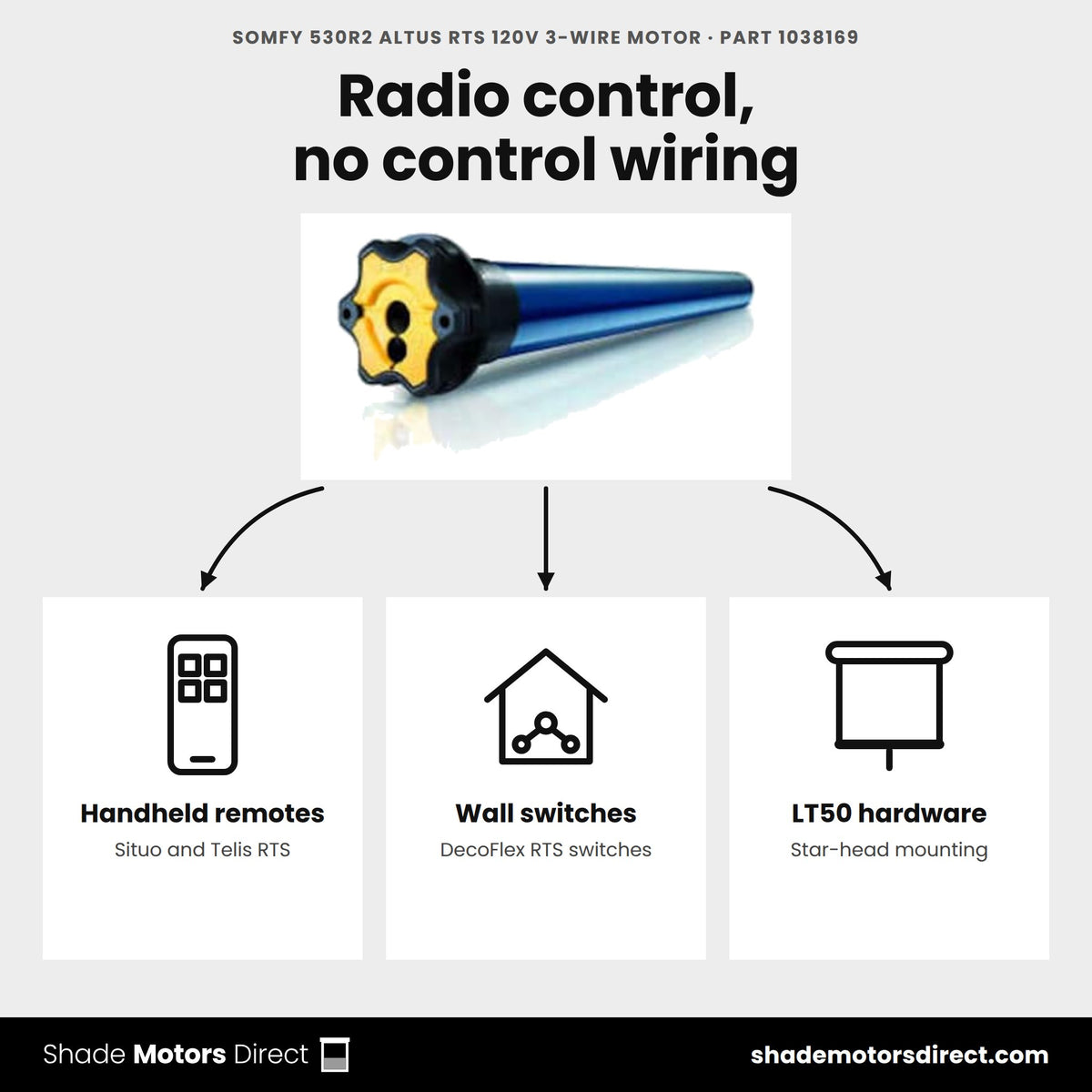

Which remotes and wall switches work with it?
Any Somfy RTS transmitter pairs with it, including the Telis 1 Channel RTS Patio Remote (1810643), Situo RTS Pure remotes (1870571, 1870575) and the DecoFlex 5 Channel RTS Wall Switch (1810813). The motor stores up to 12 transmitters, and Somfy rates range at 656.2 ft in open field.
What tube and mounting hardware does it fit?

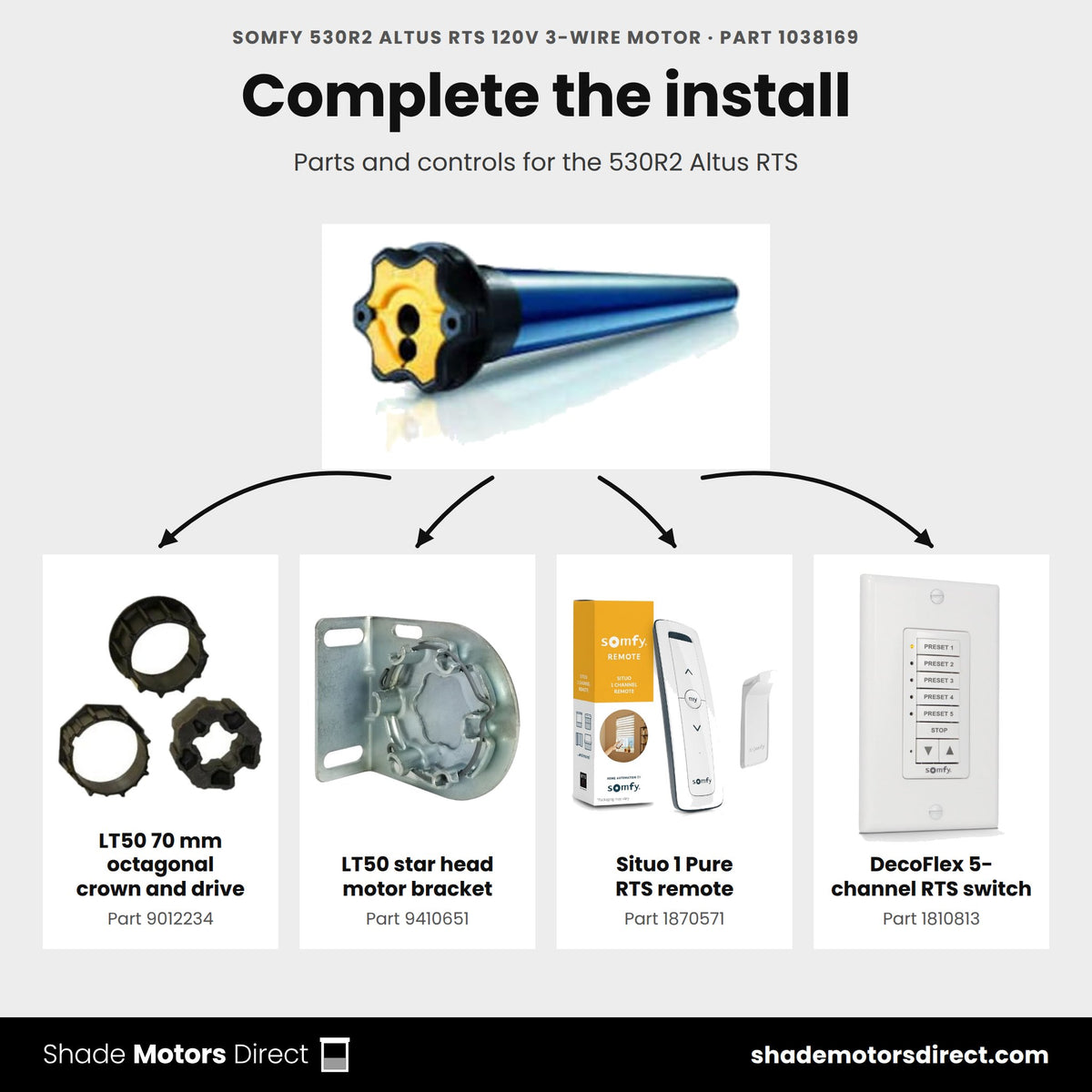

Somfy lists a star head and a minimum tube internal diameter of 1.85 in. The compatible parts on this page include the LT50 Star Head Motor Bracket (9410651), the Octagonal LT50 70mm Crown and Drive Set (9012234) and the LT50 2.5 in Round Crown and Drive Set (9012231).
How are the limits set?
The 530R2 uses electronic limits with a capacity of 250 turns, and you set them with an RTS remote. Somfy rates the motor at IP 44 for exterior use and backs it with a 5-year warranty.
Can I control it from my phone or add wind protection?
Yes. A Somfy TaHoma Switch (1871037) adds app control, schedules and voice control. On an awning, the Eolis 3D WireFree RTS Wind Sensor (1816081) sends a retract command over RTS when wind shakes the awning.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 530R2 Altus RTS 120V 3-Wire Motor (1038169)
|
Somfy 530R2 120V 4-Wire Motor (1045793)
|

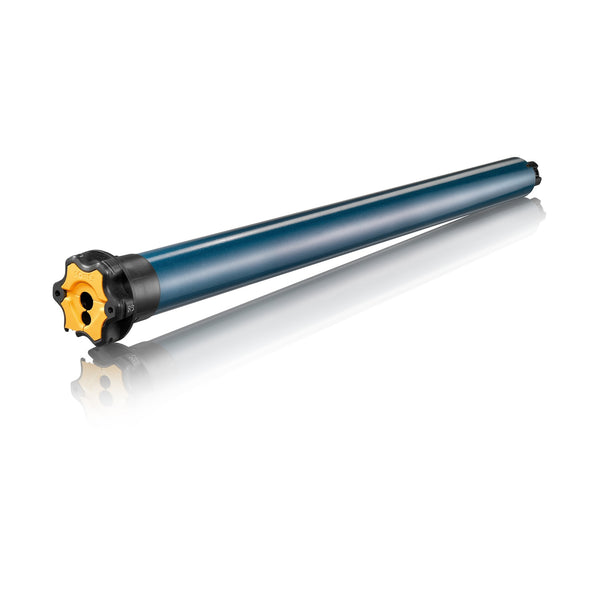

Somfy 525A2 Altus RTS 120V Motor (1043423)
|
Somfy 535A2 Altus RTS 120V 3-Wire Motor (1038168)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 30.0 | 30.0 | 25.0 | 35.0 |
| Speed (rpm) | 14 | 14 | 20 | 20 |
| Control | RTS radio | Wired 4-wire | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 25.0 Nm instead of 30.0 | 35.0 Nm instead of 30.0 |
| Buy | Currently viewing | View details | View details | View details |
