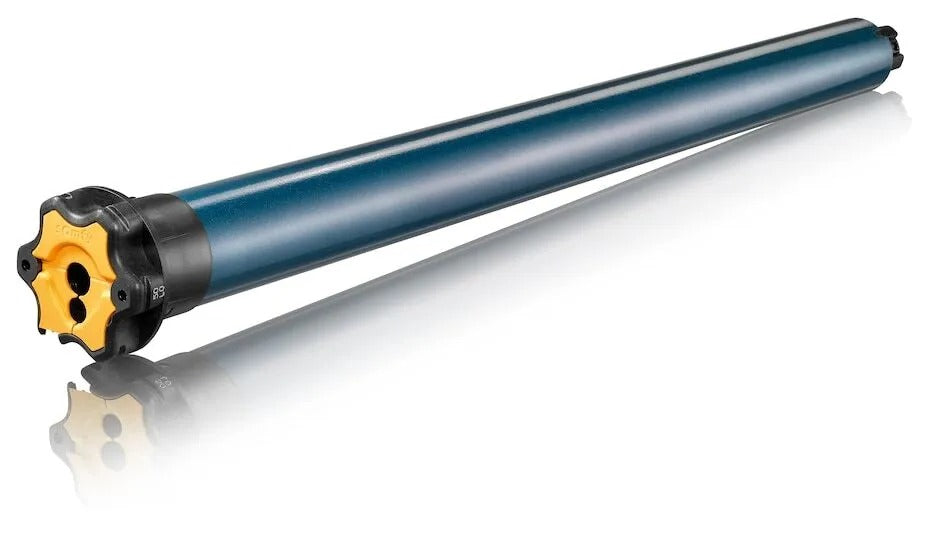

Maestria RTS tubular motor -- zip screen specialist with obstacle detection
The Maestria RTS motor is Somfy's motor built specifically for exterior vertical zip screens, retractable insect screens, and hurricane screens. It automatically adjusts to keep the screen fabric properly tensioned and detects obstacles going up or down to protect both the fabric and outdoor furniture.
Benefits
- Automatically stretches and tensions zip screen fabric for a clean, wrinkle-free look
- Obstacle detection protects the screen fabric and outdoor furniture
- Precise limit settings seal the screen fully for insect protection
- Plug-and-play install with precise setting features
- Compatible with all types of screens and RTS control options
Specifications
| Torque / Speed | 50 Nm / 14 rpm |
| Overall length | 26.89 in (683 mm) |
| Minimum tube inside diameter | 1.85 in |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Control | Radio Technology Somfy (RTS), built-in receiver |
| Power | 120V, plug-in or hardwired |
| Warranty | 5 years |
Compatible with: Exterior zip screens, retractable insect and hurricane screens
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Maestria 550R2 RTS built for?
Somfy built it for exterior zip screens, solar screens and retractable insect screens. The motor keeps screen fabric tensioned and detects obstacles going up or down, which protects the fabric and outdoor furniture.
What are the key specs of part 1134095?
Somfy rates it at 50 Nm and 14 rpm, with a star head, electronic limits and an IP 44 rating. It fits tubes with a minimum inside diameter of 1.85 in and works from -4 °F to 158 °F.
How is this motor powered and wired?
It runs on 120V AC with a 2.1 A rated current and comes with a 9.84 ft SJTW three-wire cable. The RTS receiver and antenna are built in, so the screen needs a power feed and no control wiring.
Should I choose the 550R2 or the 525A2?
Pick the 550R2 for larger, heavier screens. It delivers 50 Nm at 14 rpm, twice the torque of the Maestria 525A2 RTS (1134083), which runs at 25 Nm and 20 rpm for smaller screens.
Which remotes work with it?
Any Somfy RTS transmitter works, including the Telis 1 Channel RTS Patio Remote (1810643), the Telis 4 RTS Multi-Channel Patio Remote (1810645) and the Situo 5 Channel RTS Pure Remote (1870575). The motor stores 12 channels, and Somfy rates range at 656.2 ft in open field.
What mounting hardware fits this motor?
The Maestria uses LT50 star head hardware. Pair it with the LT50 Star Head Motor Bracket (9410651) and a crown and drive set sized to your tube, such as the Octagonal LT50 60mm or 70mm sets (9012233, 9012234).
Couldn't load pickup availability
Replace a cassette awning motor or build a new awning or screen.
Replacing? Your awning stays on the wall. Building new? Every part below is Somfy-matched to part 1134095.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Crown Grips the inside of the tube.
- 3Motor tube Slides inside the awning roller tube.
Replacing a motor
-
1
Retract and cut power
Close the awning fully and turn off the circuit.
-
2
Remove the old motor
Open the cassette end and slide the motor out of the roller.
-
3
Fit the new motor
Fit the crown and drive for your roller and seat the head in the cassette bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Exterior systems vary. Send a photo of the motor label and the awning end. We'll confirm fit before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new awning or screen? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Maestria 550R2 RTS 120V Motor needs to run
Somfy lists every part below as compatible with part 1134095. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the Maestria 550R2 RTS 120V Motor for 5 years. We handle the claim.
Somfy warranty on the Maestria 550R2 RTS 120V Motor, part 1134095.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Maestria 550R2 RTS 120V Motor (1134095)
|
Somfy Maestria 50 RTS 535A2 120V 3-Wire Motor (1134084)
|
Somfy Maestria 525A2 RTS 120V Motor (1134083)
|
Somfy Maestria 510A2 RTS Motor (1134082)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 50.0 | 35.0 | 25.0 | 10.0 |
| Speed (rpm) | 14 | 20 | 20 | 20 |
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Maestria | Maestria | Maestria | Maestria |
| What's different | The product on this page | 35.0 Nm instead of 50.0 | 25.0 Nm instead of 50.0 | 10.0 Nm instead of 50.0 |
| Buy | Currently viewing | View details | View details | View details |
