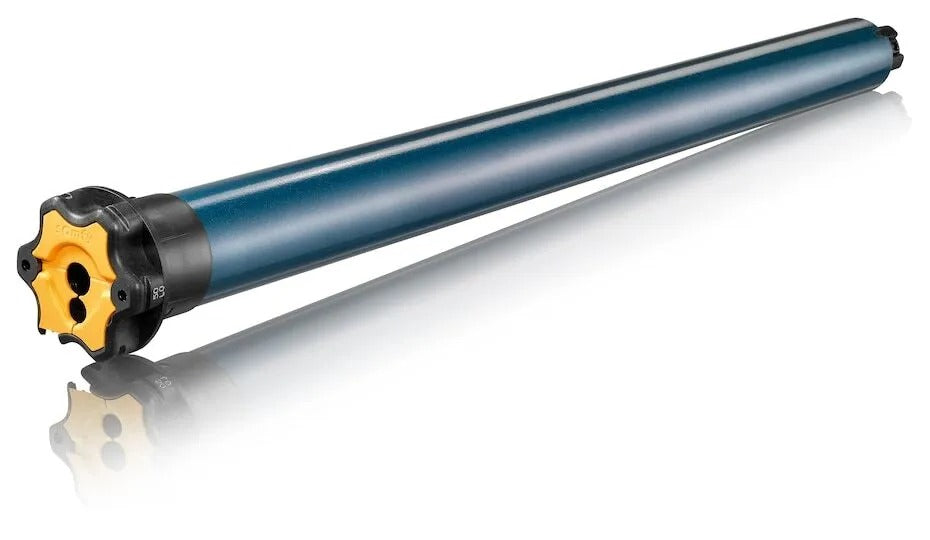

Maestria RTS tubular motor -- zip screen specialist with obstacle detection
The Maestria RTS motor is Somfy's motor built specifically for exterior vertical zip screens, retractable insect screens, and hurricane screens. It automatically adjusts to keep the screen fabric properly tensioned and detects obstacles going up or down to protect both the fabric and outdoor furniture.
Benefits
- Automatically stretches and tensions zip screen fabric for a clean, wrinkle-free look
- Obstacle detection protects the screen fabric and outdoor furniture
- Precise limit settings seal the screen fully for insect protection
- Plug-and-play install with precise setting features
- Compatible with all types of screens and RTS control options
Specifications
| Torque / Speed | 25 Nm / 20 rpm |
| Overall length | 26.1 in (663 mm) |
| Minimum tube inside diameter | 1.85 in |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Control | Radio Technology Somfy (RTS), built-in receiver |
| Power | 120V, plug-in or hardwired |
| Warranty | 5 years |
Compatible with: Exterior zip screens, retractable insect and hurricane screens
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Maestria 525A2 RTS motor built for?
Somfy designed the Maestria RTS for exterior solar screens, zip screens and retractable insect screens. It keeps the fabric tensioned for a clean, wrinkle-free look and seals the screen at its lower limit to keep insects out.
What torque and speed does it deliver?
Somfy rates part 1134083 at 25 Nm of torque and 20 rpm. It is a 50 mm tubular motor with a star head and electronic limits, backed by Somfy's 5-year warranty.
How does obstacle detection protect my screen?
The motor senses a blockage on the way up or down and stops. That protects the screen fabric and any patio furniture in its path, and the motor adjusts itself to keep the fabric in tension over time.
What tube and hardware does it fit?
Somfy lists a minimum tube inside diameter of 1.85 in. Matching hardware in our store includes the Octagonal LT50 60MM and 70mm Crown/Drive Sets (9012233, 9012234), the LT50 DS78MM Crown/Drive Set (9012239) and the LT50 Star Head Motor Bracket (9410651).
How is it powered?
It runs on 120V AC, rated from 108 V to 132 V, and ships with a 9.84 ft, 3-wire SJTW cable. The built-in RTS receiver handles control, so the screen needs only a power feed.
Which controls work with it, and can I use my phone?
Any Somfy RTS transmitter works, such as the Telis 1 and Telis 4 RTS Patio remotes (1810643, 1810645) or the Situo 5 RTS Pure (1870575). The motor stores up to 12 transmitters, with an open-field range of 656.2 ft. Add a TaHoma Switch (1871037) for app control.
Couldn't load pickup availability
Replace a cassette awning motor or build a new awning or screen.
Replacing? Your awning stays on the wall. Building new? Every part below is Somfy-matched to part 1134083.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Crown Grips the inside of the tube.
- 3Motor tube Slides inside the awning roller tube.
Replacing a motor
-
1
Retract and cut power
Close the awning fully and turn off the circuit.
-
2
Remove the old motor
Open the cassette end and slide the motor out of the roller.
-
3
Fit the new motor
Fit the crown and drive for your roller and seat the head in the cassette bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Exterior systems vary. Send a photo of the motor label and the awning end. We'll confirm fit before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new awning or screen? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Maestria 525A2 RTS 120V Motor needs to run
Somfy lists every part below as compatible with part 1134083. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the Maestria 525A2 RTS 120V Motor for 5 years. We handle the claim.
Somfy warranty on the Maestria 525A2 RTS 120V Motor, part 1134083.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Maestria 525A2 RTS 120V Motor (1134083)
|
Somfy Maestria 510A2 RTS Motor (1134082)
|
Somfy Maestria 50 RTS 535A2 120V 3-Wire Motor (1134084)
|
Somfy Maestria 550R2 RTS 120V Motor (1134095)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 25.0 | 10.0 | 35.0 | 50.0 |
| Speed (rpm) | 20 | 20 | 20 | 14 |
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Maestria | Maestria | Maestria | Maestria |
| What's different | The product on this page | 10.0 Nm instead of 25.0 | 35.0 Nm instead of 25.0 | 50.0 Nm instead of 25.0 |
