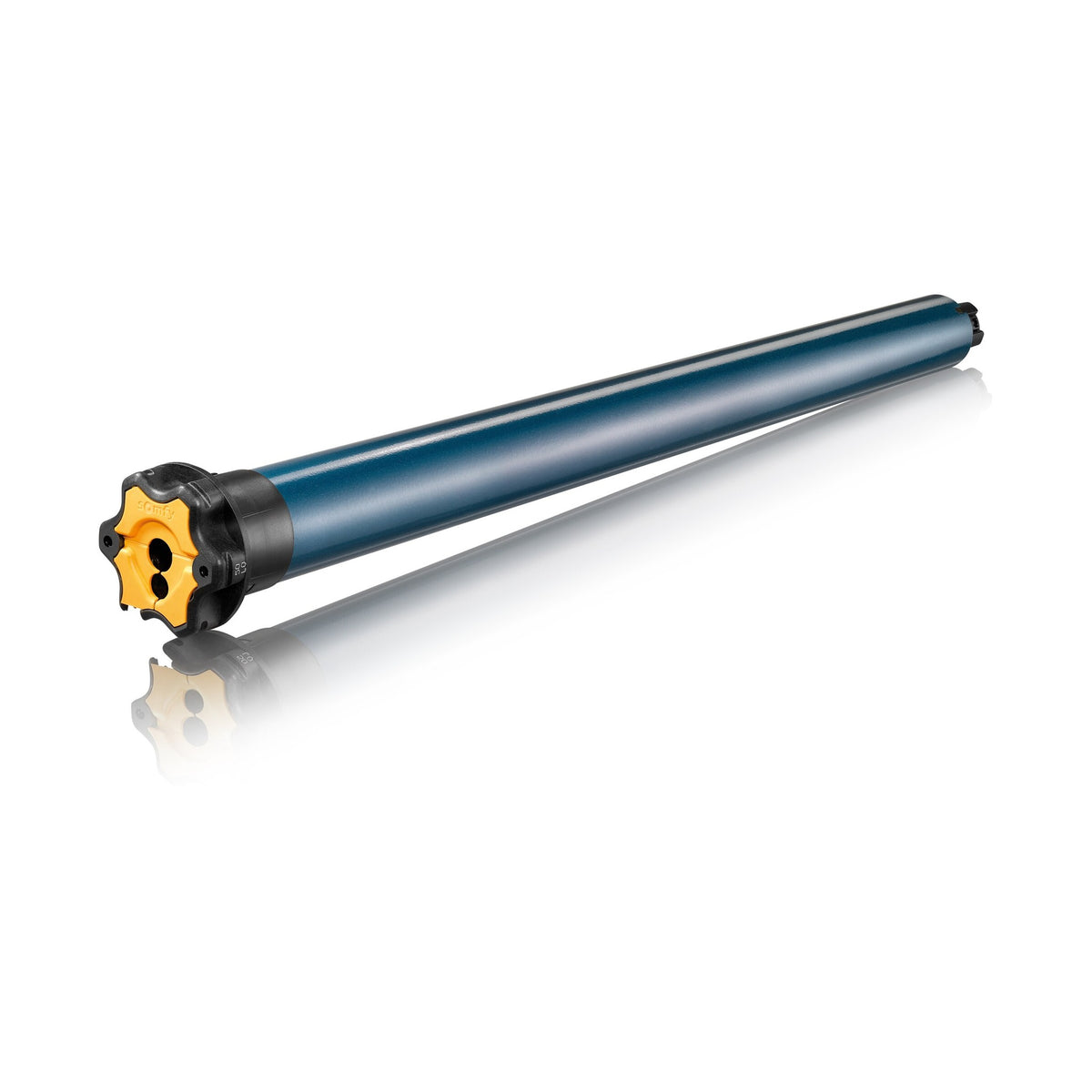

Somfy Maestria 50 RTS 535A2 120V 3-Wire Motor (1134084)
Somfy Maestria 50 RTS 535A2 120V 3-Wire Motor (1134084)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Somfy Maestria 535A2 RTS Motor -- wireless zip screen motor

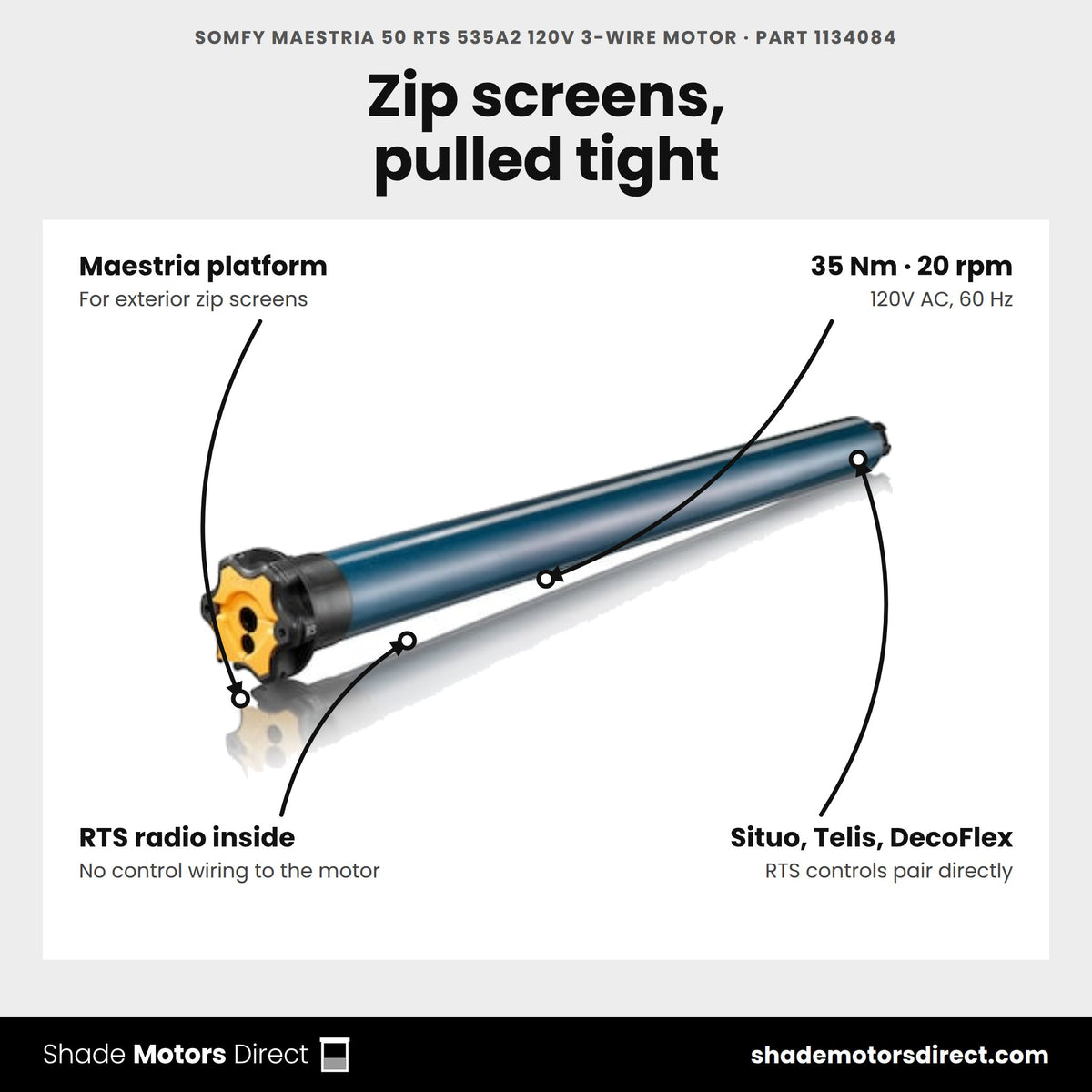

The Somfy Maestria 535A2 RTS is a wireless, radio-controlled motor built for exterior zip screens and retractable screen systems, delivering 35Nm (310" lb) at 20 rpm. Maestria mounts inside the screen system's housing, so crown/drive and bracket hardware depends on the screen system being installed; none is listed here, so confirm that hardware with the screen manufacturer.
Benefits
- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
- Purpose-built for Maestria exterior zip screen systems
- 5-year Somfy warranty
Specifications
| Torque / Speed | 35 Nm (310 in-lb) / 20 rpm |
| Control | RTS (433.42 MHz radio) |
| Power supply | 120V AC, 60Hz |
| Platform | Maestria (exterior zip screens) |
| Warranty | 5 years |
Compatible with: Maestria screen system hardware, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Maestria RTS 535A2 motor designed for?
Somfy part 1134084 is a 120V motor with a built-in RTS radio receiver, made to motorize exterior vertical screens. Somfy gives it functions for zip screen applications and lists it for exterior solar screens and retractable insect screens.
What torque and speed does it deliver?
Somfy rates the Maestria RTS 535A2 at 35 Nm of torque and 20 rpm. It uses electronic limits with a capacity of 250 turns and a star head.
What tube size does it need?
Somfy lists a minimum tube inside diameter of 1.85 in and a star head for this motor. Match the crown and drive to your screen's tube profile before you order, so the motor seats and drives the tube.
What power does it need?
It runs on 120V AC, with Somfy listing 108 V to 132 V and a rated current of 2.1 A. The RTS radio replaces control wiring, so the power feed is the one cable the screen needs. Standby draw is 0 W.
Which remotes and switches work with it?
Any Somfy RTS transmitter, including the Situo 1 Channel RTS Pure Remote (1870571), the Telis 16 Channel RTS Pure Remote (1811081) and the DecoFlex 5 Channel RTS Wall Switch (1810813). The motor stores 12 channels, and Somfy rates RTS range at 656.2 ft in open field.
Is it rated for outdoor use, and can I add app control?
Somfy rates it IP 44 with Class I insulation, an operating range of -4 °F to 158 °F, UR approval and a 5-year warranty. The Somfy TaHoma Switch (1871037) adds app and voice control over RTS.
Couldn't load pickup availability

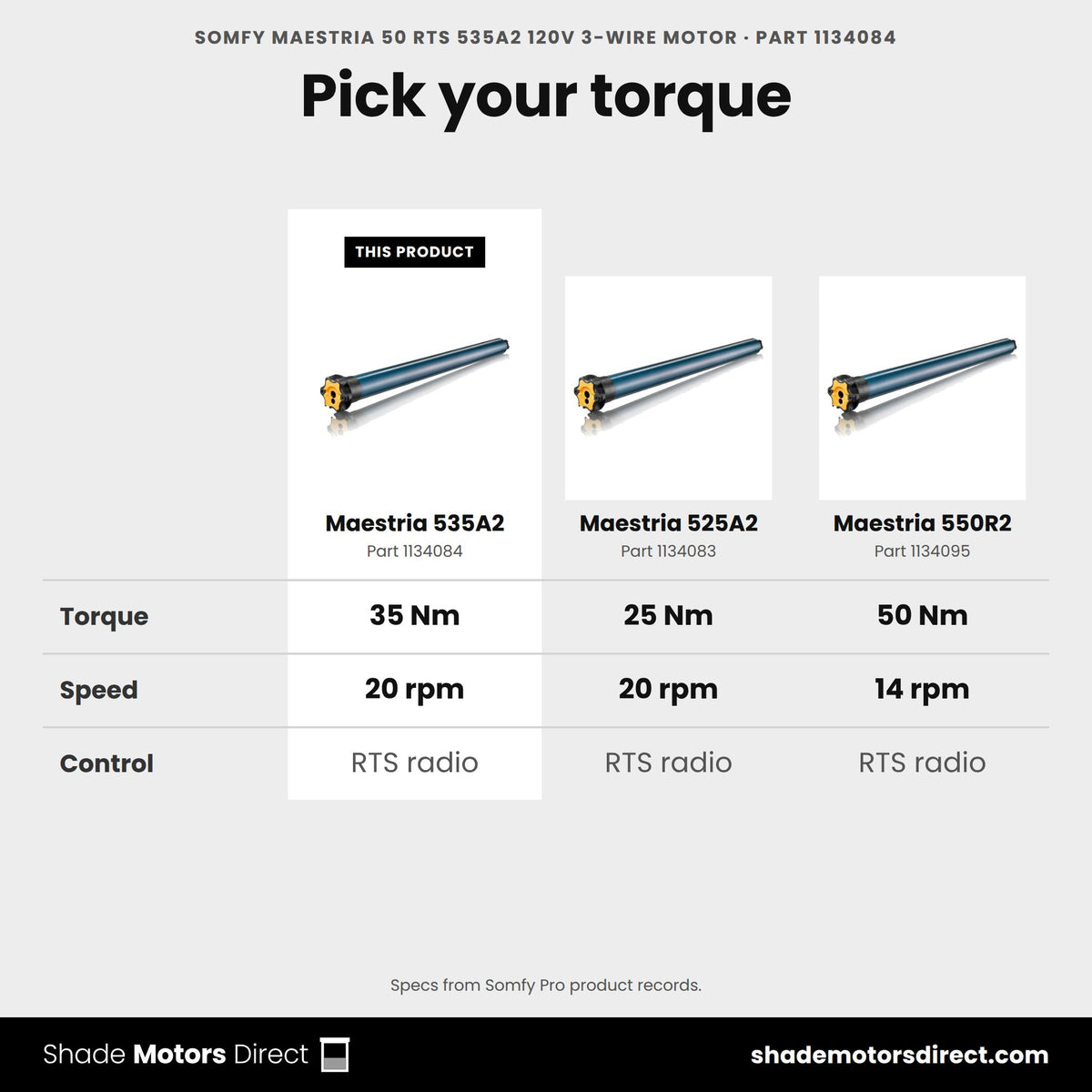

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Maestria 50 RTS 535A2 120V 3-Wire Motor (1134084)
|
Somfy Maestria 525A2 RTS 120V Motor (1134083)
|
Somfy Maestria 550R2 RTS 120V Motor (1134095)
|
Somfy Maestria 510A2 RTS Motor (1134082)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 35.0 | 25.0 | 50.0 | 10.0 |
| Speed (rpm) | 20 | 20 | 14 | 20 |
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Maestria | Maestria | Maestria | Maestria |
| What's different | The product on this page | 25.0 Nm instead of 35.0 | 50.0 Nm instead of 35.0 | 10.0 Nm instead of 35.0 |
| Buy | Currently viewing | View details | View details | View details |
