Somfy LT50 Star Head Motor Bracket (9410651)
Somfy LT50 Star Head Motor Bracket (9410651)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
LT50 Star Head Motor Bracket -- bracket for star-head LT50 motors
This Somfy bracket engages the star-shaped head of LT50-class motors, locking the motor head so the tube -- not the motor body -- rotates. The star interface transfers torque positively with no slip.
Benefits
- Positive star-head engagement -- zero rotational slip
- Correct fixed anchor for LT50 star-head motors
- Genuine Somfy steel construction
- Pairs with LT50 crowns, drives, and idler hardware
Specifications
| For motors | Somfy LT50 star-head |
| Type | Star head bracket |
Compatible with: Somfy LT50-class star-head motors including Altus RTS 550R2 and LT50 wired ranges
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this LT50 motor bracket do?
It holds the head of a Somfy LT50 or Sonesse 50 star-head motor so the roller tube turns while the motor body stays fixed. Somfy lists this part as the LT50 Universal Motor Bracket, rated for motors up to 50 Nm.
How much torque and weight can it handle?
Somfy rates this bracket for motors up to 50 Nm and a maximum system load of 115 kg (254 lbs). That range covers the 6 Nm to 50 Nm motors Somfy lists as compatible with it.
Which motors fit this bracket?
Somfy lists 47 compatible motors across its Sonesse, Altus, Oximo, Maestria and Orea ranges. Examples we carry include the Sonesse 506S2 RTS 120V motor (1001809) and the Altus RTS 550R2 motor (1038170).
What is it made of, and what are the mounting dimensions?
Somfy builds this bracket from zinc plated steel and lists awnings as its application. The distance between mounting centers is 2.36 in, so compare that spacing with your existing holes or bracket plate before you order.
What else do I need to finish the motor installation?
Pair the bracket with a crown and drive that match your roller tube. The compatible parts on this page include LT50 crowns and drives for 2 in and 2.5 in tubes, such as the LT50 2.5 in Crown (9707026) and LT50 2.5 in Hard Clip Drive (9206019).
Does the bracket carry a warranty?
Yes. Somfy covers this bracket with a 5-year warranty. It is a genuine Somfy part built to match the head of LT50 and Sonesse 50 motors, so the motor seats with the fit Somfy designed.
Couldn't load pickup availability
Replace a cracked bracket or mount a new shade.
123- 1Mounting slots Mount to wall or ceiling.
- 2Star socket Holds the star motor head.
- 3Spring clip Locks the motor head in place.
Replacing one
-
1
Support the shade
Cut power and lift the roller out of the old bracket.
-
2
Swap the bracket
Unscrew the old bracket and mount the LT50 Star Head Motor Bracket in the same spot.
-
3
Seat the shade
Clip or pin the motor head and idle end back in.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the motor head
Match the bracket to your motor head: star, round or a brand fitting.
-
2
Mount it
Screw the bracket to the wall, ceiling or headrail.
-
3
Seat the shade
Clip or pin the motor head and idle end into their brackets.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

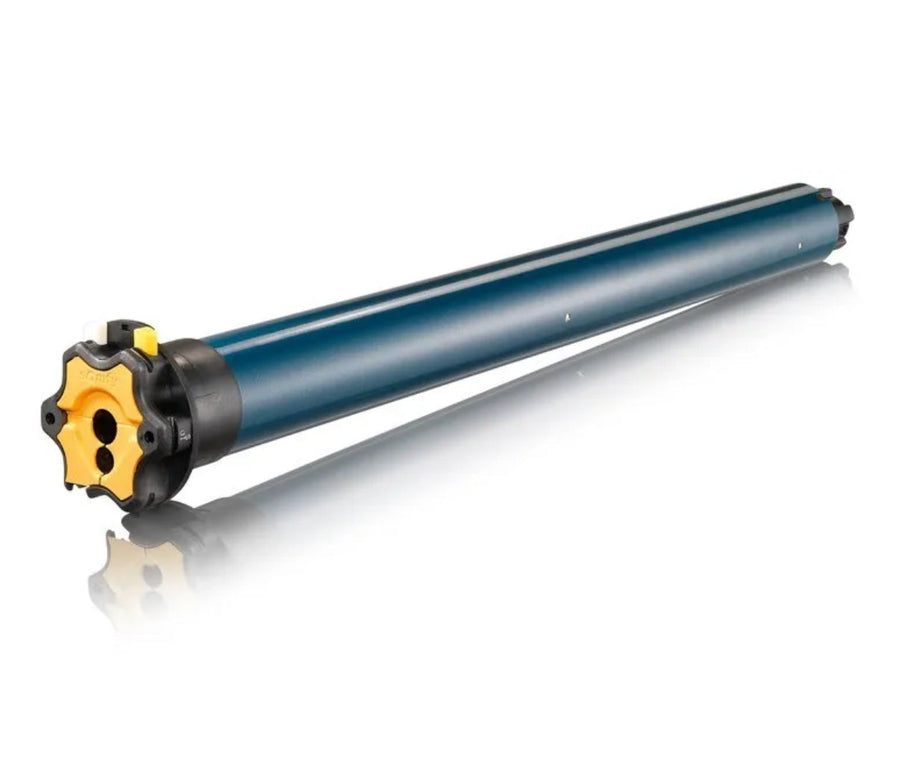

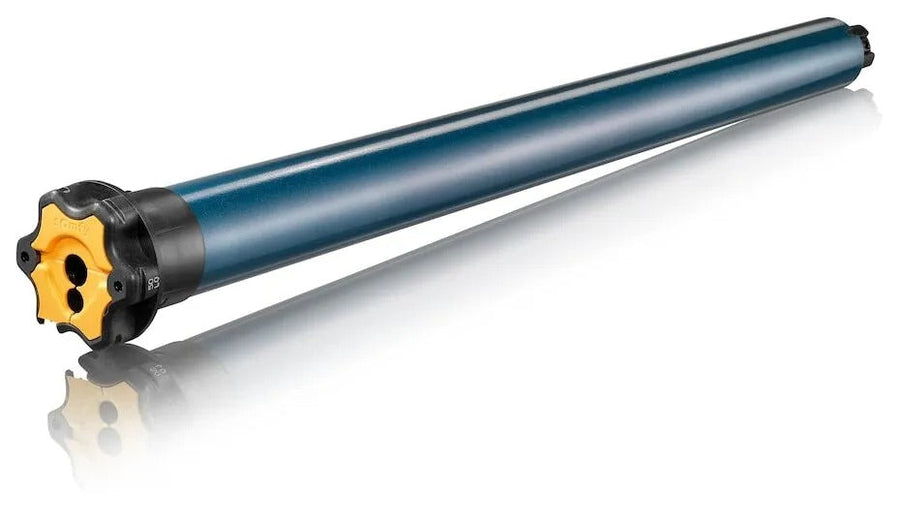

Motors the LT50 Star Head Motor Bracket works with
Somfy lists these motors as compatible with part 9410651.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the LT50 Star Head Motor Bracket for 5 years. We handle the claim.
Somfy warranty on the LT50 Star Head Motor Bracket, part 9410651.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- LT50 / 500 Series Databook (PDF)
