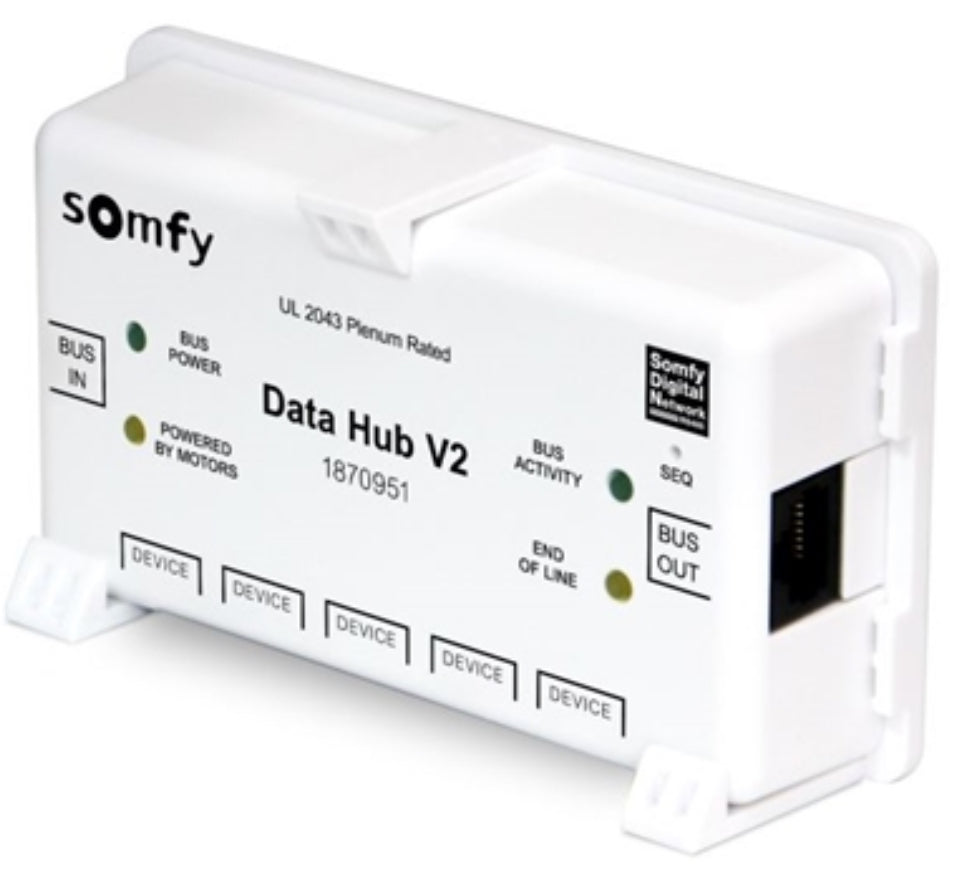

Data Hub V2 -- SDN 2.0 certified connectivity hub for the Somfy Digital Network
The Somfy Data Hub V2 improves connectivity on Somfy Digital Network (SDN) shading systems. As an SDN 2.0 certified component, it is validated by Somfy engineers to the SDN 2.0 Certified Quality Promise: systems built on certified components are easier to install, more reliable, and perform better as a whole.
Benefits
- Improves connectivity across a Somfy Digital Network installation
- SDN 2.0 certified -- validated by Somfy engineers to the highest SDN component standards
- Simplifies commissioning and improves overall system reliability
- Designed for commercial-grade SDN shading networks
Specifications
| Function | SDN bus distribution: adds 5 device ports to an SDN bus line |
| Power | 24V DC bus power, or motor-powered with 2+ motors connected |
| Connectors | RJ45; wiring stub length up to 200 ft |
| Can power | 3 keypads or 1 RTS receiver |
| Protection / Class | IP 20 / Class I |
| Extras | Bus status LEDs, Sequence test button, mounting clip |
| Warranty | 5 years |
Compatible with: Somfy SDN 2.0 motors, bus power supplies, keypads, and interfaces
Official Somfy documentation
- SDN Data Hub V2 – Spec Sheet (PDF)
- SDN Data Hub V2 – Installation Instructions (PDF)
- SDN Data Hub V2 – Wiring Detail (PDF)
- SDN Connect Brochure (PDF)
- SDN Connect – Design Guide (PDF)
- Data Hub V2 – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the SDN Data Hub V2 do?
It is an SDN bus distribution device that adds 5 device ports to an SDN bus line. Somfy calls the Data Hub V2 the backbone of its SDN Connect range of products.
How is the Data Hub V2 powered?
The hub draws power from the motors when two or more motors connect to its device ports. With fewer than two motors connected, it needs 24V DC bus power.
How many keypads or receivers can it power?
Somfy rates the Data Hub V2 to power 3 keypads or 1 RTS receiver from its ports. Plan a separate bus supply if a hub needs to carry more devices than that.
What connectors and cable runs does it support?
It uses RJ45 connectors, with wiring stubs up to 200 ft. The compatible parts on this page include SDN low-voltage power and data cable (9020126) and RJ9 to RJ45 data cables (9018542, 9018543).
What helps with commissioning and install?
Bus segment status LEDs show power, activity and end of line. A sequence button tests motor operation at the hub, and a mounting clip speeds install and removal. Somfy rates it IP 20, Class I.
Couldn't load pickup availability
Replace a failed SDN part or plan a new Somfy Digital Network.
123- 1Bus out port Links to the next hub or device.
- 2Status lights Show bus power and activity.
- 3Mounting feet Screw it to a surface.
Replacing one
-
1
Match the part
Confirm the part number and firmware with the old device.
-
2
Swap it on the bus
Disconnect the old device and connect the Data Hub V2 in its place.
-
3
Restore settings
Set the same address and settings with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Starting new
-
1
Plan the network
Confirm the layout and addresses with your integrator.
-
2
Connect it
Wire it to the RS485 bus with Somfy data cables.
-
3
Configure
Address and set it up with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Parts that go with the Data Hub V2
Somfy lists these parts for use with part 1870951.
1Power
Cables, chargers and power made for this motor.
2Network
Data and network parts for wired control.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Data Hub V2 for 5 years. We handle the claim.
Somfy warranty on the Data Hub V2, part 1870951.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Data Hub V2 (1870951)
|
Somfy Power Panel 24V for Somfy Digital Network (1871026)
|

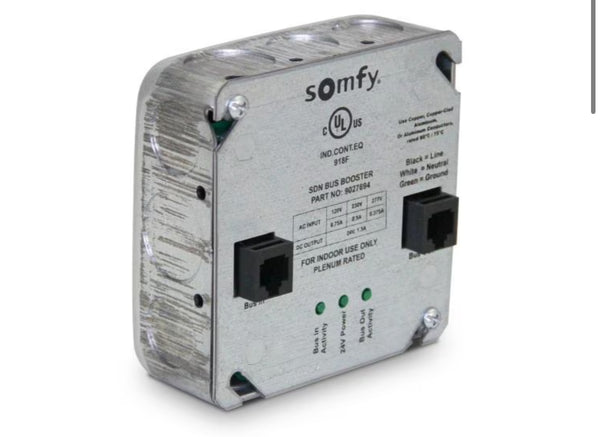

Somfy SDN Bus Booster (9027694)
|

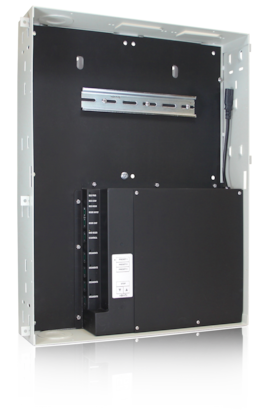

Somfy SDN Data Panel (1870260)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC bus | 24V DC | — | 24V DC via SDN bus |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
