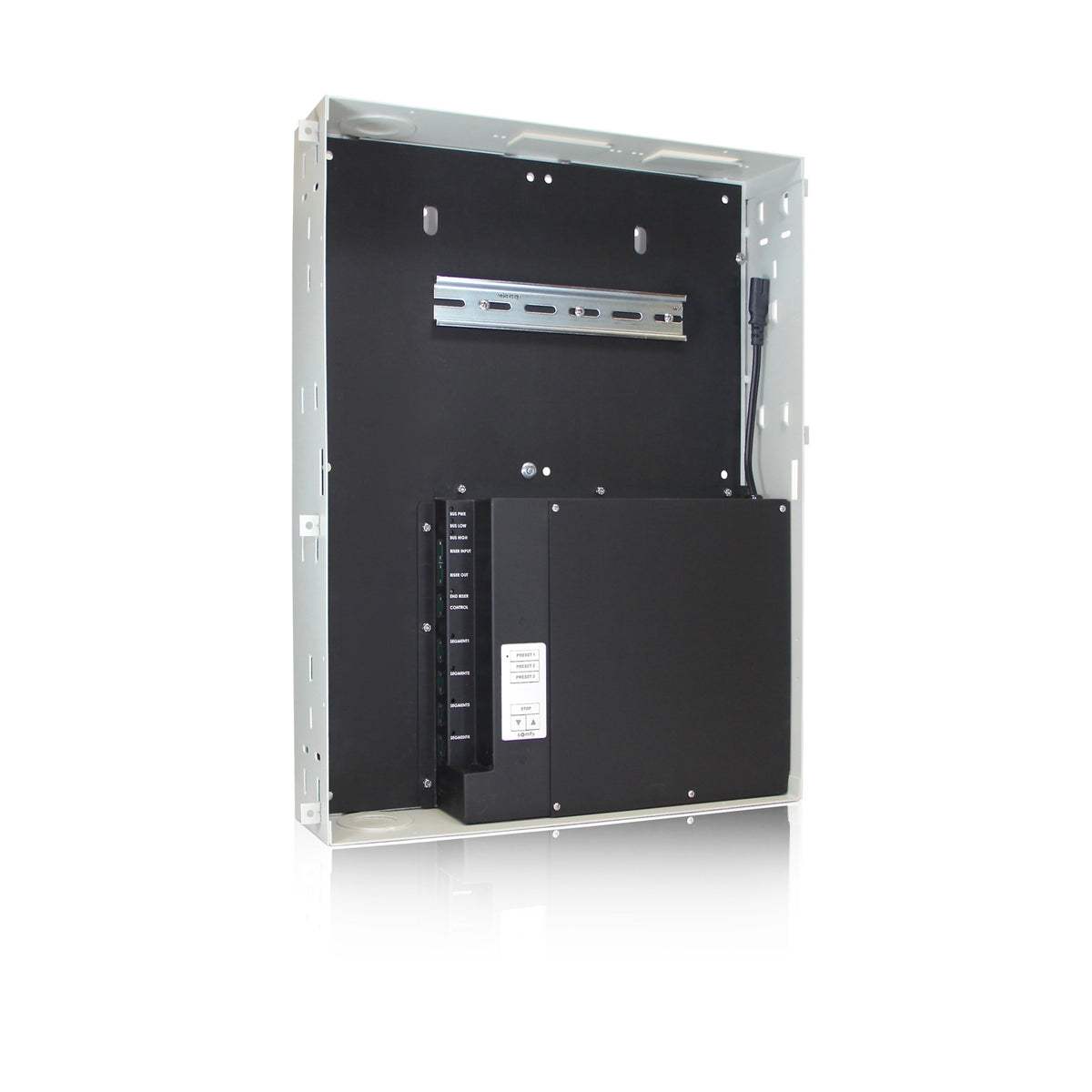

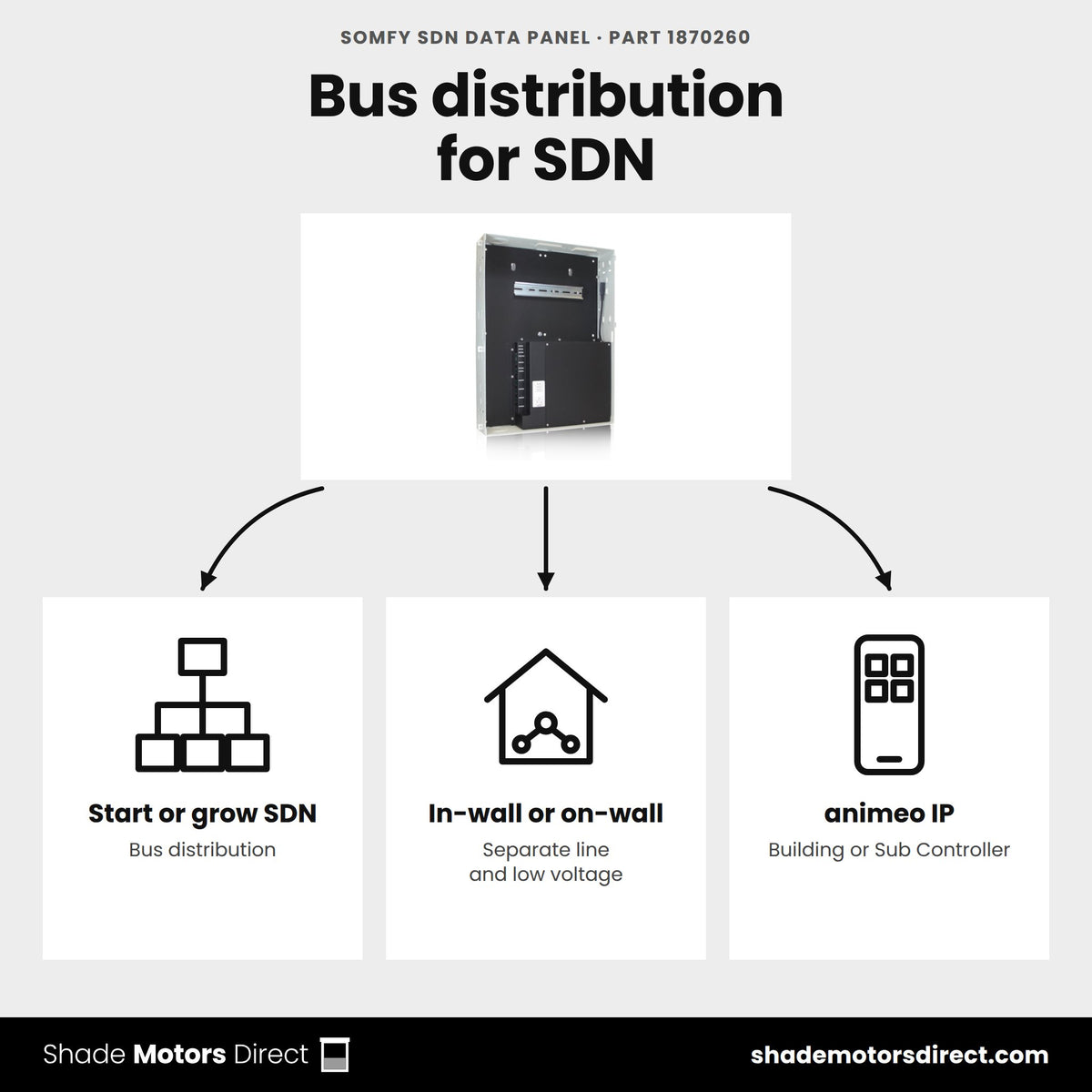

Somfy SDN Data Panel -- bus distribution for growing a Somfy Digital Network system
The Data Panel is a bus distribution component used to start or grow a Somfy Digital Network (SDN) system, adding 4 isolated bus segments -- each supporting up to 255 devices and 4000 ft of bus wiring -- plus a built-in SDN DecoFlex keypad for local control.

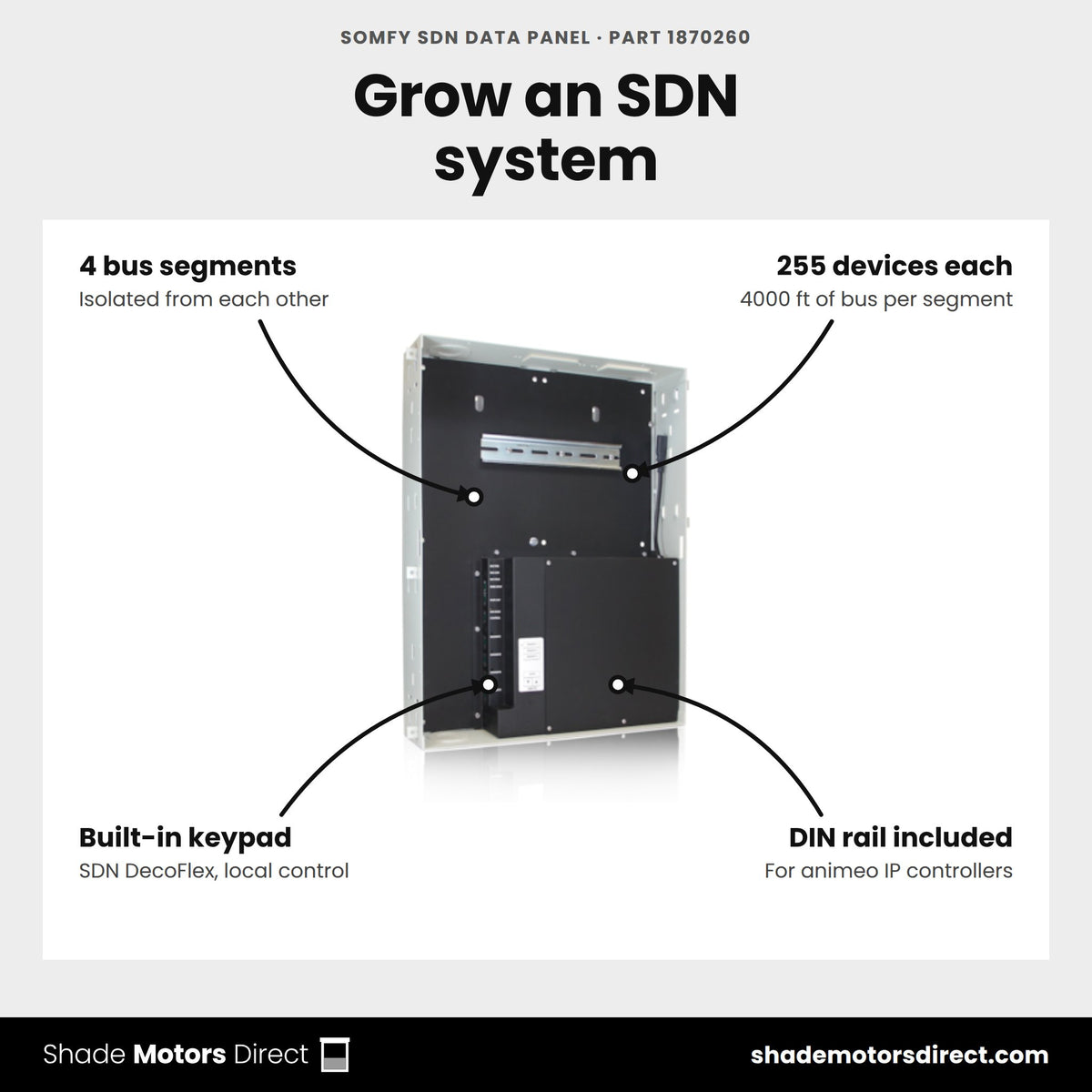

Benefits
- Adds 4 isolated bus segments to an SDN system
- Each segment supports up to 255 devices and 4000 ft of bus wiring
- Built-in SDN DecoFlex Keypad for a dedicated local control point
- Din rail included for mounting an animeo IP Building Controller or Sub Controller
- In-wall or on-wall mountable enclosure with separated line and low-voltage areas
- Part of the SDN 2.0 Certified Quality product line
Specifications
| Type | SDN bus distribution panel |
| Bus segments | 4 isolated, 255 devices / 4000 ft each |
| Power units supplied | 100 |
| Mounting | In-wall or on-wall |

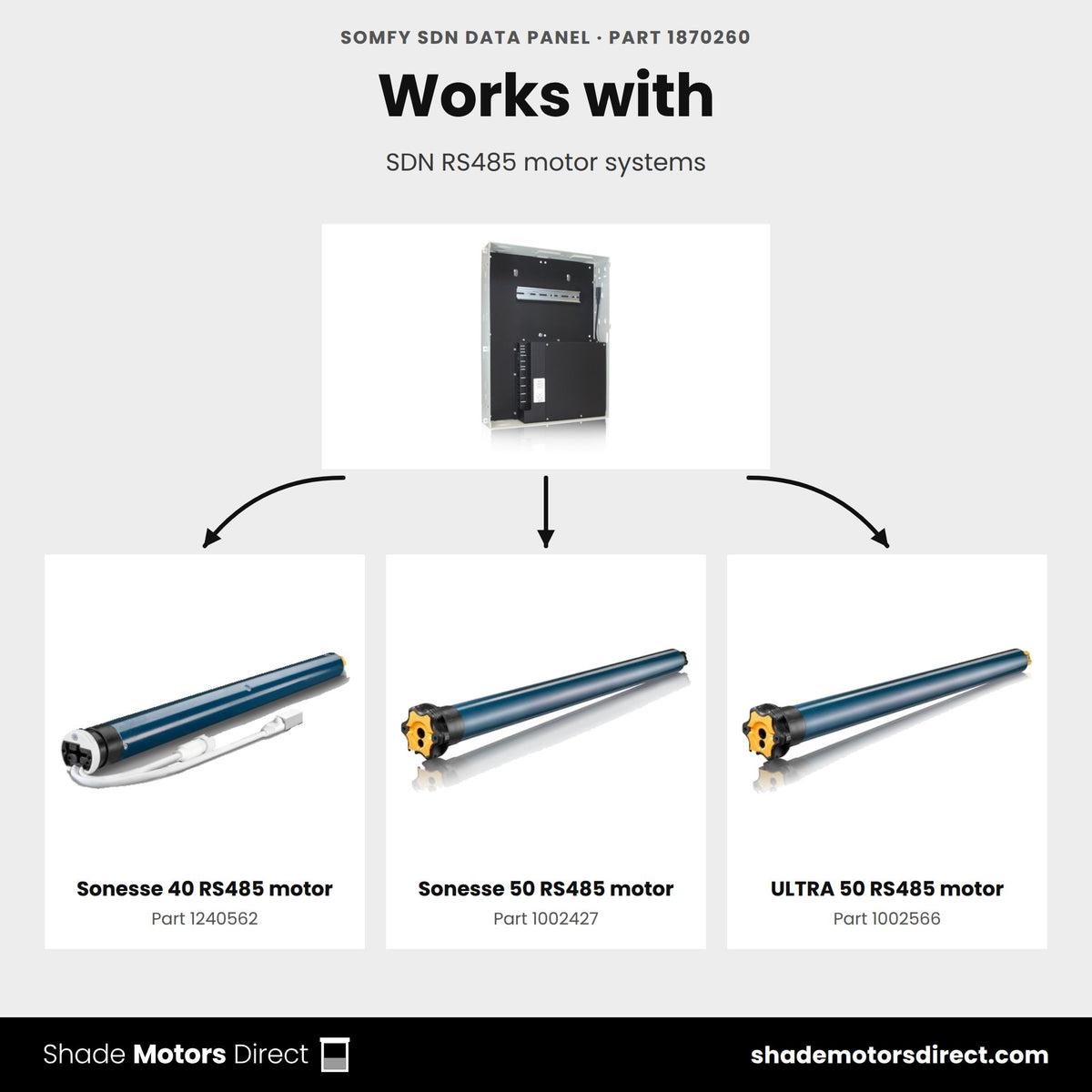

Compatible with: Somfy Digital Network (SDN) RS485 motor systems, animeo IP Building/Sub Controllers
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the SDN Data Panel do?
It is a bus distribution component used to start or grow a Somfy Digital Network system. The panel adds 4 isolated bus segments and a built-in SDN DecoFlex keypad for local control.
How many devices can each bus segment carry?
Each isolated bus segment supports 255 devices and 4000 ft of bus wiring, and supplies 100 power units. With four segments, one panel can split a large project into isolated runs.
What power does the panel need?
Somfy lists a 90-240V, 50-60Hz AC input with a rated current of 3.35 A. Inside, the enclosure keeps line voltage and low-voltage wiring in separate areas.
How does the panel mount?
The enclosure mounts in-wall or on-wall, and the front cover has a keyed lock. Somfy lists it at 21.3 in long, 13.78 in wide and 3.15 in high, with a weight of 18 lb.
Does it work with animeo IP controllers?
Yes. A din rail inside the panel gives you a place to mount an animeo IP Building Controller or Sub Controller. Somfy lists the panel as compatible with SDN 2.0 certified products.
Where should the panel be installed?
Somfy rates the panel IP 20, Class II, with an operating range of 41 °F to 140 °F. Plan an indoor, conditioned location such as an electrical or AV closet.
Couldn't load pickup availability

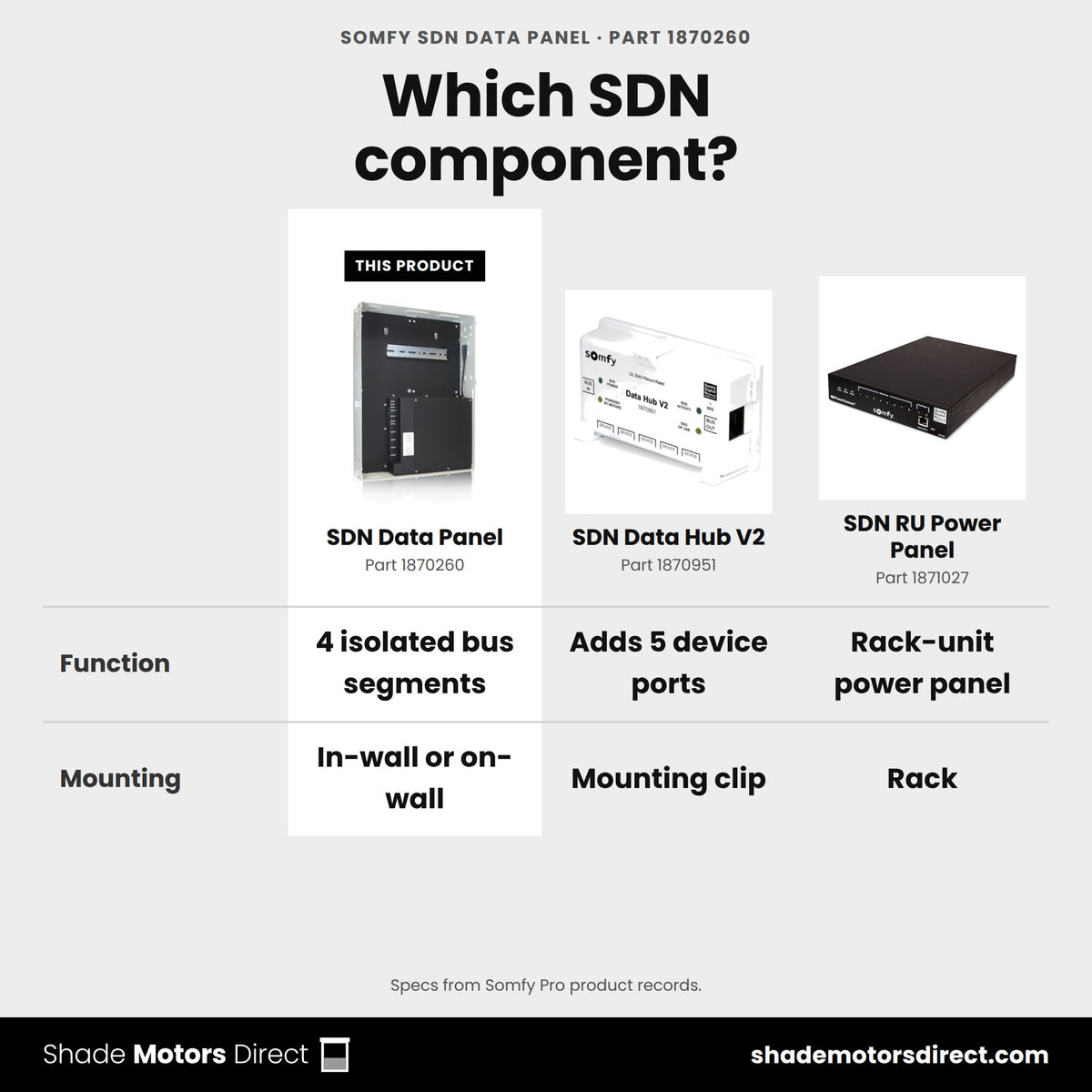

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN Data Panel (1870260)
|
Somfy Data Hub V2 (1870951)
|
Somfy Power Panel 24V for Somfy Digital Network (1871026)
|
Somfy SDN Bus Booster (9027694)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC via SDN bus | 24V DC bus | 24V DC | — |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
