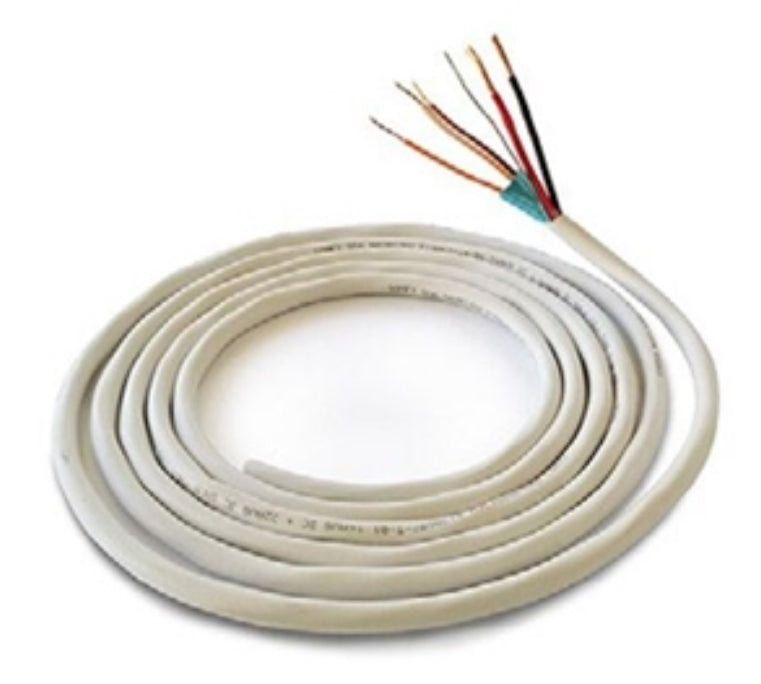

Somfy SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated (1000 ft) (9020126)
Somfy SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated (1000 ft) (9020126)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

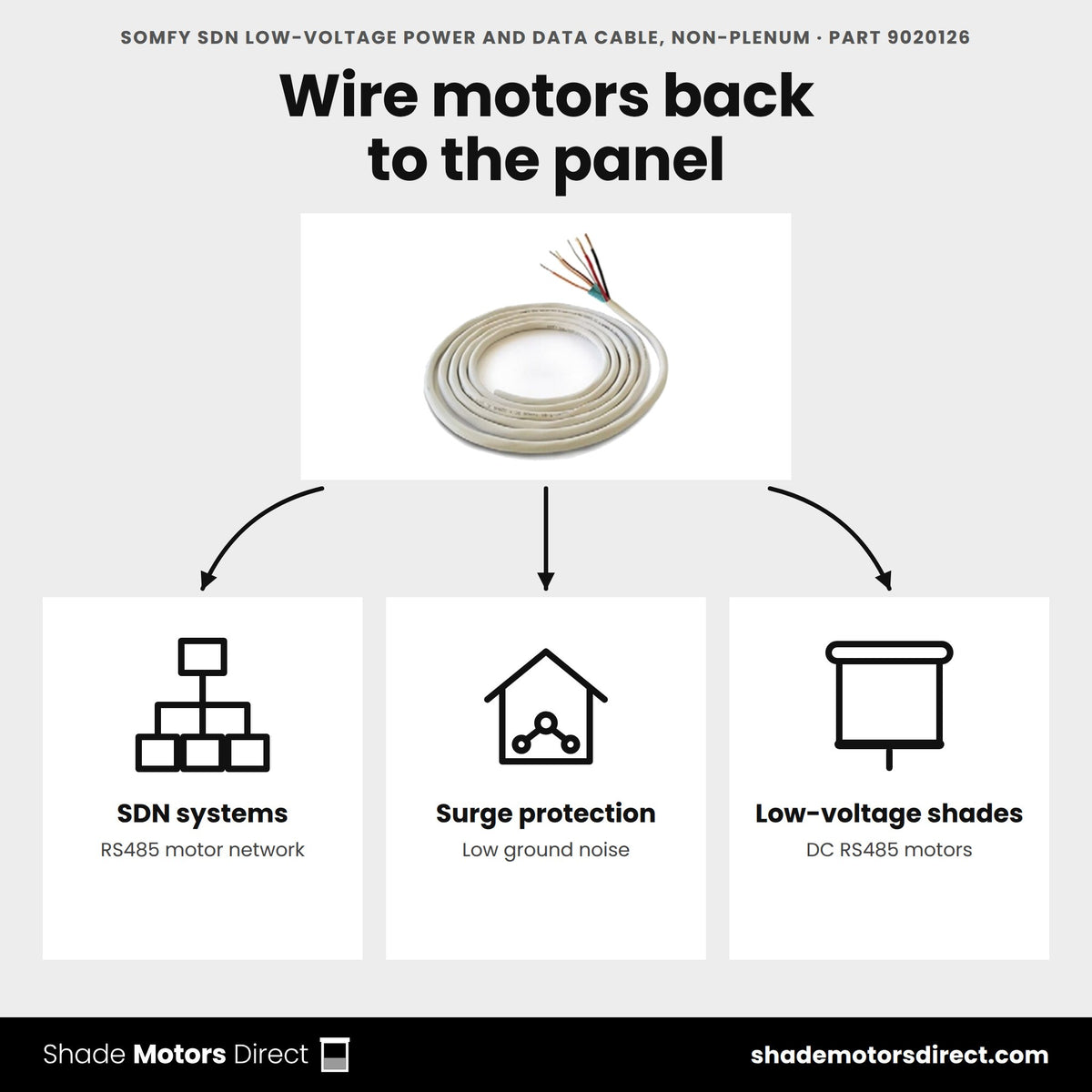

Power and data backbone cable for Somfy Digital Network (SDN) RS485 motors
This non-plenum rated cable is the power and communication backbone for Somfy Digital Network (SDN) RS485 motors, connecting motors like the Sonesse ULTRA 50 DC RS485 and Sonesse 30 RS485 back to a Somfy Power Panel for SDN or SDN PoE Gateway.
Benefits
- Purpose-built for Somfy's SDN low-voltage RS485 motor network -- meets Somfy's cable best practices
- Single jacket carries a 14 AWG power pair, a shielded 22 AWG data triad, and a drain wire
- Supports wiring runs up to 240 ft per motor in a home-run layout
- Plug-and-play connectors for power, control input, and data output
- Minimizes ground noise and protects against electrical line surges

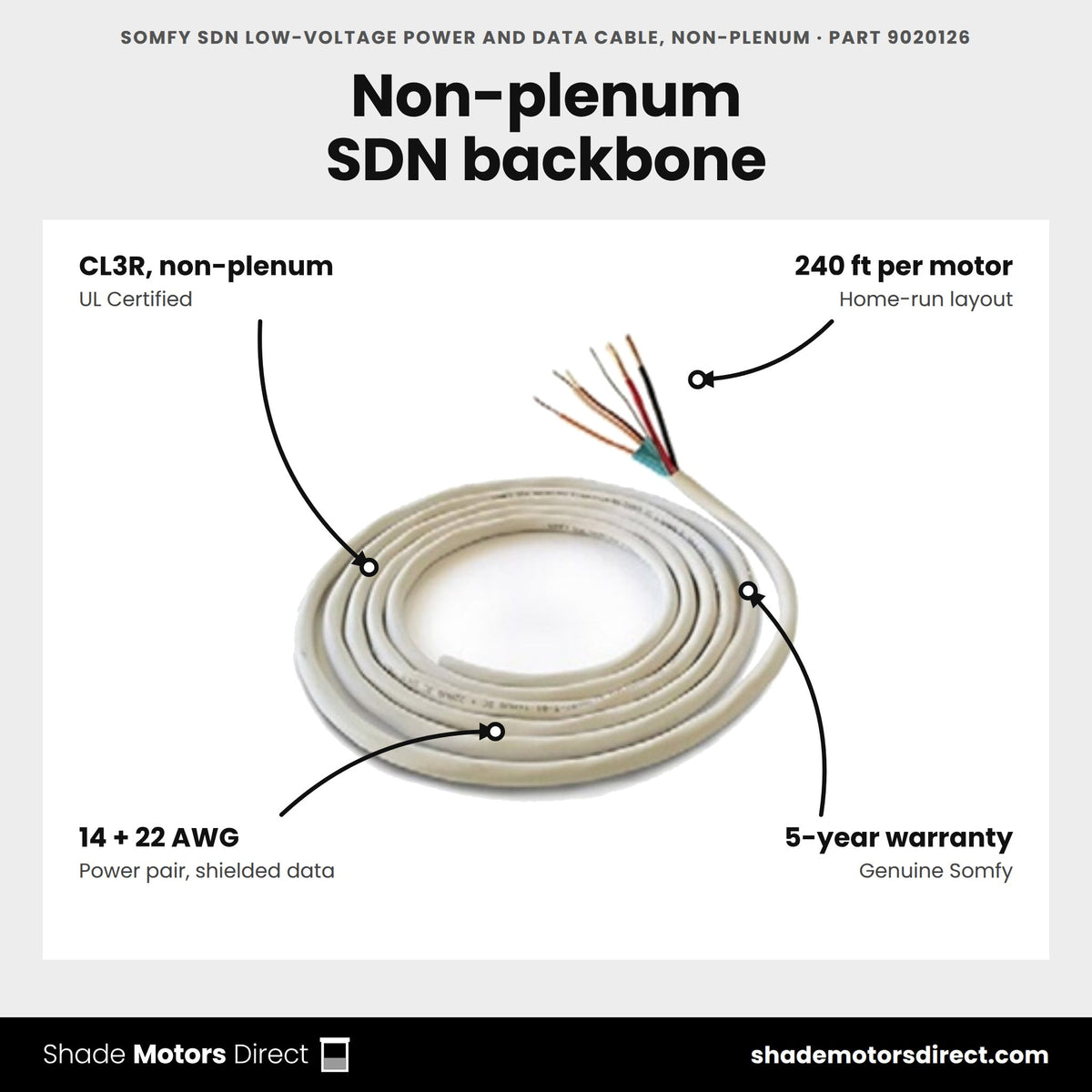

Specifications
| Rating | Non-plenum (CL3R) |
| Max run length | 240 ft per motor |
| Certifications | UL Certified, NEC CL3R 75°C, EU RoHS-2 compliant, UL13/NEC 725 compliant |
| Conductors | 14 AWG power pair, 22 AWG shielded data triad, drain wire |
| Warranty | 5 years |
Compatible with: Sonesse 30 RTS/RS485 24V DC, Sonesse ULTRA 504 A8 DC RTS/RS485, Roll Up 30 Short RS485
Official Somfy documentation
- SDN Low Voltage Motor and Data Cable Spec Sheet (PDF)
- Low Voltage Databook (PDF)
- Design Guide - SDN Connect (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is this SDN cable for?
It is the power and data backbone for Somfy Digital Network (SDN) low-voltage RS485 motors. One jacket carries the motor's power and its data link back to a Somfy Power Panel for SDN or an SDN Power over Ethernet (PoE) Gateway.
What conductors are inside?
Somfy lists a 14 AWG power pair, a 22 AWG stranded, twisted and shielded data triad, and a 24 AWG drain wire. The shielding helps prevent signal corruption and ground loops, and the data side follows the TIA-485 standard.
How long can a cable run be?
Somfy rates installations up to 240 ft, and the cable supports a home-run layout from each motor back to the panel. Plan each run within that limit when you choose the panel location.

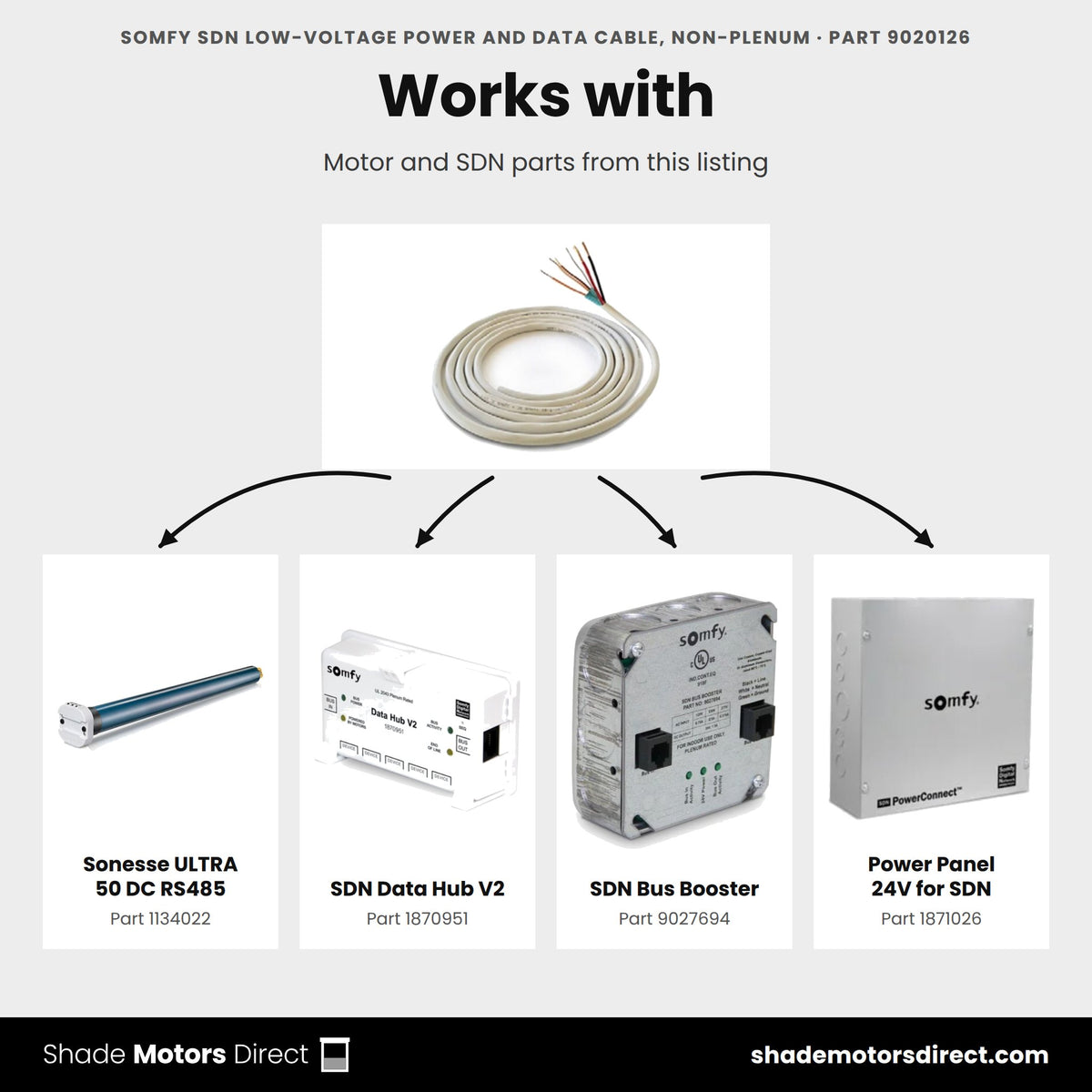

Which motors does it work with?
Somfy lists the Sonesse 30 RS485, Sonesse ULTRA 50 DC RS485, Sonesse ULTRA 504 A8 DC RS485 and RTS, Irismo 35 Mini DC RS485 and Roll Up 30 Short RS485 24V DC. In this store that includes the Sonesse 30 RS485 24V DC (1241144) and the Sonesse Ultra 50 504A8 RS485 24V DC Motor (1134022).

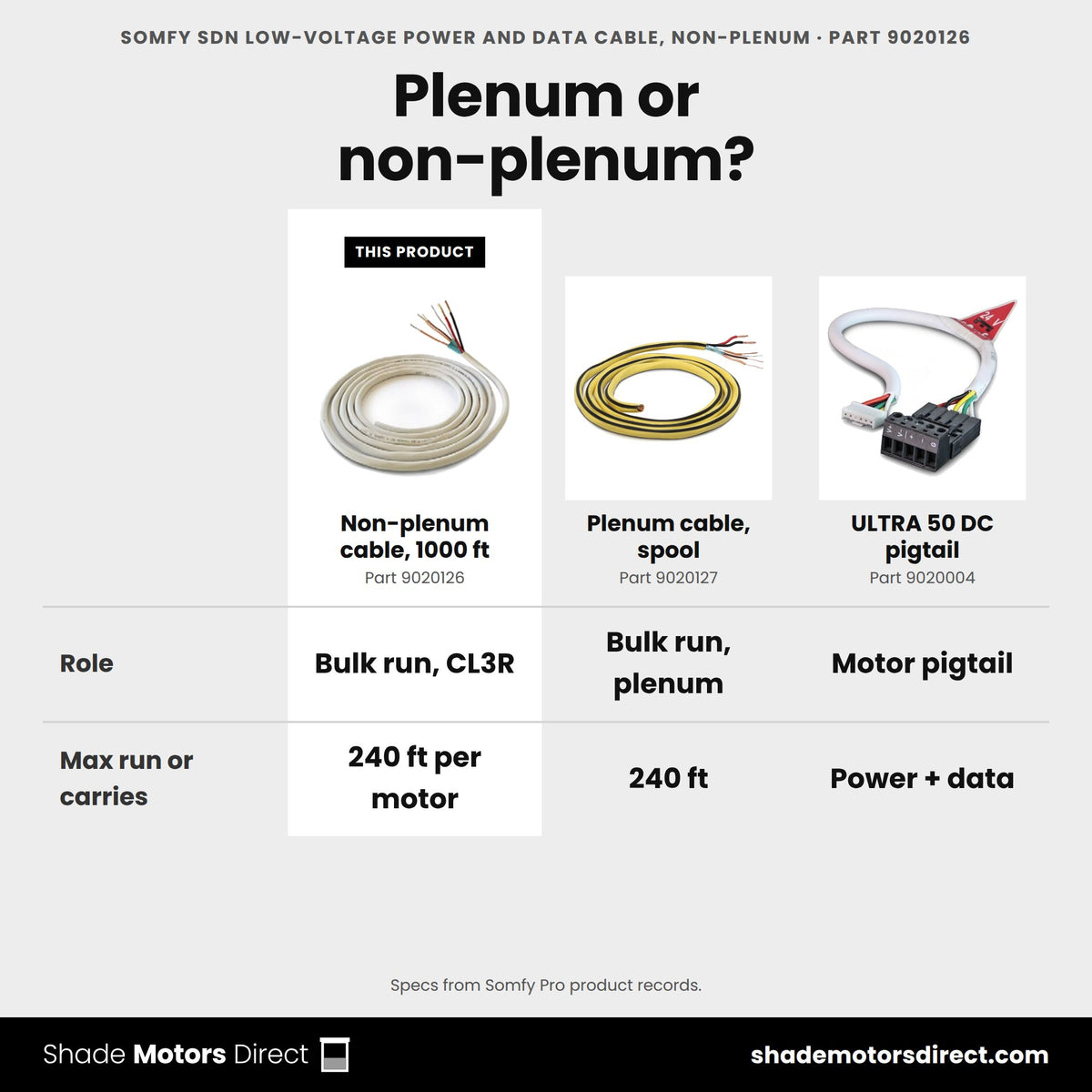

Is it rated for plenum spaces?
This version is non-plenum rated. For runs through air-handling spaces, Somfy offers the SDN Low-voltage Motor Power and Data Cable, plenum rated (9020127), with the same role in the system.
What connectors and warranty come with it?
Somfy describes plug-and-play connectors for power, control input and data output. The cable carries Somfy's 5-year warranty and works with the Somfy Power Panel 24V for Somfy Digital Network (1871026).
Couldn't load pickup availability
Replace a damaged data cable or set up new networked motors.
12- 1Bare conductors For an electrician to terminate.
- 2Yellow jacket Non-plenum rated cable.
Replacing one
-
1
Unplug
Disconnect the damaged cable at both ends.
-
2
Swap it
Connect the SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated in its place.
-
3
Test
Run each motor on the line and check it responds.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Match the connectors
Check the plug ends your motor and device use.
-
2
Run the cable
Connect the motor to the network or setting tool.
-
3
Configure
Address the motor and set its limits.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Parts that go with the SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated
Somfy lists these parts for use with part 9020126.
1Power
Cables, chargers and power made for this motor.
2Network
Data and network parts for wired control.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated for 5 years. We handle the claim.
Somfy warranty on the SDN Low-Voltage Motor Power and Data Cable, Non-Plenum Rated, part 9020126.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
