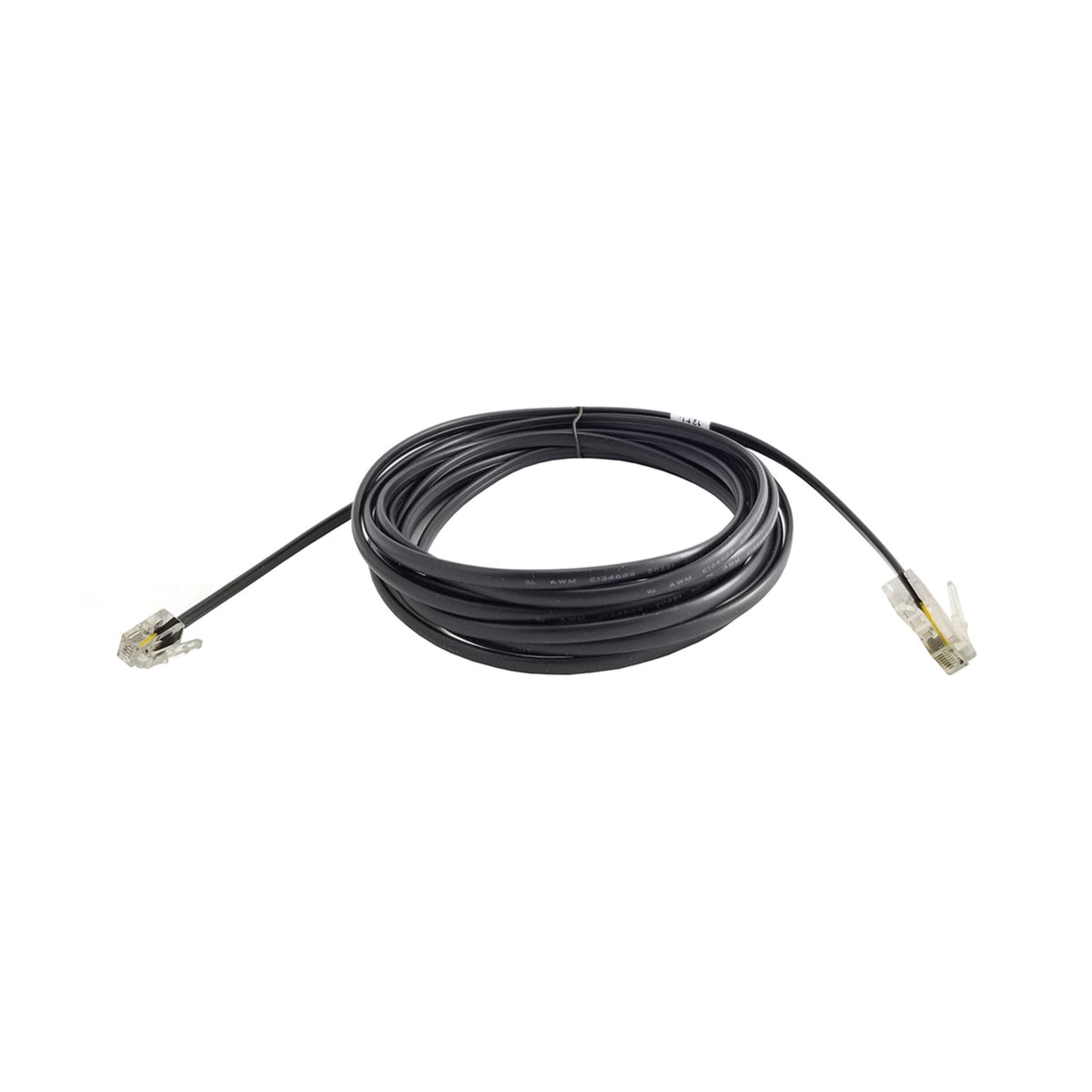

4-Conductor 26 AWG Modular Cable RJ9 to RJ45, 12 ft (Data Only, Black) -- SDN/RS485 data patch cable
This 12 ft modular cable carries data only (no power) between RJ9 and RJ45 connections in Somfy RS485/SDN control wiring, providing a correctly pinned, ready-made patch for data links between motors, interfaces, and tools.
Benefits

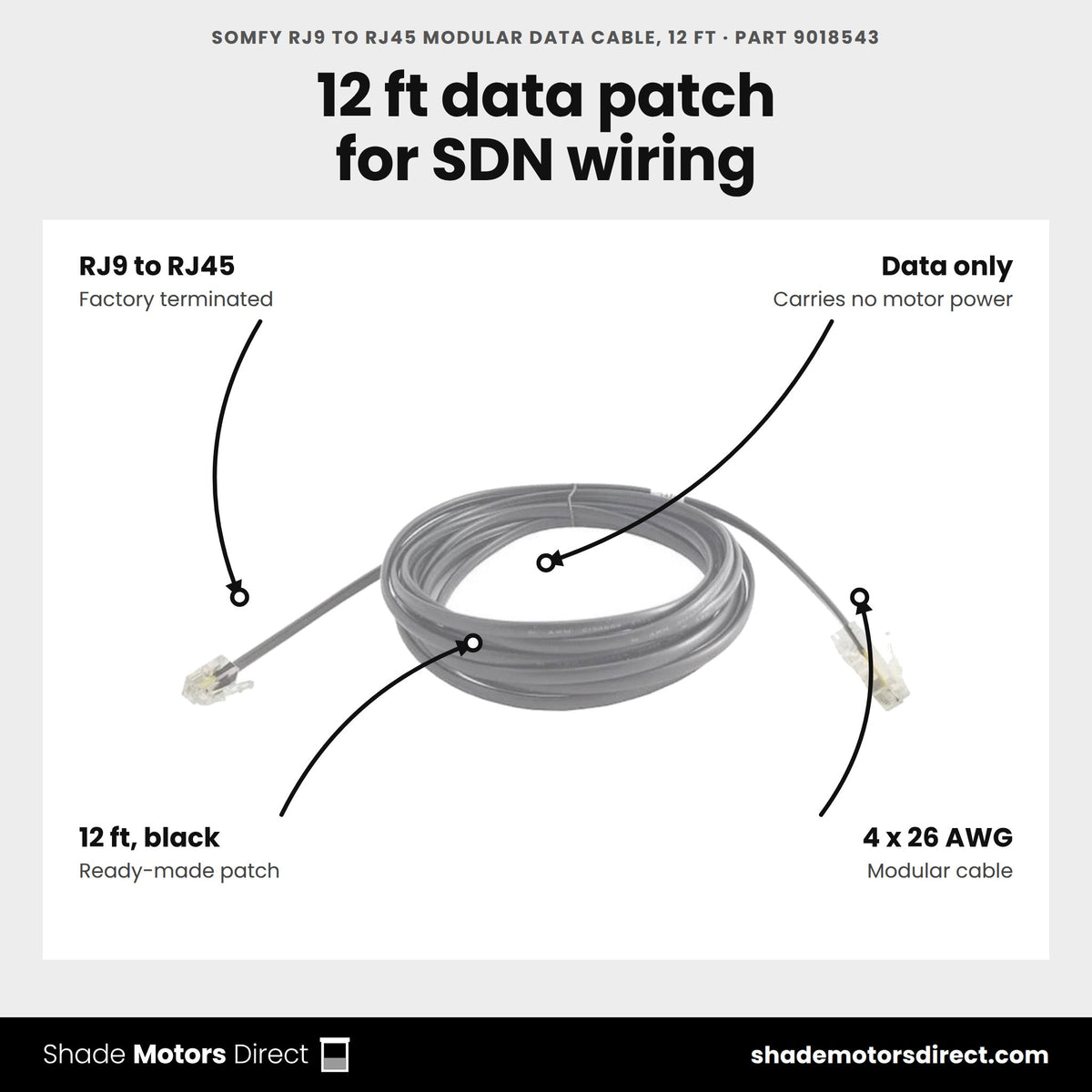

- Factory-terminated RJ9 to RJ45 -- correct pinout every time
- Data only; carries no motor power
- 12 ft length in black
- 26 AWG 4-conductor modular construction
Specifications
| Connectors | RJ9 to RJ45 |
| Length | 12 ft |
| Conductors | 4 x 26 AWG |
| Use | Data only |

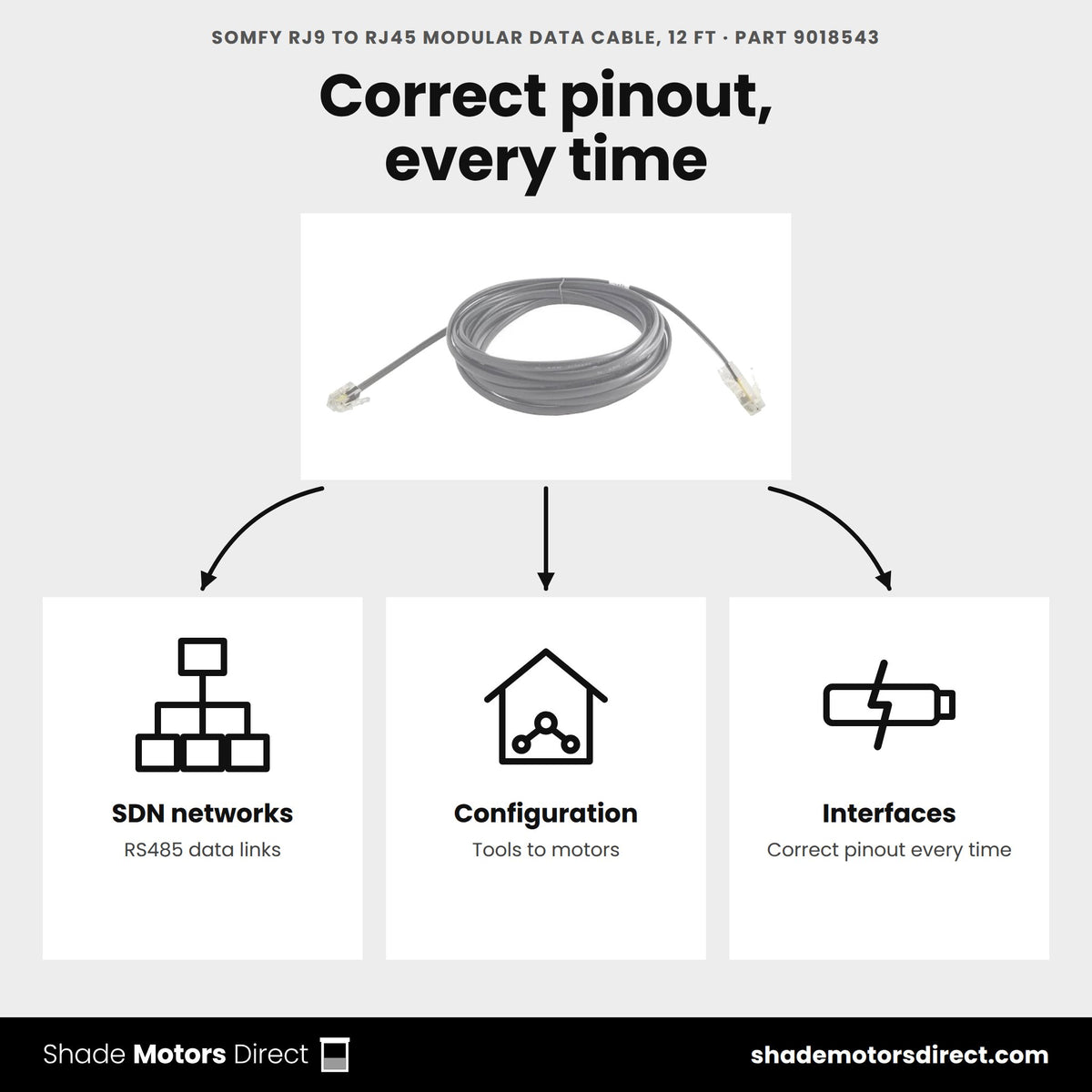

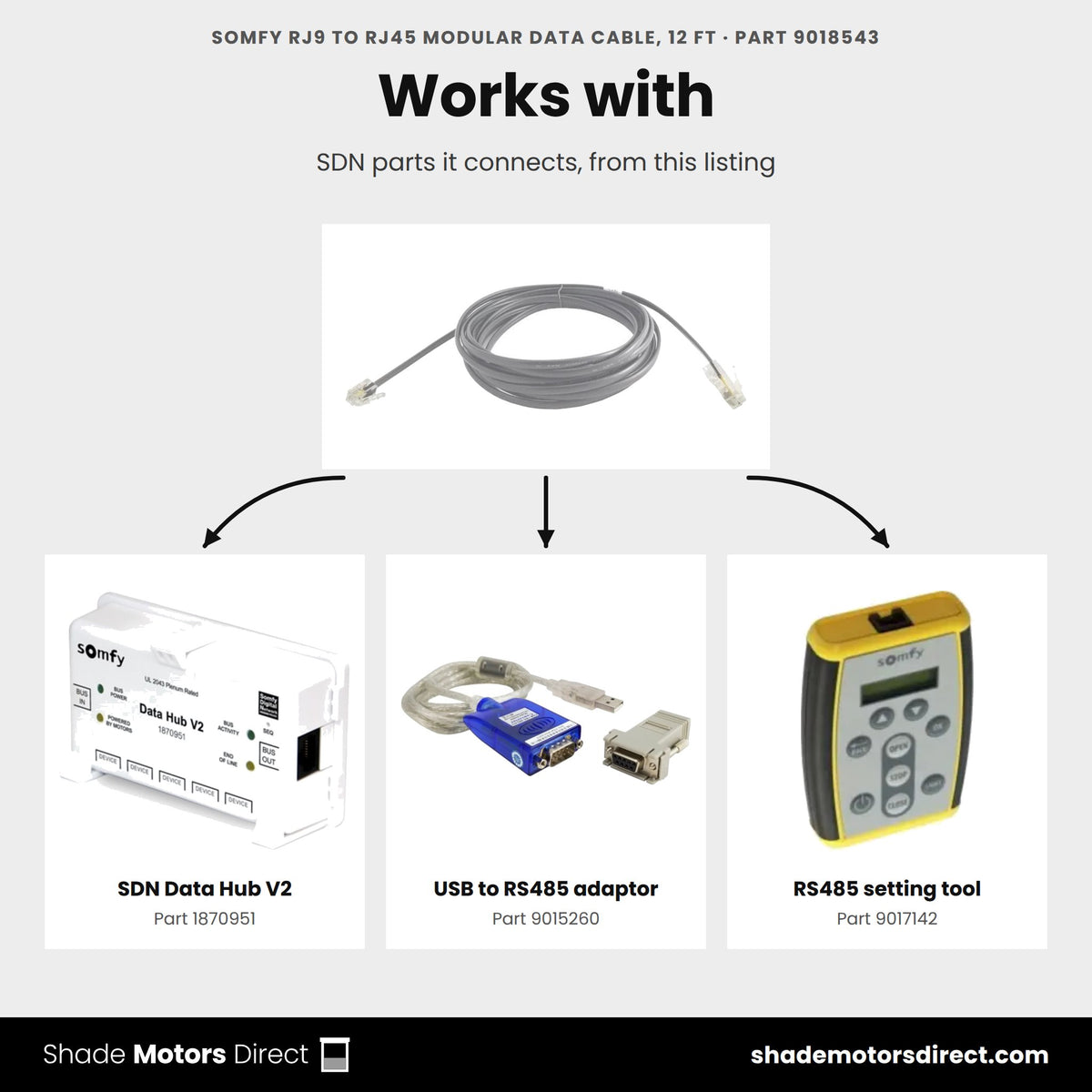

Compatible with: Somfy RS485/SDN data connections between motors, interfaces, and configuration tools
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this 12 ft cable connect?
It carries RS485 data between Somfy motors and a Somfy Digital Network (SDN) or animeo IP control system. Somfy builds it with an RJ9 connector on one end and an RJ45 connector on the other.
Which motors is it listed for?
Somfy lists cable 9018543 for its RS485 motors, including the Sonesse 506S2 RS485 (1002286), Sonesse 510S2 RS485 (1002287), 515S2 RS485 (1002427) and 535A2 RS485 (1002288). You can order each of these motors here.
Does it carry power to the motor?
No. Somfy rates this black cable as data only, with no power. For a run that needs power and data on one line, Somfy offers the grey 12 ft power and data version (9018547).
What are the specs?
Somfy lists 4 conductors at 26 AWG, a 12 ft length, a black jacket and RJ9 to RJ45 connectors. The black jacket sets it apart from the grey power and data cables in the same range.
When should I choose 12 ft over a shorter length?

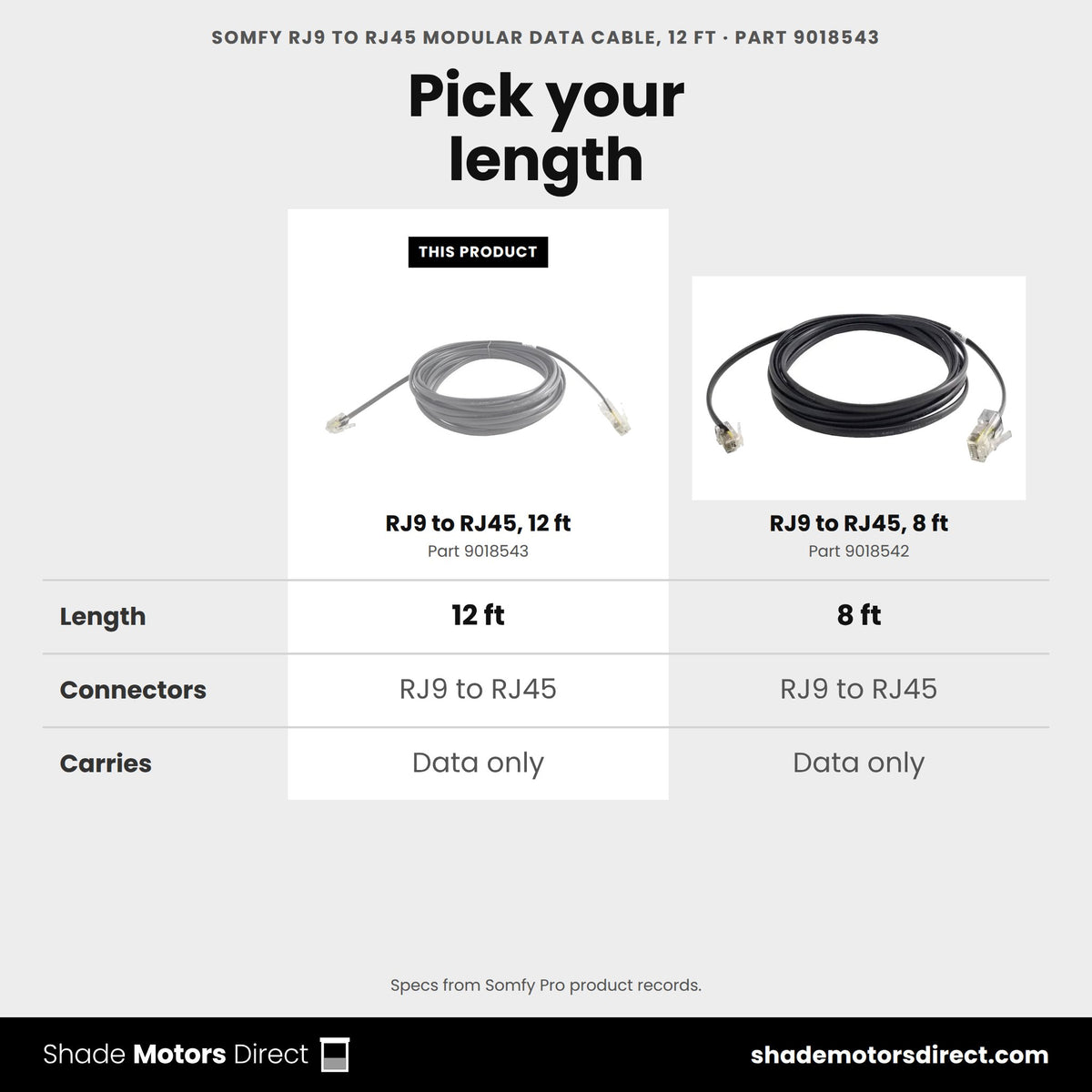

Choose 12 ft when the motor sits farther from the SDN hardware than a shorter cable can reach. The same data-only cable also comes in 2.5 ft (9018541) and 8 ft (9018542) lengths for closer runs.
What warranty does it have?
Somfy backs cable 9018543 with a 5 year warranty. It is a genuine Somfy part made for SDN and animeo IP systems, the networks its RS485 motors join.
