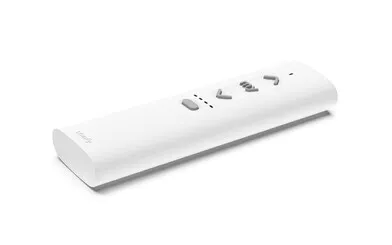

Ysia 5 Zigbee -- direct 5-channel remote for Somfy Zigbee shades
Ysia gives simple, direct control of Somfy Zigbee window coverings and smart plugs, either standalone or as part of a connected TaHoma switch system.
Benefits
- Controls 1 individual product or group of Zigbee products per channel, 5 channels total
- "My" button saves a favorite position
- LED feedback confirms every command
- Works standalone or as part of a TaHoma switch Zigbee network
- Includes wall support for optional mounting
Specifications
| Channels | 5 |
| Protection Index | IP 20 |
| Radio Frequency | 2.450 GHz (Zigbee 3.0) |
| Range (open field) | 164 ft |
| Battery | 2x LR3 (AAA) |
| Warranty | 5 years |
Compatible with: Somfy Zigbee motors and smart plugs, TaHoma switch
Official Somfy documentation
- Ysia 1 & 5 Zigbee Spec Sheet (PDF)
- Zigbee Manufacturer Brochure (PDF)
- Programming Guide -- Zigbee Standalone Solution Using Ysia Remotes (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Ysia 5 Zigbee remote control?
It controls Somfy Zigbee window coverings and Somfy Smart Plugs. Each of its 5 channels runs one product or one group, and the my button recalls a favorite position. For a single shade, the Ysia 1 (1871153) offers one channel.
Do I need a hub to use it?
No. Ysia works standalone with Somfy Zigbee motors, and Somfy publishes a programming guide for that setup. Add a TaHoma switch (1871037) when you want app control, voice control and smart home links on the same Zigbee network.
What range and batteries does it have?
Somfy rates the range at 164.05 ft in open field, on 2.450 GHz with Zigbee 3.0. It runs on 2 LR3 (AAA) batteries, and Somfy includes them in the kit.
Which motors does it work with?
It pairs with Somfy Zigbee motors, such as the Sonesse Ultra 30 Zigbee WireFree (1241752), Sonesse 28 Zigbee (1241755) and Sonesse 30 Zigbee 24V DC (1241970). For Somfy RTS motors, choose a Situo or Telis RTS remote.
How do I know a command went through?
LED feedback on the remote confirms each command. That helps when the shade sits out of view, such as a skylight shade or a window in the next room.
Can I mount it on the wall?
Yes. The kit includes a wall support along with the remote, 2 batteries and a leaflet. Somfy rates the Ysia 5 at IP 20 with an operating range of 32 °F to 118 °F, for indoor use.
Couldn't load pickup availability
Replace a lost Zigbee control or add one to new Zigbee shades.
Replacing one? Swap it in your hub app. New shades? Add the motors first, then the Ysia 5 Channel Zigbee Remote.
123- 1Channel selector Picks which shade or group you control.
- 2my button Stops the shade. Hold it to go to your favorite position.
- 3Up and down Raise or lower the shade with one press.
Replacing a control
-
1
Remove the old control
Delete the lost or broken control from TaHoma or your hub.
-
2
Add the Ysia 5 Channel Zigbee Remote
Start adding a device in the app and put the control in pairing mode.
-
3
Link your shades
Assign the same motors or groups the old control had.
Not sure your motors are Zigbee? Send us their part numbers. We'll check before you order. Ask us
Setting up new shades
-
1
Add the motors
Pair each Zigbee motor with TaHoma or your Zigbee 3.0 hub.
-
2
Add the Ysia 5 Channel Zigbee Remote
Start adding a device in the app and put the control in pairing mode.
-
3
Link your shades
Assign the motors or groups each button controls.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Ysia 5 Channel Zigbee Remote controls
These Somfy motors work with part 1871154.
Somfy backs the Ysia 5 Channel Zigbee Remote for 5 years. We handle the claim.
Somfy warranty on the Ysia 5 Channel Zigbee Remote, part 1871154.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Ysia 5 Channel Zigbee Remote (1871154)
|
Somfy Ysia 1 Channel Zigbee Remote (1871153)
|
Somfy Simu Hz Mobile Transmitter, 5 channel, white (2008806)
|
Somfy Ysia 5 Variation Zigbee Remote (1871281)
|
|---|---|---|---|---|
| Price | ||||
| Control | Zigbee | Zigbee | Hz radio | Zigbee |
| Power | Battery (2x AAA) | Battery (2x AAA) | — | — |
| What's different | The product on this page | Close alternative | Same size, Hz radio control | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
