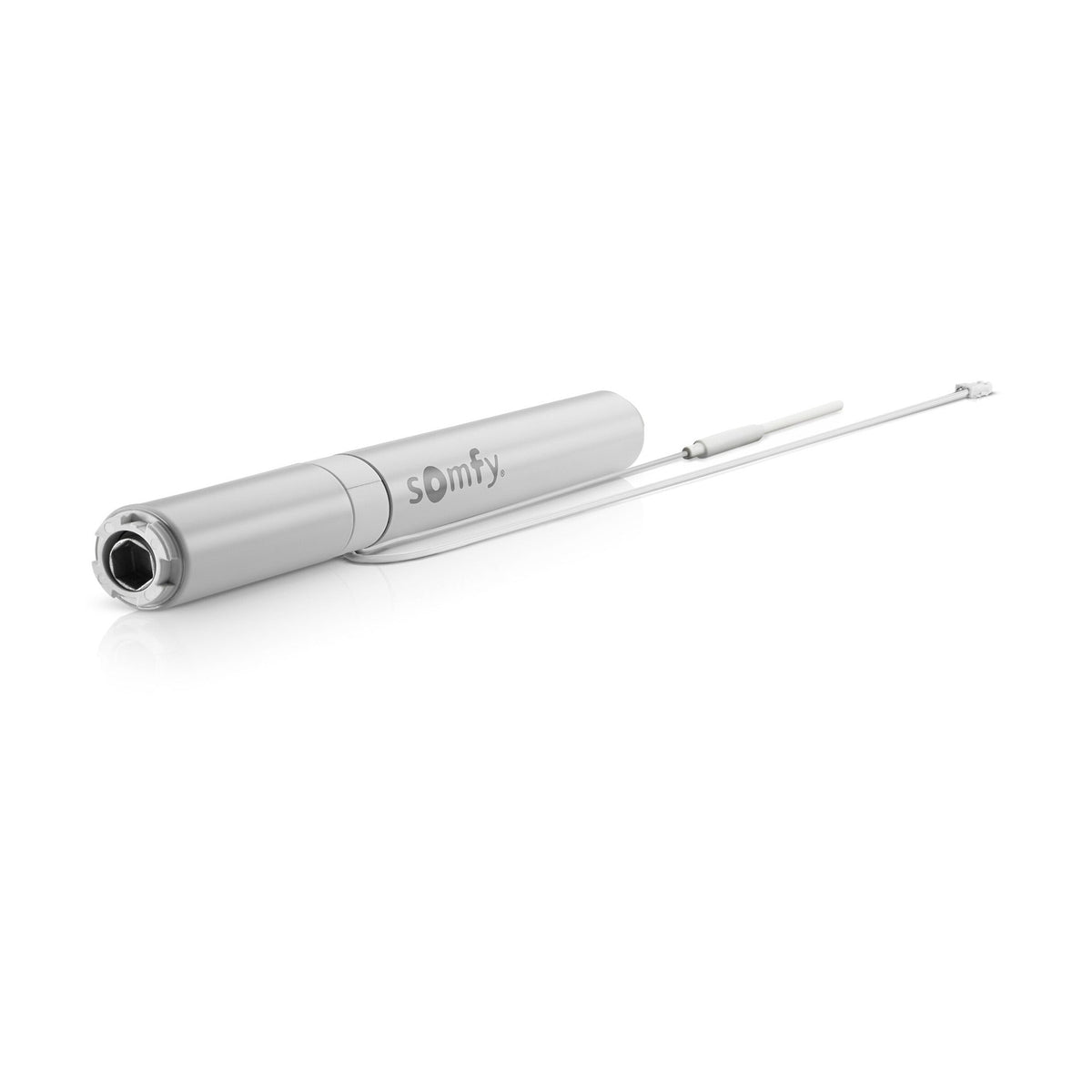

Somfy Cord Lift TLW25 WireFree Zigbee Motor, External Battery (1241780)
Somfy Cord Lift TLW25 WireFree Zigbee Motor, External Battery (1241780)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Cord Lift TLW25 WireFree Zigbee (External Battery) -- a quiet smart motor for cord-lift shades, no wiring to the window

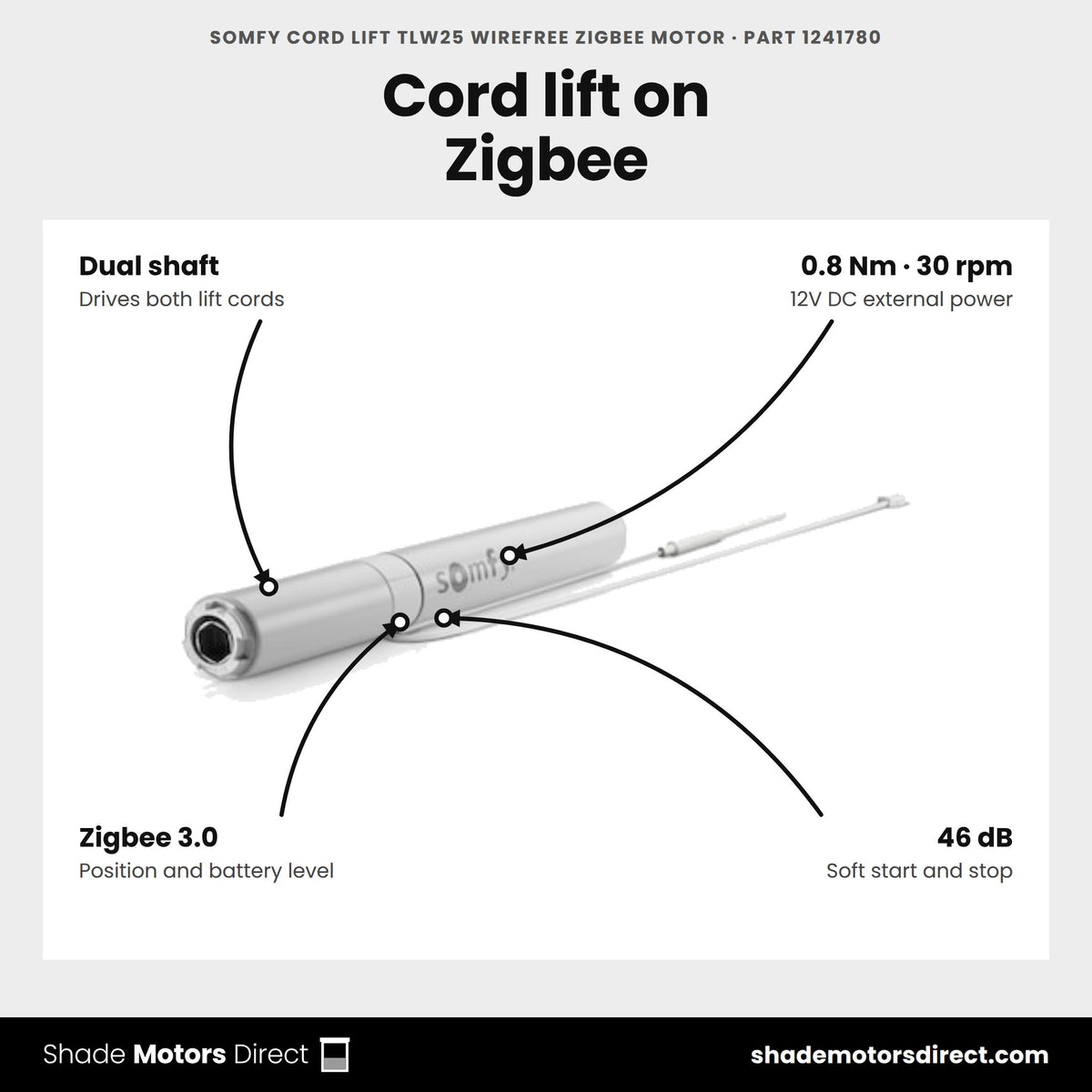

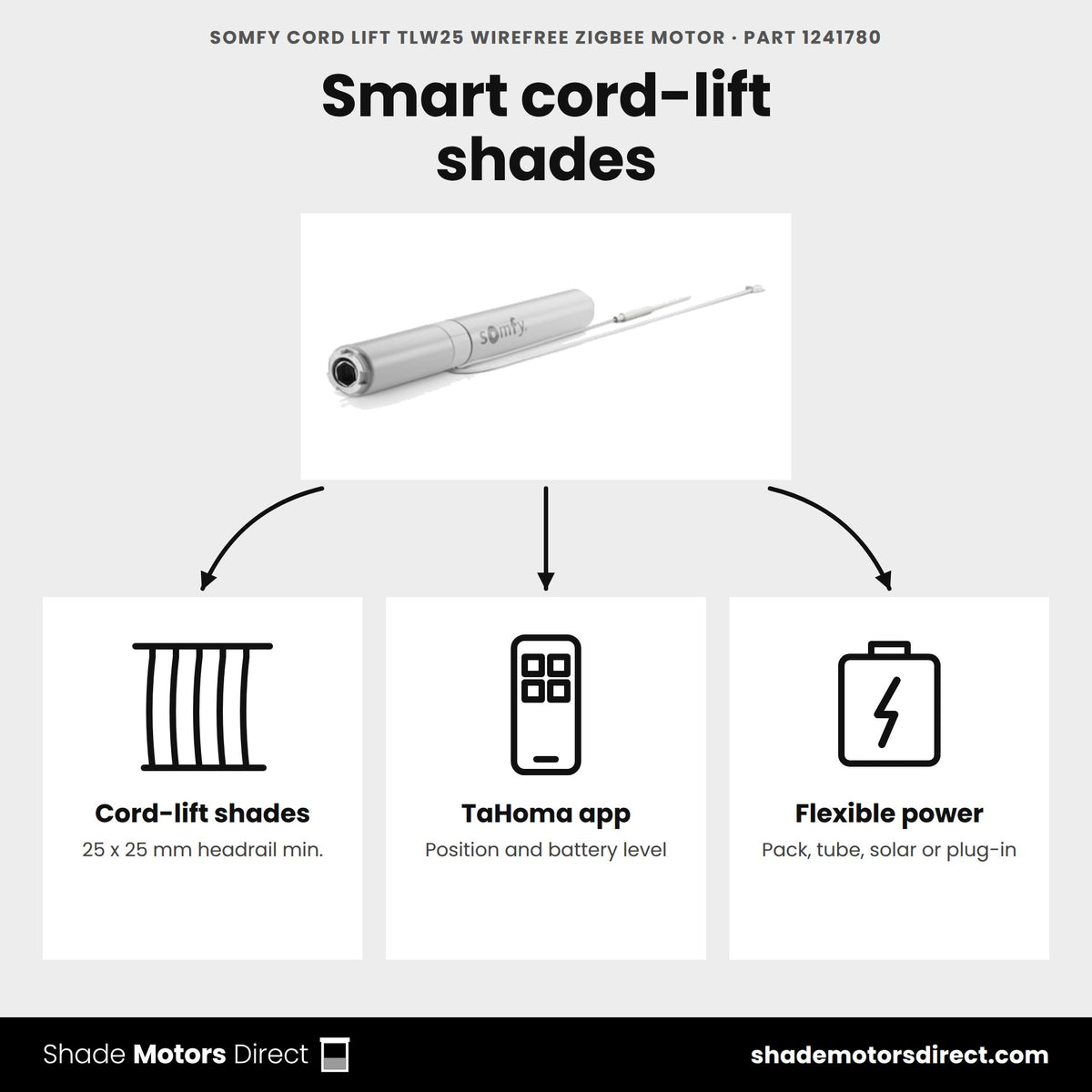

The Somfy Cord Lift TLW25 WireFree Zigbee (1241780) is a dual-shaft motor that sits in the center of a cord-lift headrail at least 25 x 25 mm wide. Somfy rates it at 0.8 Nm and 30 rpm at 46 dB. It runs on an external 12V DC source (a rechargeable lithium-ion battery pack, a reloadable battery tube, a solar panel or a plug-in power supply), so nothing gets wired into the wall. Zigbee 3.0 is built in, and the TaHoma app shows shade position and battery level in real time.
Benefits
- No electrical wiring to the window -- power it from a battery pack, battery tube, solar panel or plug-in supply
- Dual-shaft design mounts in the center of the headrail and drives both lift cords
- Soft start and soft stop, built for quiet operation at 46 dB
- Two-way Zigbee 3.0: the TaHoma app reports shade position and battery level
- Set limits step by step from the app, plus remote diagnostics through Somfy Serv-e-Go
- No hanging cords, a child-safe and pet-friendly option
- Backed by Somfy's 5-year warranty
Specifications
| Torque / Speed | 0.8 Nm / 30 rpm |
| Power | External 12V DC: Li-ion battery pack, reloadable battery tube, solar panel or plug-in supply |
| Operating voltage | 10.5 V to 16.5 V DC, 0.85 A rated current |
| Consumption | 10.2 W operating, 0.094 W standby |
| Control | Zigbee 3.0, two-way (2.450 GHz) |
| Range (open field) | 492 ft |
| Headrail | Minimum 25 x 25 mm; minimum internal diameter 0.98 in |
| Motor size | 7.76 in long, 0.94 in diameter, dual shaft |
| Limits | Electronic, 100-turn capacity |
| Noise level | 46 dB |
| Protection / Class | IP 20 (interior use) / Class III |
| Operating temperature | 32°F to 140°F |
| Warranty | 5 years |
Compatible with: Cord-lift interior shades and blinds with a headrail at least 25 x 25 mm; Somfy 12V external power (Li-ion battery pack 9021217, reloadable battery tube 9018685, WireFree solar pack 9027294, 12V DC plug-in supply 1870940); the TaHoma switch; Somfy Ysia Zigbee remotes and DecoFlex WireFree Zigbee keypads. Somfy offers shaft and headrail adaptors for several headrail brands.
Official Somfy documentation
- Cord Lift TLW25 WireFree Zigbee – Spec Sheet (PDF)
- Cord Lift TLW25 WireFree Zigbee – Launch Flyer (PDF)
- WireFree – Databook (PDF)
- WireFree Power Supply – Compatibility Matrix (PDF)
- Zigbee Standalone with Ysia Remotes – Programming Guide (PDF)
- Cord Lift TLW25 WireFree Zigbee – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Cord Lift 25 WireFree Zigbee motor?
Part 1241780 is Somfy's Cord Lift WireFree TLW25 Zigbee motor, a dual-shaft motor for cord-lift interior shades and blinds. It runs from an external 12V DC source, so no wiring to the window is needed, and it joins a Zigbee 3.0 network. Somfy backs it with a 5-year warranty.
What torque and speed does it deliver?
Somfy rates part 1241780 at 0.8 Nm of torque and 30 rpm, with an operating range of 10.5 V to 16.5 V DC. It uses 10.2 W in operation and 0.094 W on standby, runs at 46 dB and is rated IP 20.
What headrail size does it need?
Somfy lists a minimum headrail of 25 x 25 mm. The motor works between 32°F and 140°F. Somfy offers shaft and headrail adaptors for several blind brands, so match the adaptor to your headrail before you order.
How is it powered?
There is no battery inside this motor. It takes an external 12V DC source through its power lead. Options in this store include the Rechargeable Lithium-ion Battery Pack (9021217), the Reloadable 12V DC Battery Tube (9018685), the 12V DC Plug-in Power Supply (1870940) and the 12V DC WireFree V2 Solar Pack (9027294). Wall Mounting Clips (9013263) hold a battery tube in place. Check Somfy's WireFree power supply compatibility matrix, linked on this page, before you order.
Can I control it from my phone?
Yes. Pair it with a Somfy TaHoma switch (1871037), or the version with an Ethernet adaptor (1871038), and use the TaHoma by Somfy app. Somfy rates the Zigbee range at 492.15 ft in open field, and walls shorten that indoors.
Is there an RTS version of this motor?
Yes. The Cord Lift WireFree TLW25 RTS (1003294) uses Somfy RTS radio and pairs with RTS remotes and wall switches. Choose the Zigbee model 1241780 when you want to run your shades from the TaHoma app.
How do I set the limits?
Limits are electronic, with a 100-turn capacity, and you set them step by step in the TaHoma app. Somfy also supports remote diagnostics through Serv-e-Go, so an installer can check the motor without a site visit.
Couldn't load pickup availability

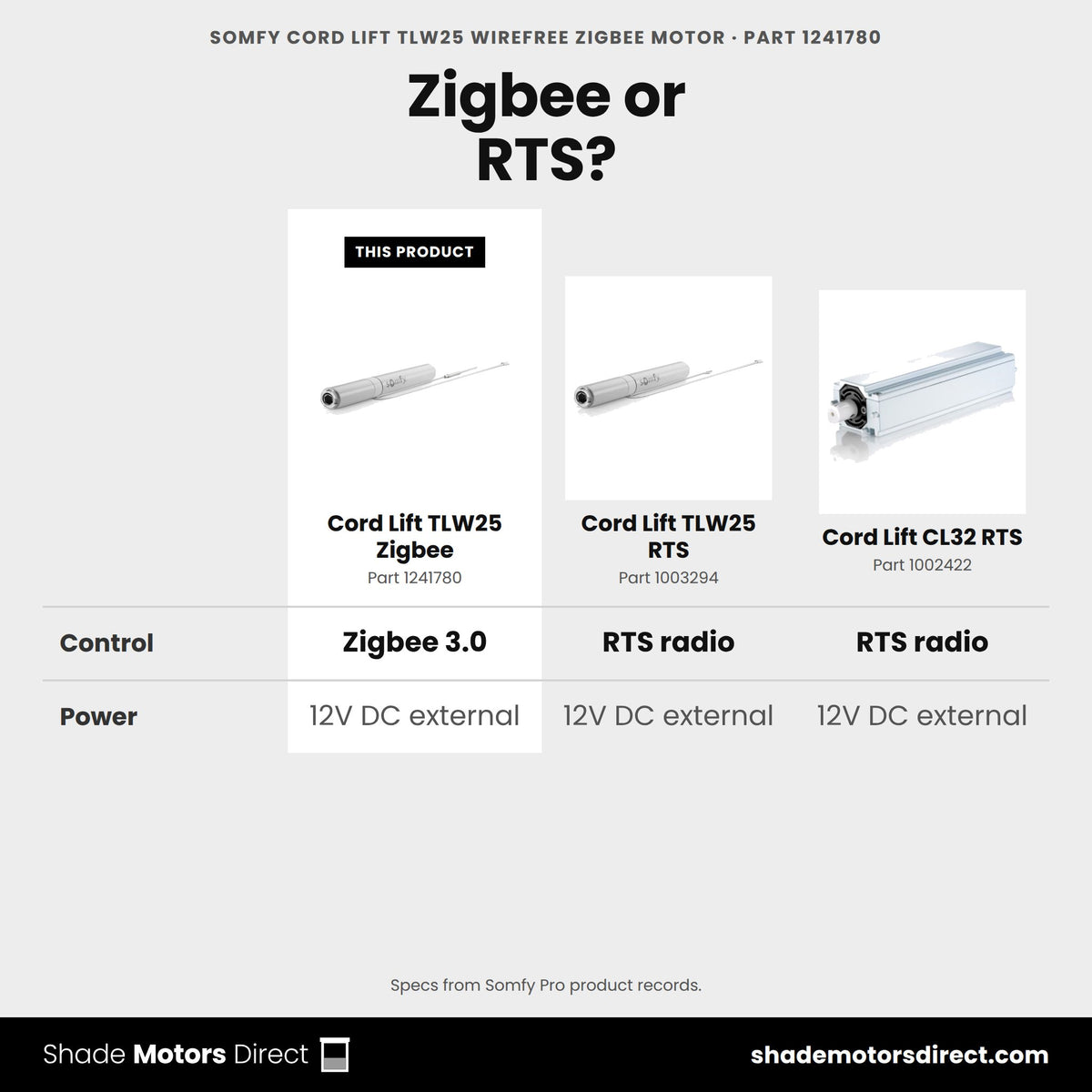

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Cord Lift TLW25 WireFree Zigbee Motor, External Battery (1241780)
|

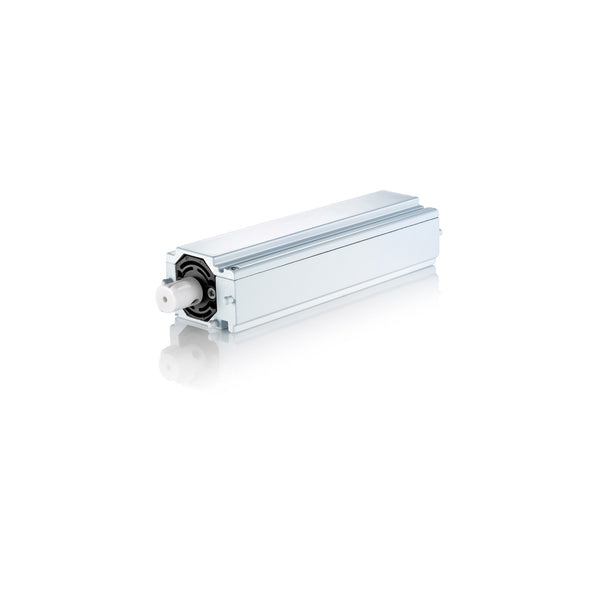

Somfy Cord Lift WireFree CL32 RTS (External Battery) (1002422)
|

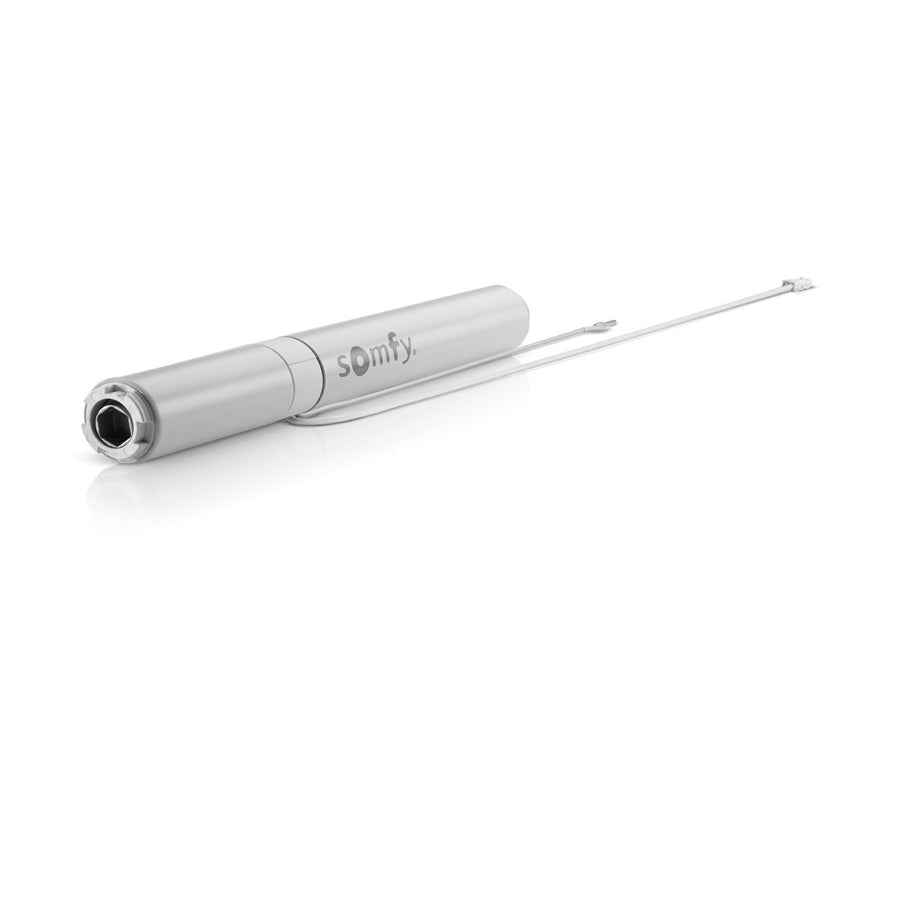

Somfy Cord Lift WireFree TLW25 RTS (External Battery) (1003294)
|
|---|---|---|---|
| Price | |||
| Torque (Nm) | 0.8 | 0.34 | — |
| Speed (rpm) | 30 | 72 | — |
| Max load (lb) | — | 15 | — |
| Control | Zigbee 3.0 | RTS radio | RTS radio |
| Power | External 12V DC (battery, solar or plug-in) | 12V DC battery | 12V DC battery |
| Motor family | Cord Lift 25 | Cord Lift CL32 | Cord Lift TLW25 |
| What's different | The product on this page | 0.34 Nm instead of 0.8, RTS radio | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details |
