Somfy Sonesse 50 510S2 RTS RH 120V 3-Wire Motor (round head) (1001805)
Somfy Sonesse 50 510S2 RTS RH 120V 3-Wire Motor (round head) (1001805)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

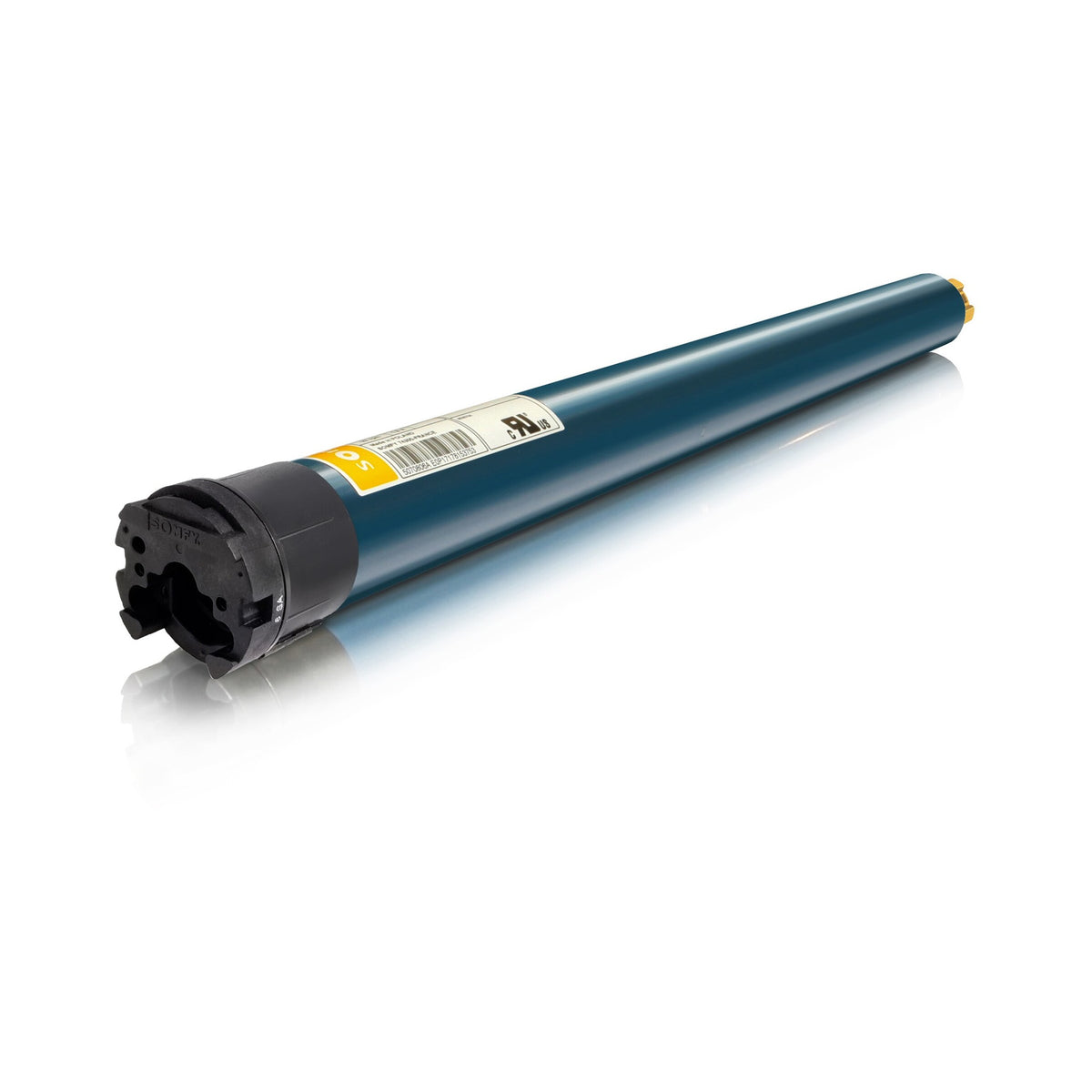

Somfy Sonesse 50 510S2 RTS RH Motor -- wireless radio control

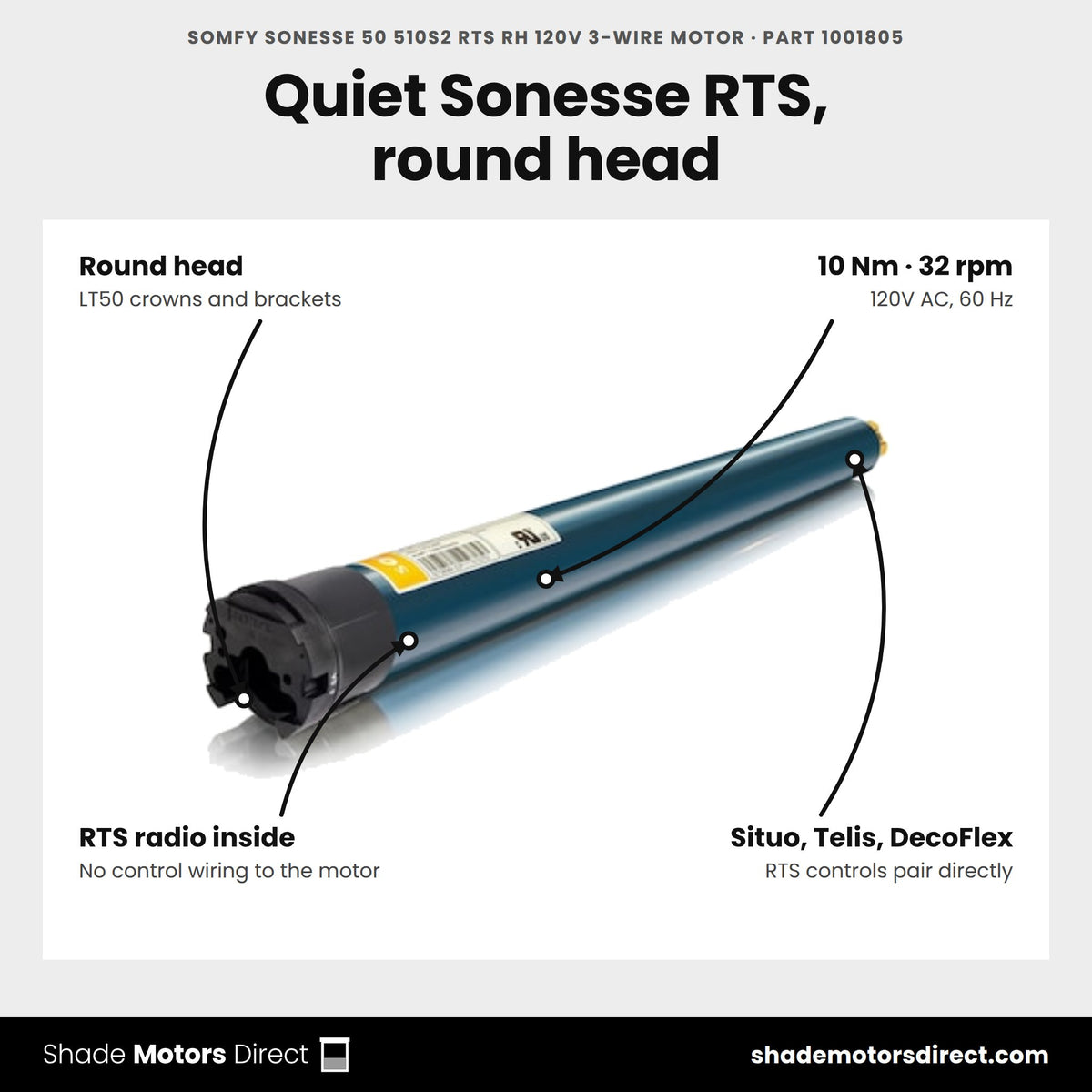

The Sonesse 50 510S2 RTS RH is a wireless, Radio Technology Somfy (RTS) interior tubular motor, delivering 10Nm (88" lb) at 32 rpm for roller shades and blinds -- no wiring back to a switch required, just an RTS remote or wall switch.
Benefits
- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
- Quiet Sonesse platform tuned for occupied interior spaces
- 5-year Somfy warranty
Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 32 rpm |
| Control | RTS (433.42 MHz radio) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Sonesse 510S2 RTS RH deliver?
Somfy rates the Sonesse 510S2 RTS at 10 Nm of torque and 32 rpm. Part 1001805 is the RH version of this 120V motor, sized for heavier interior roller shades, solar screens and projection screens.

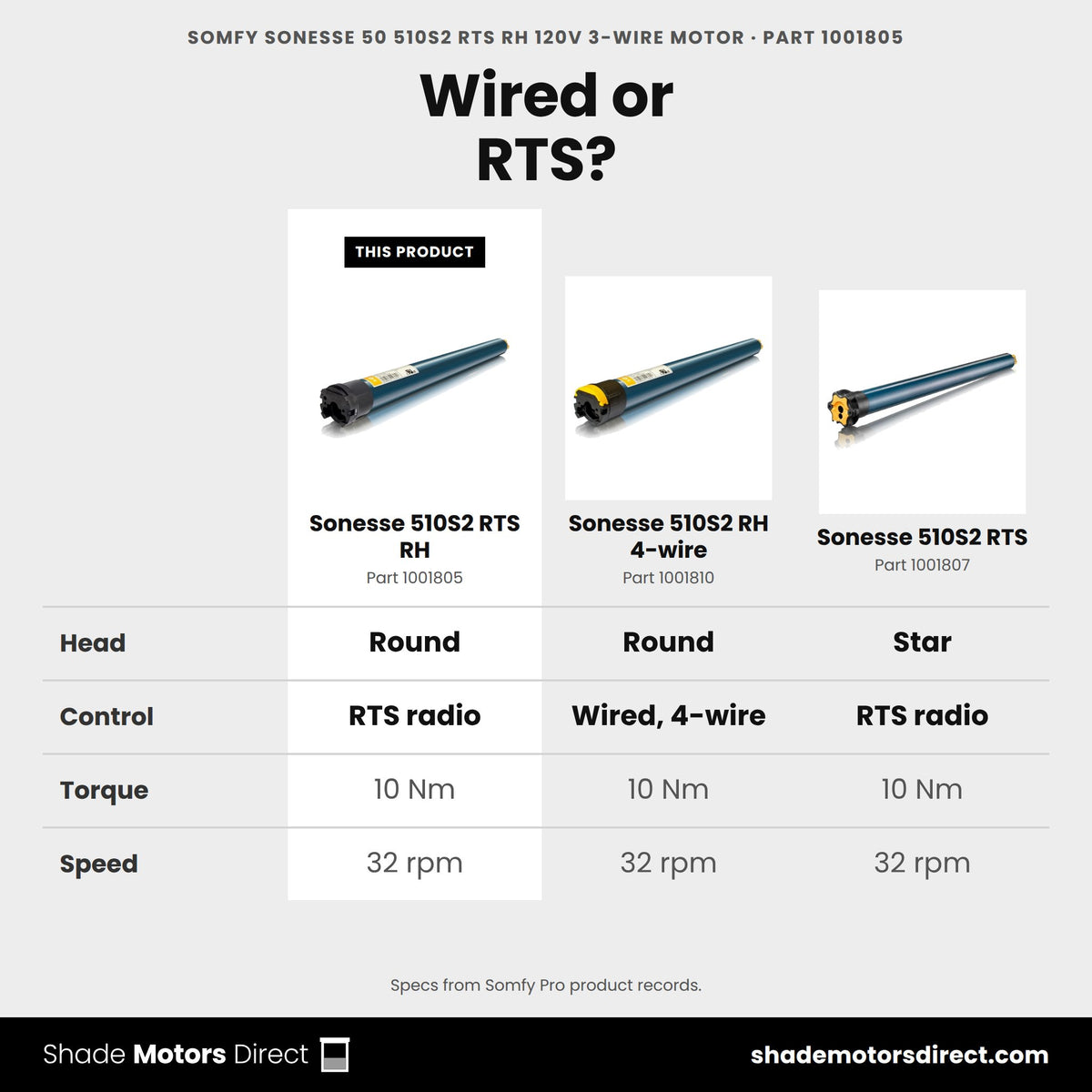

How does the RH model differ from the star head 510S2 RTS?
The motor itself matches part 1001807 in torque, speed and RTS radio. The difference is the head, so confirm your brackets accept the RH head before you order. Our store lists the LT50 Universal Motor Bracket (9410665) for this motor.
What is the smallest roller tube it fits?
Somfy lists a minimum tube inside diameter of 1.85 in (47 mm) for the Sonesse 510S2 RTS. Matching hardware in our store includes the LT50 2.5 in Round Crown and Drive Set (9012231) and the Octagonal LT50 70mm Crown and Drive Set (9012234).
Does this motor need power at the window?
Yes. It runs on 120V AC at 60 Hz, with a 1.67 A rated current and a 200 W draw while running. It uses a 3-wire SJTW cable. The built-in RTS receiver replaces control wiring, not the power feed.
Which remotes and wall switches work with it?
Any Somfy RTS transmitter works, including the Situo 1 and Situo 5 RTS Pure remotes (1870571, 1870575), the Telis 16 Channel RTS Pure remote (1811081) and DecoFlex RTS wall switches. The motor stores up to 12 transmitters, and Somfy lists an open-field range of 164.05 ft.
Can I control it from my phone, and is there a wired version?
Yes, through a Somfy TaHoma hub such as the TaHoma Switch (1871037). RTS is one-way radio, so the app sends commands but cannot report shade position. For a hardwired job, the Sonesse 510S2 RH 4-wire motor (1001810) delivers the same 10 Nm at 32 rpm.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 50 510S2 RTS RH 120V 3-Wire Motor (round head) (1001805)
|
Somfy Sonesse 50 510S2 RH Standard 120V 4-Wire Motor (round head) (1001810)
|

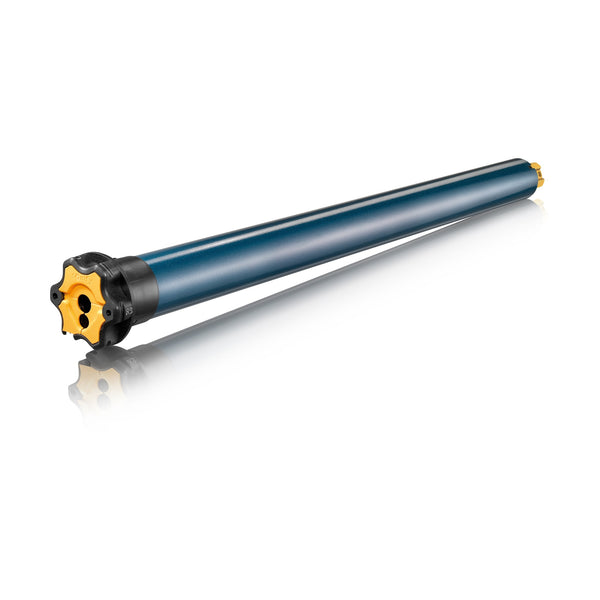

Somfy Sonesse 506S2 RTS 120V Motor (1001809)
|
Somfy Sonesse 50 510S2 RS485 SDN 120V Motor (1002287)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 10.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | RTS radio | Wired 4-wire | RTS radio | RS485 (SDN) |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 6.0 Nm instead of 10.0 | Same size, RS485 (SDN) control |
| Buy | Currently viewing | View details | View details | View details |
