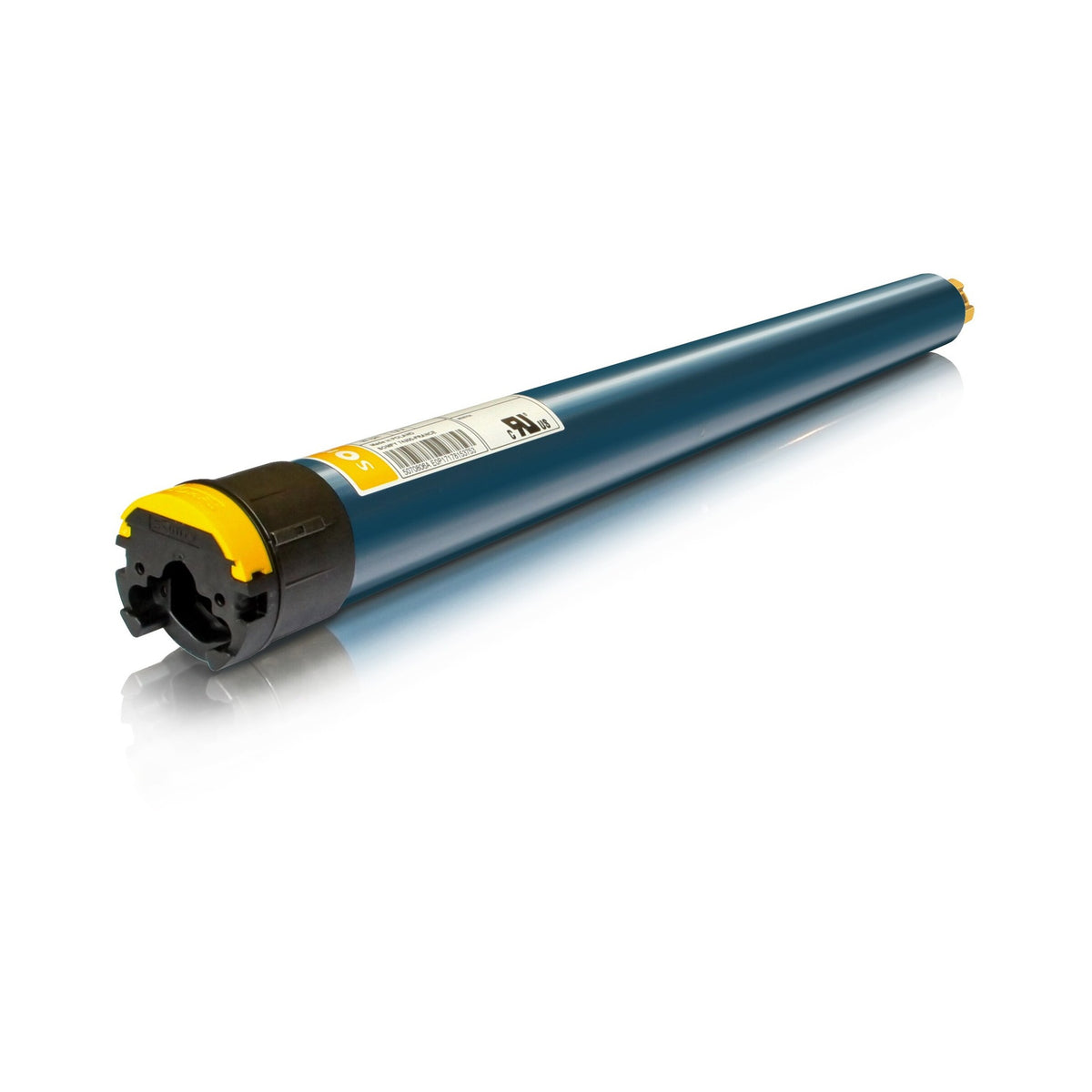

Somfy Sonesse 50 510S2 RH Standard 4-Wire Motor (RH) -- interior tubular motor

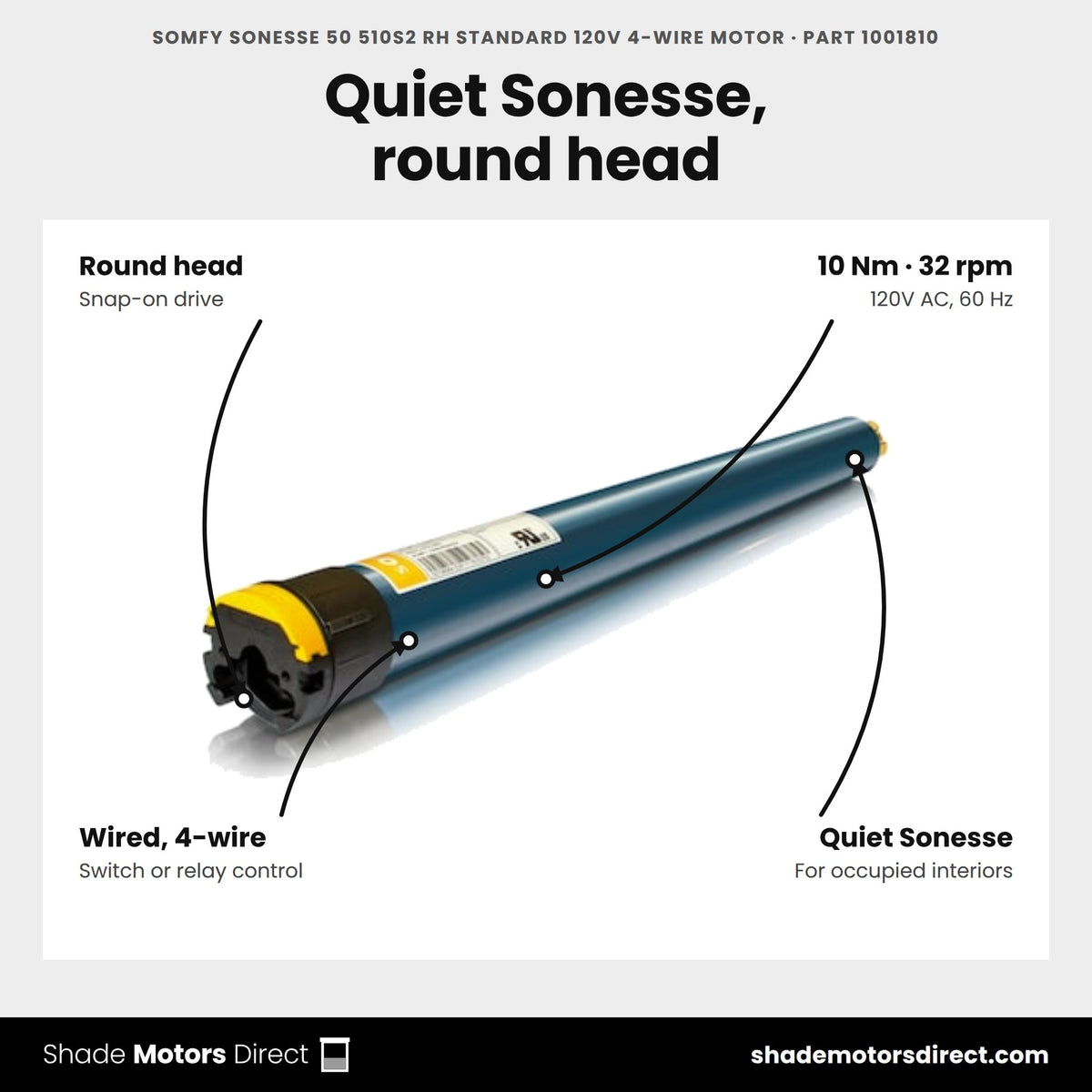

The Sonesse 50 510S2 RH Standard 4-Wire is a quiet 120V interior tubular motor delivering 10Nm (88" lb) at 32 rpm, controlled from a wired switch or third-party relay rather than radio.

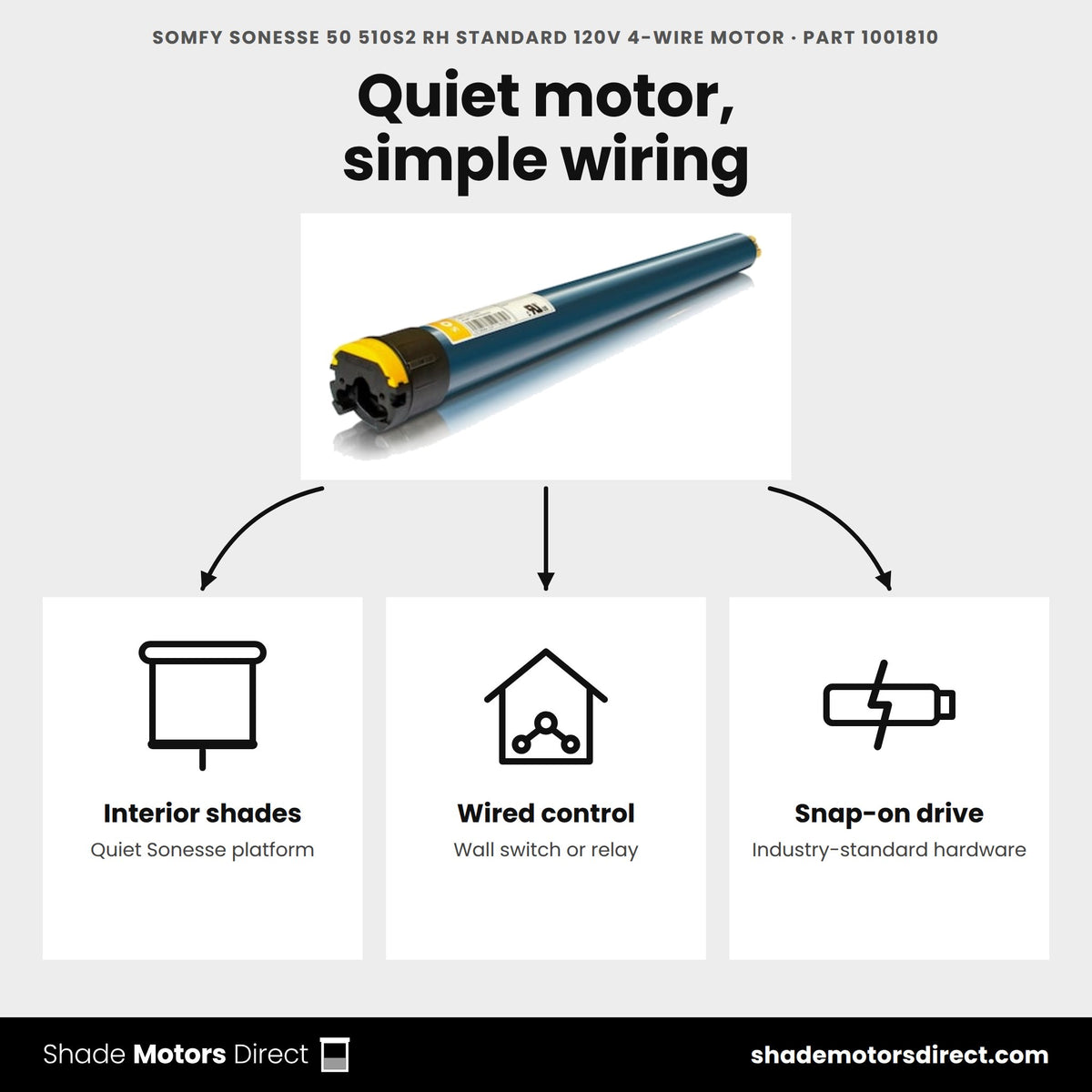

Benefits
- Quiet Sonesse platform tuned for occupied interior spaces
- Standard 4-wire control -- wired switch or relay
- Compatible with leading industry hardware, snap-on drive connection
- 5-year Somfy warranty
Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 32 rpm |
| Control | Standard 4-wire (wired switch or relay) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |

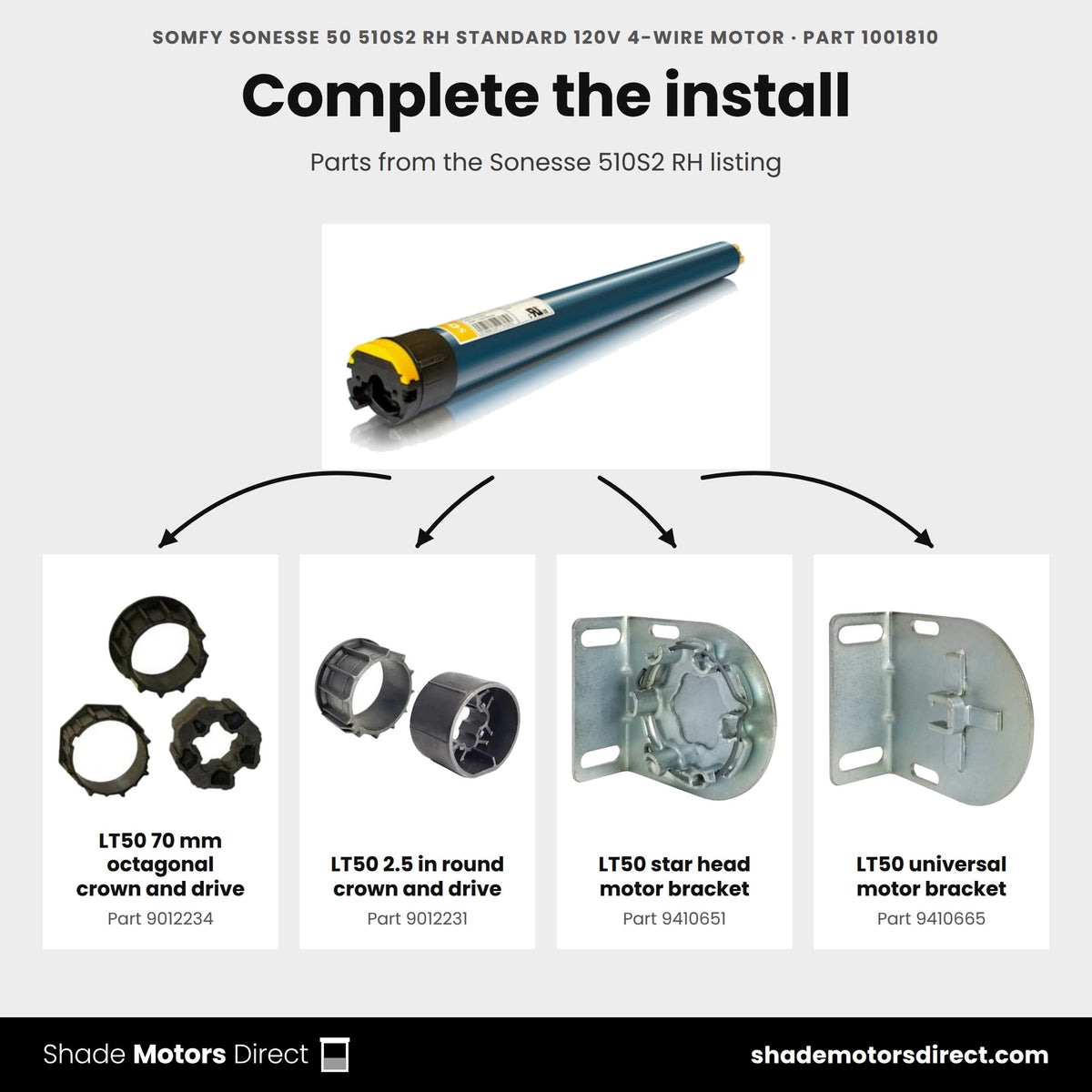

Compatible with: LT50 crown and drive sets, LT50 motor brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Sonesse 510S2 RH deliver?
Somfy rates part 1001810 at 10 Nm of torque and 32 rpm on 120V AC. It draws 1.67 A and Somfy lists a noise level of 47.2 dB.

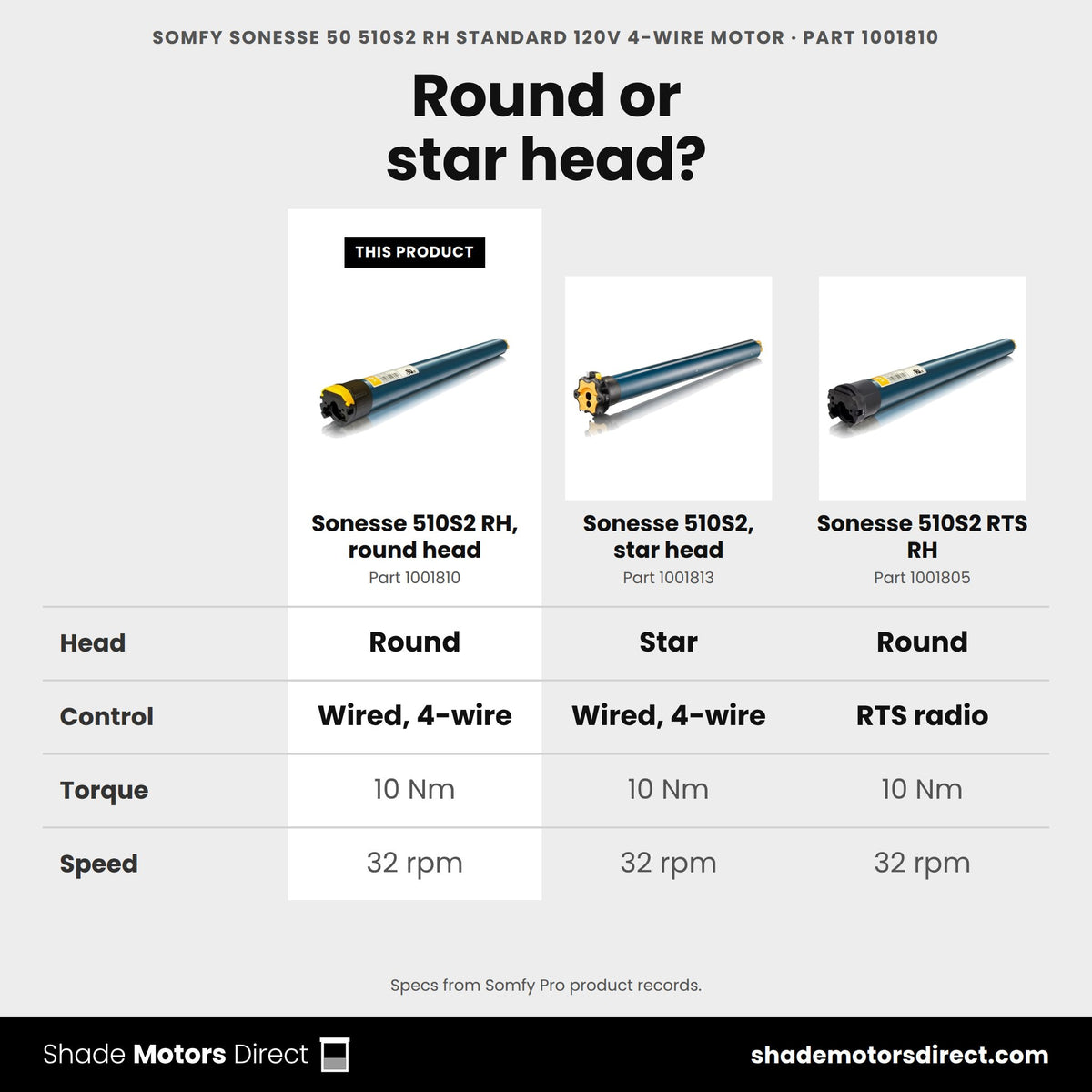

What head type does this motor use?
Somfy lists the head type for part 1001810 as round. Pick a motor bracket made for a round head before you order, since star head brackets suit a different head style.
What size roller tube does it fit?
Somfy lists a minimum tube inside diameter of 1.85 in. The compatible parts on this page include the LT50 2.5 in round crown and drive set (9012231) and the octagonal LT50 70mm crown and drive set (9012234).
How is the motor wired?
It is a standard 4-wire 120V motor with a 9.84 ft SJTW cable and stripped leads. A wired wall switch or a third-party relay runs it, and Somfy rates the motor IP 44.
How are the up and down limits set?
The motor uses mechanical limit switches with a capacity of 46 turns. You set the upper and lower stops at the motor during installation, before the shade goes into service.
Can I run it from a remote or my phone?
Yes. Add the Somfy Universal RTS Receiver (1810627), built for 110V AC motors, and the shade answers Somfy RTS remotes and a TaHoma hub. The Sonesse 510S2 RTS RH (1001805) offers 10 Nm and 32 rpm with the radio built in.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 50 510S2 RH Standard 120V 4-Wire Motor (round head) (1001810)
|
Somfy Sonesse 50 510S2 RS485 SDN 120V Motor (1002287)
|
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|

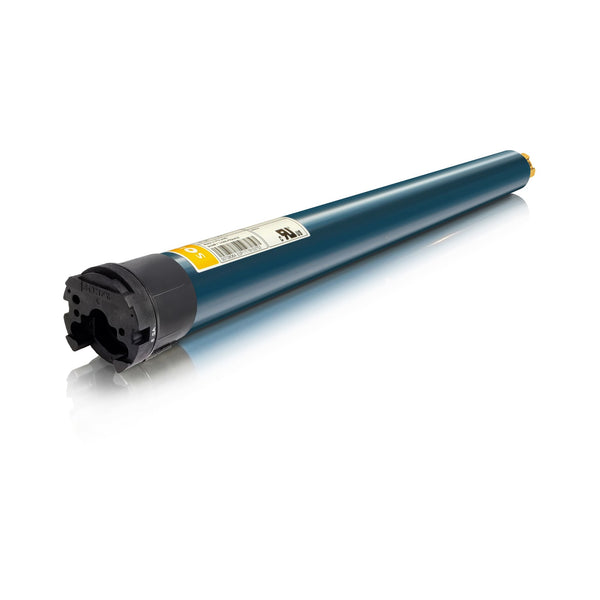

Somfy Sonesse 50 510S2 RTS RH 120V 3-Wire Motor (round head) (1001805)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 10.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | Wired 4-wire | RS485 (SDN) | Wired 4-wire | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, RS485 (SDN) control | 6.0 Nm instead of 10.0 | Same size, RTS radio control |
