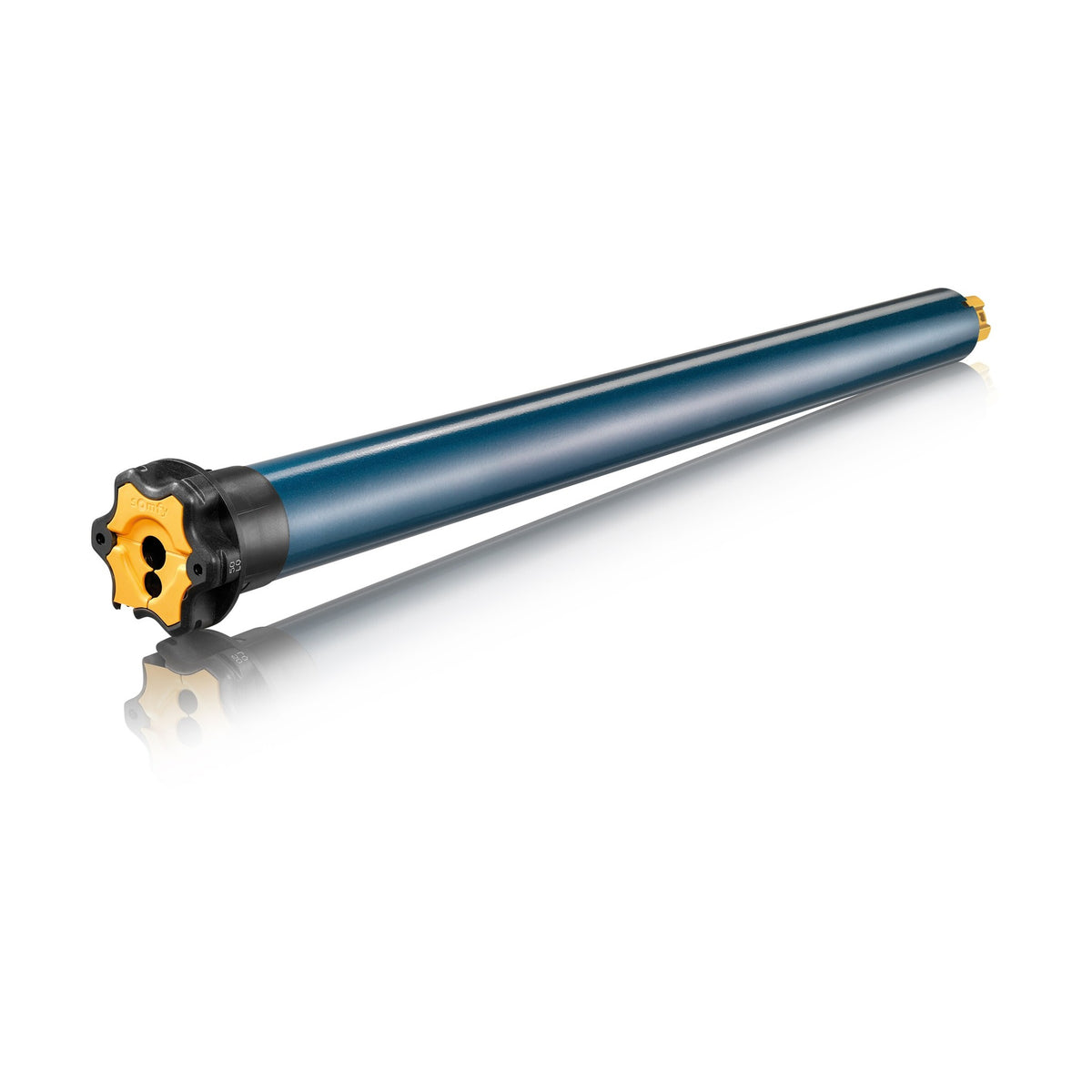

Somfy Sonesse 50 510S2 RS485 SDN Motor -- wired, two-way control for interior shading

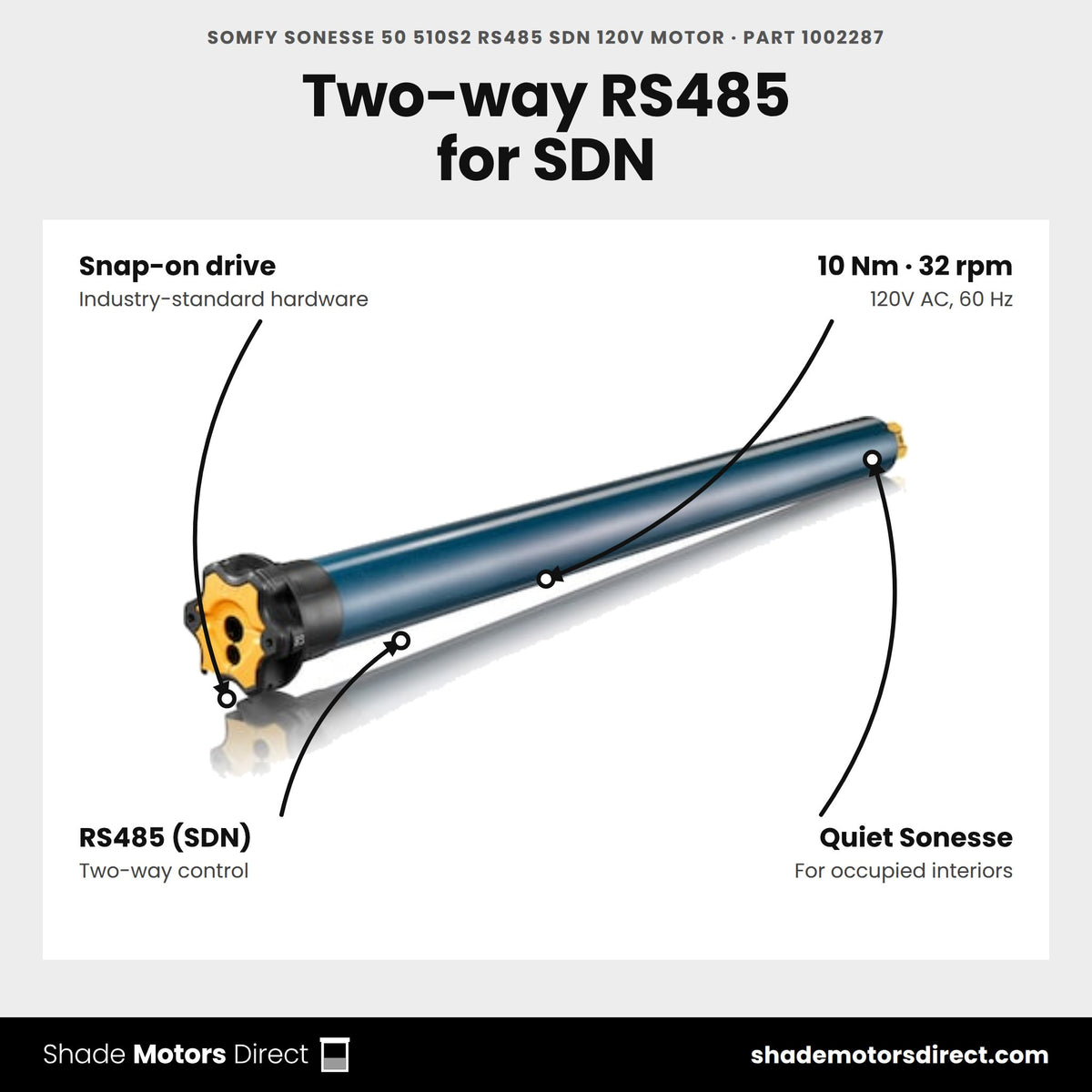

The Sonesse 50 510S2 RS485 is a wired, bi-directional motor on the Sonesse 50 tube platform, communicating over RS485 for the Somfy Digital Network. It delivers 10Nm (88" lb) at 32 rpm for interior roller shades, blinds, and projection screens in commercial and multi-family settings.
Benefits

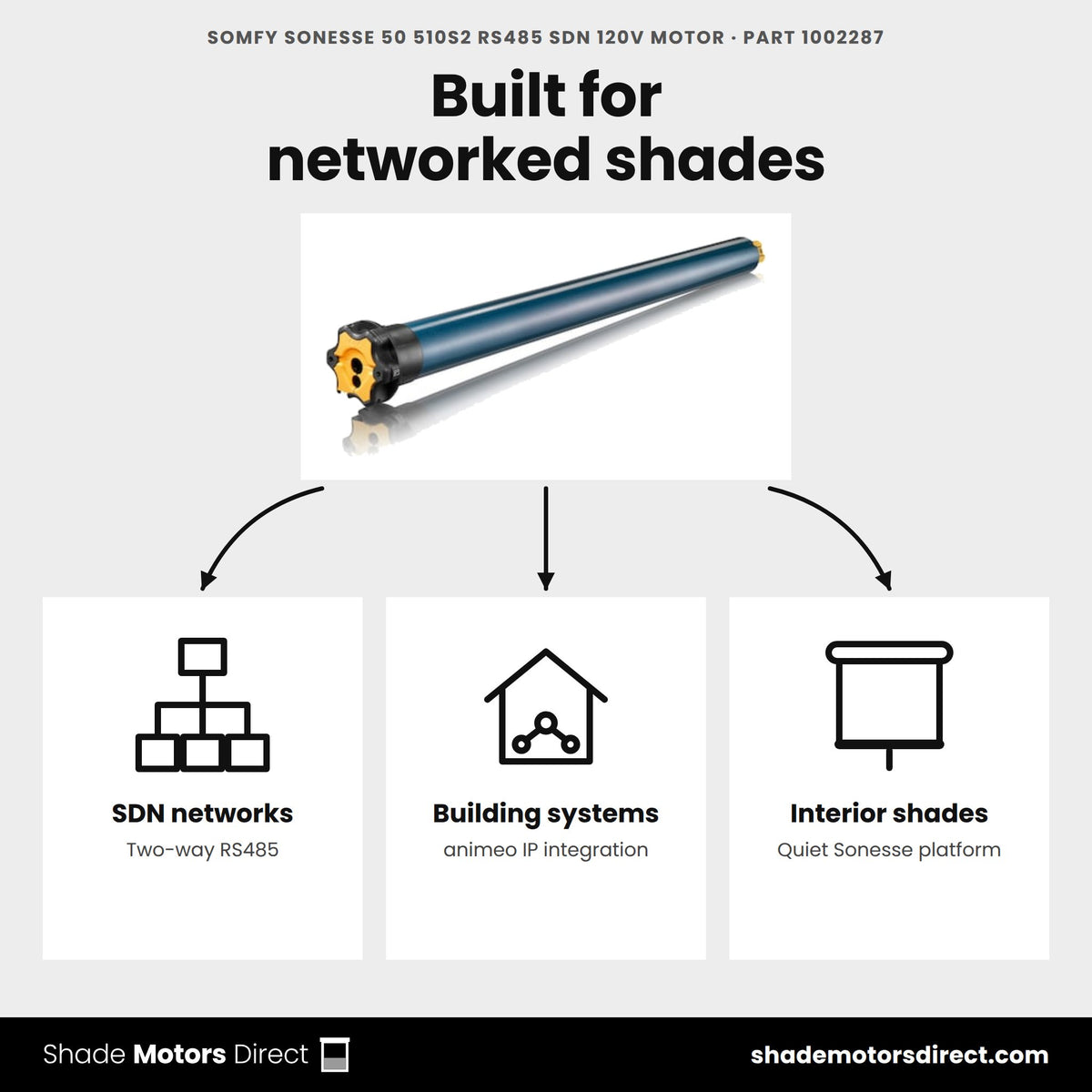

- Two-way RS485 communication for SDN and animeo IP building-management integration
- Ultra-quiet Sonesse platform for occupied interior spaces
- Compatible with leading industry hardware, snap-on drive connection
- Interchangeable power cord / quick-connector options
- 5-year Somfy warranty
Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 32 rpm |
| Control | RS485 (Somfy Digital Network) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |

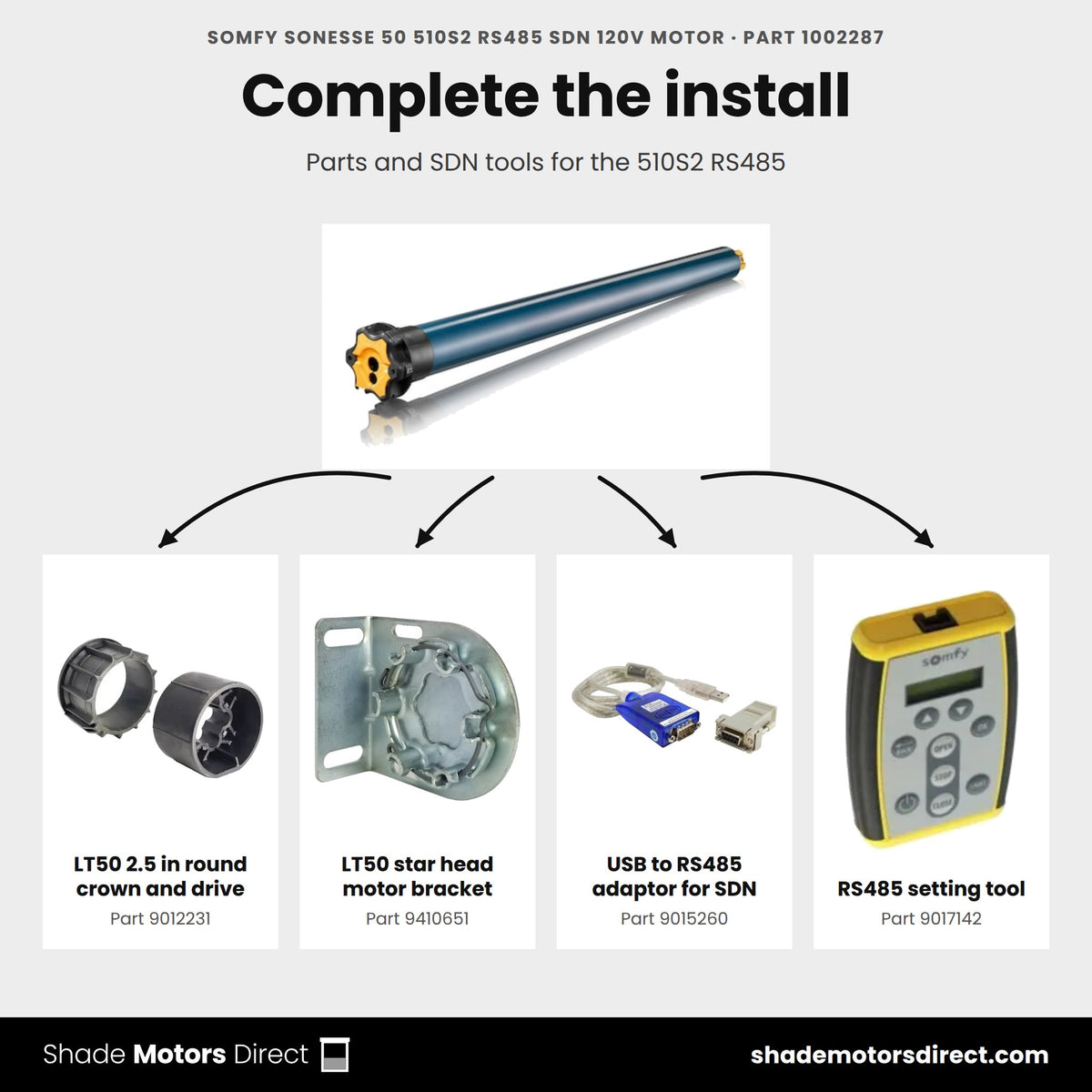

Compatible with: LT50 crown and drive sets, LT50 motor brackets, SDN RS485 commissioning tools
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 510S2 RS485 motor?
Part 1002287 is a Somfy Sonesse 50 motor with two-way wired RS485 communication for the Somfy Digital Network (SDN). Somfy lists it for roller, Roman, pleated, cellular, zebra and Venetian blinds, plus projection screens.
What torque and speed does it deliver?
Somfy rates the 510S2 RS485 at 10 Nm of torque and 32 rpm, with a noise level of 47.2 dB. It has a star head and suits tubes with an inside diameter of 47mm or more.
What power and wiring does it need?
The motor runs on 120V/60Hz and draws 200 W in operation and 0.5 W on standby. Power arrives on an SJTW 3-wire cable. Commands travel over a separate RS485 data link, such as the RJ9 to RJ45 data cables (9018542, 9018543).
How do I set limits and addresses?
Use the Somfy RS485 Setting Tool (9017142) to set limits and read motor addresses at the window. The USB to RS485 Adaptor for SDN (9015260) connects the network to a computer for commissioning.
What controls and systems work with it?
It joins an SDN network, where Somfy DecoFlex SDN keypads such as the 8-Button V2 keypad (1871472) handle local control. Two-way RS485 also lets building management and home automation systems send commands and read motor status.
Is there a stronger version for heavier shades?
Yes. The same Sonesse 50 RS485 SDN family includes the 515S2 (1002427) and the 535A2 (1002288), both rated for higher torque than the 510S2. Choose by shade weight and tube size.
Couldn't load pickup availability

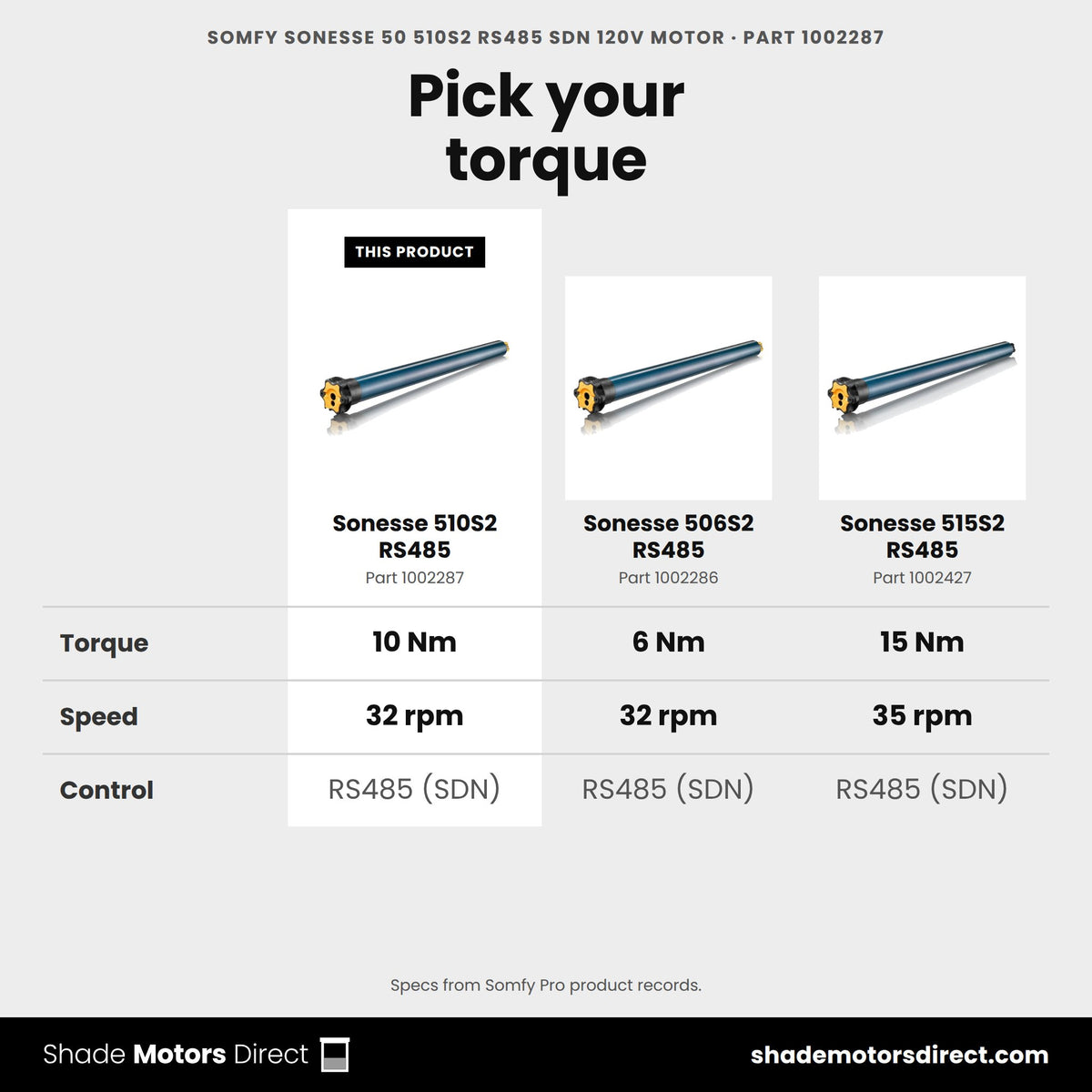

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 50 510S2 RS485 SDN 120V Motor (1002287)
|
Somfy Sonesse 50 510S2 RH Standard 120V 4-Wire Motor (round head) (1001810)
|
Somfy Sonesse 506S2 RS485 Motor (1002286)
|
Somfy Sonesse 50 515S2 RS485 SDN 120V Motor (15Nm) (1002427)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 15.0 |
| Speed (rpm) | 32 | 32 | 32 | 35 |
| Control | RS485 (SDN) | Wired 4-wire | RS485 (SDN) | RS485 (SDN) |
| Power | 120V AC | 120V AC | — | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 6.0 Nm instead of 10.0 | 15.0 Nm instead of 10.0 |
