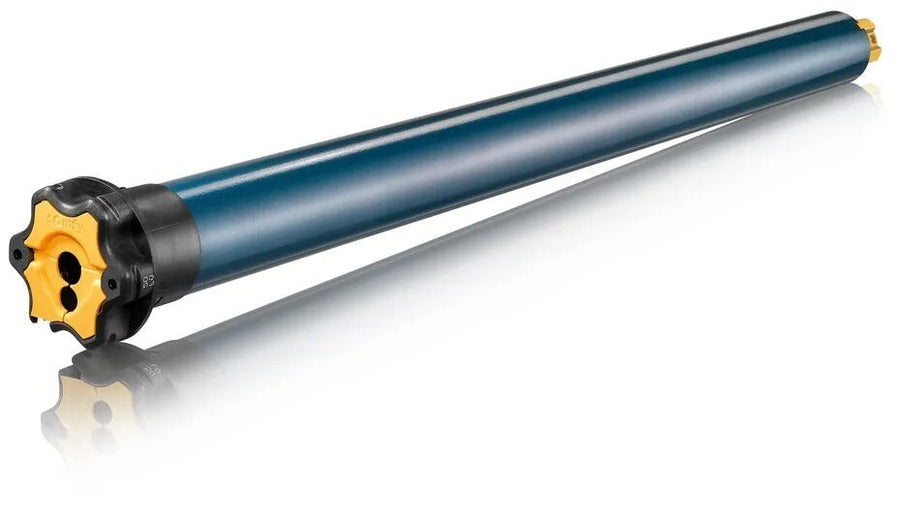

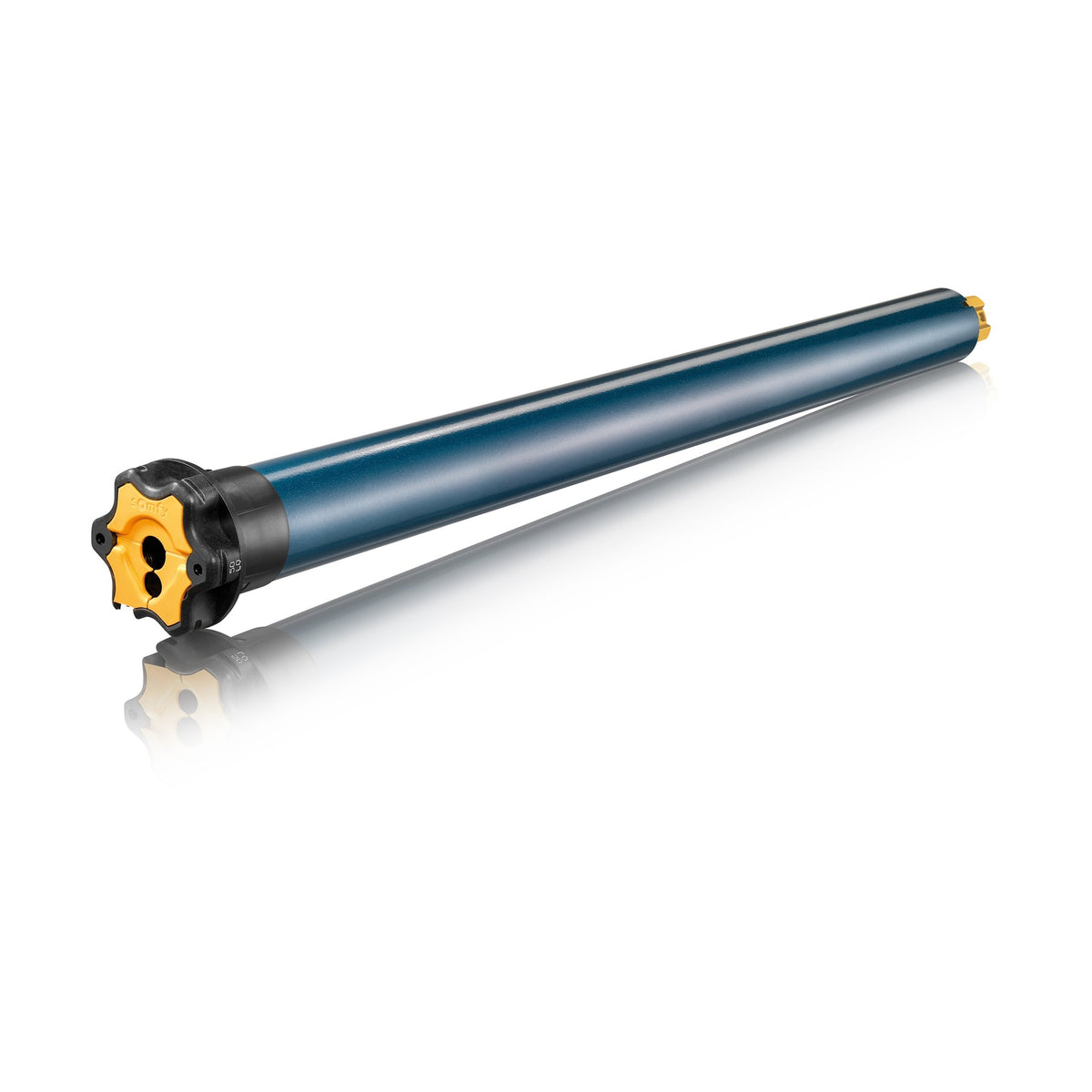

Somfy Sonesse 506S2 RTS 120V Motor (1001809)
Somfy Sonesse 506S2 RTS 120V Motor (1001809)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Sonesse 50 ultra-quiet tubular motor for interior and exterior window coverings
The Sonesse 50 range puts window coverings in motion with ultra-quiet precision. This wired motor is built for heavier, larger-format shades and screens where strength and near-silent operation both matter.
Benefits
- Ultra-quiet operation -- 45.1 dB
- Mounts six different ways with a snap-on roller tube adaptor connection
- Compatible with Somfy's full range of RTS controls, sensors, and timers
- Voice and app control via TaHoma; integrates with third-party automation
- Backed by Somfy's standard 5-year warranty
Specifications
| Torque / Speed | 6 Nm / 32 rpm |
| Noise level | 45.1 dB |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Motor tube size | 50mm |

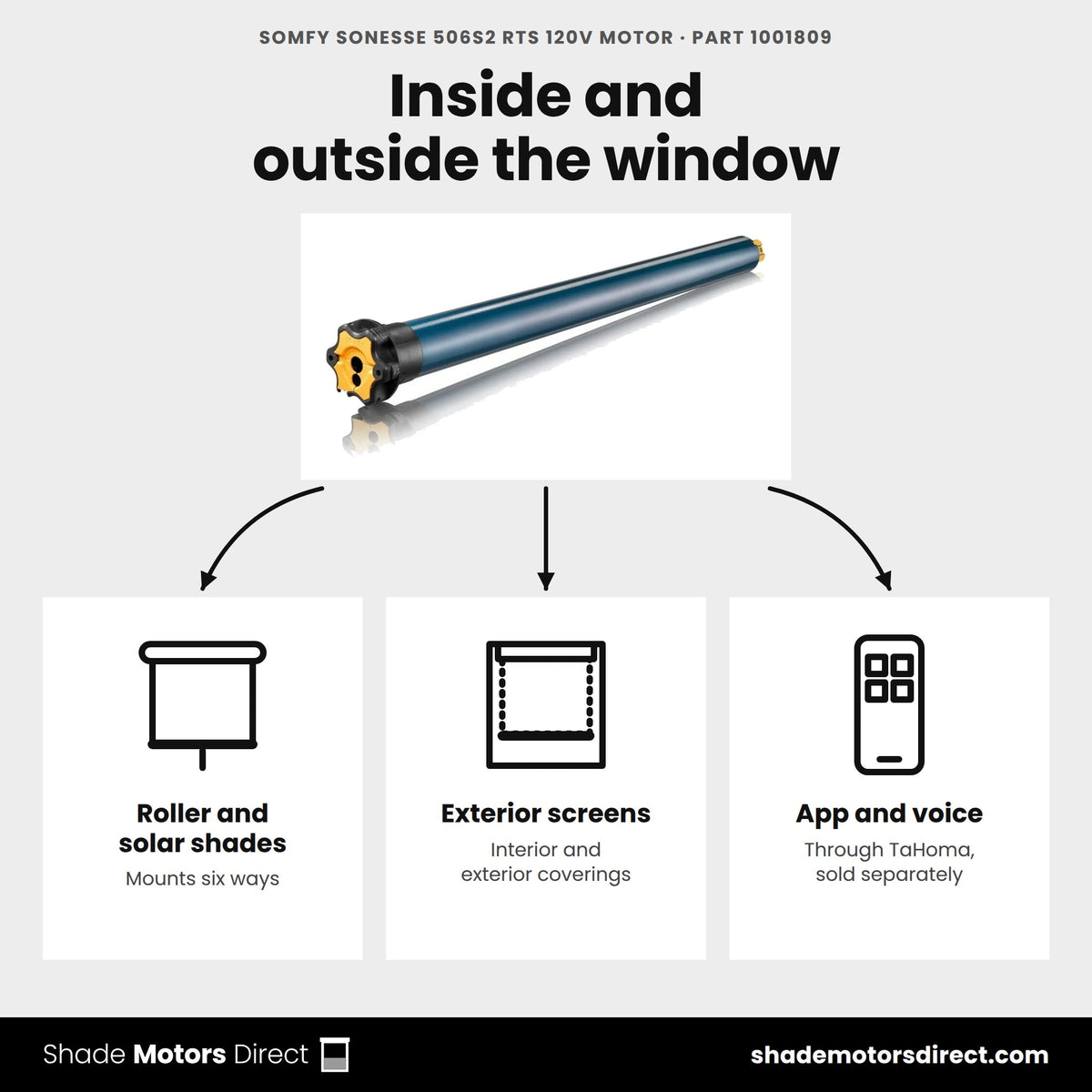

| Application | Interior and exterior window coverings, roller/solar shades, screens |
| Warranty | 5 years |

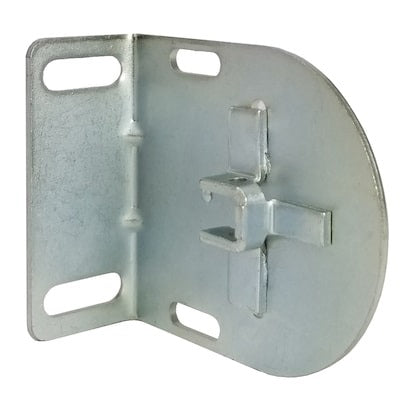

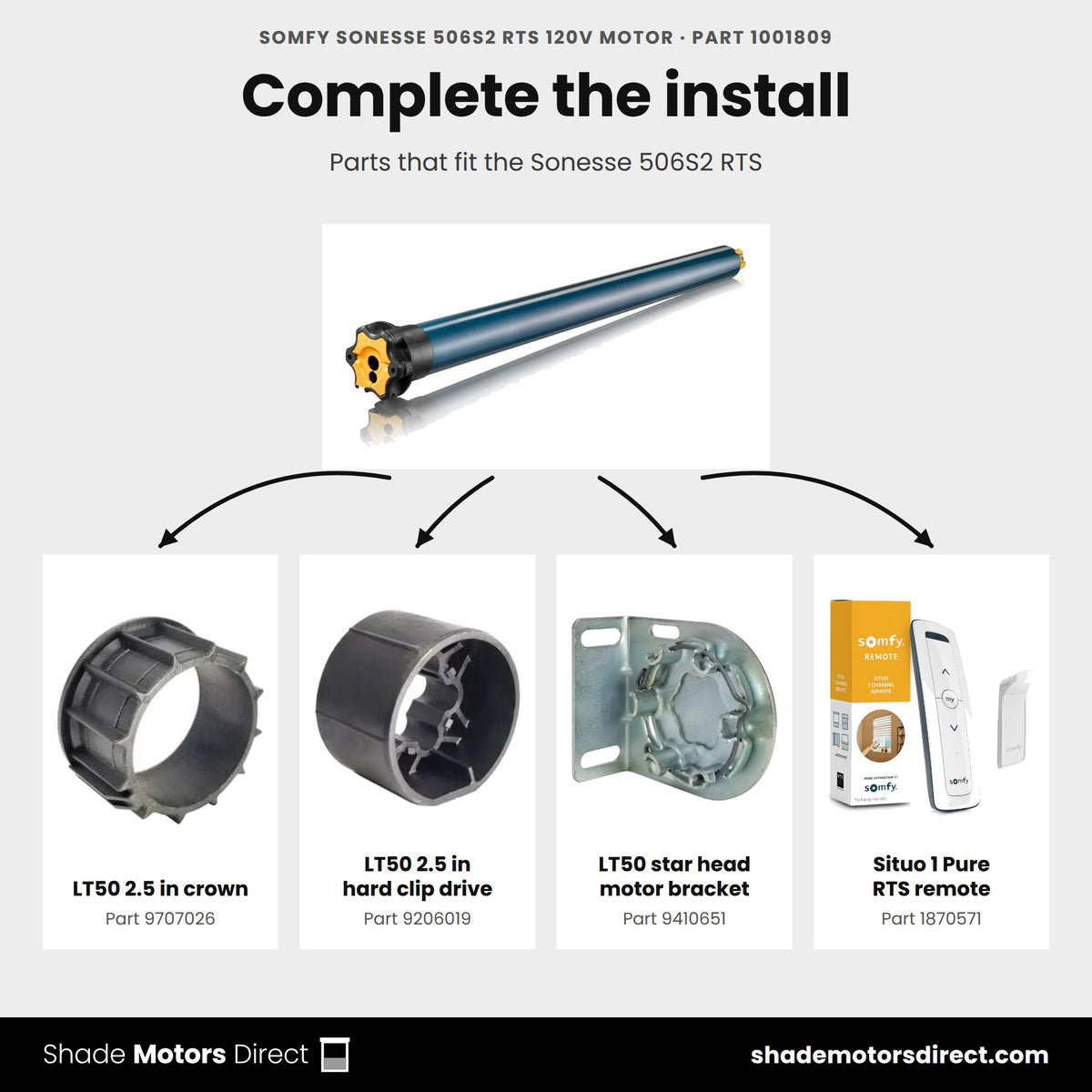

Compatible with: Sonesse 50 tube, crown & drive, and bracket hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Sonesse 506S2 RTS deliver?
Somfy rates part 1001809 at 6 Nm of torque and 32 rpm.
What is the smallest roller tube this motor fits?
Somfy lists a minimum tube inside diameter of 1.85 in. The compatible parts on this page include 2 in and 2.5 in tubes with matching LT50 crowns and drives.
Does this motor need power at the window?
Yes. It is a 120V wired motor with a built-in RTS radio receiver. The radio replaces the control wiring, not the power feed.
Which remotes and switches work with it?
Any Somfy RTS transmitter, including Situo and Telis remotes, DecoFlex RTS wall switches and Chronis RTS timers. Each motor stores up to 12 transmitters. Somfy rates RTS range at 656.2 ft in open field, and walls shorten that indoors.
Can I control it from my phone or a voice assistant?
Yes, through a Somfy TaHoma hub. RTS is one-way radio, so the app sends commands but cannot report the shade's position.
How loud is it, and is there a quieter option?
Somfy rates this motor at 45.1 dB. If noise matters most, the Sonesse ULTRA 506A2 RTS (1002562) runs at 38 dB with the same 6 Nm of torque at 24 rpm.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 506S2 RTS 120V Motor (1001809)
|
Somfy Sonesse 506S2 PA Motor (1001801)
|
Somfy Sonesse 50 510S2 RTS RH 120V 3-Wire Motor (round head) (1001805)
|
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 10.0 | 6.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | RTS radio | Wired | RTS radio | Wired 4-wire |
| Power | 120V AC | — | 120V AC | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired control | 10.0 Nm instead of 6.0 | Same size, Wired 4-wire control |
| Buy | Currently viewing | View details | View details | View details |
