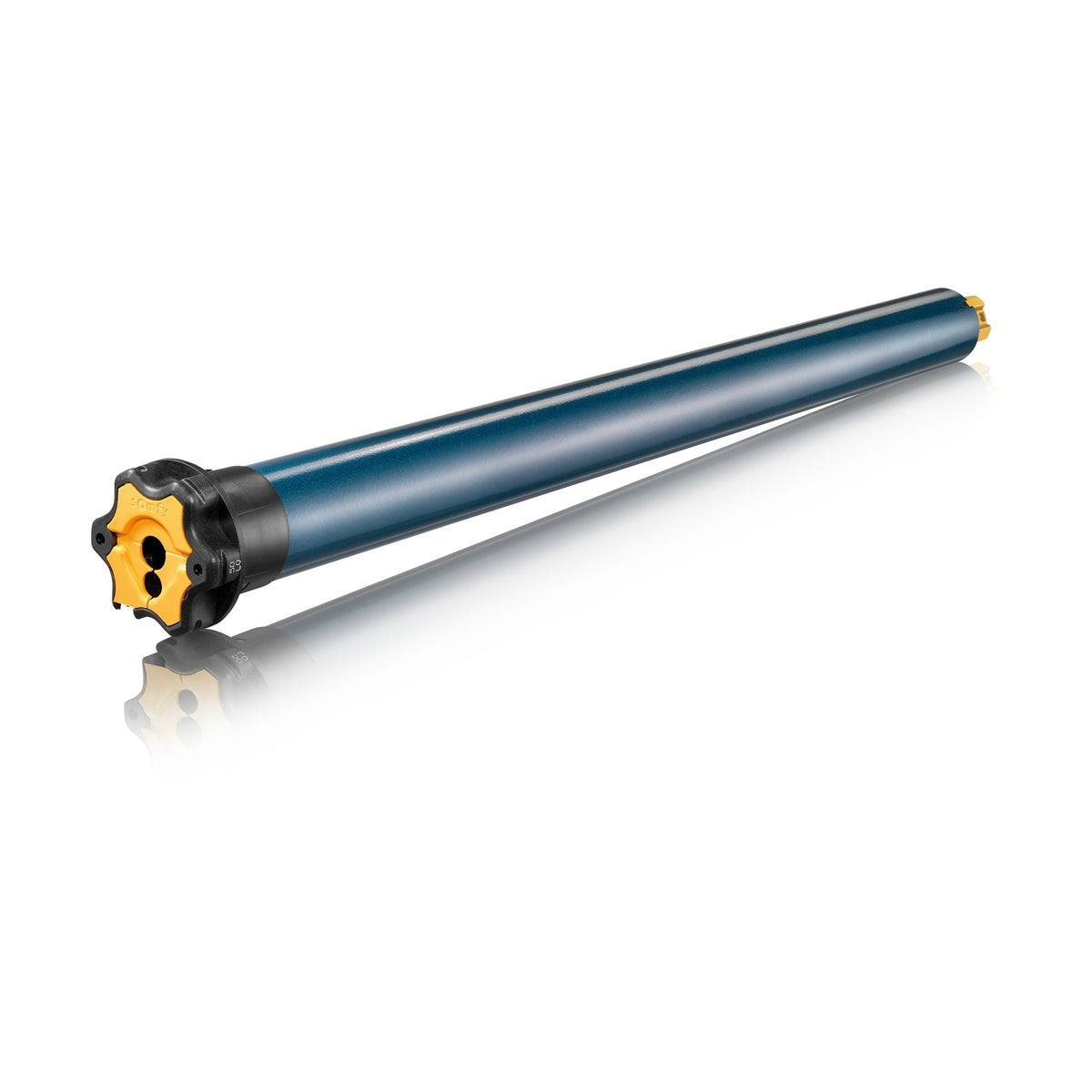

Somfy Sonesse 506S2 RS485 Motor (1002286)
Somfy Sonesse 506S2 RS485 Motor (1002286)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Sonesse 50 ultra-quiet tubular motor for interior and exterior window coverings
The Sonesse 50 range puts window coverings in motion with ultra-quiet precision. This wired RS485 motor is built for heavier, larger-format shades and screens where strength and near-silent operation both matter.

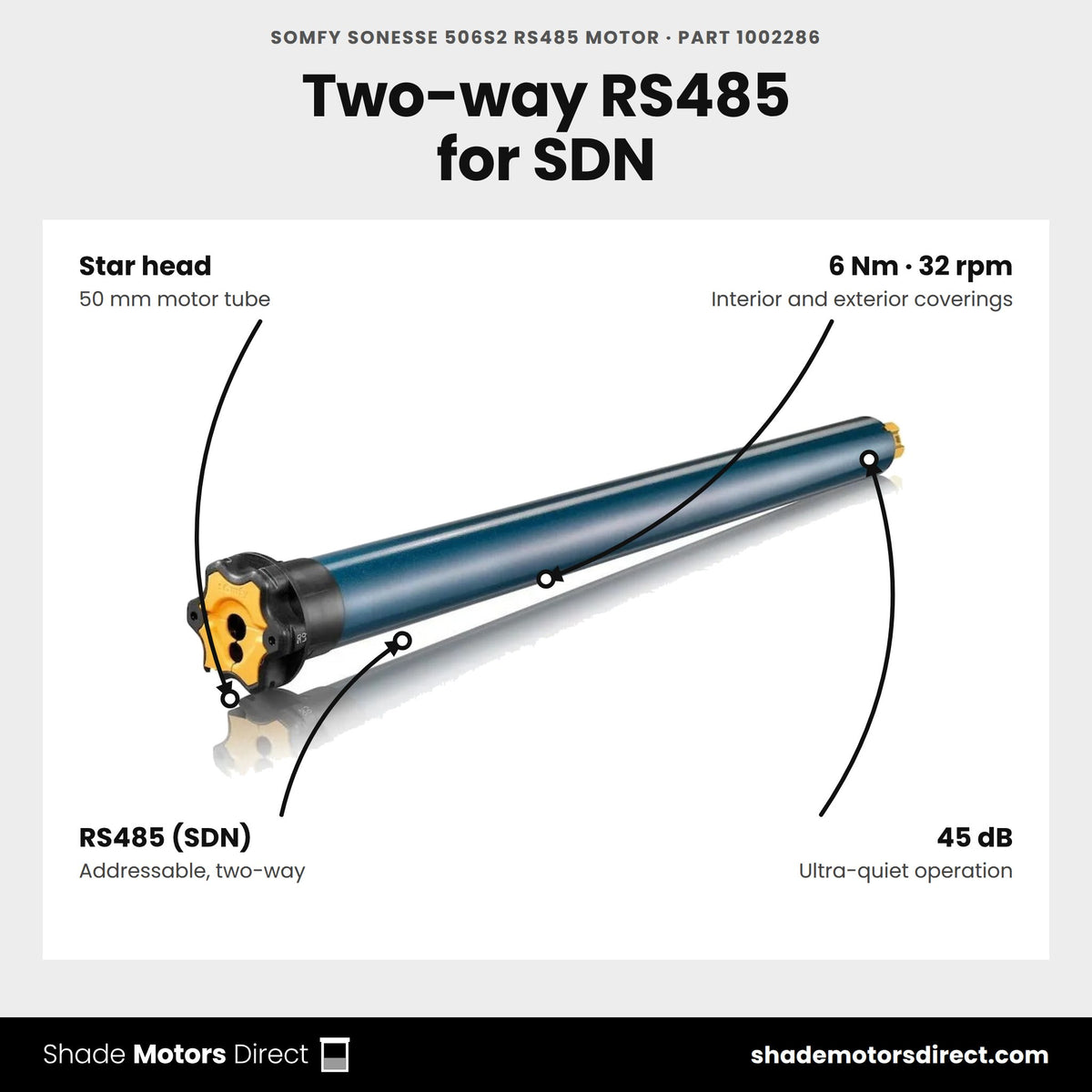

Benefits
- Ultra-quiet operation -- 45 dB
- Mounts six different ways with a snap-on roller tube adaptor connection
- Addressable, bidirectional control over Somfy Digital Network (RS485)
- Reports position back to the controller, so scenes can be built on real shade state
- Backed by Somfy's standard 5-year warranty
Specifications
| Torque / Speed | 6 Nm / 32 rpm |
| Noise level | 45 dB |
| Control protocol | RS485 (Somfy Digital Network) |
| Head type | Star |
| Motor tube size | 50mm |
| Application | Interior and exterior window coverings, roller/solar shades, screens |
| Warranty | 5 years |
Compatible with: Sonesse 50 tube, crown & drive, and bracket hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions

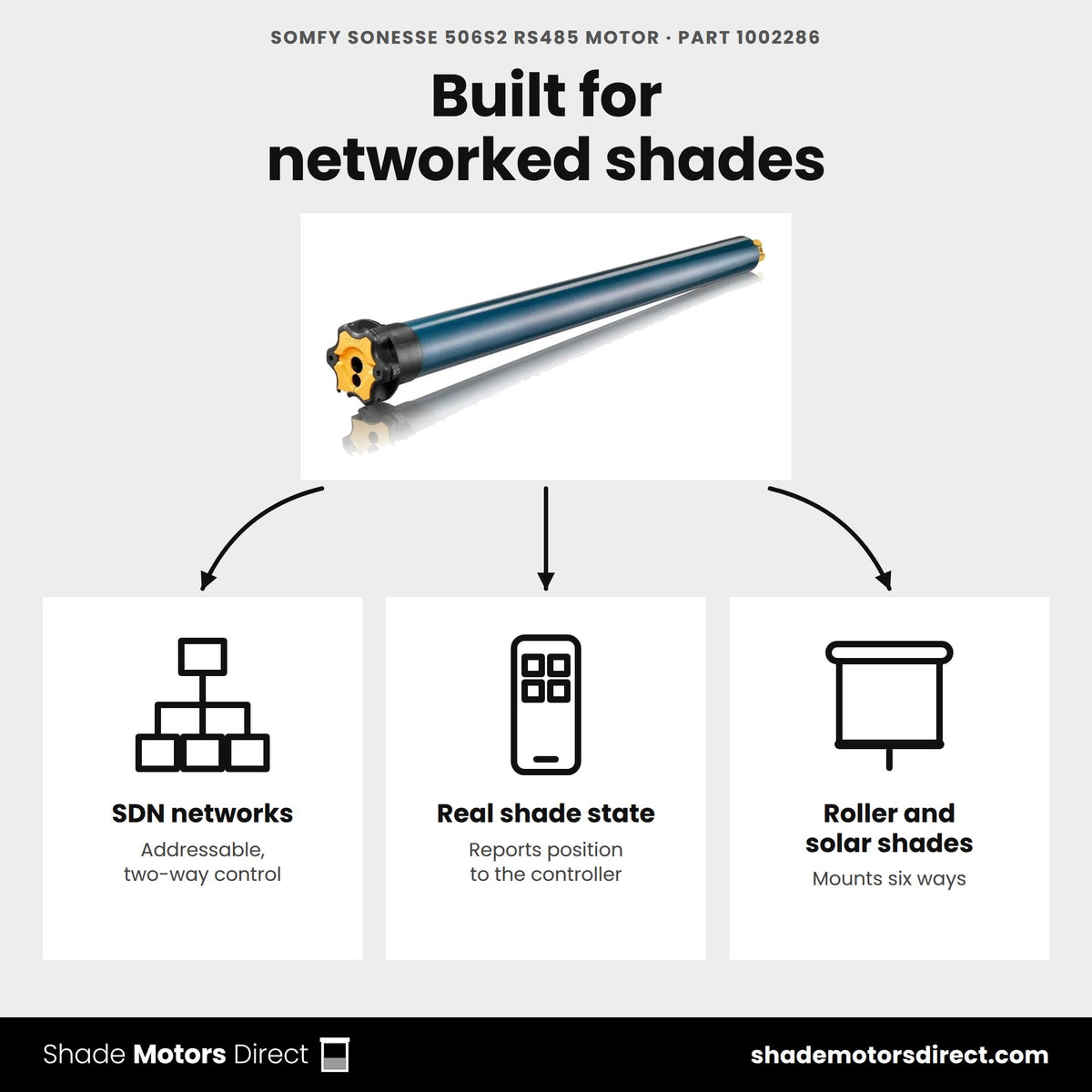

What is the Sonesse 506S2 RS485 built for?
Part 1002286 is a wired Sonesse 50 motor for larger interior and exterior shades and screens on a Somfy Digital Network. Each motor has its own address on the RS485 bus and reports its position back to the control system.
What torque and speed does it deliver?
Somfy rates the 1002286 at 6 Nm of torque and 32 rpm, with a noise level of 45 dB. It has a star head, electronic limits with a capacity of 250 turns, and needs a tube with an inside diameter of at least 1.85 in.
What power does it need?
It runs on 120V/60Hz AC within a range of 108 V to 132 V, with a rated current of 1.2 A and 140 W in operation. Power arrives through a 9.84 ft, 3-wire SJTW cable, while control commands travel over the RS485 bus.
How is this motor controlled?
An RS485 control system on the Somfy Digital Network sends commands to each motor by its address. Because the link is two-way, the system knows each shade's real position and can build scenes around it.
Which tools help with setup?
The Somfy RS485 Setting Tool (9017142) sets motor limits and reads motor addresses. The USB to RS485 Adaptor for SDN (9015260) links a computer to the network for configuration.

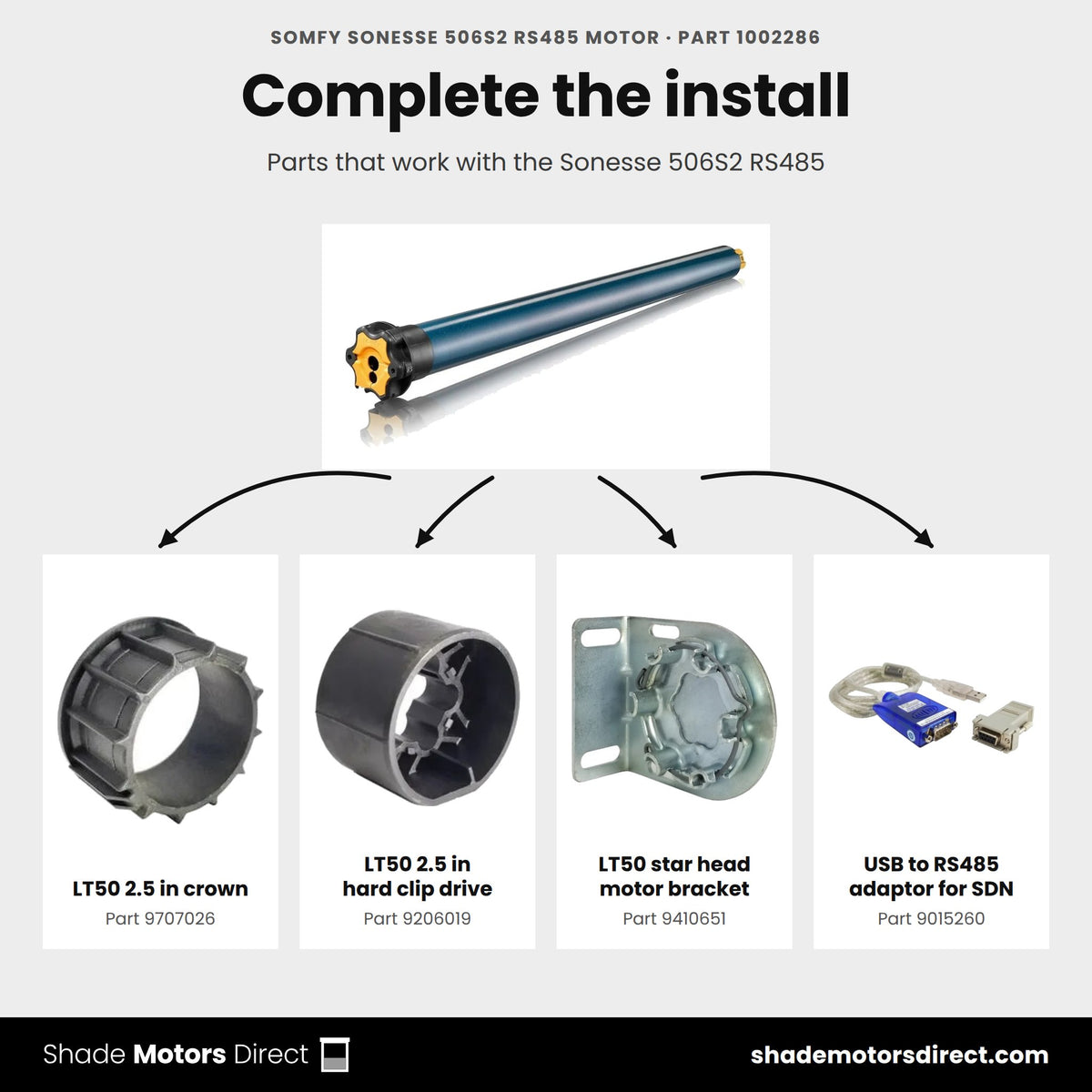

Which tubes and hardware fit?
Somfy LT50 and Sonesse 50 hardware fits. Options include the LT50 2.5 in Crown (9707026), the LT50 2.5 in Hard Clip Drive (9206019), the LT50 Star Head Motor Bracket (9410651) and the 2.5 in OD Aluminum Tube (1781343). Somfy rates the motor IP 44 from -4 °F to 140 °F.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 506S2 RS485 Motor (1002286)
|
Somfy Sonesse 506S2 PA Motor (1001801)
|
Somfy Sonesse 50 510S2 RS485 SDN 120V Motor (1002287)
|
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 10.0 | 6.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | RS485 (SDN) | Wired | RS485 (SDN) | Wired 4-wire |
| Power | — | — | 120V AC | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired control | 10.0 Nm instead of 6.0 | Same size, Wired 4-wire control |
| Buy | Currently viewing | View details | View details | View details |
