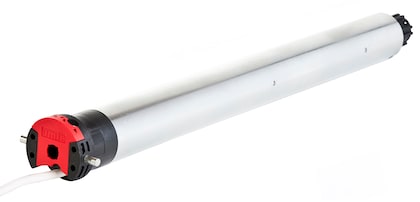

Somfy Simu T5 15Nm 18rpm 120V (2000646)
Somfy Simu T5 15Nm 18rpm 120V (2000646)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
T5 15Nm 18rpm 120V -- wired 4-wire operator motor for rolling shutters and awnings
The Simu T5 15Nm 18rpm 120V (2000646) is a wired tubular motor that drives rolling shutters, awnings and exterior screens with 15 Nm of torque at 18 rpm. It runs on 120V/60Hz AC and draws 1.1 A. Mechanical limit switches cover up to 30 turns of travel. Use it to replace a worn Simu T5 operator or to motorize a new shutter on a wired switch.
Benefits
- 15 Nm of torque at 18 rpm on standard 120V/60Hz power
- Mechanical limit switches with a 30-turn capacity
- Round head with pins seats in Simu T5 operator brackets
- IP 44 protection and Class I insulation for exterior shutter and awning boxes
- 8.2 ft 4-wire VVF cable for direct wiring to a wired switch
- 5-year Somfy warranty
Specifications
| Torque / Speed | 15 Nm / 18 rpm |
| Power supply | 120V/60Hz AC |
| Rated current | 1.1 A |
| Power consumption | 145 W running, 0 W standby |
| Control | Wired (4-wire) |
| Limit switches | Mechanical, 30 turns |
| Head type | Round with pins |
| Cable | 8.2 ft, 4-wire VVF, white |
| Protection | IP 44, Class I insulation |
| Overall diameter | 1.97 in |
| Operating temperature | -4°F to 140°F |
| Noise level | 50 dB |
| Warranty | 5 years |
| Applications | Rolling shutters, awnings, exterior solar screens |
| Part number | 2000646 |
Compatible with: Simu T5 operator brackets such as the 80mm x 80mm square bracket (9520049); T5/T6 aluminum drives (9012950 60mm round, 9011878 70mm octagonal, 9420300 85mm Simbac); the LT50-style crowns and drives Somfy lists for the T5, including 60mm octagonal and 2.5 in round sets. Wired switch control only; no built-in radio receiver.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu 2000646 deliver?
The Simu T5 15Nm 18rpm 120V (2000646) delivers 15 Nm of torque at 18 rpm on 120V/60Hz AC power. Somfy rates it at 1.1 A and 145 W running. Size the motor to the weight of the shutter curtain or awning fabric, and step up in torque for large or heavy shutters.
Does the Simu 2000646 have a radio receiver?
No. Somfy lists the T5 2000646 as a wired motor with a 4-wire cable, so it has no built-in Hz or RTS receiver. You run it from a wired up/down switch. Choose a Simu T5 Hz model when you want handheld radio control.
How do I set the limits on the 2000646?
The T5 2000646 uses mechanical limit switches with a 30-turn capacity. Simu builds the T5 range around a progressive end-limit system for wired motors. Set both the up and down stops before the shutter or awning goes into regular service, then run a full cycle to confirm them.
Which brackets and drives fit the Simu T5 2000646?
The 2000646 has a round head with pins. Somfy lists the T5 Operator Bracket 80mm x 80mm square (9520049) and T5/T6 aluminum drives such as 9012950 (60mm round) and 9011878 (70mm octagonal) among its accessories. Match the crown and drive to your roller tube profile.
Is the 2000646 rated for outdoor shutter boxes?
Somfy rates the Simu T5 2000646 at IP 44 with Class I insulation and an operating range of -4°F to 140°F. Mount it inside the shutter or awning tube where the head stays protected from direct water. Somfy backs the motor with a 5-year warranty.
Couldn't load pickup availability
Replace a Simu T5 or DMI5 motor, or build a new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2000646.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Drive end Turns the tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit crown and drive
Fit the T5 crown and drive for your tube, then slide the new motor in.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T5 15Nm 18rpm 120V needs to run
Somfy lists every part below as compatible with part 2000646. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
