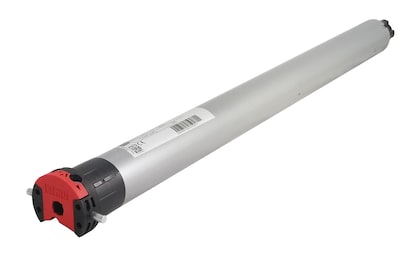

Simu T5 15Nm 17rpm 24V DC -- 15 Nm 24V DC tubular motor
The Simu T5 DC 2004495 is a 24V DC tubular motor rated at 15 Nm and 17 rpm. It uses mechanical limit switches and a 4-wire cable, so it suits low-voltage and off-grid shading projects. Somfy lists it for awnings, exterior solar screens, interior shades and rolling shutters.
Benefits
- 15 Nm of torque at 17 rpm on 24V DC
- Wide input range of 18V to 30V DC
- Mechanical limit switches with a 28-turn capacity
- Class III low-voltage insulation and IP 44 protection
- 5-year Somfy warranty
Specifications
| Torque / Speed | 15 Nm / 17 rpm |
| Power supply | 24V DC (18V to 30V), sold separately (draws 62 W in operation per Somfy) |
| Rated current | 2.3 A |
| Power consumption | 62 W operating |
| Control | Wired, 4-wire |
| Limit switches | Mechanical, 28 turns |
| Head type | Round with pins |
| Cable | 8.2 ft, 4-wire, white |
| Motor diameter | 1.77 in (head 1.97 in) |
| Minimum tube inside diameter | 1.64 in |
| Protection | IP 44, Class III insulation |
| Operating temperature | -4°F to 140°F |
| Warranty | 5 years |
Compatible with: Simu T5 50 mm motor class with a round head with pins. Somfy lists T5 operator brackets (80 x 80 mm, 100 x 100 mm, 48 mm and pin mounts), T5/T6 aluminum drives, LT50 crowns and drives from 2 in to DS 85 mm, and drive stops as accessories. Runs from a 24V DC supply or switch; no radio receiver is built in.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
How strong and fast is the Simu T5 DC 2004495?
Simu rates the 2004495 at 15 Nm of torque and 17 rpm on 24V DC. That puts it in the T5 DC range used for low-voltage rolling shutters, awnings and exterior screens where a 120V circuit is not available.
What power does the 2004495 need?
The Simu T5 DC 2004495 runs on 24V DC and accepts 18V to 30V. Somfy rates it at 2.3 A and 62 W while operating. Size your 24V DC power supply or battery for that current, with headroom for the motor at start-up.
How are the limits set?
The 2004495 uses mechanical limit switches with a 28-turn capacity. You set the upper and lower stops at the motor head during installation. The Simu T3.5DC, T5 12V and T5 24V installation guide shows the wiring and the limit adjustment steps.
Can it be used outdoors?
Yes. Somfy lists the 2004495 for awnings, exterior solar screens, rolling shutters and interior shades. It carries an IP 44 rating, Class III low-voltage insulation and an operating range of -4°F to 140°F, with a 5-year Somfy warranty.
Which crowns, drives and brackets fit?
The 2004495 is a 50 mm class T5 motor. Somfy lists T5 operator brackets such as the 80 x 80 mm square bracket (9520049), plus T5/T6 aluminum drives and LT50 crowns and drives sized to round and octagonal tubes.
Couldn't load pickup availability
Replace a Simu T5 or DMI5 motor, or build a new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2004495.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit crown and drive
Fit the T5 crown and drive for your tube, then slide the new motor in.
-
4
Wire it up
Connect the motor to its DC power supply and control, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire it up
Connect the motor to its DC power supply and control, then set the limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T5 15Nm 17rpm 24V DC needs to run
Somfy lists every part below as compatible with part 2004495. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T5 15Nm 17rpm 24V DC for 5 years. We handle the claim.
Somfy warranty on the Simu T5 15Nm 17rpm 24V DC, part 2004495.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
