Somfy Sunea 550R2 CMO RTS 120V Motor (1118210)
Somfy Sunea 550R2 CMO RTS 120V Motor (1118210)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

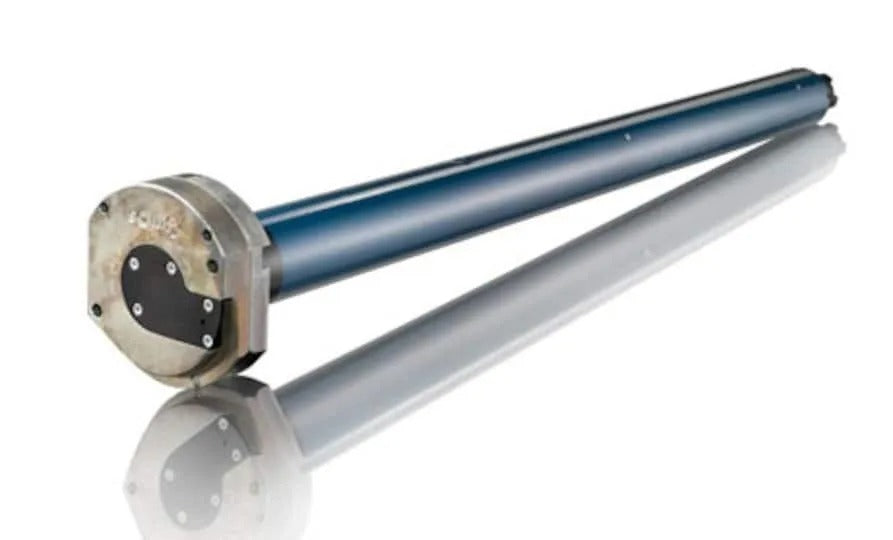

Sunea RTS CMO motor -- cassette and semi-cassette awning specialist with manual override
The Sunea RTS CMO motor is Somfy's dedicated motor for cassette, semi-cassette, and standard awnings. It automatically re-settles its limits as the fabric stretches over time, and includes a compact manual override crank so the awning can still be operated by hand if power is lost.
Benefits
- Automatically resets limits as awning fabric settles or stretches
- Compact manual override (CMO) crank keeps the awning usable during a power outage
- Soft-close function reduces stress on awning arms
- Electronic obstacle detection stops the motor if a blockage occurs
- Settings and programming are retained in the motor's memory
Specifications
| Torque / Speed | 50 Nm / 14 rpm |
| Overall length | 28.35 in (720 mm) |
| Minimum tube inside diameter | 1.85 in |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Control | Radio Technology Somfy (RTS), built-in receiver |
| Power | 120V, plug-in or hardwired |
| Warranty | 5 years |
Compatible with: Cassette, semi-cassette, and standard retractable awnings
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sunea RTS CMO 550R2 used for?
Part 1118210 is Somfy's motor for cassette, semi-cassette and standard retractable awnings. It resets its limits as the awning fabric settles, uses a soft-close function to ease stress on the arms, and stops when it detects an obstacle.
What does CMO mean?
CMO stands for compact manual override. The motor head accepts a crank, so you can open or close the awning by hand during a power outage. This site carries the Somfy CMO Awning Override Shaft, 100mm with Geiger eye (9707287).
What are its torque, speed and noise ratings?
Somfy rates the Sunea 550R2 at 50 Nm of torque and 14 rpm, with a noise level of 55 dB. It has an external diameter of 1.97 in and fits tubes with a minimum inside diameter of 1.85 in.
How do I connect power?
The motor runs on 120V/60Hz AC at a rated 2.1 A and 240 W. Somfy ships it with a 1.31 ft lead that ends in a fast connector. Add a Somfy 3 wire fast connector cable with plug, such as the 10.4 ft (9020791) or 24 ft (9020793) length, to reach the outlet.
Which controls and sensors work with it?
Any Somfy RTS transmitter pairs with it, including Telis RTS patio remotes, Situo RTS remotes and DecoFlex RTS wall switches, up to 12 channels. For wind protection, the Eolis 3D WireFree RTS wind sensor (1816081) mounts on the awning and signals it to retract in strong gusts.
Can I run the awning from an app?
Yes. The Somfy TaHoma Switch hub (1871037) controls RTS motors from a phone app and supports schedules and voice assistants. RTS is one-way radio, so the app sends commands without reading back the awning's position.
Couldn't load pickup availability
Replace an override motor or build a new awning with a hand-crank backup.
Replacing? Your fabric stays on the roller. Building new? Every part below is Somfy-matched to part 1118210.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive Turns the tube.
Replacing a motor
-
1
Retract and cut power
Retract the awning or screen fully, turn off the circuit and support the roller.
-
2
Pull the old motor
Release the motor from its bracket and slide it out of the tube.
-
3
Fit crown and drive
Use the set for your tube profile. Line the override eye up with the crank opening.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new awning or screen? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sunea 550R2 CMO RTS 120V Motor needs to run
Somfy lists every part below as compatible with part 1118210. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the Sunea 550R2 CMO RTS 120V Motor for 5 years. We handle the claim.
Somfy warranty on the Sunea 550R2 CMO RTS 120V Motor, part 1118210.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sunea 550R2 CMO RTS 120V Motor (1118210)
|
Somfy Sunea 535A2 CMO RTS 120V Motor (1116321)
|
Somfy Sunea 525A2 CMO RTS 120V 3-Wire Motor (cassette awning) (1114304)
|
Somfy LT50 550R2 Orea RTS Cassette Awning Motor (1038174)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 50.0 | 35.0 | 25.0 | 50.0 |
| Speed (rpm) | 14 | 20 | 20 | 14 |
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Sunea | Sunea | Sunea | Orea cassette |
| Manual crank override | Yes | Yes | Yes | — |
| What's different | The product on this page | 35.0 Nm instead of 50.0 | 25.0 Nm instead of 50.0 | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
