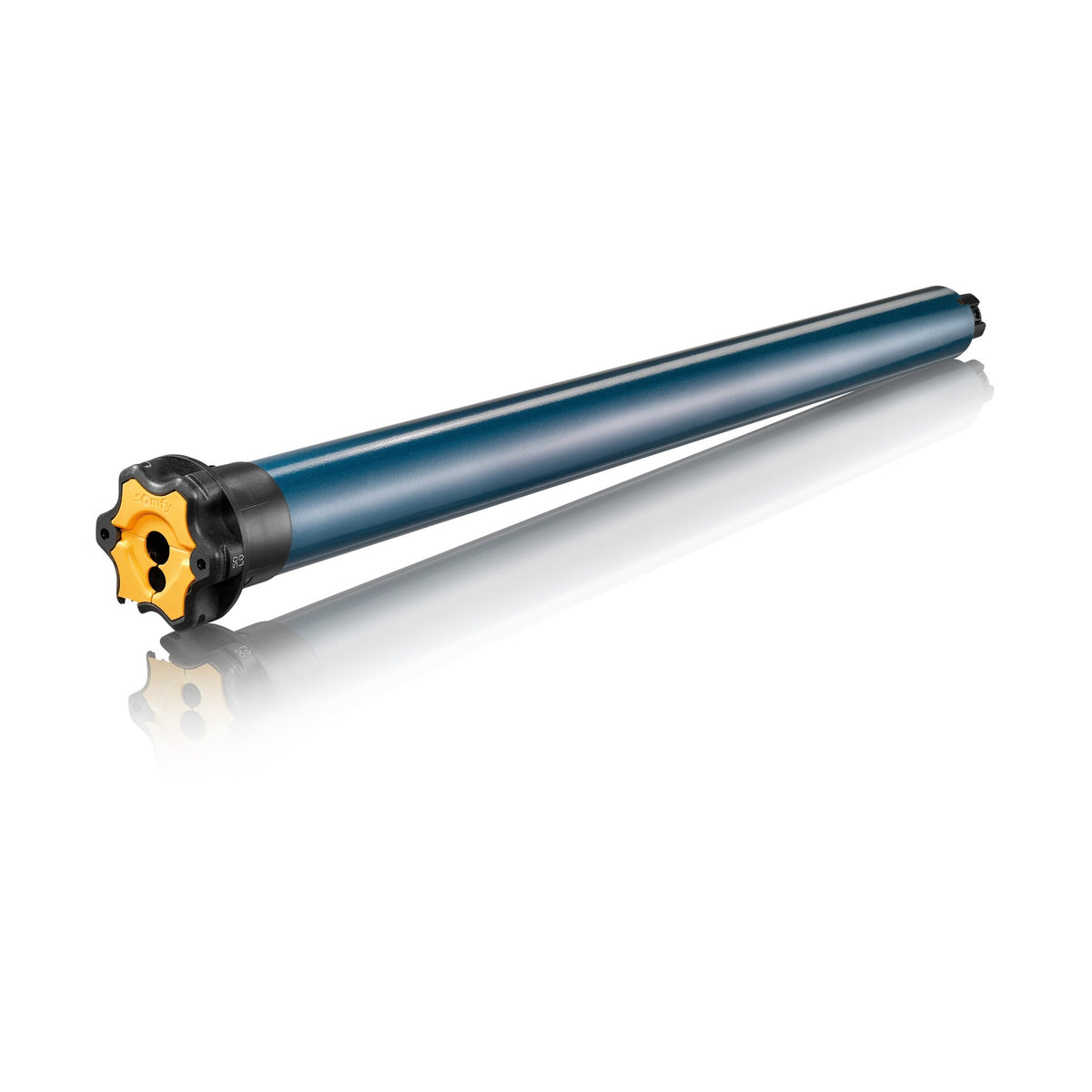

Somfy LT50 550R2 Orea RTS Cassette Awning Motor (1038174)

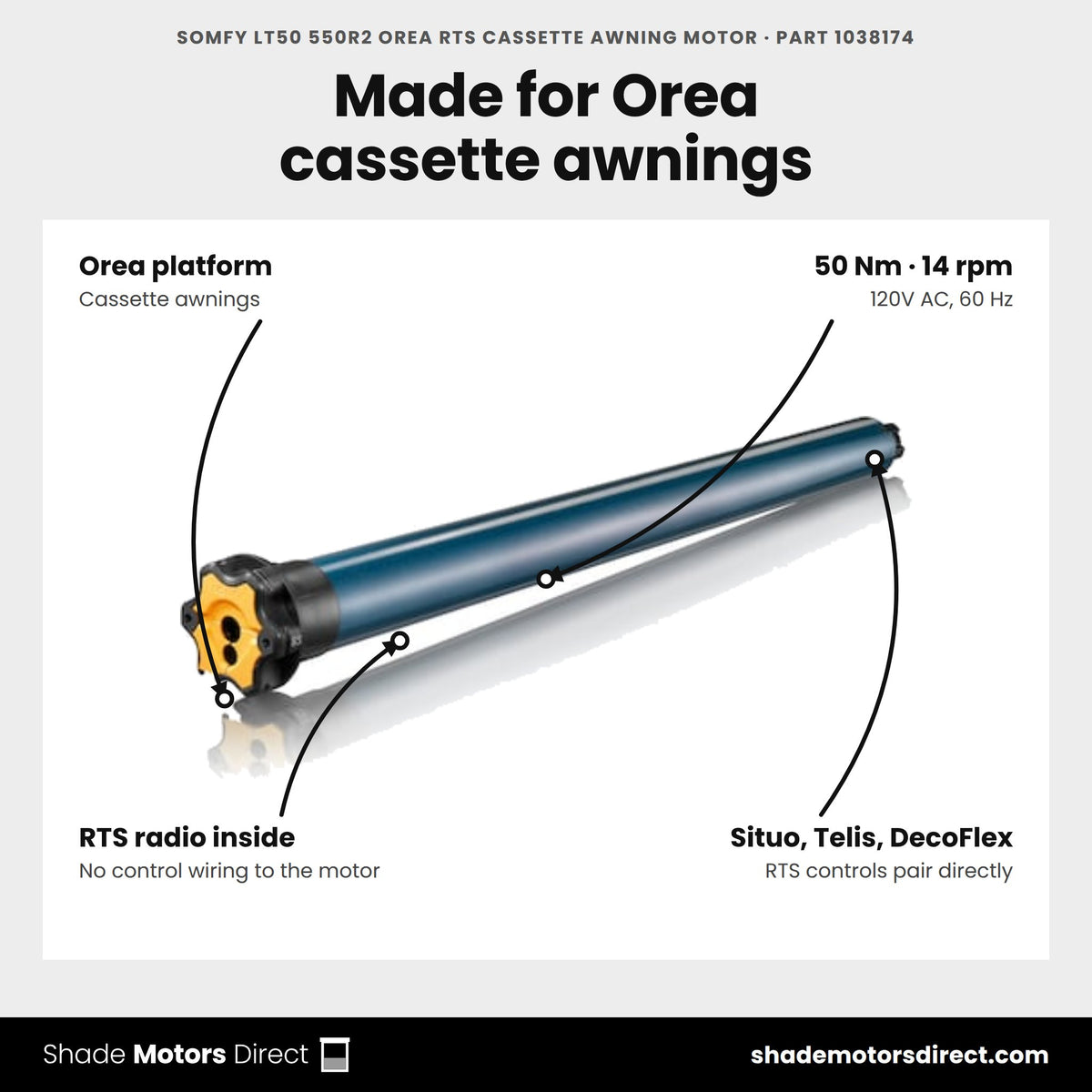

Somfy LT50 550R2 Orea RTS Cassette Awning Motor, part 1038174, features: 50 Nm, 14 rpm, built-in RTS radio, made for the Orea cassette awning platform

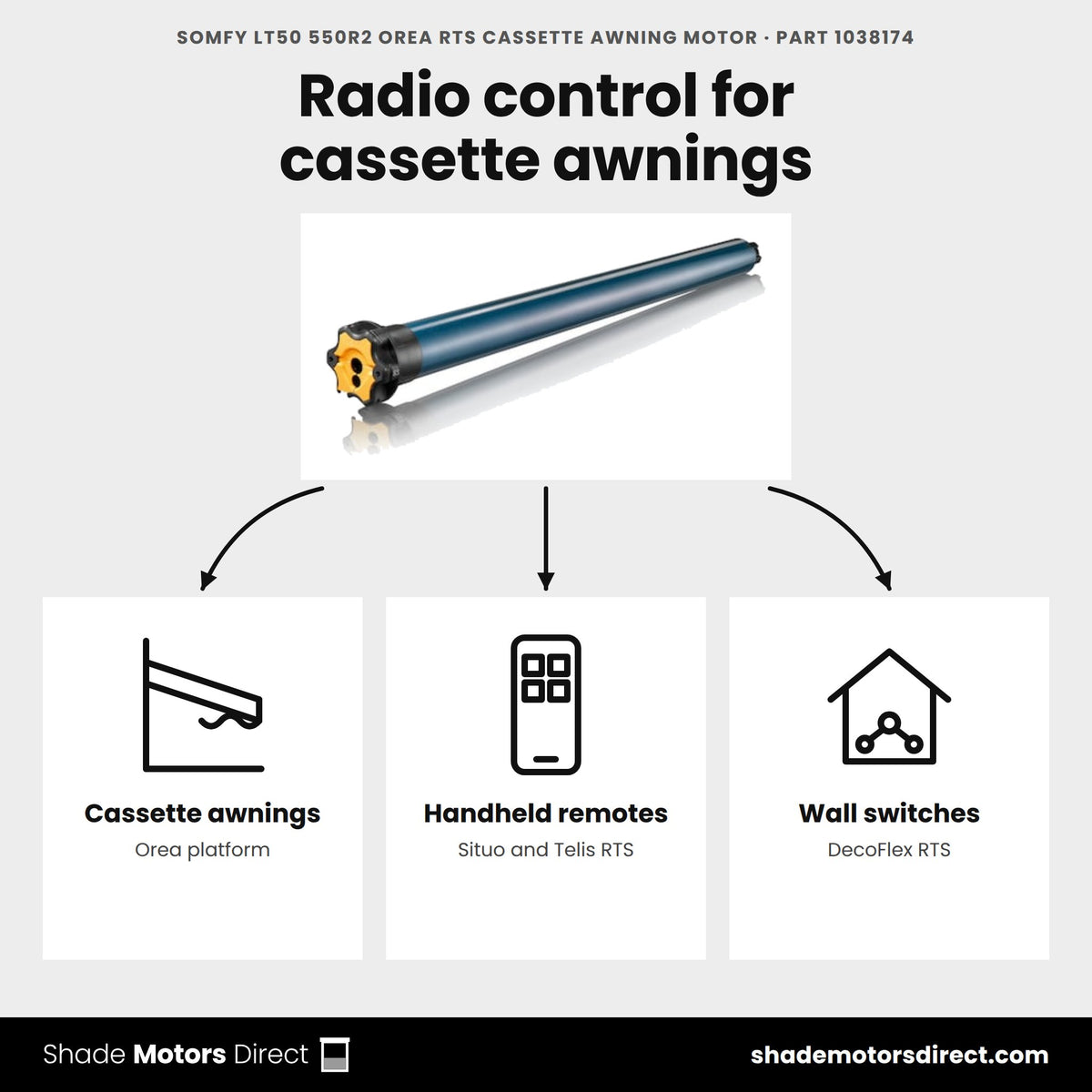

Somfy LT50 550R2 Orea RTS motor 1038174 uses: Orea cassette awnings, Situo and Telis remotes, DecoFlex RTS switches

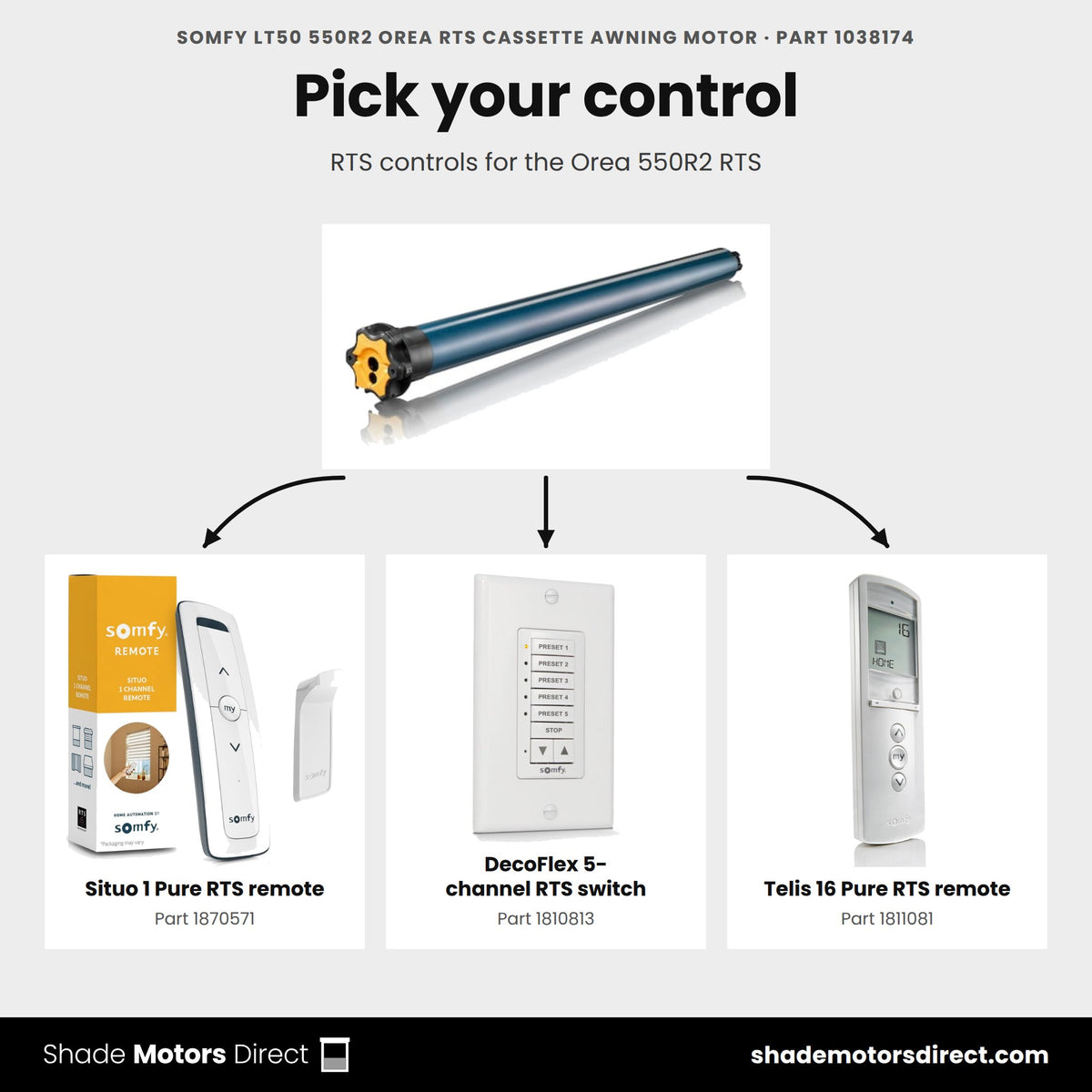

Parts that work with the Somfy LT50 550R2 Orea RTS motor 1038174: Situo 1 Pure RTS remote 1870571, DecoFlex 5-channel RTS switch 1810813, Telis 16 Pure RTS remote 1811081

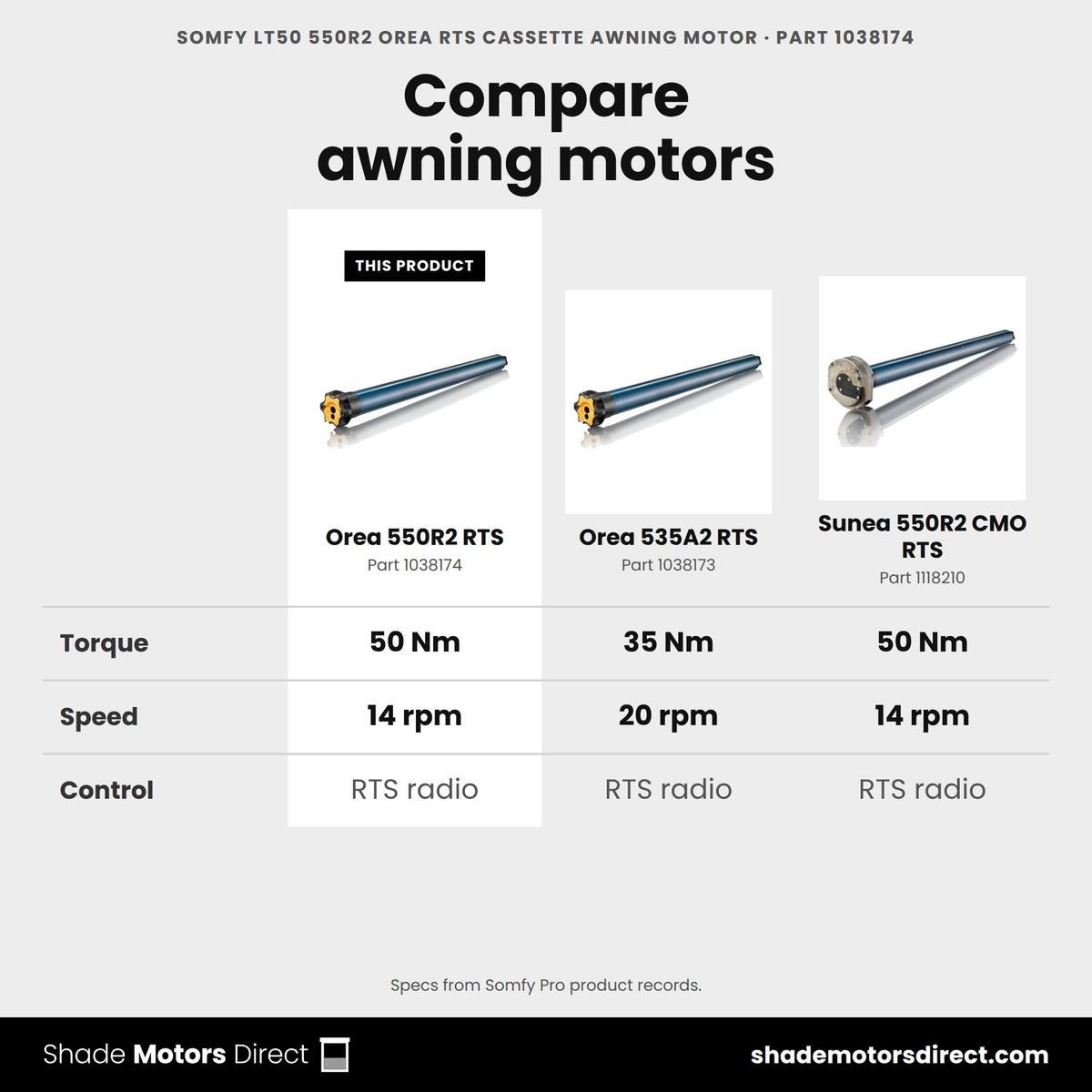

Somfy LT50 550R2 Orea RTS motor 1038174 compared: Orea 535A2 RTS 1038173, Sunea 550R2 CMO RTS 1118210

Buy the Somfy LT50 550R2 Orea RTS Cassette Awning Motor, part 1038174, genuine new with 5-year warranty, from ShadeMotorsDirect

Somfy LT50 550R2 Orea RTS Cassette Awning Motor (1038174)

SKU: 1038174

$595.83

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

Somfy Orea 550R2 RTS Motor -- wireless cassette awning motor

The Somfy Orea 550R2 RTS is a wireless, radio-controlled motor built for Orea cassette-integrated awning and shading systems, delivering 50Nm (442" lb) at 14 rpm. Orea integrates the motor into a cassette awning housing -- crown/drive and bracket hardware is cassette-specific and not part of ShadeMotorsDirect's standard LT50 accessory set, so none is listed here; confirm cassette hardware compatibility directly with the cassette system being installed.

Benefits

Radio Technology Somfy (RTS) -- no control wiring back to the motor required
Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
Purpose-built for the Orea cassette awning platform
5-year Somfy warranty

Specifications

Torque / Speed	50 Nm (442 in-lb) / 14 rpm
Control	RTS (433.42 MHz radio)
Power supply	120V AC, 60Hz
Platform	Orea cassette
Warranty	5 years

Compatible with: Orea cassette awning hardware, Situo/Telis RTS remotes, RTS wall switches

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Orea RTS 550R2 motor used for?

Somfy part 1038174 is a 120V motor with a built-in RTS radio receiver, rated at 50 Nm of torque and 14 rpm. Somfy lists it for awnings and exterior solar screens, on new construction or retrofit projects.

What tube size and head type does it need?

Somfy lists a star head and a minimum tube inside diameter of 1.85 in. The motor uses electronic limits with a capacity of 250 turns, and Somfy lists a weight of 5.6 lb unwrapped.

What power and wiring does it need?

It runs on 120V AC, with Somfy listing 108 V to 132 V, 1.1 A and 240 W while running. It ships with a 9.84 ft 3-conductor SJTW cable. The RTS radio replaces control wiring, so the power feed is the one cable to run.

Which remotes and switches work with it?

Any Somfy RTS transmitter, including the Situo 1 Channel RTS Pure Remote (1870571), the Telis 16 Channel RTS Pure Remote (1811081) and the DecoFlex 5 Channel RTS Wall Switch (1810813). The motor stores 12 channels, and Somfy rates RTS range at 656.2 ft in open field.

Can I control it from my phone or a voice assistant?

Yes, through the Somfy TaHoma Switch (1871037). RTS is one-way radio, so the app sends commands to the motor but cannot report the awning's position back.

Is it rated for outdoor use?

Somfy rates the Orea RTS 550R2 at IP 44 with Class I insulation and an operating range of -4 °F to 158 °F. It runs at 55 dB, has a thermal time of 4 min, carries a UR approval and a 5-year Somfy warranty.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy LT50 550R2 Orea RTS Cassette Awning Motor (1038174)	Somfy LT50 535A2 Orea RTS 120V 3-Wire Cassette Awning Motor (legacy 1037522) (1038173)	Somfy Sunea 550R2 CMO RTS 120V Motor (1118210)	Somfy Sunea 535A2 CMO RTS 120V Motor (1116321)
Price	$595.83	$546.50	$648.62	$607.11
Torque (Nm)	50.0	35.0	50.0	35.0
Speed (rpm)	14	20	14	20
Control	RTS radio	RTS radio	RTS radio	RTS radio
Power	120V AC	120V AC	120V AC	120V AC
Motor family	Orea cassette	Orea cassette	Sunea	Sunea
Manual crank override	—	—	Yes	Yes
What's different	The product on this page	35.0 Nm instead of 50.0	Close alternative	35.0 Nm instead of 50.0
Buy	Currently viewing	View details	View details	View details
