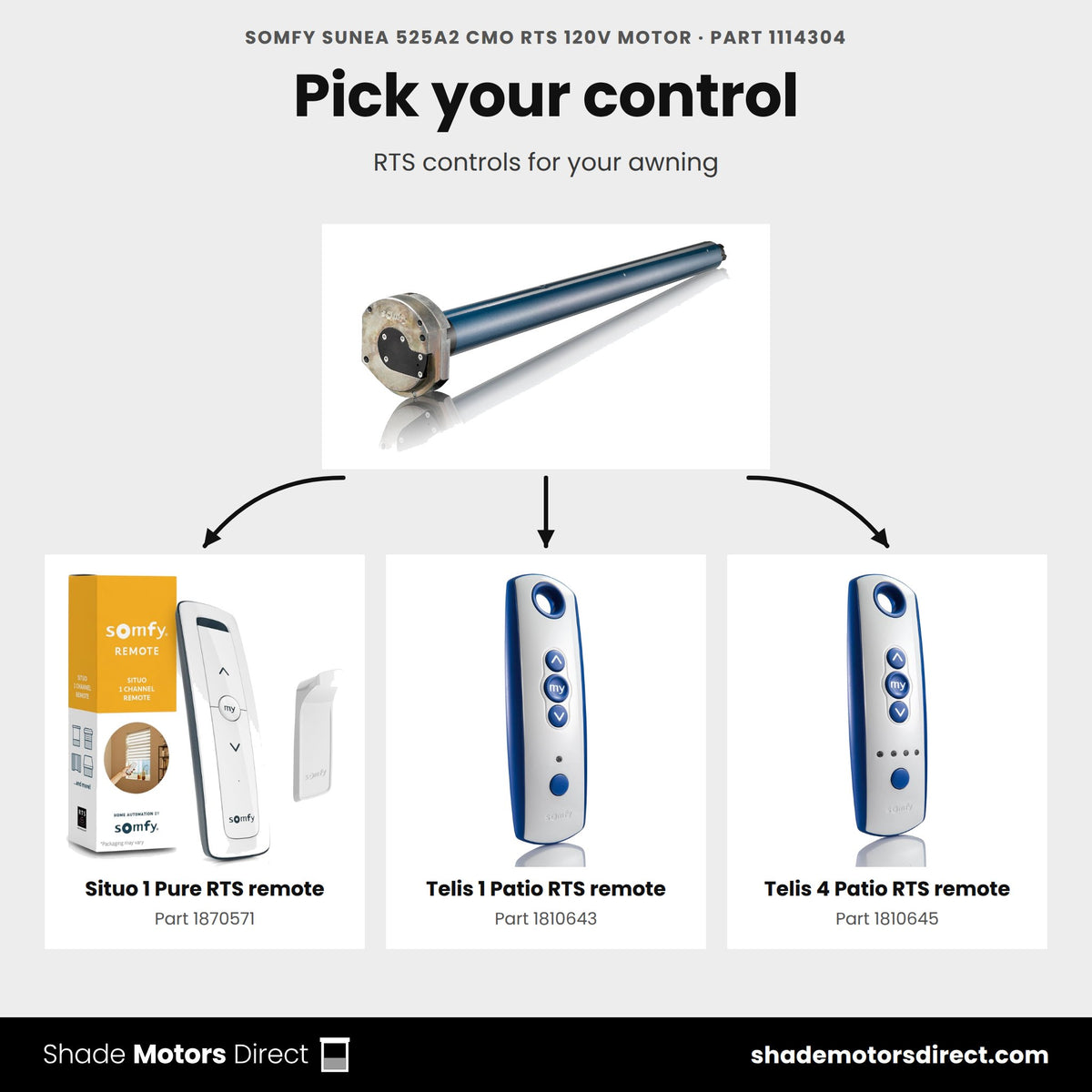

RTS controls that work with the Somfy Sunea 525A2 CMO motor 1114304: Situo 1 Pure 1870571, Telis 1 Patio 1810643, Telis 4 Patio 1810645

Somfy Sunea CMO RTS awning motors: 525A2 1114304 at 25 Nm vs 535A2 1116321 at 35 Nm vs 550R2 1118210 at 50 Nm

Buy the Somfy Sunea 525A2 CMO RTS 120V Motor, part 1114304, genuine new with 5-year warranty, from ShadeMotorsDirect

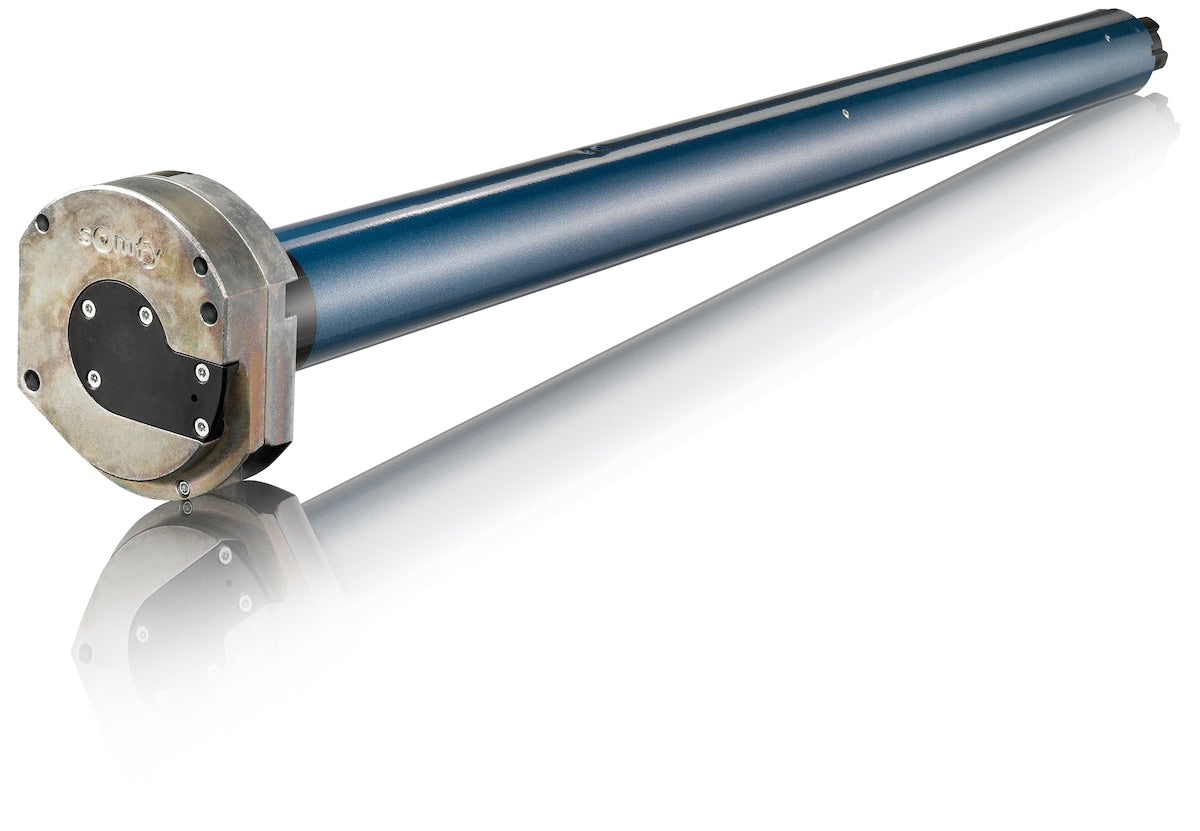

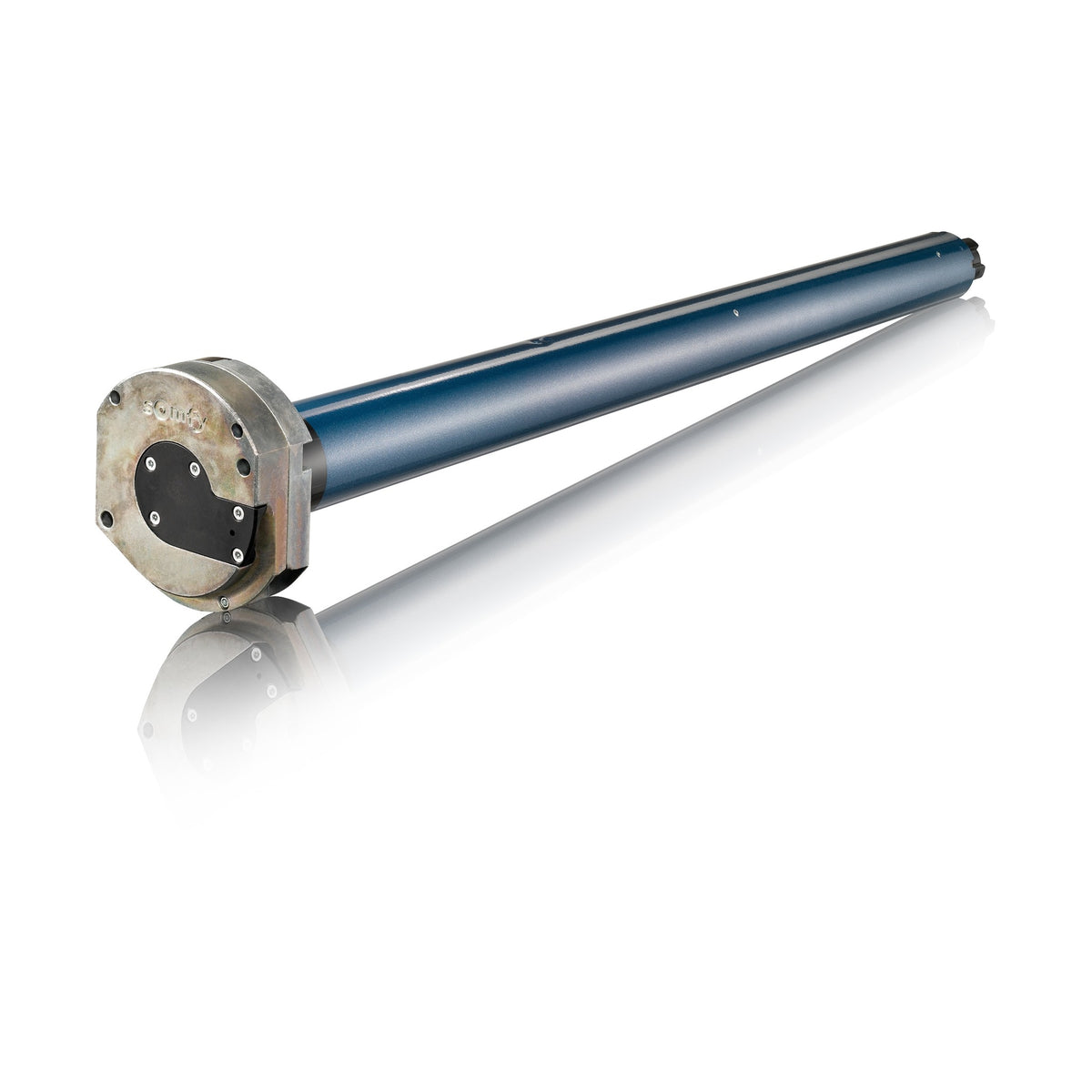

Somfy Sunea 525A2 CMO RTS 120V 3-Wire Motor (cassette awning) (1114304)

SKU: 1114304

$558.53

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

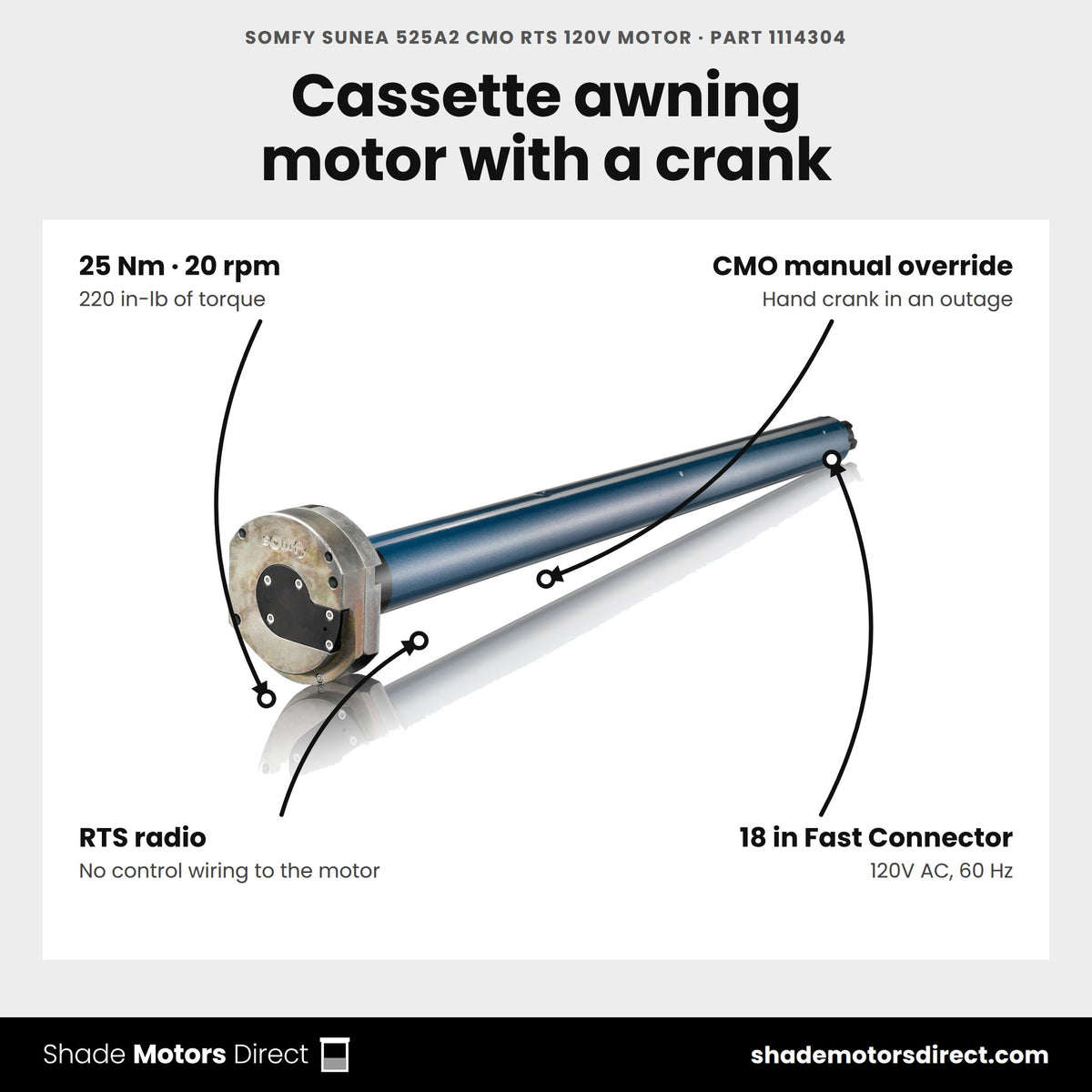

Somfy Sunea 525A2 RTS CMO Motor (Cassette Awning) -- wireless motor with manual override

The Sunea 525A2 RTS CMO is Somfy's advanced motor for cassette, semi-cassette, and standard awnings, delivering 25Nm at 20rpm with wireless RTS control and a Compact Manual Override (CMO) for hand-crank operation during a power outage. Ships with an 18" fast connector.

Benefits

Radio Technology Somfy (RTS) -- no control wiring back to the motor required
Compact Manual Override (CMO) for hand-crank operation during a power outage

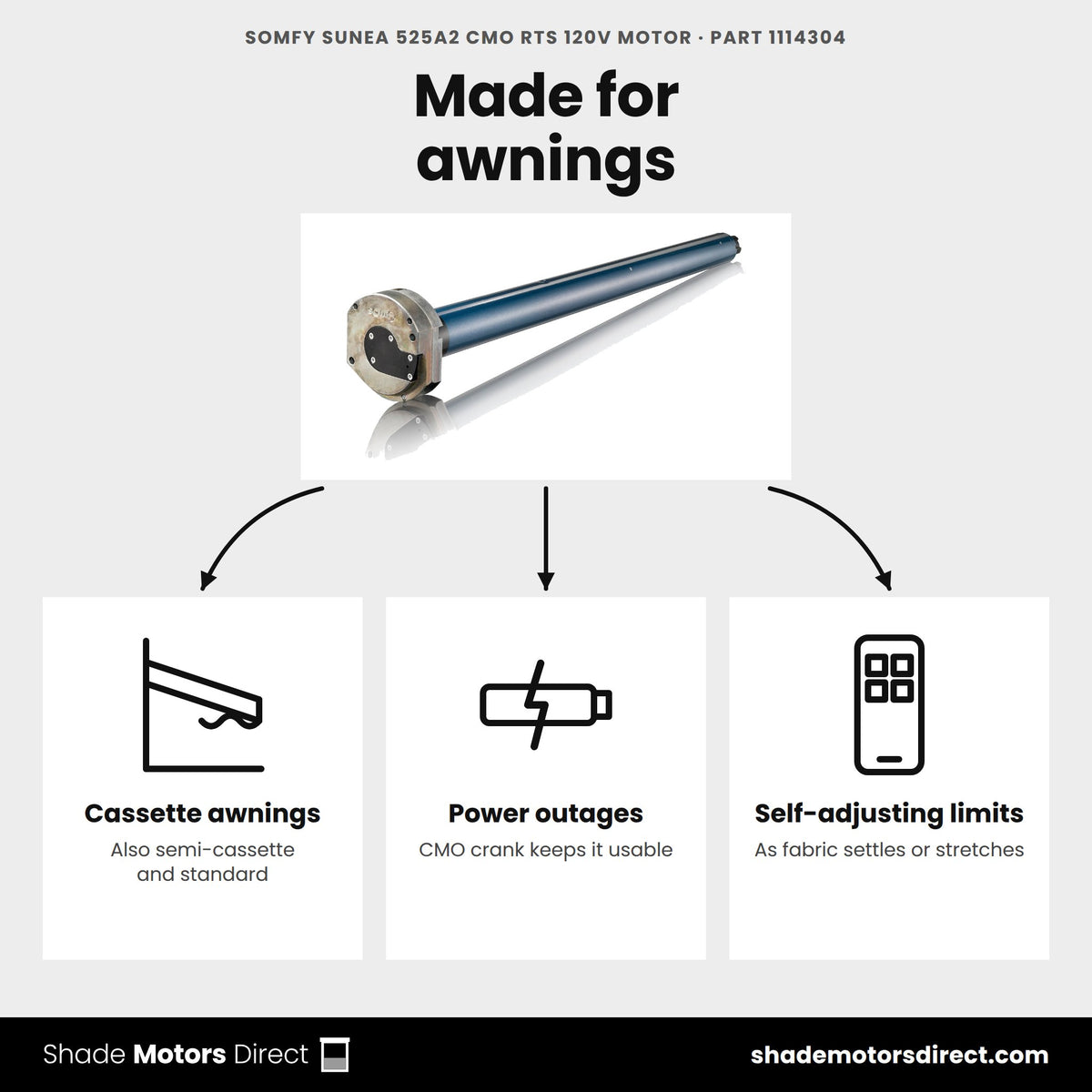

Purpose-built for cassette, semi-cassette, and standard awning systems
Automatically resets limits as fabric settles or stretches
5-year Somfy warranty

Specifications

Torque / Speed	25 Nm (220 in-lb) / 20 rpm
Control	RTS (433.42 MHz radio)
Override	Compact Manual Override (CMO)
Power supply	120V AC, 60Hz
Cable	18" Fast Connector
Warranty	5 years

Compatible with: Sunea cassette awning hardware, Situo/Telis RTS remotes, RTS wall switches -- crown/drive and bracket hardware is cassette-specific, not part of ShadeMotorsDirect's standard LT50 accessory set

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Sunea 525A2 RTS CMO motor made for?

Part 1114304 is a 120V tubular motor for cassette, semi-cassette and standard awnings. Somfy rates it at 25 Nm and 20 rpm. It has a built-in RTS radio receiver and a Compact Manual Override (CMO) head, and it ships with an 18 in Fast Connector lead.

Can I operate the awning during a power outage?

Yes. The Compact Manual Override (CMO) head accepts a hand crank, so you can open or close the awning by hand when the power is out. Somfy sells a Sunea RTS CMO override kit for this setup.

Which remotes and wall switches work with it?

Any Somfy RTS transmitter pairs with it, including the Telis 1 Channel RTS Patio Remote (1810643), the Telis 4 RTS Multi-Channel Patio Remote (1810645), Situo RTS Pure remotes (1870571, 1870575) and the DecoFlex 5 Channel RTS Wall Switch (1810813). The motor stores up to 12 transmitters, and Somfy rates RTS range at 656.2 ft in open field.

Can a wind sensor protect the awning?

Yes. The Eolis 3D WireFree RTS Wind Sensor mounts on the awning and sends a retract command over RTS when wind shakes the awning. It comes in white (1816081), black (1816082) and off-white (1816083).

Can I control it from my phone?

Yes. Pair it with a Somfy TaHoma Switch (1871037) to run the awning from the app, set schedules and add voice control. RTS is one-way radio, so the app sends commands but does not report the awning's position.

What are the power and installation specs?

It runs on 120V/60Hz with a rated current of 1.6 A and draws 0 W in standby. Somfy lists IP 44, a minimum tube internal diameter of 1.85 in, electronic limits and a 55 dB noise level. The Sunea CMO RTS Universal Bracket (9015802) mounts this motor.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

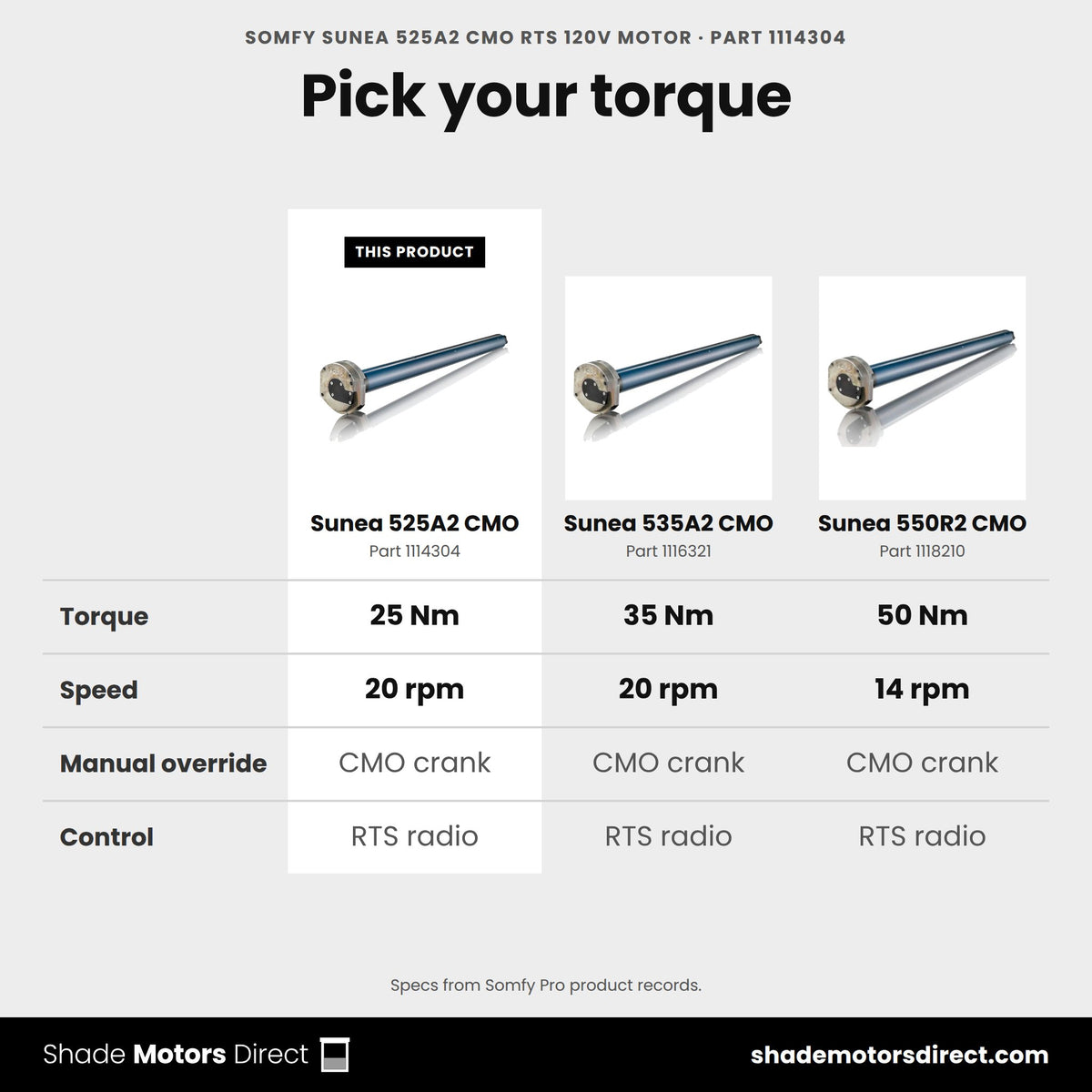

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

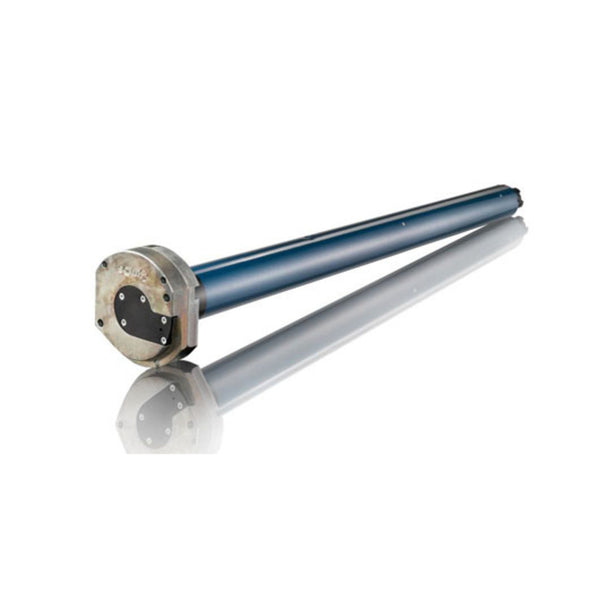

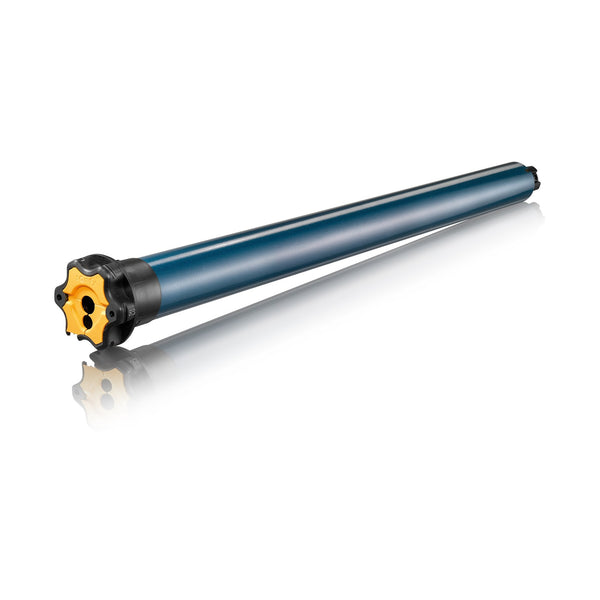

Specification	You're viewing Somfy Sunea 525A2 CMO RTS 120V 3-Wire Motor (cassette awning) (1114304)	Somfy Sunea 535A2 CMO RTS 120V Motor (1116321)	Somfy Sunea 550R2 CMO RTS 120V Motor (1118210)	Somfy Oximo LT50 525A2 RTS 120V 3-Wire Motor (legacy 1033035) (1033402)
Price	$558.53	$607.11	$648.62	$448.59
Torque (Nm)	25.0	35.0	50.0	25.0
Speed (rpm)	20	20	14	20
Control	RTS radio	RTS radio	RTS radio	RTS radio
Power	120V AC	120V AC	120V AC	120V AC
Motor family	Sunea	Sunea	Sunea	Oximo cassette
Manual crank override	Yes	Yes	Yes	—
What's different	The product on this page	35.0 Nm instead of 25.0	50.0 Nm instead of 25.0	Close alternative
Buy	Currently viewing	View details	View details	View details
