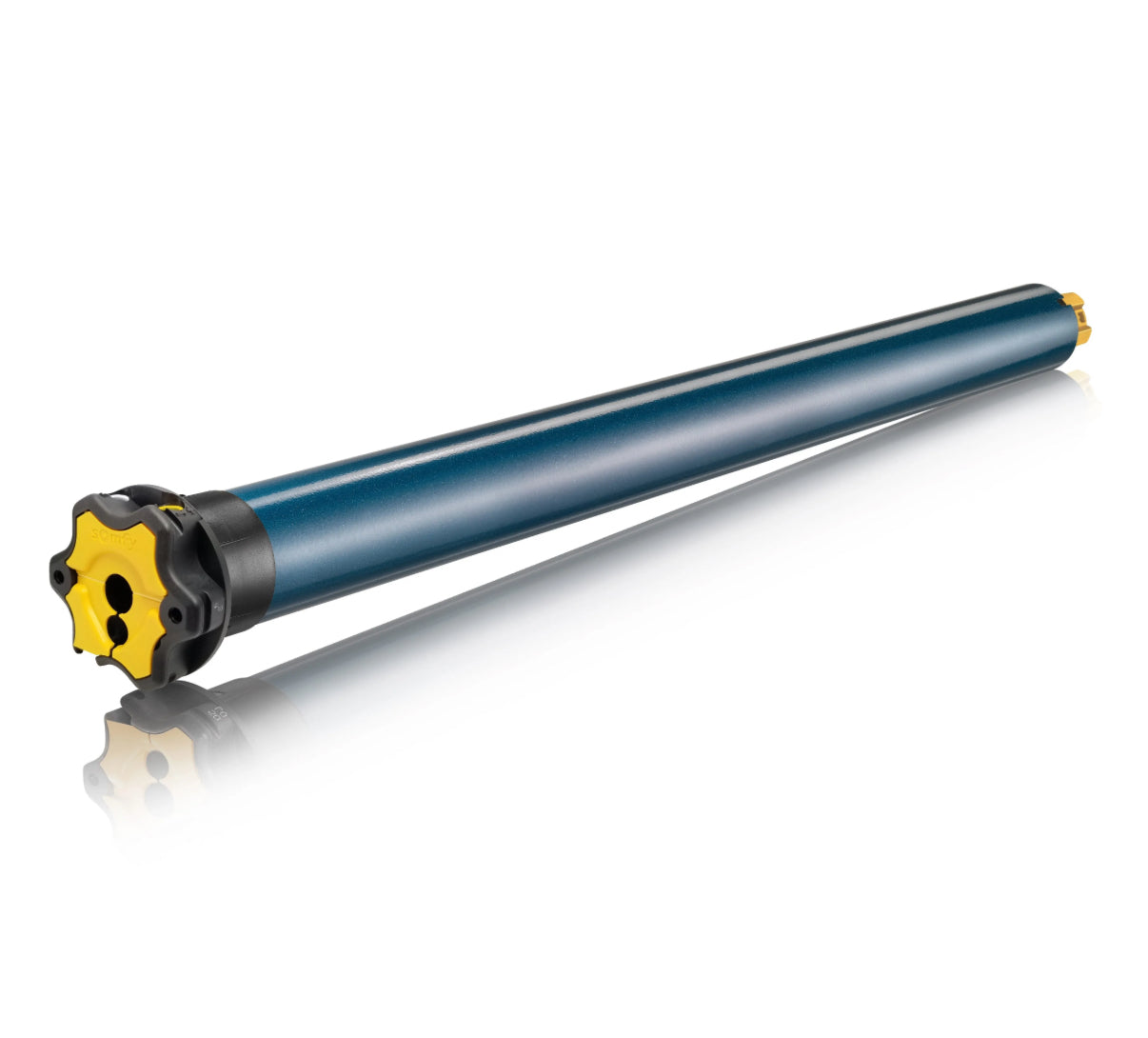

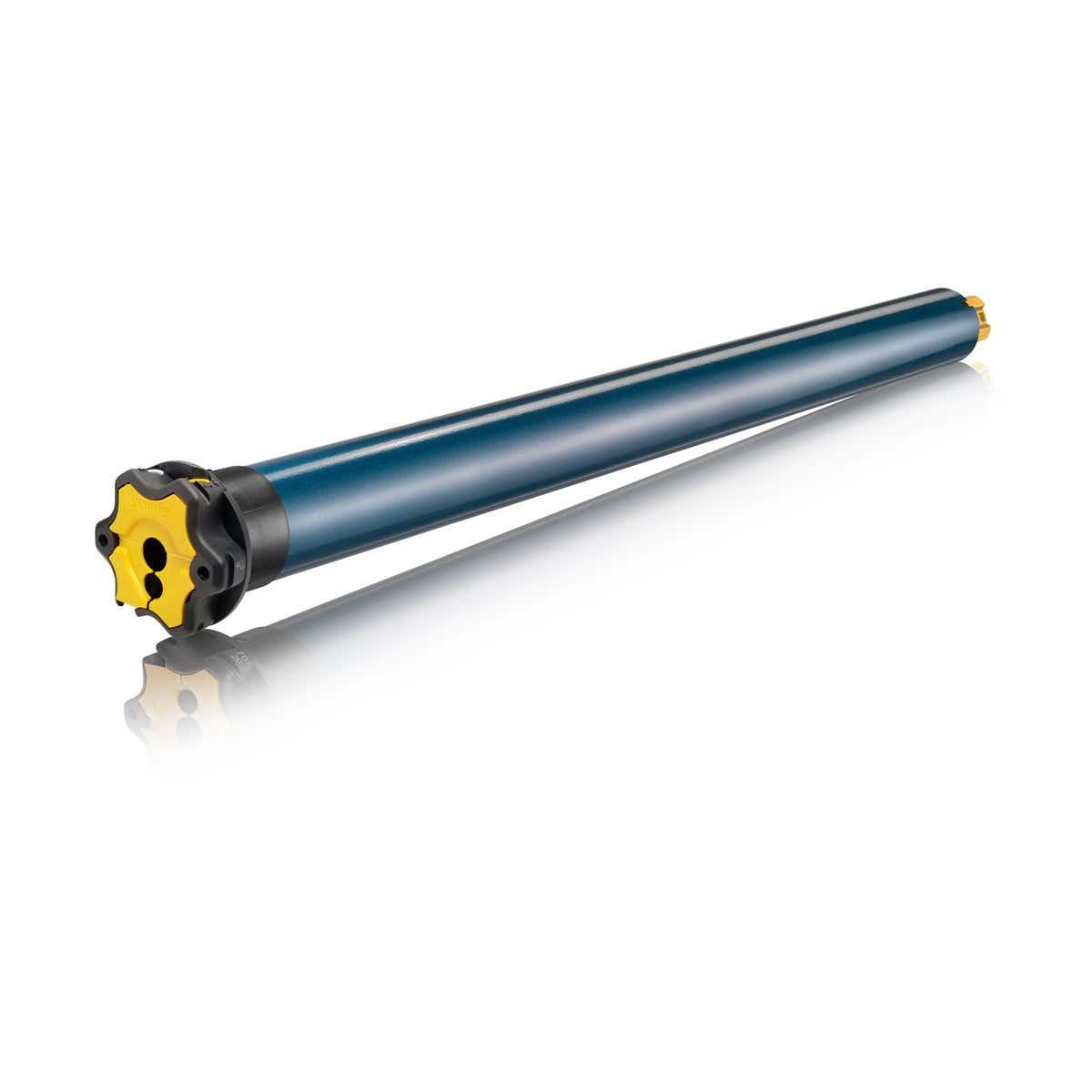

Somfy Sonesse 506S2 PA Motor (1001801)
Somfy Sonesse 506S2 PA Motor (1001801)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Available in stock (51)
Sonesse 50 ultra-quiet tubular motor for interior and exterior window coverings
The Sonesse 50 range puts window coverings in motion with ultra-quiet precision. This wired motor is built for heavier, larger-format shades and screens where strength and near-silent operation both matter.
Benefits
- Ultra-quiet operation -- 45 dB
- Mounts six different ways with a snap-on roller tube adaptor connection

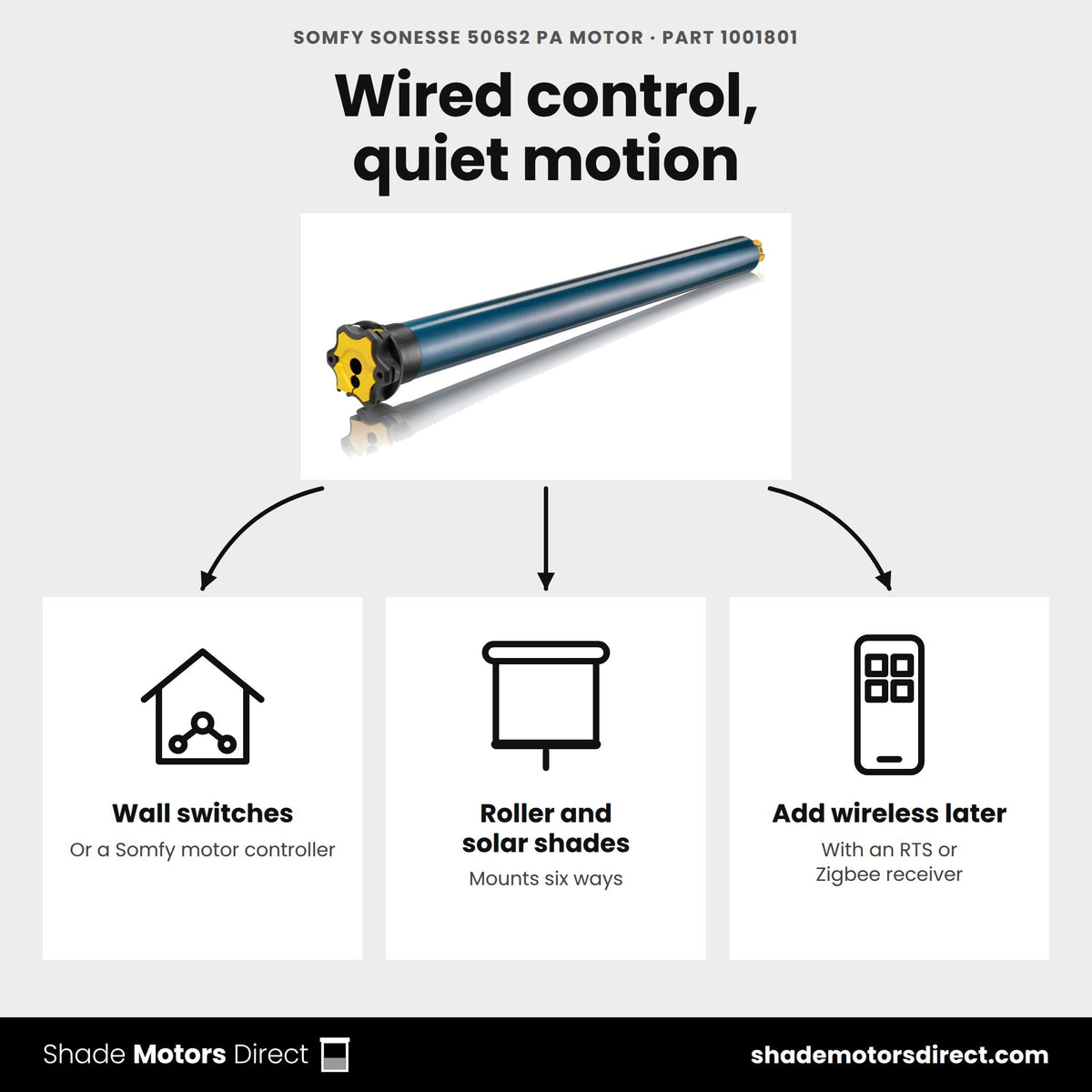

- Wired control: drive it from a wired wall switch or a Somfy motor controller
- Add an RTS or Zigbee receiver if you need remote, app or voice control
- Backed by Somfy's standard 5-year warranty

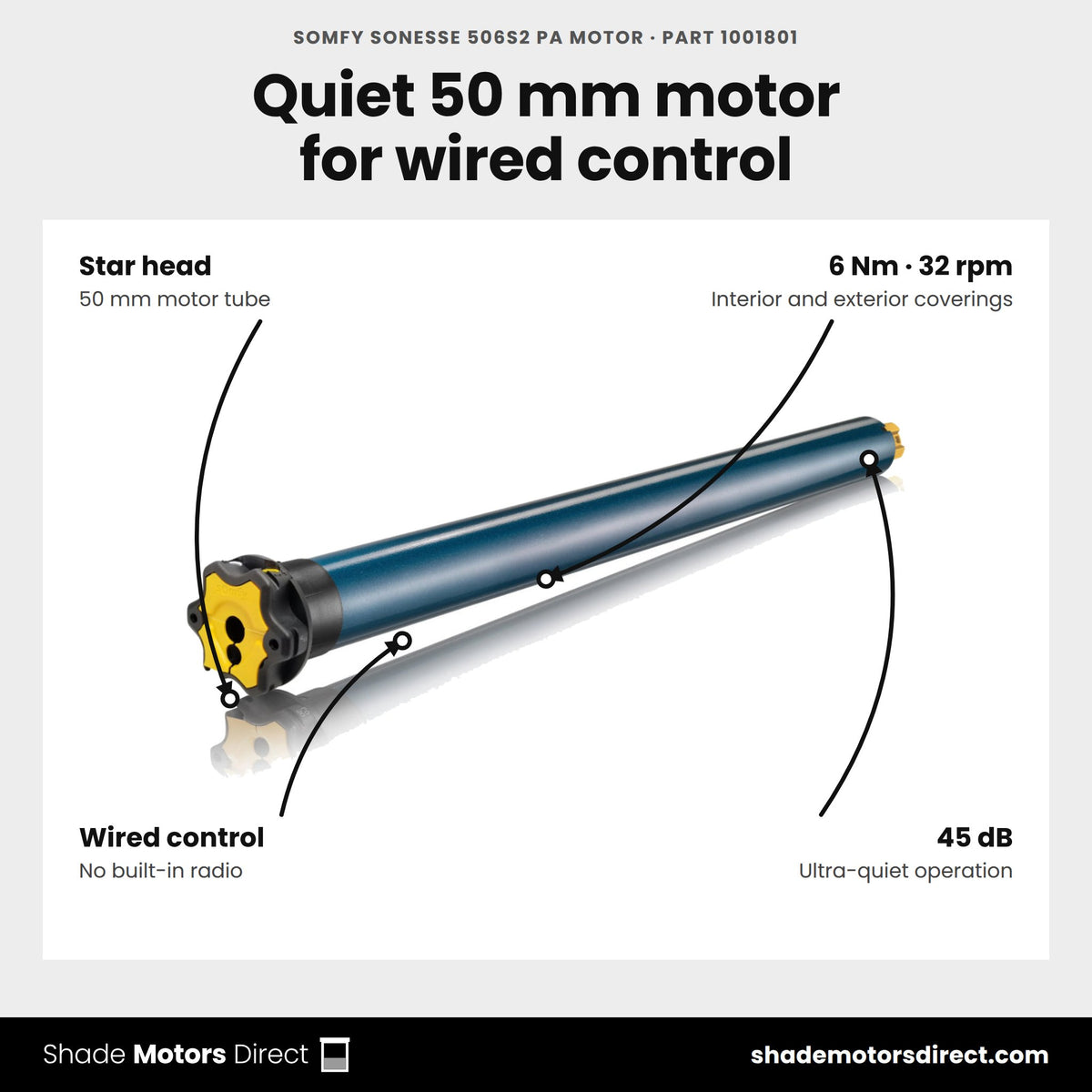

Specifications
| Torque / Speed | 6 Nm / 32 rpm |
| Noise level | 45 dB |
| Control | Wired (no built-in radio receiver) |
| Head type | Star |
| Motor tube size | 50mm |
| Application | Interior and exterior window coverings, roller/solar shades, screens |
| Warranty | 5 years |
Compatible with: Sonesse 50 tube, crown & drive, and bracket hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 506S2 PA built for?
Part 1001801 is a wired 120V Sonesse 50 motor for heavier interior and exterior roller shades, solar shades and screens. It has no built-in radio receiver, runs from a wired control and uses mechanical progressive limits.
What torque and speed does it deliver?
Somfy rates the 1001801 at 6 Nm of torque and 32 rpm, with a noise level of 45 dB. It has a star head, a mechanical limit switch with a capacity of 29 turns, and needs a tube with an inside diameter of at least 47 mm.
What power and wiring does it need?
It runs on 120V/60Hz within a range of 108 V to 132 V, with a rated current of 1.2 A and 146 W in operation. The motor has a 4-wire lead, and the Sonesse 50 and LT50/LT60 SJTW 4C Cable 10 ft (9018345) extends the connection.
Where can it be installed?
Somfy rates it IP 44 with Class I insulation and an operating range of -20 °C to 60 °C, which suits interior and exterior window coverings. The thermal time is 4 min, and the motor carries Somfy's 5-year warranty.

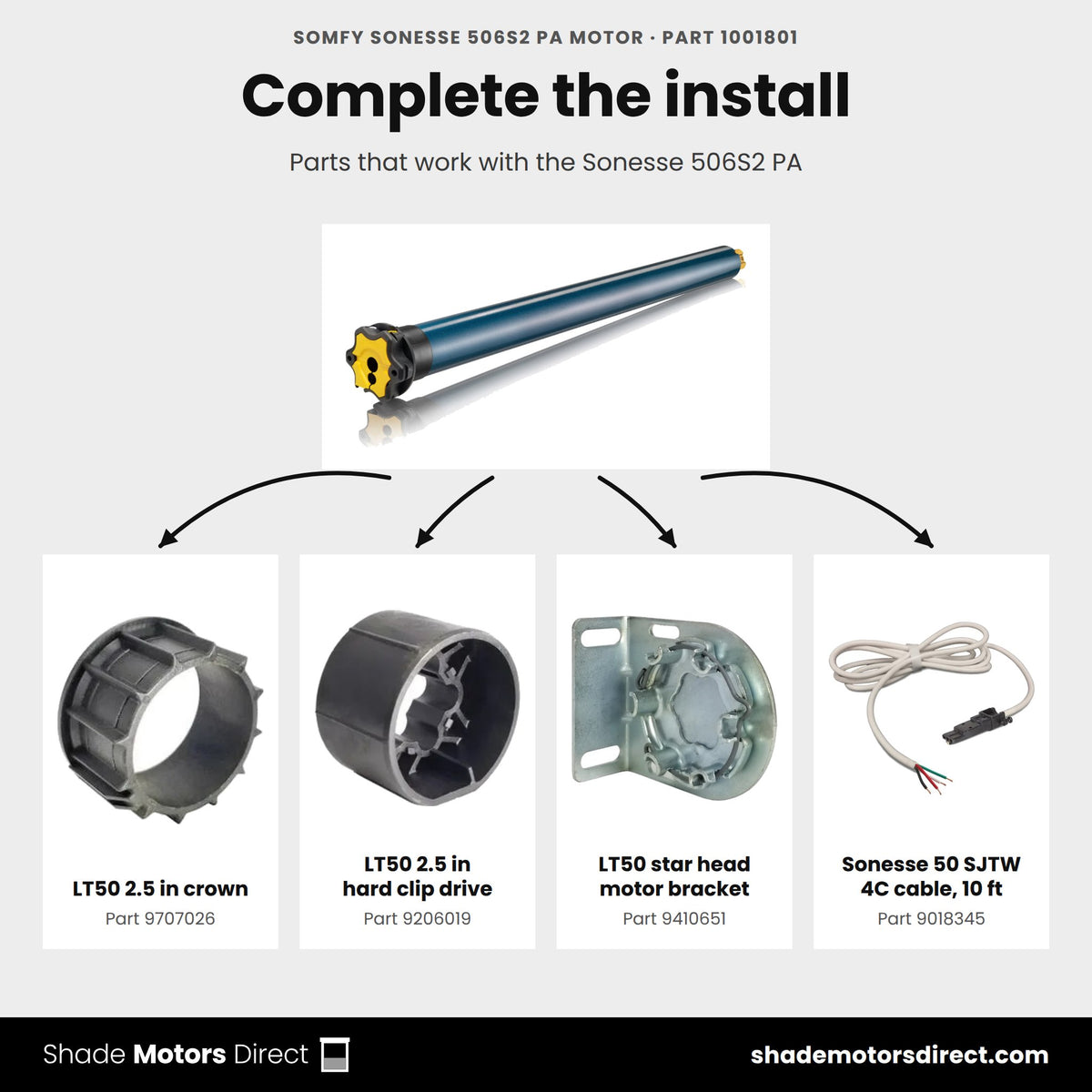

Which crowns, drives and brackets fit?
Somfy LT50 and Sonesse 50 hardware fits. Options include the LT50 2.5 in Crown (9707026), the LT50 2.5 in Hard Clip Drive (9206019), the LT50 Star Head Motor Bracket (9410651) and the 2.5 in OD Aluminum Tube (1781343).
What if I want remote or app control?
Choose the Sonesse 506S2 RTS (1001809). It delivers the same 6 Nm and 32 rpm and adds a built-in RTS receiver, so it pairs with Somfy remotes, DecoFlex wall switches and a TaHoma Switch (1871037) for app and voice control.
Couldn't load pickup availability

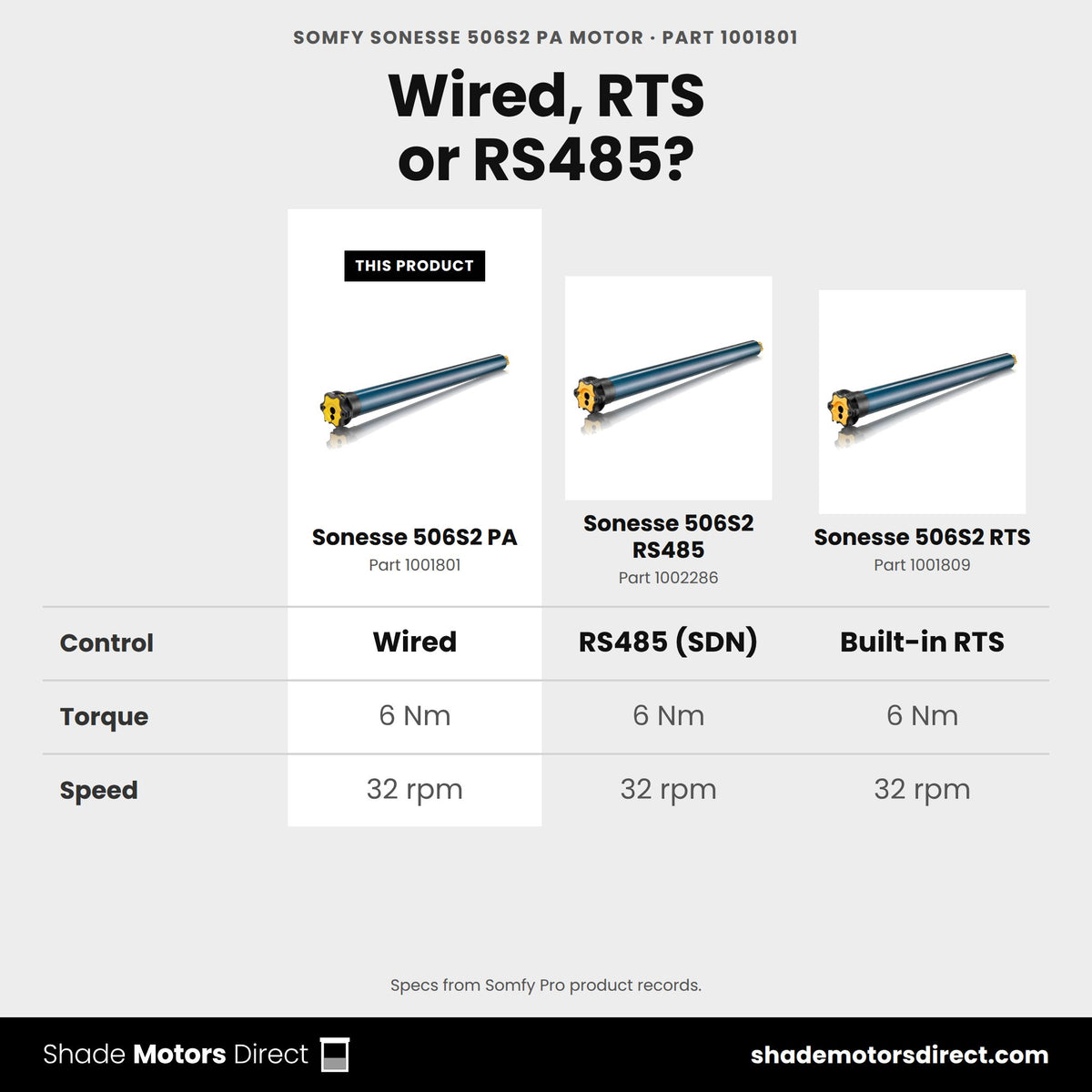

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 506S2 PA Motor (1001801)
|
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|
Somfy Sonesse 506S2 RS485 Motor (1002286)
|
Somfy Sonesse 506S2 RTS 120V Motor (1001809)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 6.0 | 6.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | Wired | Wired 4-wire | RS485 (SDN) | RTS radio |
| Power | — | 120V AC | — | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired 4-wire control | Same size, RS485 (SDN) control | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
