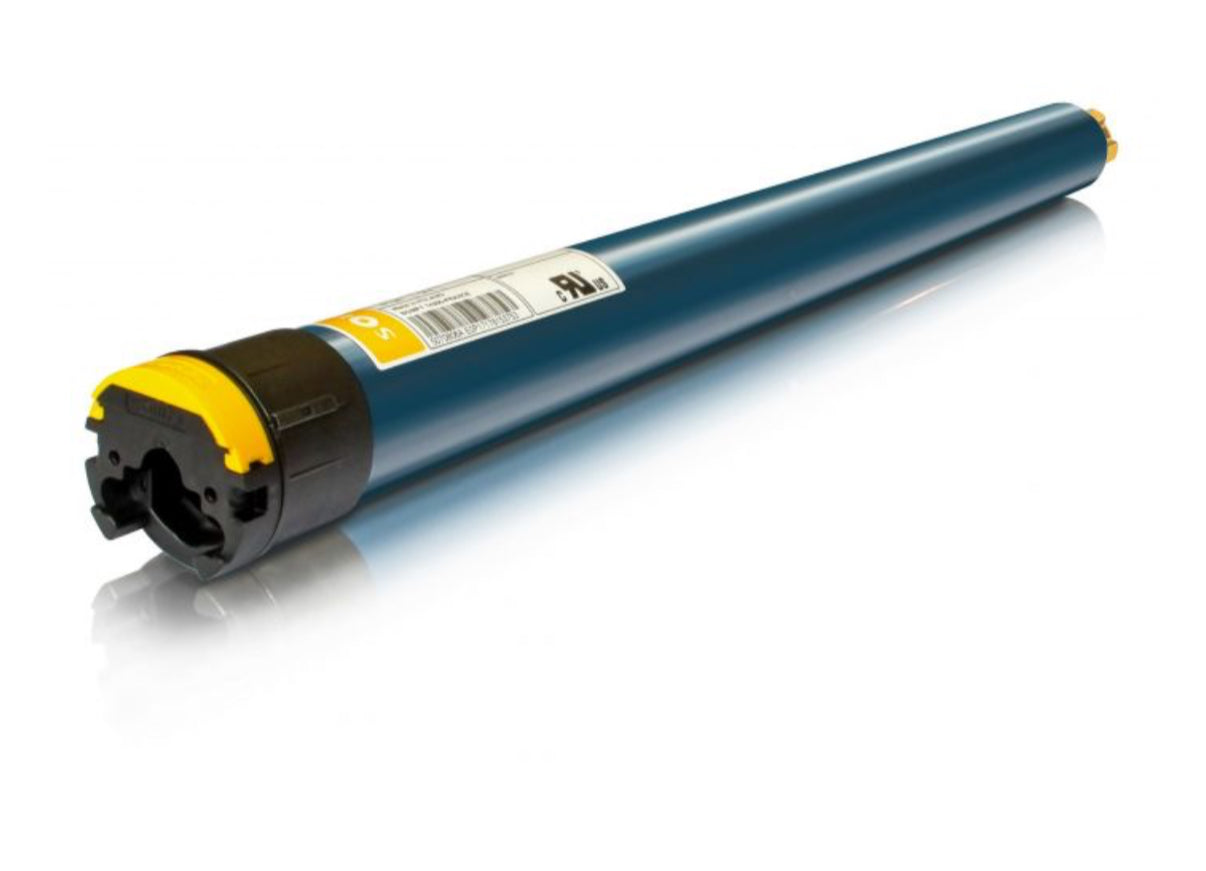

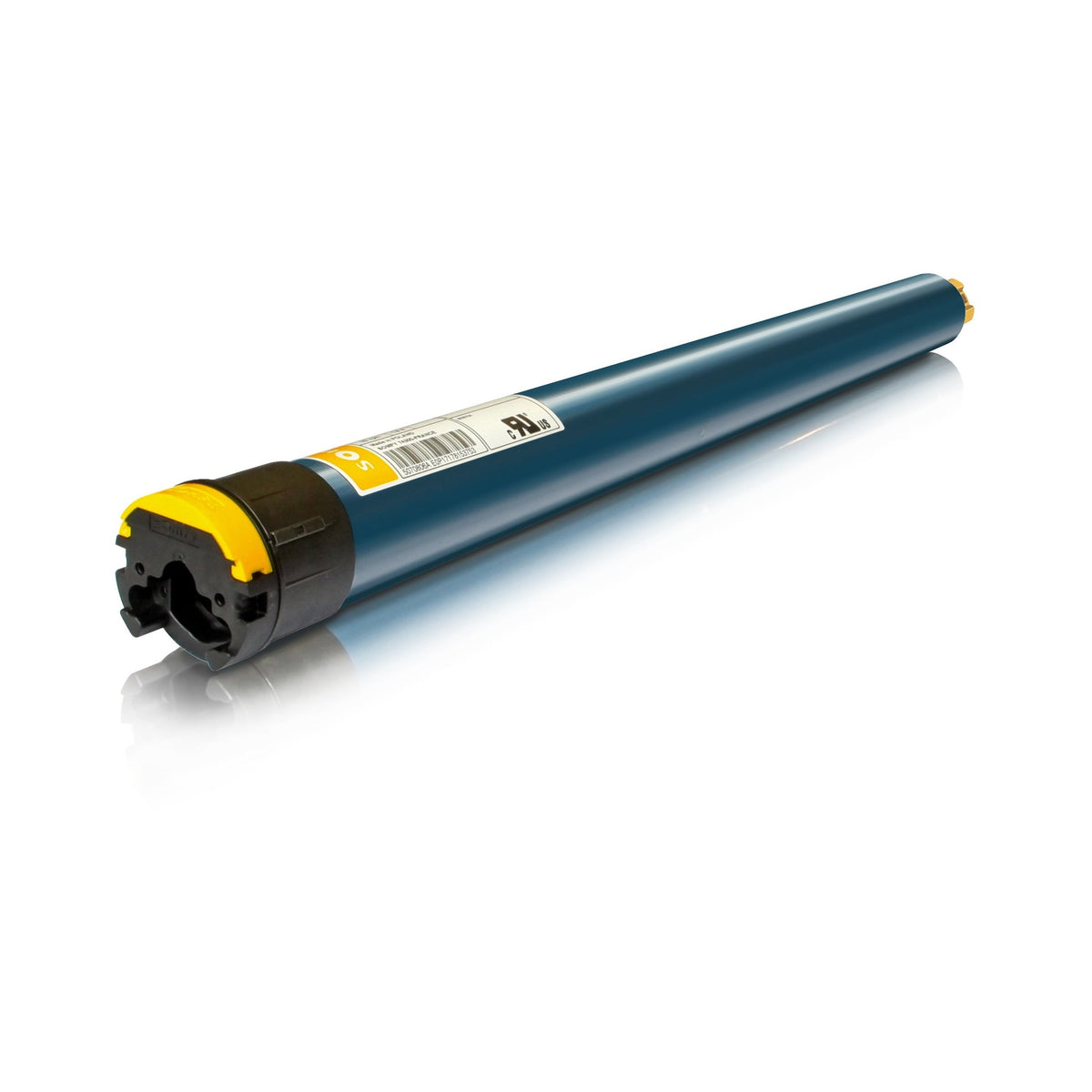

Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Sonesse 50 ultra-quiet tubular motor for interior and exterior window coverings
The Sonesse 50 range puts window coverings in motion with ultra-quiet precision. This wired motor is built for heavier, larger-format shades and screens where strength and near-silent operation both matter.
Benefits
- Ultra-quiet operation -- 45 dB
- Mounts six different ways with a snap-on roller tube adaptor connection

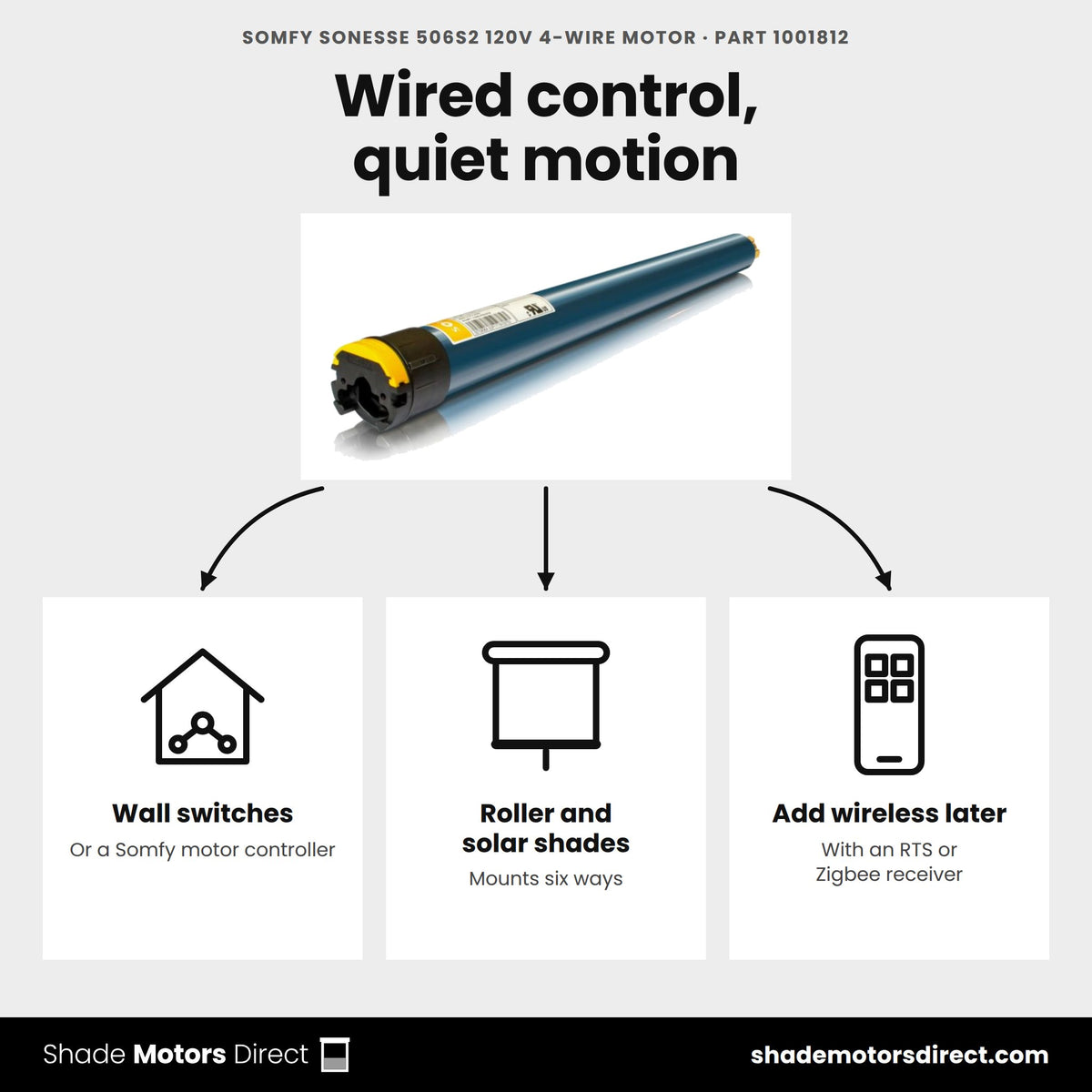

- Wired control: drive it from a wired wall switch or a Somfy motor controller
- Add an RTS or Zigbee receiver if you need remote, app or voice control
- Backed by Somfy's standard 5-year warranty

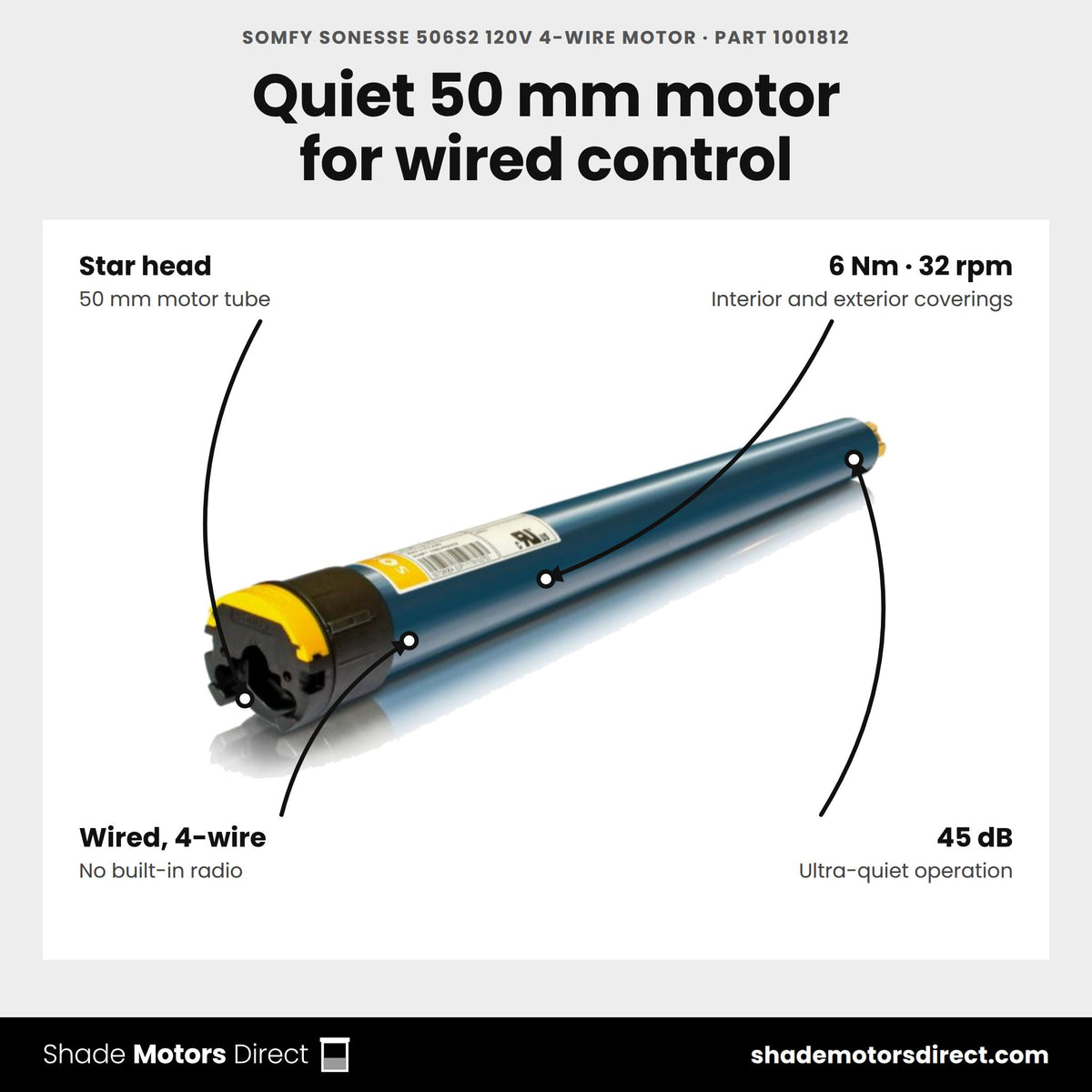

Specifications
| Torque / Speed | 6 Nm / 32 rpm |
| Noise level | 45 dB |
| Control | Wired (no built-in radio receiver) |
| Head type | Star |
| Motor tube size | 50mm |
| Application | Interior and exterior window coverings, roller/solar shades, screens |
| Warranty | 5 years |

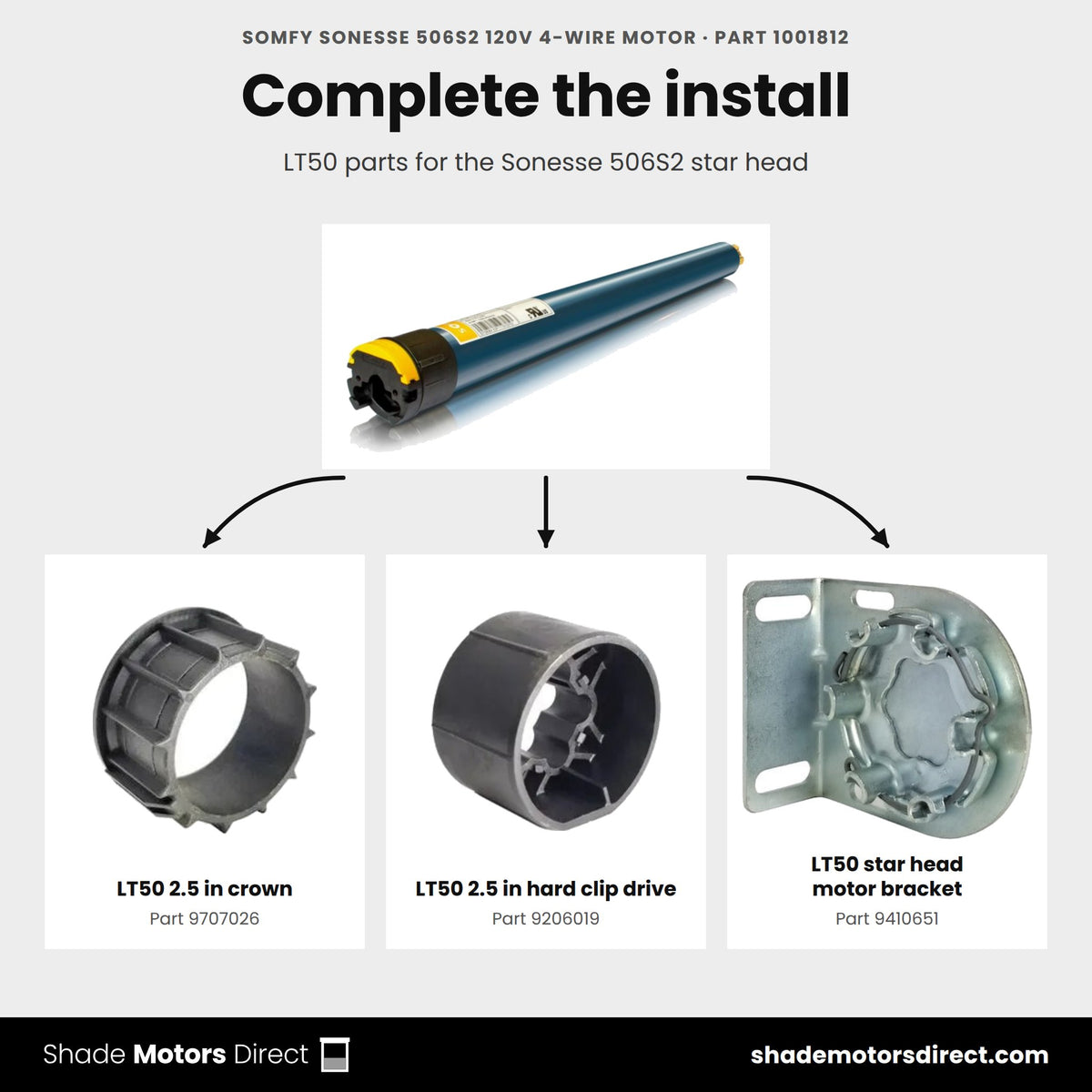

Compatible with: Sonesse 50 tube, crown & drive, and bracket hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 506S2 RH motor?
It is a wired 120V tubular motor, part 1001812, for interior window coverings, including large multi-band and coupled shade installs. Somfy rates it at 45 dB and backs it with a 5-year warranty.
What head type does the RH model use?
Somfy lists a round head for this RH model, while the standard Sonesse 506S2 (1001814) uses a star head. Check that your brackets accept a round motor head before you order.
How is this motor controlled?
It is a wired motor with no radio receiver, so a wired wall switch or a Somfy motor controller runs it. For a round-head motor with RTS built in, see the Sonesse 506S2 RTS RH (1001806).
How is it powered?
It runs on 120V AC and draws 140 W in operation and 0 W in standby. Somfy gives it an IP 44 protection rating and lists it for interior window coverings.
Is there a quieter Sonesse option?
Yes. The Sonesse ULTRA 506A2 RTS (1002562) runs at 38 dB with 6 Nm of torque at 24 rpm, and it adds a built-in RTS receiver for remote and app control through TaHoma.
Couldn't load pickup availability

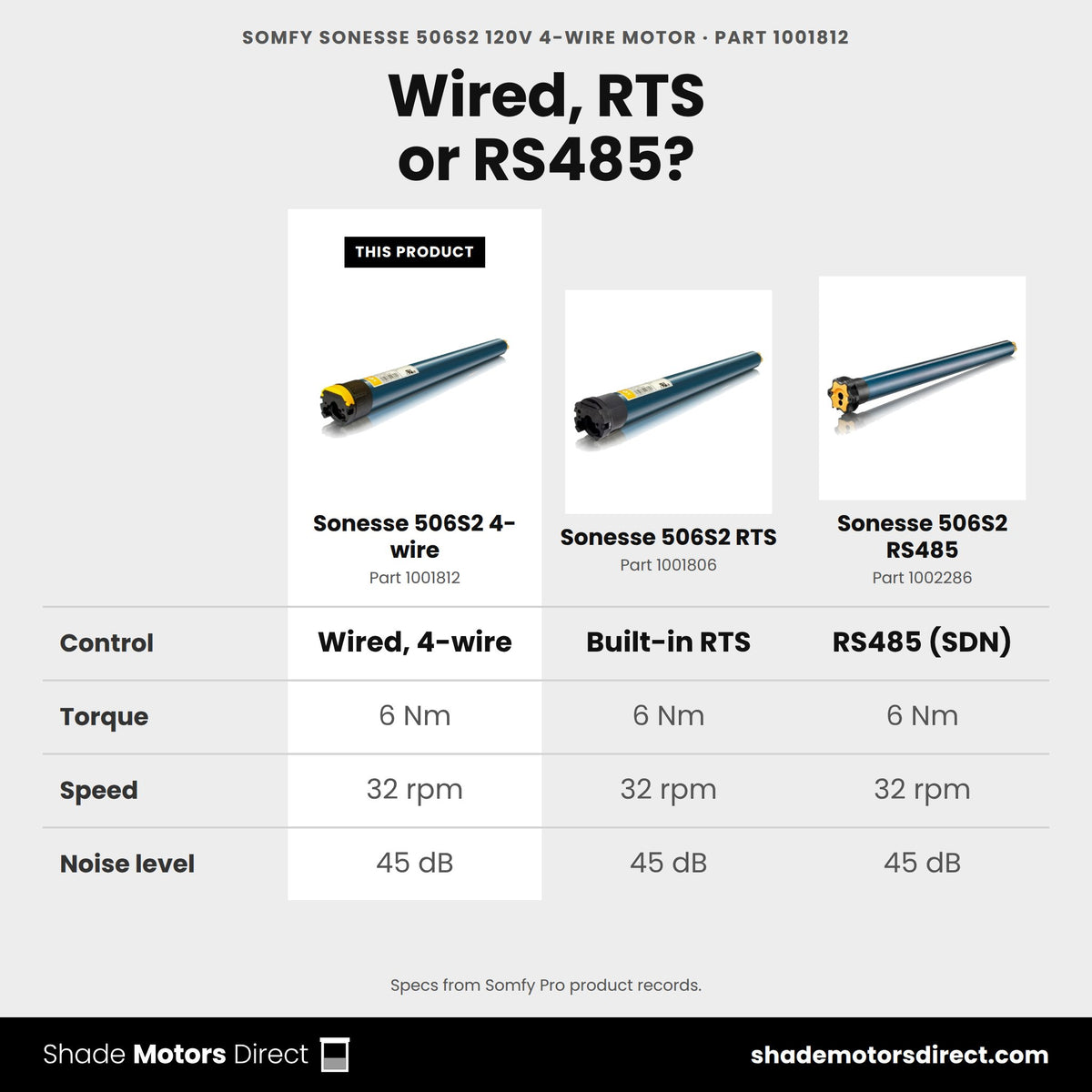

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|
Somfy Sonesse 506S2 PA Motor (1001801)
|
Somfy Sonesse 50 510S2 RH Standard 120V 4-Wire Motor (round head) (1001810)
|
Somfy Sonesse 506S2 RS485 Motor (1002286)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 10.0 | 6.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | Wired 4-wire | Wired | Wired 4-wire | RS485 (SDN) |
| Power | 120V AC | — | 120V AC | — |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, Wired control | 10.0 Nm instead of 6.0 | Same size, RS485 (SDN) control |
| Buy | Currently viewing | View details | View details | View details |
