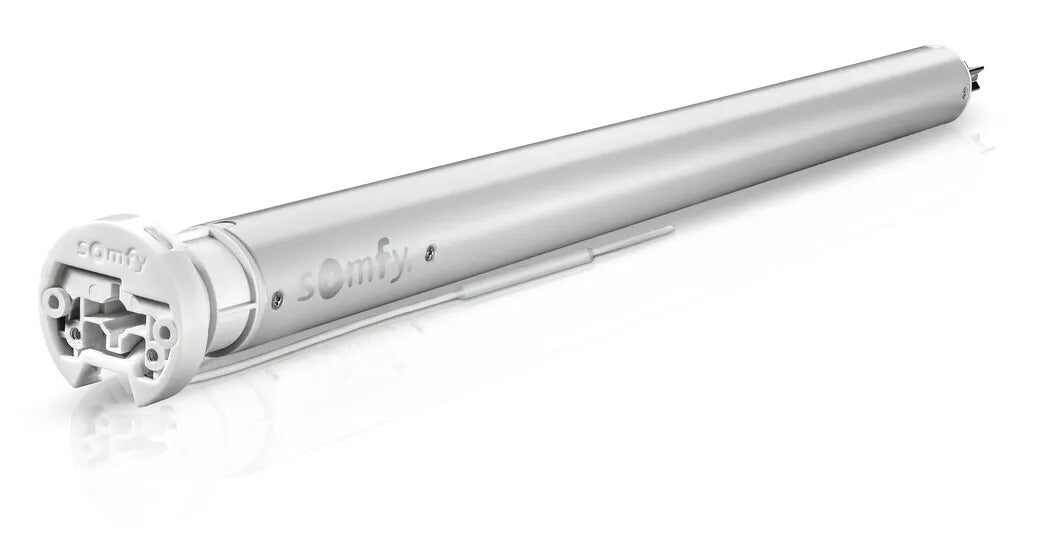

Sonesse 30 Zigbee: Somfy's compact 24V DC motor for small-diameter roller shades
The Somfy Sonesse 30 Zigbee (1241970) fits tubes with an internal diameter as small as 1.13 in, so it hides inside headrails, cassettes and tight pocket installations. It delivers 2 Nm at 25 rpm on 24V DC and runs Zigbee 3.0, so the TaHoma app shows each shade's real position.
Benefits
- Fits tubes from 1.13 in internal diameter, concealable in headrails and cassettes
- Speed regulation keeps multiple adjacent shades aligned
- Control: Zigbee 3.0 two-way control with position feedback via the TaHoma app, plus mesh network repeating
- Interchangeable, color-matched motor head covers to blend with decor
- Low-voltage 24V DC operation simplifies wiring
- Electronic limits with a 100-turn capacity
Specifications
| Torque / Speed | 2 Nm / 25 rpm |
| Overall length | 18.9 in (479 mm) |
| Minimum tube inside diameter | 1.13 in |
| Voltage | 24V DC (21.6 to 26.4 V) |
| Power | 18 W running, 0.25 W standby |
| Noise level | 47 dB |
| Radio Frequency | 2.450 GHz (Zigbee 3.0) |
| Control protocol | Zigbee 3.0 |
| Head type | Round |
| Protection index | IP 30 (interior) |
| Limits | Electronic, 100 turns |
| Warranty | 5 years |
Compatible with: Sonesse 30 crowns and drives, RollEase brackets, Somfy Ysia Zigbee remotes and the TaHoma Switch
Official Somfy documentation
Sold by ShadeMotorsDirect, an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 30 Zigbee 24V DC motor built for?
Part 1241970 drives small-diameter interior roller shades with two-way Zigbee 3.0 control. It fits tubes with an inside diameter from 1.13 in, so it can sit hidden inside headrails, cassettes and tight pocket installs.
What torque and speed does it deliver?
Somfy rates the 1241970 at 2 Nm and 25 rpm, with electronic limits and a 100-turn limit capacity. Somfy lists a noise level of 47 dB, and speed regulation helps side-by-side shades move in line.
How do I power this motor?
It runs on 24V DC, draws 0.8 A and uses 18 W in operation. The motor has a short 2-wire lead with a Weidmüller plug end. For groups of motors, Somfy offers 24V Power Distribution Enclosures for 5, 10 or 20 motors (1870196, 1870192, 1870198).
Which controls work with it?
The motor speaks Zigbee 3.0 on 2.450 GHz, so it pairs with Somfy Zigbee controls such as the Ysia 5 Channel Zigbee Remote (1871154). It does not respond to RTS remotes. Somfy lists an open-field range of 492.15 ft.
Can I control it from my phone or a voice assistant?
Yes. Pair it with a Somfy TaHoma Switch (1871037) for app control, scenes and voice assistants. Zigbee is two-way, so the app can confirm commands and show the shade's position.
How does it differ from the Sonesse 30 RTS 24V DC?
Both share 2 Nm, 25 rpm and 24V DC power. The Sonesse 30 RTS 24V DC (1241142) uses one-way RTS radio and works with Situo and DecoFlex RTS controls. This Zigbee model adds two-way feedback and mesh networking.
Couldn't load pickup availability
Replace a Sonesse 30 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1241970.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Takes the drive wheel that turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Take out the motor screws if fitted, then slide the motor out. The fabric stays on the tube.
-
3
Fit crown and drive
Fit the kit for your tube, then slide the new motor in.
-
4
Join and set limits
Add the motor to TaHoma or your Zigbee 3.0 hub, then set the limits.
Tell us your shade brand and tube size. We'll match the crown and drive kit before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Join and set limits
Add the motor to TaHoma or your Zigbee 3.0 hub, then set the limits.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sonesse 30 Zigbee 24V DC Motor needs to run
Somfy lists every part below as compatible with part 1241970. Pick one from each row.
1Control
Built-in Zigbee 3.0 radio. Pairs with Ysia remotes, DecoFlex Zigbee switches and TaHoma.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
4Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse 30 Zigbee 24V DC Motor for 5 years. We handle the claim.
Somfy warranty on the Sonesse 30 Zigbee 24V DC Motor, part 1241970.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 30 Zigbee 24V DC Motor (1241970)
|
Somfy Sonesse 30 DCT 24V DC (1241146)
|
Somfy Sonesse 30 RS485 24V DC (1241144)
|
Somfy Sonesse 30 RTS 24V DC Motor (1241142)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 2.0 | 2.0 | 2.0 | 2.0 |
| Speed (rpm) | 25 | 25 | 25 | 25 |
| Control | Zigbee | Dry contact (DCT) | RS485 (SDN) | RTS radio |
| Power | 24V DC | 24V DC | 24V DC | 24V DC |
| Motor family | Sonesse 30 | Sonesse 30 | Sonesse 30 | Sonesse 30 |
| What's different | The product on this page | Same size, Dry contact (DCT) control | Same size, RS485 (SDN) control | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
