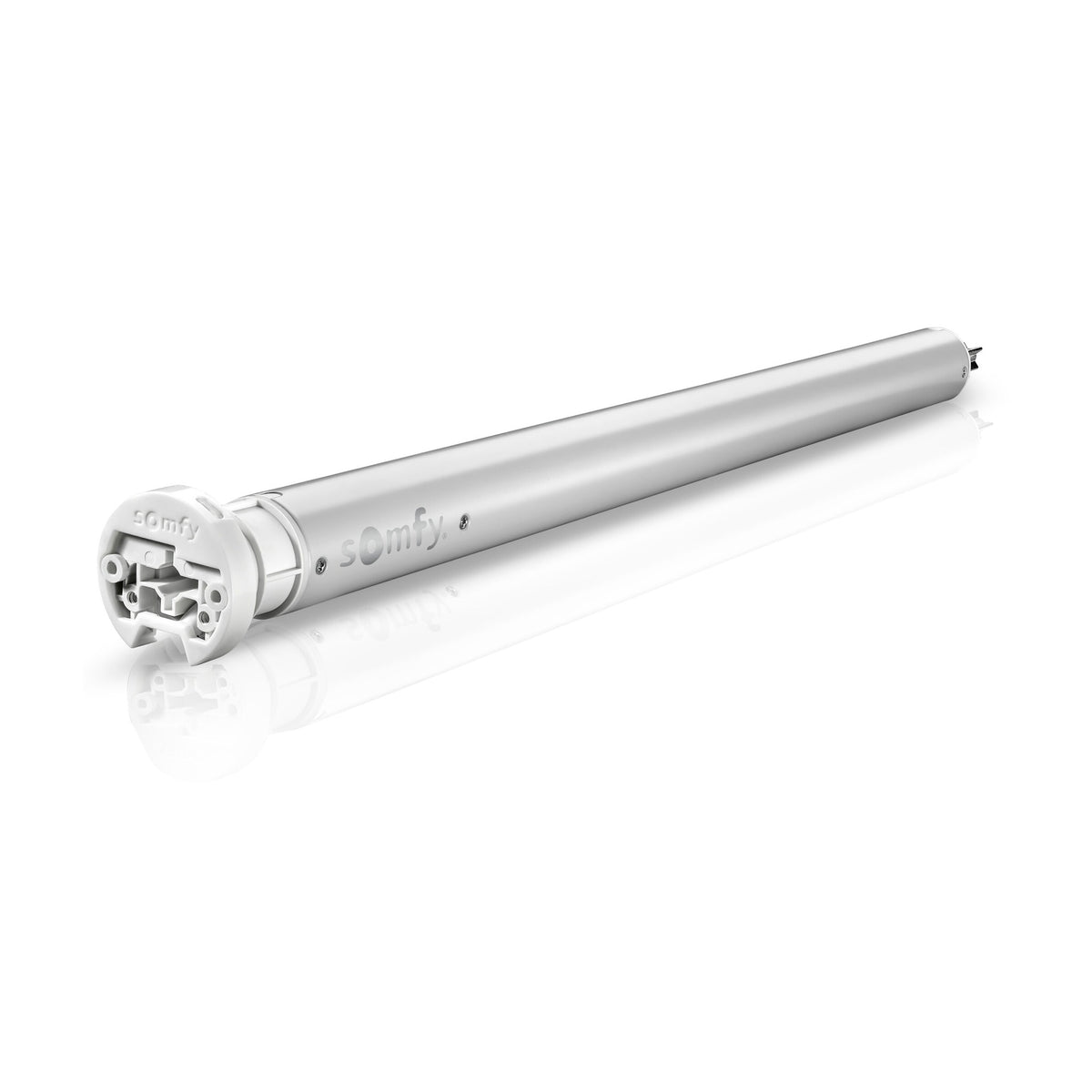

Sonesse 30 RS485 -- Somfy's compact, ultra-quiet motor for small-diameter roller shades

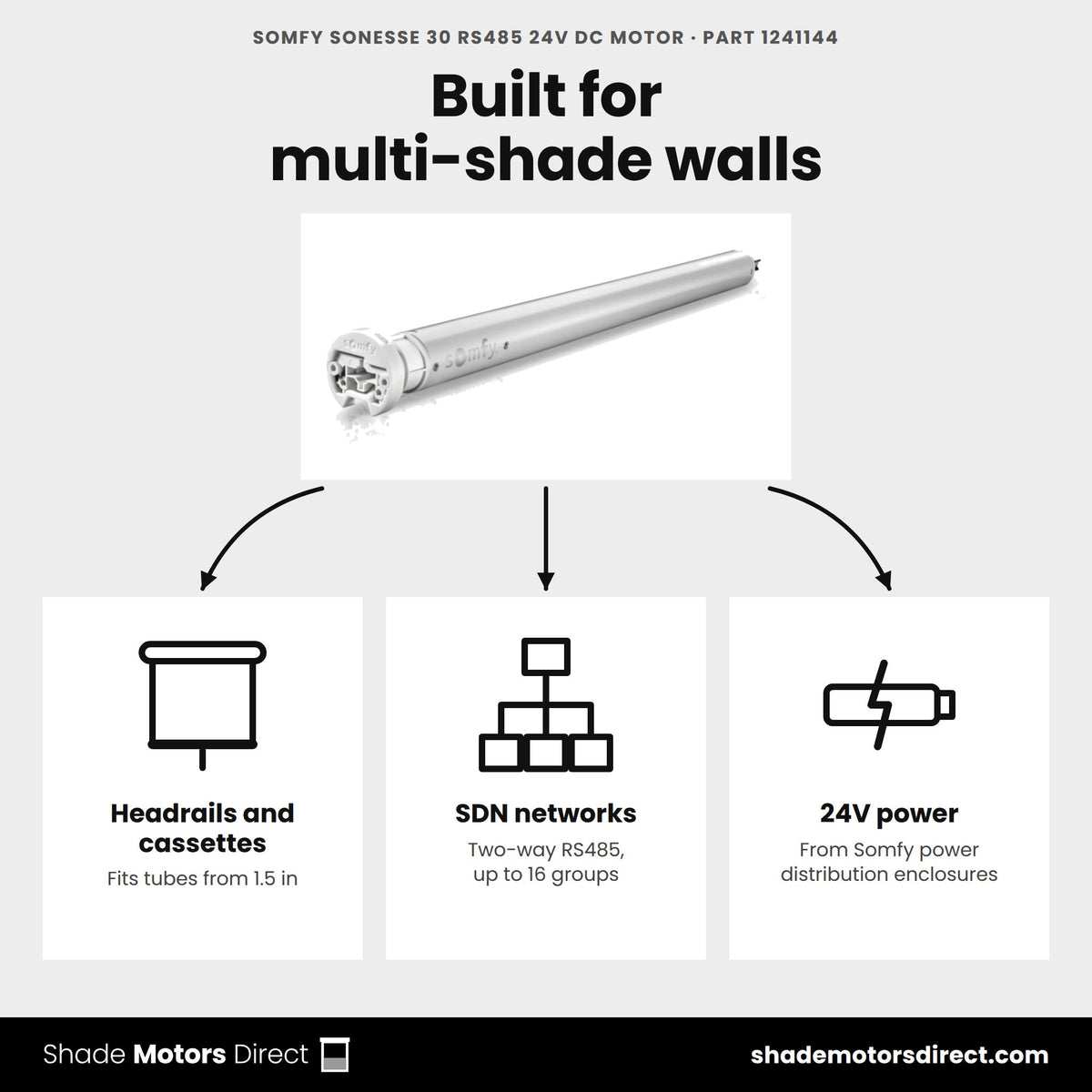

The compact, low-profile Sonesse 30 RS485 motor is designed for tubes as small as 1.5" in diameter, so it disappears inside headrails, cassettes, and tight pocket installations while still running whisper-quiet.

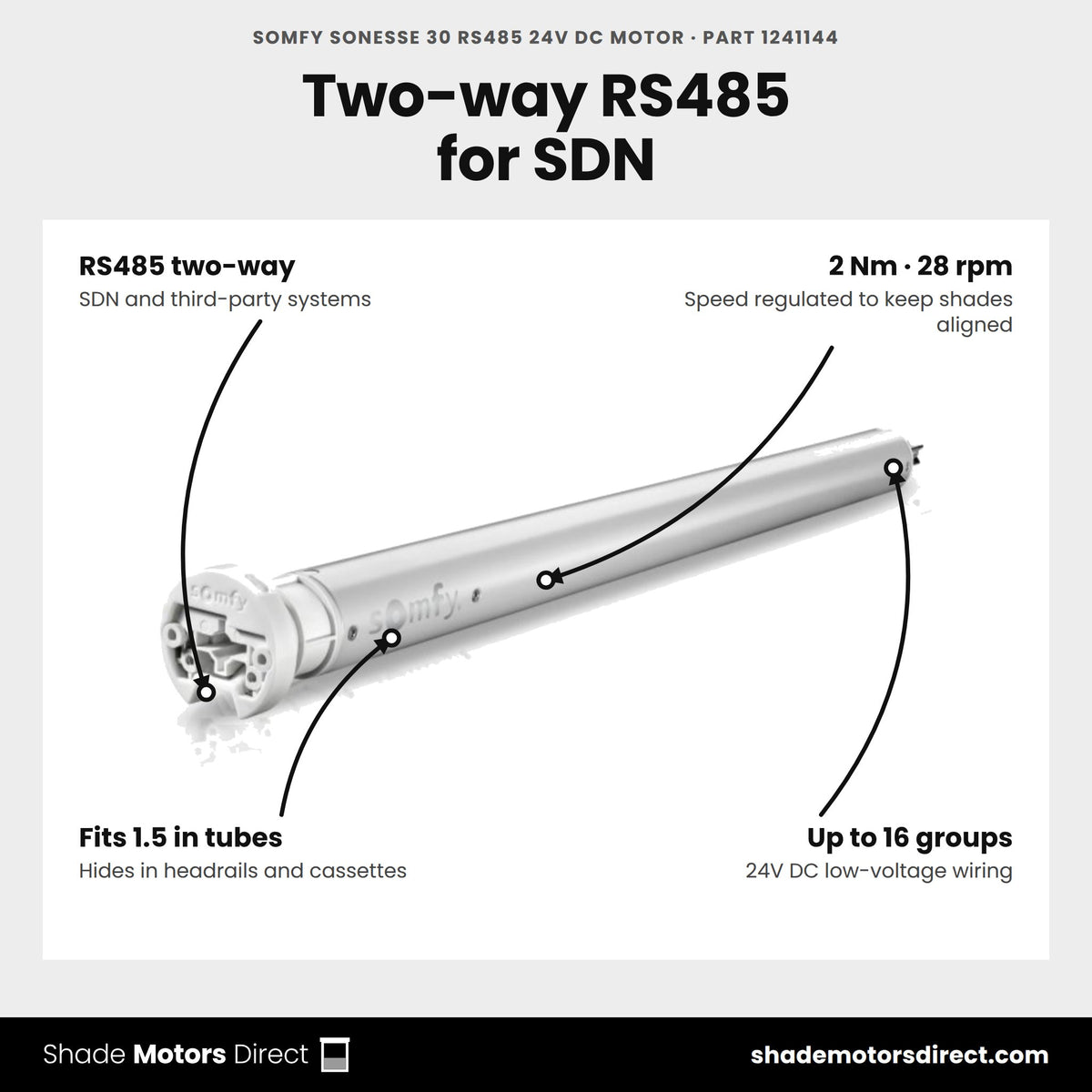

Benefits
- Fits tubes as small as 1.5" in diameter -- concealable in headrails and cassettes
- Speed regulation keeps multiple adjacent shades aligned
- Control: RS485 two-way digital communication -- integrates with Somfy Digital Network (SDN) and third-party systems, up to 16 motor groups
- Interchangeable, color-matched motor head covers to blend with decor
- Low-voltage 24V DC operation simplifies wiring
Specifications
| Torque / Speed | 2 Nm / 28 rpm |
| Minimum tube diameter | 1.5" |
| Voltage | 24V DC |
| Radio Frequency | N/A (wired) |
| Control protocol | RS485 |
| Warranty | 5 years |
Compatible with: Sonesse 30 tube, crown & drive, RollEase brackets, SDN accessories
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 30 RS485 24V DC motor used for?
Part 1241144 is a compact Somfy tubular motor for small-diameter roller shades and projection screens. It talks over an RS485 wired bus, which suits wired control networks such as Somfy Digital Network. Its low profile hides inside headrails, cassettes and tight pockets.
What torque, speed and tube size does it take?
Somfy rates the 1241144 at 2 Nm of torque and 25 rpm, with a noise level of 47 dB. It fits tubes with an inside diameter of 1.13 in or larger, and its electronic limits cover up to 125 turns.
What power and wiring does it need?
It runs on 24V DC, with an operating range of 21.6 V to 26.4 V and a rated current of 0.725 A. The motor has a 0.82 ft, 5-conductor cable that ends in a Weidmüller connector for power and RS485 data.
Which control systems work with it?
Somfy lists the 1241144 as compatible with Somfy Digital Network (SDN) and animeo IP systems. RS485 is two-way, so the system can send commands to the motor and read back its status. Third-party automation systems can integrate through the same bus.
Is there a wireless version of this motor?

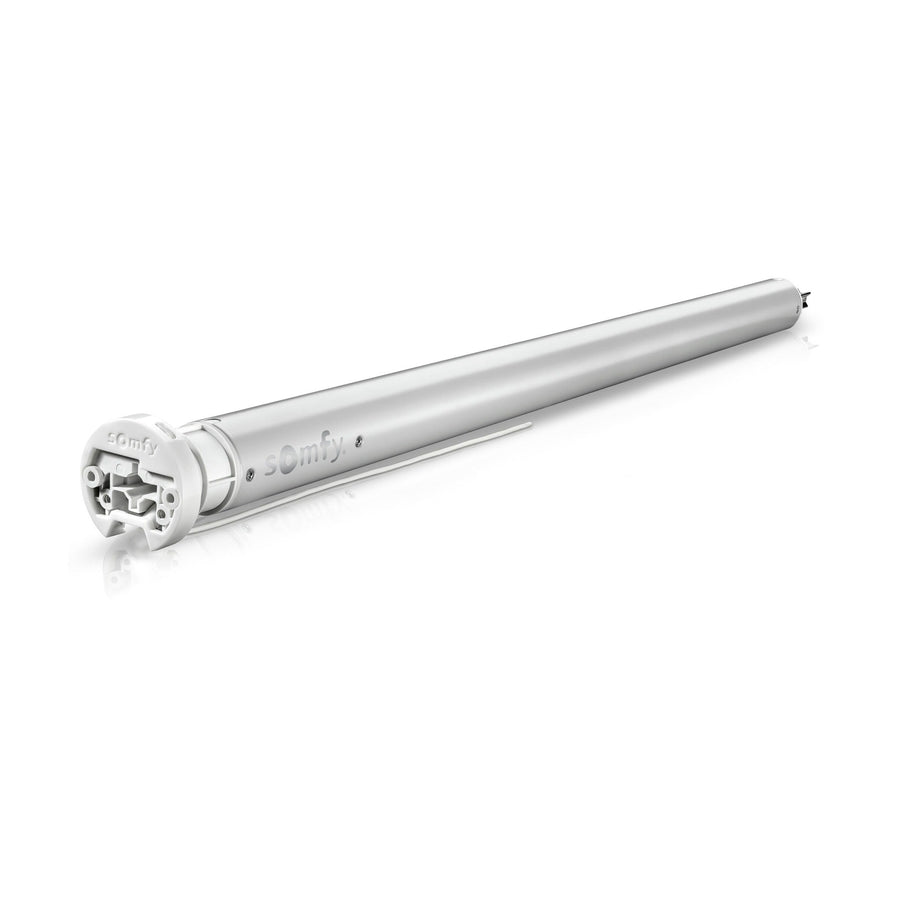

Yes. The Sonesse 30 RTS 24V DC (1241142) shares the same 2 Nm platform and adds a built-in RTS receiver, so it pairs with Somfy RTS remotes and wall switches. This RS485 model takes its commands over the wired network.
Which crowns, drives and brackets fit it?
This page lists the RollEase 1.5 in Crown and Drive (9020674), the Sonesse 30 Crown and Drive Kit for RollEase 2 in tubes (9021017) and the Motor Adaptor Plate for RollEase SkyLine and ZMC XL brackets (9016378). Match the set to your tube and bracket system.
Couldn't load pickup availability
Replace a Sonesse 30 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1241144.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Takes the drive wheel that turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Take out the motor screws if fitted, then slide the motor out. The fabric stays on the tube.
-
3
Fit crown and drive
Fit the kit for your tube, then slide the new motor in.
-
4
Connect to SDN
Plug in the RS485 data cable and address the motor on your Somfy Digital Network.
Tell us your shade brand and tube size. We'll match the crown and drive kit before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Connect to SDN
Plug in the RS485 data cable and address the motor on your Somfy Digital Network.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us

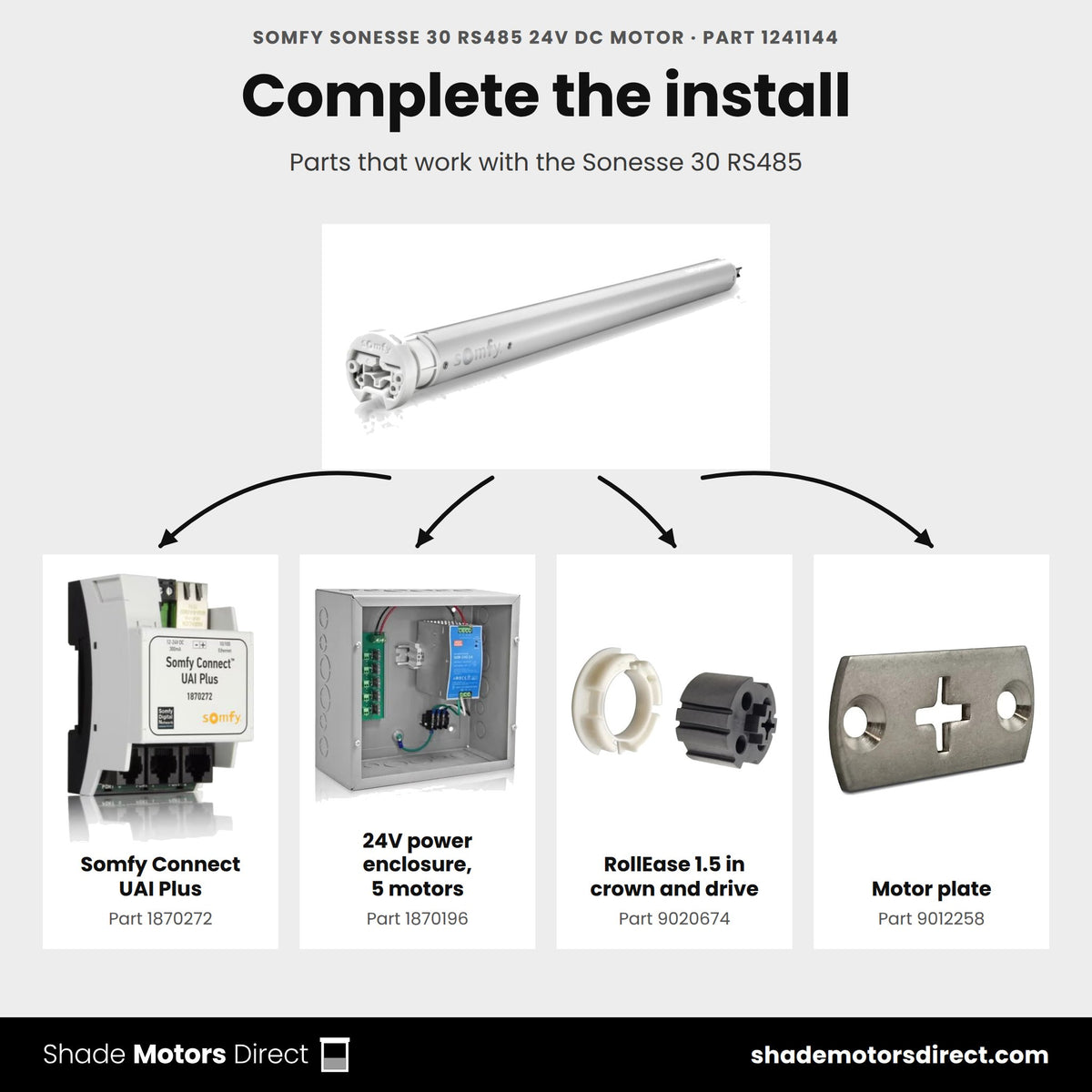

What the Sonesse 30 RS485 24V DC needs to run
Somfy lists every part below as compatible with part 1241144. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse 30 RS485 24V DC for 5 years. We handle the claim.
Somfy warranty on the Sonesse 30 RS485 24V DC, part 1241144.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

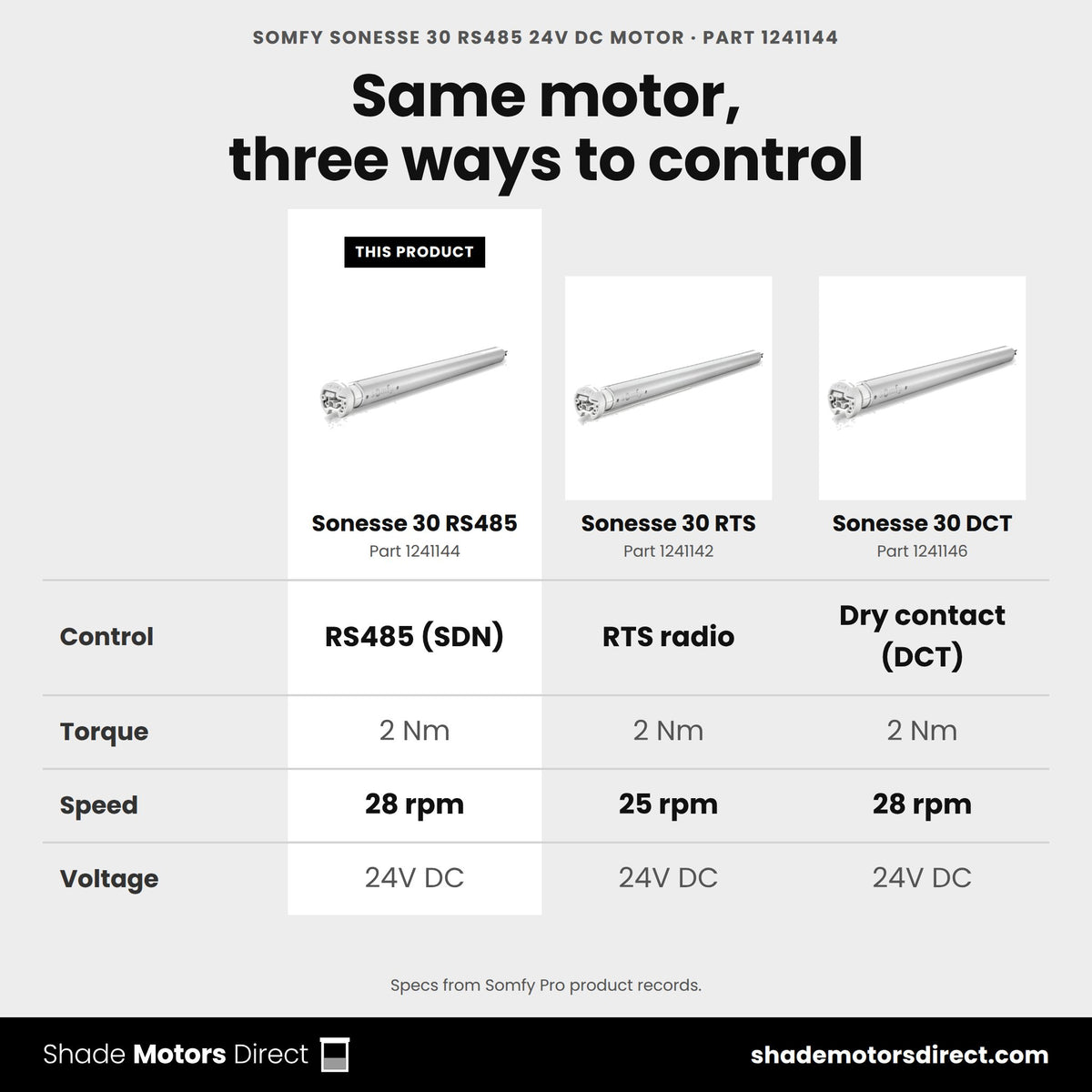

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 30 RS485 24V DC (1241144)
|
Somfy Sonesse 30 DCT 24V DC (1241146)
|
Somfy Sonesse 30 RTS 24V DC Motor (1241142)
|
Somfy Sonesse 30 WireFree 12V Rechargeable Li-ion RTS Motor (2Nm, 10-28rpm) (1003128)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 2.0 | 2.0 | 2.0 | 2.0 |
| Speed (rpm) | 25 | 25 | 25 | — |
| Control | RS485 (SDN) | Dry contact (DCT) | RTS radio | RTS radio |
| Power | 24V DC | 24V DC | 24V DC | Li-ion battery |
| Motor family | Sonesse 30 | Sonesse 30 | Sonesse 30 | Sonesse 30 |
| What's different | The product on this page | Same size, Dry contact (DCT) control | Same size, RTS radio control | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
