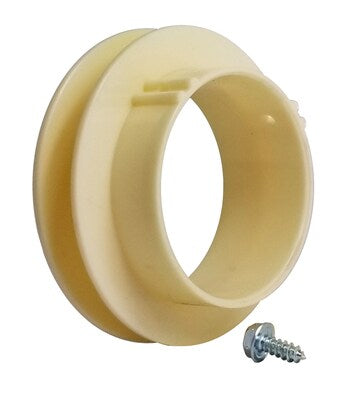

Somfy Cord Take-Up Reel for RollEase 1.5" Tube -- the lift-cord spool for motorized Roman shades
The Cord Take-Up Reel (1780786) is Somfy's tape or cord spool for RollEase and ZMC XL Series 1.5 inch tubes. It fits onto the tube and winds each lift cord or tape as the tube turns, so a motorized Roman shade raises evenly. Somfy lists it for 42 motors in the Sonesse 28, 30 and 40, Roll Up 28 and 30, Altus RTS and Sonesse ULTRA 30 families.
Benefits
- Winds lift cord or tape evenly for a level Roman shade
- Sized for RollEase and ZMC XL Series 1.5 inch tubes
- Works across RTS, Zigbee, WireFree, wired, RS485, DCT and PoE motors in the 1.5 inch tube range
- Use one reel per lift cord or tape position
- Genuine Somfy part, backed by a 5-year warranty
Specifications
| Part type | Cord / tape take-up reel |
| Application | Roman shades, cord and tape lift |
| Tube | RollEase and ZMC XL Series 1.5 inch tube |
| Genuine part | Somfy 1780786 |
| Warranty | 5 years |
Compatible with: RollEase and ZMC XL Series 1.5 inch tubes driven by Somfy Sonesse 28 WireFree, Sonesse 30 (RTS, Zigbee, RS485, DCT, PoE, WireFree), Sonesse ULTRA 30 WireFree, Sonesse 40 (RTS, WT, Zigbee, RS485, PoE, WireFree), Altus RTS 404S2/409R2, 412R2 and Roll Up 28 / Roll Up 30 motors
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Cord Take-Up Reel do?
Part 1780786 is a spool that fits a 1.5 inch RollEase or ZMC XL Series tube. As the motor turns the tube, the reel winds the shade's lift cord or tape, so a motorized Roman shade rises and lowers evenly.
Which tubes does it fit?
Somfy lists it for RollEase and ZMC XL Series 1.5 inch tube systems. It is not sized for 2 inch tubes, so confirm the tube diameter and system before ordering.
Which motors can drive a shade that uses it?
Somfy lists 42 compatible motors, all sized for the 1.5 inch tube range. They include Sonesse 28 WireFree, Sonesse 30 and ULTRA 30, Sonesse 40, Altus RTS 404S2 and 409R2, and Roll Up 28 and Roll Up 30 motors in RTS, Zigbee, wired, RS485, DCT and PoE versions.
How many reels does a Roman shade need?
Plan on one reel for each lift cord or tape on the shade, spaced along the tube to line up with the cords. Count the lift points on the shade before ordering.
What else goes on a 1.5 inch RollEase tube?
This store carries the RollEase 1.5 inch Bracket Kit R8 Series (9012311), the Heavy Duty Spring Idler End Pin (9017912), the Sonesse 30-40 RollEase Motor Plate (9026001) and the 1.5 inch (40mm) Fabric Cord Clip (9012200).
Is this a genuine Somfy part?
Yes. This is genuine Somfy part 1780786, and Somfy backs it with a 5-year warranty. Somfy's own description calls it a RollEase 1.5 inch tube tape or cord take-up spool for Roman shade applications.
Couldn't load pickup availability
Replace a cracked bracket or mount a new shade.
123- 1Cord groove Winds up the lift cord.
- 2Center opening Sized for a 1.5 inch tube.
- 3Screw Fastens the reel in place.
Replacing one
-
1
Support the shade
Cut power and lift the roller out of the old bracket.
-
2
Swap the bracket
Unscrew the old bracket and mount the Cord Take-Up Reel for RollEase 1.5" Tube in the same spot.
-
3
Seat the shade
Clip or pin the motor head and idle end back in.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the motor head
Match the bracket to your motor head: star, round or a brand fitting.
-
2
Mount it
Screw the bracket to the wall, ceiling or headrail.
-
3
Seat the shade
Clip or pin the motor head and idle end into their brackets.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Cord Take-Up Reel for RollEase 1.5" Tube works with
Somfy lists these motors as compatible with part 1780786.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Cord Take-Up Reel for RollEase 1.5" Tube for 5 years. We handle the claim.
Somfy warranty on the Cord Take-Up Reel for RollEase 1.5" Tube, part 1780786.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- WireFree Databook (PDF)
