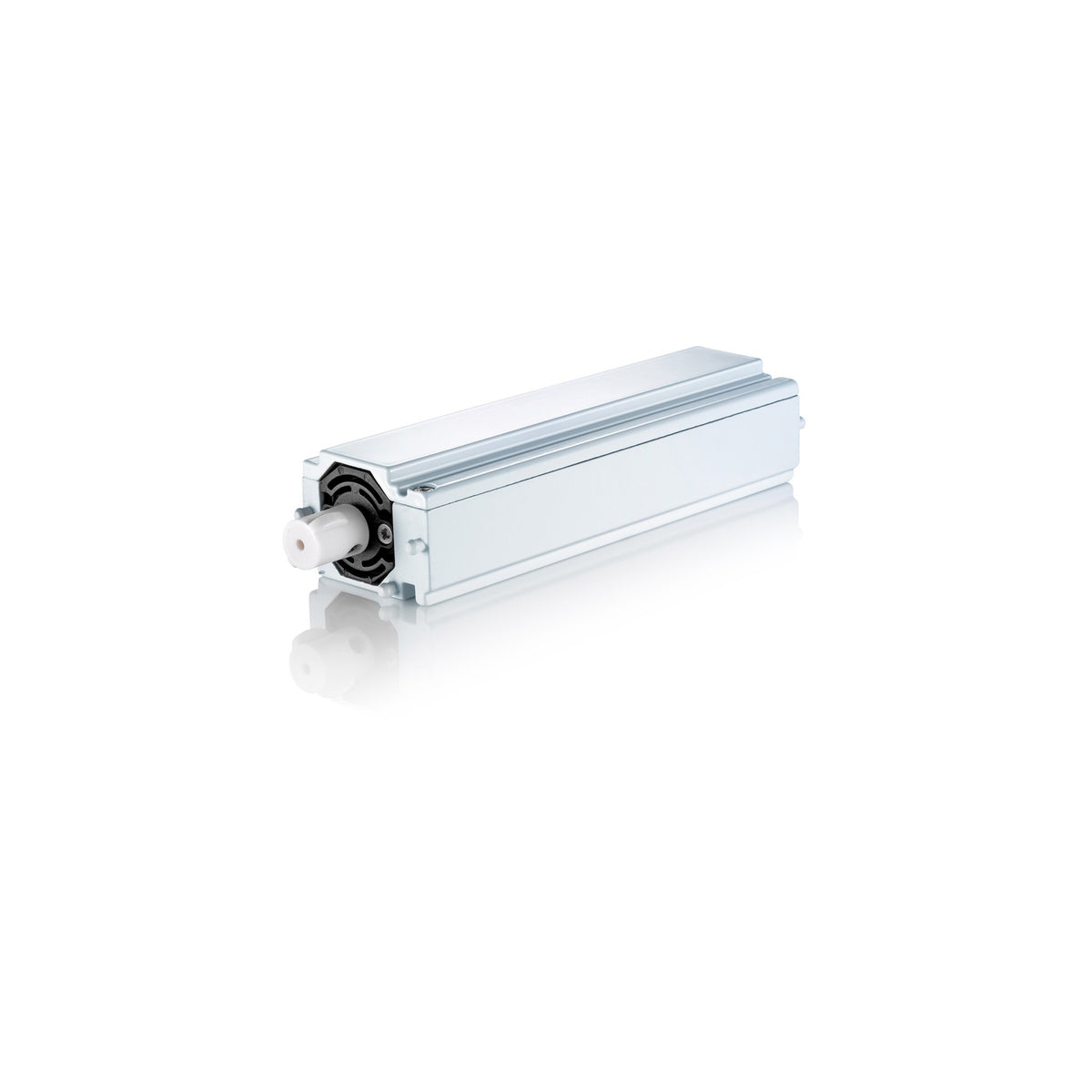

Cord Lift WireFree CL32 RTS (External Battery) -- battery-powered lift for cellular, pleated, and Roman shades
The CL32 cord lift motor raises and lowers cord-lifted shades up to 15 lbs, including honeycomb/cellular, pleated, and Roman styles. It installs in the headrail in minutes with no electrician, runs on Somfy external battery power, and is a direct replacement for the older CT32 motor using the same headrail and drive components.
Benefits
- Lifts honeycomb/cellular, pleated, and Roman shades up to 15 lbs
- Direct replacement for the legacy CT32 (1000494) -- same size, same headrail and drive components
- Installs in minutes; no wiring or electrician required
- Fits many manufacturer headrails with headrail and shaft adaptors (sold separately)
- Full RTS control -- remotes, wall switches, timers, sensors, and TaHoma
- Backed by Somfy's 5-year warranty

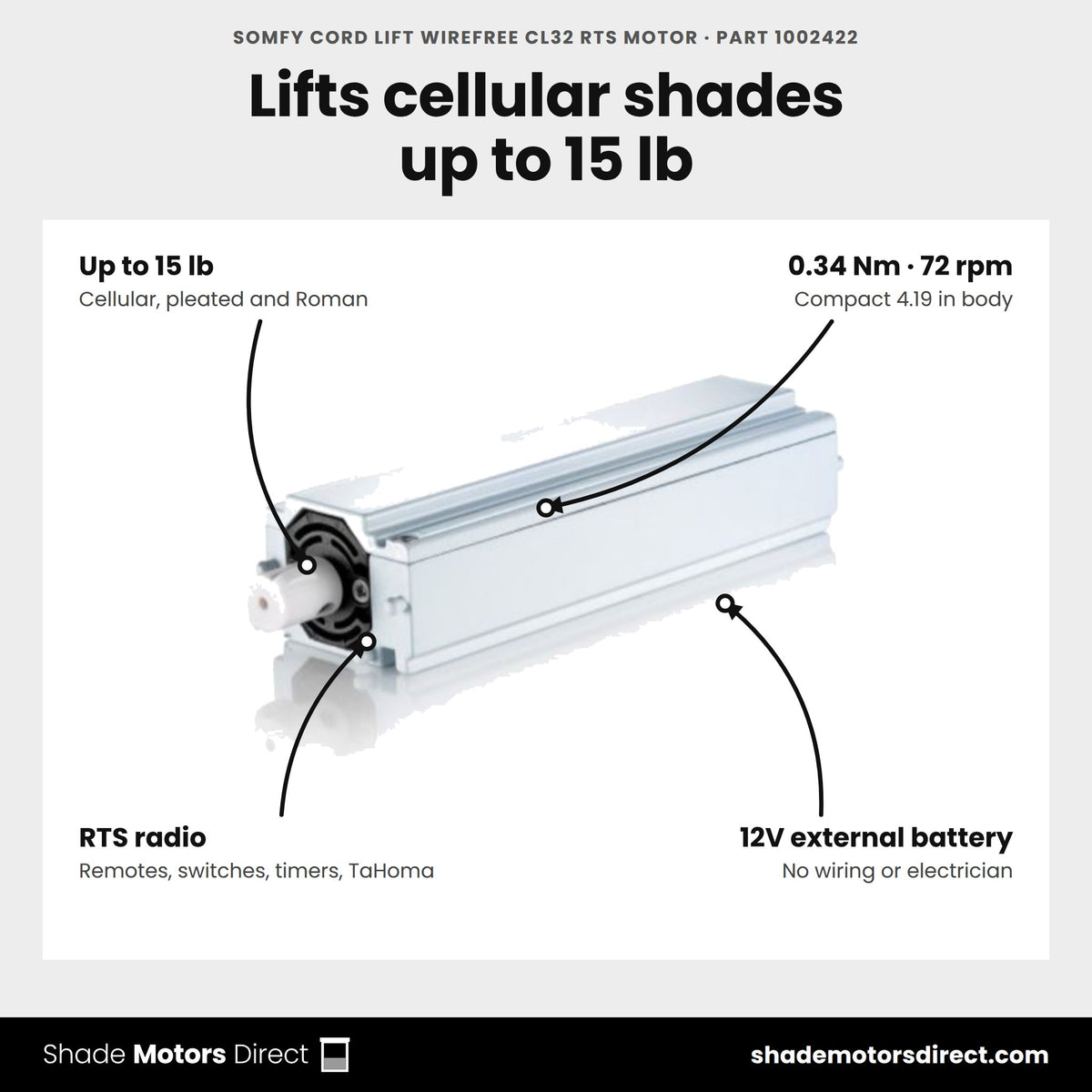

Specifications
| Torque / Speed | 0.34 Nm / 72 rpm |
| Lift capacity | Up to 15 lbs |
| Power | 12V DC external battery |
| Control | RTS radio, 433.42 MHz |
| Dimensions | 4.19" L x 1.25" W x 1.23" H |
| Warranty | 5 years |
Compatible with: Somfy RTS controls, Li-ion battery pack 9021217, reloadable battery tube 9018685, headrail adaptors including Graber/Bali EasyUp 9013288
Official Somfy documentation
- Cord Lift WireFree CL32 RTS – Somfy Pro Product Page
- WireFree Databook (PDF)
- RTS Pocket Programming Guide (PDF)
- WireFree Power Supply Compatibility Matrix (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What shades does the Cord Lift WireFree CL32 RTS motor lift?
Part 1002422 is a battery-powered lift motor that Somfy recommends for cellular, pleated and Roman shades. It installs in the headrail in minutes, which suits hard-to-reach windows and rooms where running wire is a challenge.
What are its torque and speed ratings?
Somfy rates the CL32 at 0.34 Nm of torque and 72 rpm, with a noise level of 56 dB. It runs on 12V DC within a 9 V to 14 V range and draws a rated 1.7 A.
How do I power it?
The CL32 uses an external 12V DC battery. Somfy lists the Rechargeable Lithium-ion Battery Pack (9021217) and the Reloadable 12V DC Battery Wand (9018685), which holds AA lithium batteries, among its power options. Somfy lists solar panels as accessories as well.
Will it fit my shade's headrail?
Somfy offers shaft and headrail adaptors for several shade brands, including Comfortex, Turnils and Graber/Bali. For Graber/Bali EasyUp cord loop headrails, use the Somfy Headrail Adaptor (9013288), which Somfy makes for the CL32.
Which controls work with it?
Any Somfy RTS transmitter pairs with it, including Situo RTS remotes, Telis RTS remotes, DecoFlex RTS wall switches and the Telis 1 Chronis RTS timer (1805237). Somfy rates the CL32's radio range at 65.62 ft in open field, so keep controls within that distance.
Can I add app or voice control?
Yes. Somfy lists the TaHoma Switch as compatible with the CL32. The TaHoma Switch RTS and Zigbee Smart Hub (1871037) adds app control, schedules and voice commands for your cord lift shades.
Couldn't load pickup availability
Replace a cord lift motor or motorize a cellular shade for the first time.
Both jobs start at the headrail. The steps for each are below.
12- 1Output shaft Turns the lift drums.
- 2Motor body Sits inside the headrail.
Replacing a motor
-
1
Take the shade down
Lift the headrail out of its brackets and lay it flat.
-
2
Remove the old motor
Unhook the lift cords and lift the old motor out of the headrail.
-
3
Fit the new motor
Set the Cord Lift WireFree CL32 RTS in the headrail and connect the lift cords.
-
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.
Tell us your shade brand and headrail size. We'll confirm the motor and adapter before you order. Ask us
Motorizing a shade
-
1
Check the headrail
Tell us the shade brand and headrail size. Some need an adapter.
-
2
Fit the motor
Set the Cord Lift WireFree CL32 RTS in the headrail and connect the lift cords.
-
3
Add power
Mount the battery pack or power supply on or behind the headrail.
-
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

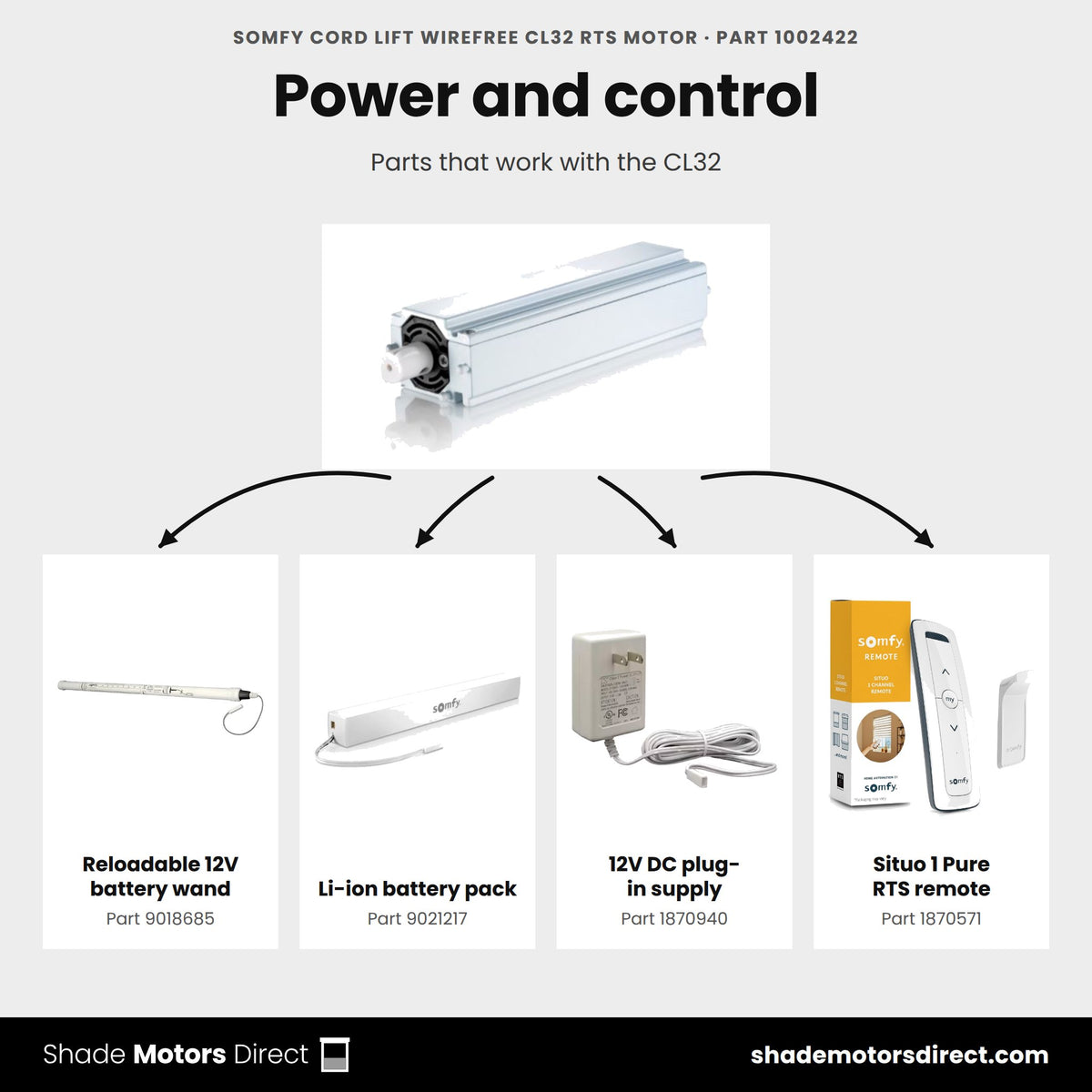

What the Cord Lift WireFree CL32 RTS needs to run
Somfy lists every part below as compatible with part 1002422. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Power
Cables, chargers and power made for this motor.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Cord Lift WireFree CL32 RTS for 5 years. We handle the claim.
Somfy warranty on the Cord Lift WireFree CL32 RTS, part 1002422.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

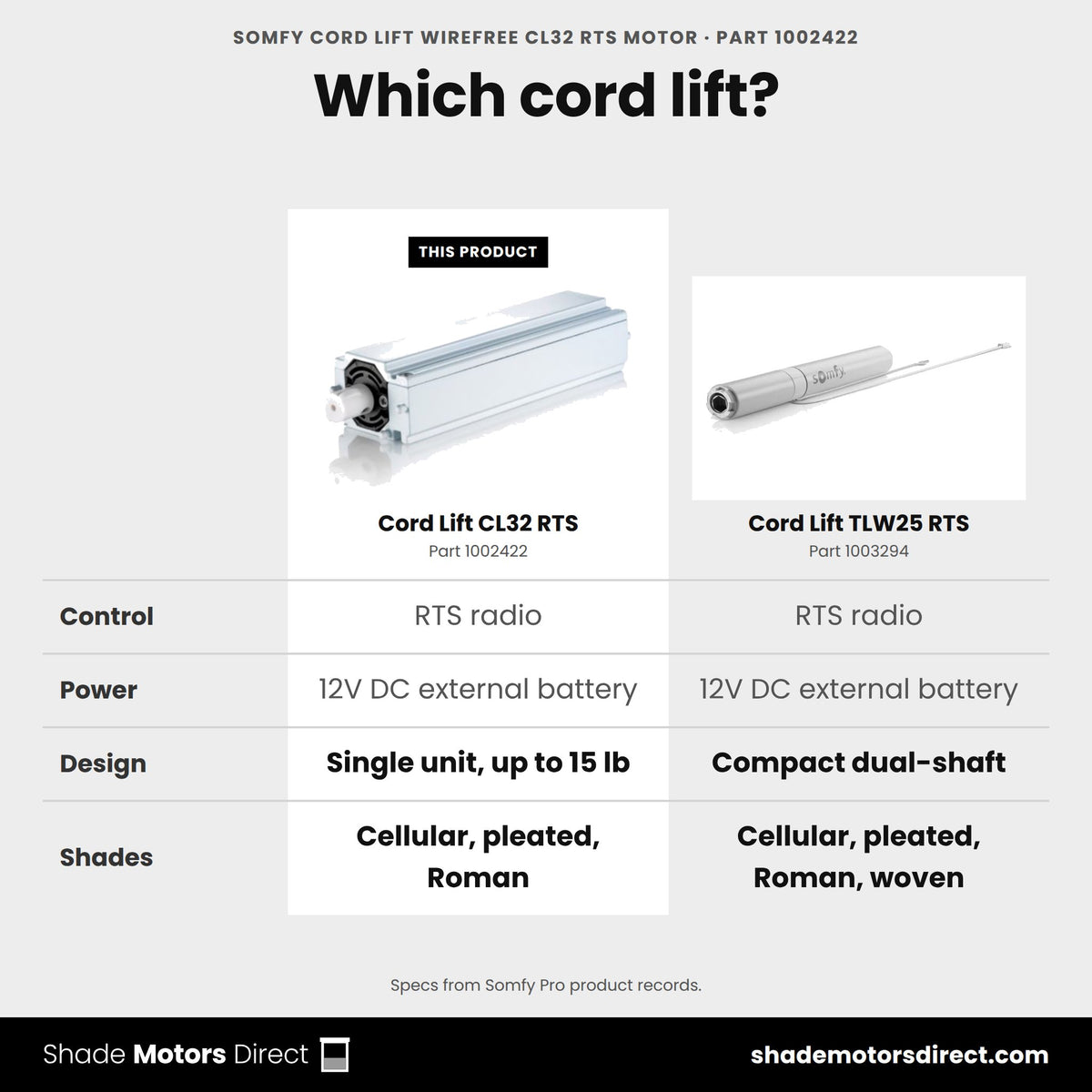

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Cord Lift WireFree CL32 RTS (External Battery) (1002422)
|
Somfy Cord Lift WireFree TLW25 RTS (External Battery) (1003294)
|
Somfy Cord Lift TLW25 WireFree Zigbee Motor, External Battery (1241780)
|
|---|---|---|---|
| Price | |||
| Torque (Nm) | 0.34 | — | 0.8 |
| Speed (rpm) | 72 | — | 30 |
| Max load (lb) | 15 | — | — |
| Control | RTS radio | RTS radio | Zigbee 3.0 |
| Power | 12V DC battery | 12V DC battery | External 12V DC (battery, solar or plug-in) |
| Motor family | Cord Lift CL32 | Cord Lift TLW25 | Cord Lift 25 |
| What's different | The product on this page | Close alternative | 0.8 Nm instead of 0.34, Zigbee 3.0 |
| Buy | Currently viewing | View details | View details |
